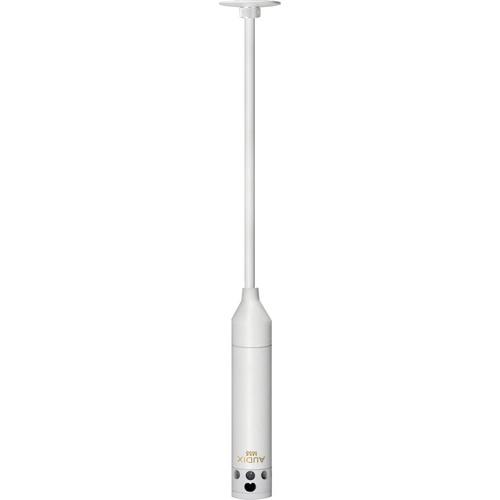

User Manual for Audix M55WHC Hypercardioid Hanging Ceiling Microphone with Height Adjustment Click to enlarge the picture
Contents of the user manual for the Audix M55WHC Hypercardioid Hanging Ceiling Microphone
- Product category: Hanging Microphones Audix
- Brand: Audix
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Audix Hanging Microphones
|
User manual for the Audix M55WHC Hypercardioid Hanging Ceiling Microphone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Audix product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Audix user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Audix product will considerably shorten its lifespan!
|
Product description The white M55WHC Hypercardioid Hanging Ceiling Microphone with Height Adjustment from Audix is designed for applications where sound quality and ease of installation are critical, such as in boardrooms, lecture halls, churches, and learning centers.The M55 accommodates optional interchangeable capsules with cardioid, hypercardioid, omnidirectional, and supercardioid (shotgun) coverage patterns (sold separately). All electronics are fully integrated with high sensitivity and low noise and are equipped with a balanced signal output for inhibiting RF interference from cell phones and GSM devices.Installation requires drilling one 5/8" hole in the ceiling with no additional tools needed. The adjustable mounting hardware allows the mic to hang up to 4' from the ceiling surface without removing the ceiling tiles. An optional aiming clip (sold separately) provides additional angular adjustments. The cable assembly features a solderless Phoenix connector and is housed in an airtight, plenum-rated junction box. A seismic restraint safety cable is also provided. - High output for distance miking
- Optimized for voice recognition
- Immunity from RF interference
- Fingertip height adjustment and rotation control
- Low noise preamp circuitry
- Hypercardioid polar pattern
- Metal plenum junction box with seismic and fire safety cable restraint
Applications - Video teleconferencing (VIC)
- Hospital and medical procedures
UPC: 687471292280 In the Box Audix M55WHC Hypercardioid Hanging Ceiling Microphone with Height Adjustment CONN-170F, 1' Integrated Cable with Phoenix Connector CONN-170M Mating Terminal Connector for Solderless Connection JBM55 Metal Plenum Junction Box/Seismic and Safety Cable Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Audix M55WHC Hypercardioid Hanging Ceiling Microphone with Height Adjustment in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAudix M55 Specs | Transducer Type | Condenser | | Frequency Response | 60 Hz to 10 kHz | | Polar Pattern | Hypercardioid | | Output Impedance | 150 Ohms | | Sensitivity | 32 mV/Pa @ 1 kHz | | Equivalent Noise Level | 22 dB (A-Weighted) | | Signal to Noise Ratio | 72 dB | | Maximum SPL for 0.5% THD | ≥130 dB | | Dynamic Range | 108 dB | | Power Requirement | Phantom Power: 18 to 52 V | | Connector | Phoenix | | Polarity | Positive pressure on diaphragm produces positive voltage on pin 2 relative to pin 3 | | Material of Construction | Aluminum and zinc alloy | | Length | Mic: 2.1" / 5.4 cm
Cable Max Adjustable Length: 4' / 121.9 cm | | Weight | Mic and Cable: 2.5 oz / 70.0 g
Junction Box and Safety Cable: 17.6 oz / 499 g |
