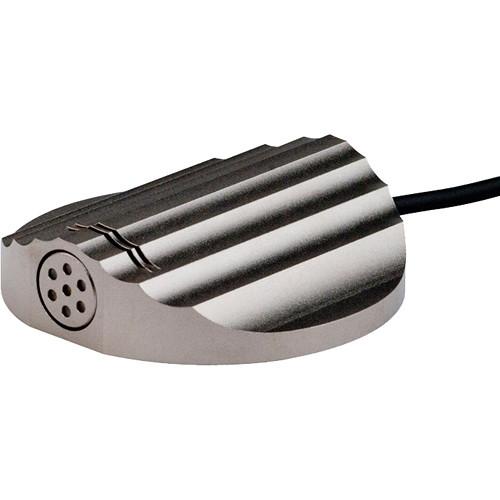

User Manual for Audix M60N Low-Profile Boundary Microphone Click to enlarge the picture
Contents of the user manual for the Audix M60N Low-Profile Boundary Microphone
- Product category: Boundary Microphones Audix
- Brand: Audix
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Audix Boundary Microphones
|
User manual for the Audix M60N Low-Profile Boundary Microphone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Audix product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Audix user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Audix product will considerably shorten its lifespan!
|
Product description The satin-nickel M60N Low-Profile Boundary Microphone from Audix is a miniaturized, half-cardioid condenser microphone with fully integrated electronics and immunity from RF interference typically caused by cell phones and Global System for Mobile Communication (GSM) devices. It can be used to capture audio for podiums, corporate boardrooms, meetings, and video conferencing applications. Half-cardioid or hemi-cardioid means the microphone exhibits a cardioid polar pattern in the half-sphere of space created by the mounting surface, helping to focus the audio capture on the speaker above the microphone.A high-quality 12' shielded mic cable is attached directly to the internal circuitry of the M60 with the ability to exit the housing at either 180 or 90 degrees, depending on whether the cable will be routed through a drilled surface. The cable terminates in a 3-pin XLR male connector. UPC: 687471292310 In the Box Audix M60N Low-Profile Boundary Microphone (Satin Nickel) Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Audix M60N Low-Profile Boundary Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAudix M60 Specs | | | Sound Field | Mono | | Transducer | Condenser | | Polar Pattern | Cardioid | | Frequency Range | 70 Hz to 8 kHz | | Signal to Noise Ratio | 72 dB A-Weighted | | Equivalent Noise Level | 22 dB A-Weighted | | Maximum SPL | 130 dB SPL Peak | | Impedance | 150 Ohms | | Sensitivity | 68 mV/Pa at 1 kHz | | Low-Cut Filter | None | | Dynamic Range | 108 dB A-Weighted | | | | Output Connectors | 1 x 3-Pin XLR | | Cable Length | 12' / 3.66 m | | Operating Voltage | 18 to 52 V | | Weight | 8.18 oz / 232 g |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 03 owners. Add your rating and experience with the product.
