User manual
Audix MB8450 Microboom Kit with 2

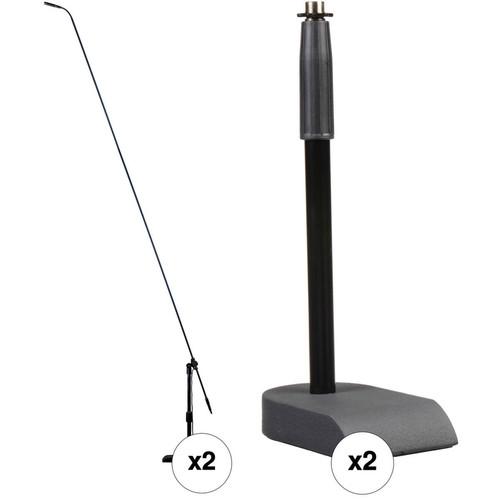

User Manual for Audix MB8450 Microboom Kit with 2 Mics, 2 50" Goosenecks & 2 Heavy-Duty Stands

• Product category: Small Diaphragm Condenser Audix
• Brand: Audix
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Audix Small Diaphragm Condenser

Product description

• 2 x Audix MB8450 MicroBoom System 50" Gooseneck Condenser Microphone (Black, Cardioid) The black Audix MB8450 MicroBoom System is an 84" gooseneck cardioid condenser microphone designed to provide clean sound pick-up and versatile positioning for audio engineers and performers in concert venues, houses of worship, and live stage applications. It features an M1250B cardioid miniature condenser mic attached to a lightweight carbon fiber rod with a flexible metal gooseneck, yielding efficient and stable positioning while maintaining a sleek appearance.The shielded internal cable minimizes RFI and terminates to a mini-XLR connection at the base. The included mic stand adapter allows easy attachment to your preferred microphone stand. The supplied windscreen reduces noise from wind and breaths. The MB8450 includes a 25' mini-XLR to standard XLR mic cable.
  • Lightweight, rigid construction
  • Portable and easy to position
  • Interchangeable capsule design (accepts Micro Series)
  • 50 Hz to 19 kHz frequency response
  • No external power adapter needed
  • Attaches to a wide variety of mic stands
  • Can be used horizontally or vertically
  • Designed, assembled, manufactured, and tested in the USA
  UPC: 687471292006
• 2 x Audix MB-STAND Heavy-Duty Pedestal Stand for MicroBoom The AKG Audix MB-STAND Heavy-Duty Pedestal Stand for MicroBoom is an optional microphone stand for the Audix MicroBoom carbon fiber boom system. Specially designed for low profile use, the MB-STAND lets you use the MicroBoom in the vertical position for awards-style presentations.
  Low Profile Design
  • The MB-STAND's low profile design lets you use the MicroBoom in the vertical position for awards-style presentations.
  Adjustable
  • The MB-STAND easily adjusts from 13 to 21" in height.
  UPC: 687471511008

• 2 x MB8450 MicroBoom System 50" Gooseneck Condenser Microphone (Black, Cardioid) vzdzdrtrvuwsfzvrsyq
• Clutch Assembly
• 25' / 7.62m Shielded Microphone Cable
• Windscreen
• Limited 3-Year Warranty
• Limited 1-Year Warranty for Boom

• 2 x MB-STAND Heavy-Duty Pedestal Stand for MicroBoom

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• 2 x Audix MB8450 MicroBoom System 50" Gooseneck Condenser Microphone (Black, Cardioid)

  Sound Field	Mono
  Operating Principle	Pressure Gradient
  Transducer	Condenser
  Tube	No
  Polar Pattern	Cardioid
  Frequency Range	50 Hz to 19 kHz
  Signal to Noise Ratio	73 dB
  Equivalent Noise Level	21 dB A-Weighted
  Maximum SPL	140 dB SPL
  Pad	None
  THD	0.5%
  Impedance	150 Ohms
  Sensitivity	10 mV/Pa at 1 kHz
  Low-Cut Filter	None
  Dynamic Range	119 dB

  Output Connectors	1 x 3-Pin XLR
  Operating Voltage	18 to 52 V
  Length	84.02" / 2134 mm
  Diameter	0.29" / 7.4 mm
  Weight	3.92 oz / 111 g

  Box Dimensions (LxWxH)	86.0 x 5.0 x 5.0"

• 2 x Audix MB-STAND Heavy-Duty Pedestal Stand for MicroBoom

  Height	12.8 to 21" / 32.5 to 53 cm
  Base Type	Triangle

  Material	Iron, Steel
  Weight	6.5 lb / 2.9 kg

  Box Dimensions (LxWxH)	12.9 x 5.8 x 2.1"
