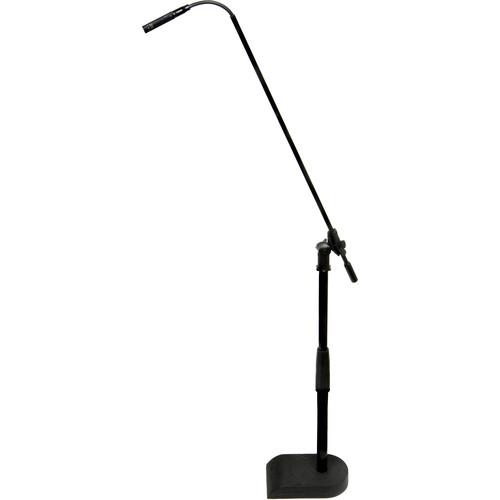

Audix MicroBoom 24" Carbon Fiber Boom

User Manual for Audix MicroBoom 24" Carbon Fiber Boom System with M1255B Cardioid Microphone

• Product category: Small Diaphragm Condenser Audix
• Brand: Audix
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Audix Small Diaphragm Condenser

Product description

• MicroBoom 24 Carbon Fiber 24" Boom w/o Microphone The AKG Audix MicroBoom Carbon Fiber 24" Boom (Microphone Not Included) is a carbon fiber rod that can be used with any of the Audix Micros series condenser microphones. The MicroBoom is ultra lightweight and is able to attach to any microphone stand, making it the perfect problem solver for many miking applications including cello, acoustic bass, timpani and more. The stand adapter designed for the MicroBoom allows for total control over the angle, rotation, and position of the carbon fiber rod.
  • Lightweight, rigid
  • Portable, easy to position
  • Clean, elegant appearance
  • Choice of capsules
  • Exceptional sound quality
  • No external power adapter needed
  • Attaches to any mic stand
  • Can be used horizontally or vertically
  UPC: 687471292143
• M1255B Miniature Condenser Microphone with 25' Cable (Cardioid, Black) The black M1255B Miniature Condenser Microphone from Audix measures 2.1" (54mm) in length, features a cardioid polar pattern, and contains an integrated preamplifier. It offers a sensitive capsule and a wide frequency response suitable for capturing both vocals and instruments. Additionally, a high output enables long cable runs for use with group vocal capturing, stage performances, and similar scenarios. There is an included detachable 25-foot cable with mini XLR-female and standard XLR-male connections. The cardioid polar pattern provides adequate off-axis signal and feedback rejection while providing a generous pickup area at the front of the capsule. The microphone can be used in a wide variety of applications, including choir capturing, overhead cymbals, speech, ambient room capturing, and percussion. A microphone stand adapter, hanging clip, and external foam windscreen are also included.
  Miniature Profile
  • The miniature condenser microphone measures 2.1" (54mm) in length, allowing it to be easily and inconspicuously mounted on instruments.
  High Output
  • The M1255B features a high output for long cable runs and can be used for group vocal capturing, stage performances, and similar applications.
  Cardioid Polar Pattern
  • The cardioid polar pattern provides adequate off-axis signal and feedback rejection while providing a generous pickup area at the front of the capsule.
  Internal Preamplifier
  • The M1255B is a 48V phantom powered condenser microphone with a miniature, internal preamplifier and detachable cable.
  UPC: 687471291573

• 25' (7.62m) Shielded Mic Cable with Mini-XLR-F to XLR-M Connectors

• Mic Stand Adapter with Thumbscrew and Wingnut

• Windscreen

• 1-Year Warranty

• Mini XLR Female to XLR Male Cable - 25' (Black)

• MC-MICRO Microphone Clip with 5/8" Thread

• Hanger-MICRO Clip

• WS1218 Foam Windscreen

• Limited 3-Year Warranty

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• MicroBoom 24 Carbon Fiber 24" Boom w/o Microphone

  Boom Length	24" (60.96 cm)
  Diameter	0.2" (7.4mm)
  Construction	Rod: Carbon fiber Gooseneck: Steel Connectors: Brass
  Connectors	Bottom: Mini-XLR male Top: Mini-XLR female
  Color	Black
  Weight	2.5 oz (78 g)

  Box Dimensions (LxWxH)	25.5 x 3.4 x 3.2"

• M1255B Miniature Condenser Microphone with 25' Cable (Cardioid, Black)

  Transducer	Condenser
  Diaphragm	0.47" / 12 mm
  Polar Pattern	Cardioid
  Frequency Range	50 Hz to 19 kHz
  Signal to Noise Ratio	73 dB A-Weighted
  Equivalent Noise Level	21 dB A-Weighted
  Maximum SPL	130 dB SPL
  THD	0.5%
  Impedance	150 Ohms
  Sensitivity	38 mV/Pa at 1 kHz
  Dynamic Range	109 dB

  Output Connectors	1 x 3-Pin XLR
  Operating Voltage	18 to 52 V
  Length	2.13" / 54 mm
  Weight	0.56 oz / 16 g

  Box Dimensions (LxWxH)	10.9 x 2.4 x 2.2"
