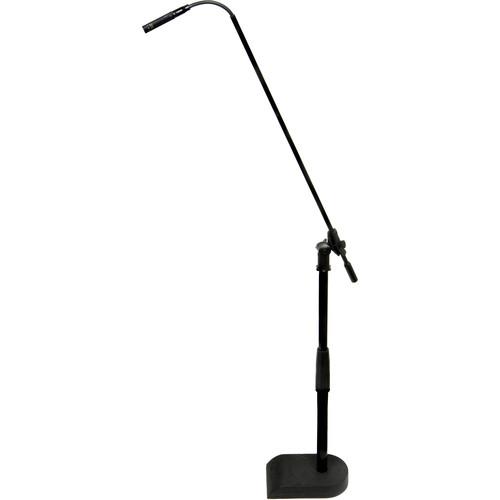

User Manual for Audix MicroBoom 24" Carbon Fiber Boom System with M1255B-HC Hypercardioid Microphone Click to enlarge the picture
Contents of the user manual for the Audix MicroBoom 24" Carbon Fiber Boom
- Product category: Small Diaphragm Condenser Audix
- Brand: Audix
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Audix Small Diaphragm Condenser
|
User manual for the Audix MicroBoom 24" Carbon Fiber Boom contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Audix product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Audix user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Audix product will considerably shorten its lifespan!
|
Product description The MicroBoom 24" Carbon Fiber Boom System from Audix includes a 24" carbon fiber boom arm with clutch assembly, and a hypercardioid microphone. The boom is a carbon fiber rod compatible with the Micros series microphones. It is lightweight, and can attach to most microphone stands. Each microphone comes with a 25' cable which features mini XLR to XLR connectors. The mini XLR attaches to the end of the MicroBoom for a clean, discreet look. A shielded cable is used internally to ensure a clean audio signal path between the microphone and the bottom of the boom. The stand adapter offers control over the angle, rotation, and position of the carbon fiber rod via its flexible metal gooseneck. - MicroBoom 24 Carbon Fiber 24" Boom w/o Microphone The AKG Audix MicroBoom Carbon Fiber 24" Boom (Microphone Not Included) is a carbon fiber rod that can be used with any of the Audix Micros series condenser microphones. The MicroBoom is ultra lightweight and is able to attach to any microphone stand, making it the perfect problem solver for many miking applications including cello, acoustic bass, timpani and more. The stand adapter designed for the MicroBoom allows for total control over the angle, rotation, and position of the carbon fiber rod.
- Portable, easy to position
- Clean, elegant appearance
- Exceptional sound quality
- No external power adapter needed
- Attaches to any mic stand
- Can be used horizontally or vertically
UPC: 687471292143 - M1255B-HC Miniature Condenser Microphone with 25' Cable (Hypercardioid, Black) The black M1255B-HC Miniature Condenser Microphone from Audix measures 2.1" (54mm) in length, features a hypercardioid polar pattern, and contains an integrated preamplifier. It offers a sensitive capsule and a wide frequency response suitable for capturing both vocals and instruments. Additionally, a high output enables long cable runs for use with group vocal capturing, stage performances, and similar scenarios. There is an included detachable 25-foot cable with mini XLR-female and standard XLR-male connections. The hypercardioid polar pattern is highly effective in off-axis noise and feedback rejection. The microphone can be used in a wide variety of applications, including choir capturing, overhead cymbals, speech, ambient room capturing, and percussion. A microphone stand adapter, hanging clip, and external foam windscreen are also included.
- Miniature Profile
- The miniature condenser microphone measures 2.1" (54mm) in length, allowing it to be easily and inconspicuously mounted on instruments.
- High Output
- The M1255B-HC features a high output for long cable runs and can be used for group vocal capturing, stage performances, and similar applications.
- Hypercardioid Polar Pattern
- The hypercardioid polar pattern is highly effective in off-axis noise and feedback rejection.
- Internal Preamplifier
- The M1255B-HC is a 48V phantom powered condenser microphone with a miniature, internal preamplifier and detachable cable.
UPC: 687471291696 In the Box Bundle Items MicroBoom 24 Carbon Fiber 24" Boom w/o Microphone wqqtvcqwrfqbeczcfftbrrrys - 25' (7.62m) Shielded Mic Cable with Mini-XLR-F to XLR-M Connectors
- Mic Stand Adapter with Thumbscrew and Wingnut
M1255B-HC Miniature Condenser Microphone with 25' Cable (Hypercardioid, Black) - Mini XLR Female to XLR Male Cable - 25' (Black)
- MC-MICRO Microphone Clip with 5/8" Thread
Table of Contents
|
Upload User Manual
Have you got an user manual for the Audix MicroBoom 24" Carbon Fiber Boom System with M1255B-HC Hypercardioid Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - MicroBoom 24 Carbon Fiber 24" Boom w/o Microphone
| Boom Length | 24" (60.96 cm) | | Diameter | 0.2" (7.4mm) | | Construction | Rod: Carbon fiber
Gooseneck: Steel
Connectors: Brass | | Connectors | Bottom: Mini-XLR male
Top: Mini-XLR female | | Color | Black | | Weight | 2.5 oz (78 g) | | | | Box Dimensions (LxWxH) | 25.5 x 3.4 x 3.2" | - M1255B-HC Miniature Condenser Microphone with 25' Cable (Hypercardioid, Black)
| | | Transducer | Condenser | | Diaphragm | 0.47" / 12 mm | | Polar Pattern | Hypercardioid | | Frequency Range | 50 Hz to 19 kHz | | Signal to Noise Ratio | 73 dB A-Weighted | | Equivalent Noise Level | 21 dB A-Weighted | | Maximum SPL | 130 dB SPL | | THD | 0.5% | | Impedance | 150 Ohms | | Sensitivity | 32 mV/Pa at 1 kHz | | Dynamic Range | 109 dB | | | | Output Connectors | 1 x 3-Pin XLR | | Operating Voltage | 18 to 52 V | | Length | 2.13" / 54 mm | | Weight | 0.56 oz / 16 g | | | | Box Dimensions (LxWxH) | 10.9 x 2.4 x 2.2" |
