User Manual for Audix OM2S Handheld Hypercardioid Dynamic Microphone with On Off Switch Click to enlarge the picture
Contents of the user manual for the Audix OM2S Handheld Hypercardioid Dynamic Microphone
- Product category: Dynamic Microphones Audix
- Brand: Audix
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Audix Dynamic Microphones
|
User manual for the Audix OM2S Handheld Hypercardioid Dynamic Microphone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Audix product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Audix user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Audix product will considerably shorten its lifespan!
|

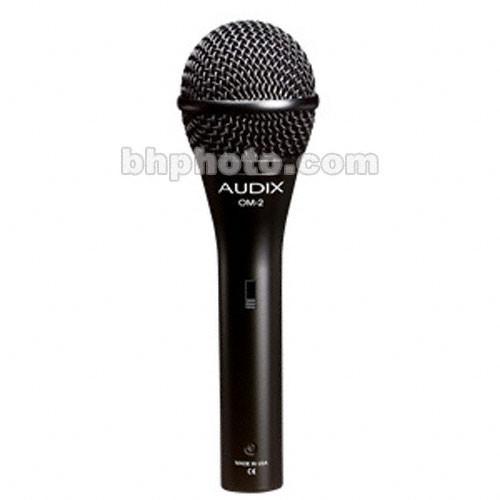

Product description The Audix OM2S is a handheld hypercardioid dynamic microphone designed to deliver highly directional capture of vocals and instruments in recording sessions and live stage applications. It boasts low handling noise and a hypercardioid polar pattern, which not only minimizes feedback caused by nearby monitors and speakers, but also reduces the pickup of stage bleed and room ambience. The dynamic element's low-mass diaphragm responds quickly to transients and handles sound pressure levels up to 140 dB. It produces a frequency response of 50 Hz to 16 kHz with a mild rise centered at approximately 150 Hz along with a moderate presence boost above 2 kHz. The gold-plated XLR 3-pin output ensures compatibility with most microphone preamps and mixer inputs, and the zinc alloy body with a dent-resistant steel mesh grille provides road-ready protection and durability. An on/off switch is provided for convenient muting of the mic between speeches or performances. The OM2S was designed, assembled, and tested in the USA, and ships with a microphone clip and carrying pouch. - VLM Type-B capsule delivers quick transient response and a warm, full sound with gentle bass proximity
- Hypercardioid polar pattern provides off-axis rejection of over 25 dB and high gain before feedback
- Slight rise peaking at 150 Hz and approximately 5 dB of boost from 3 to 6 kHz
- Can be used for a wide variety of instruments and vocals
- Maximum SPL of 140 dB allows audio capture of loud sources without distortion
- Provides excellent vocal isolation on stage
- Durable zinc alloy housing with dent-resistant steel mesh grille
- Designed, assembled, and tested in the USA
UPC: 687471101179 In the Box Audix OM2S Handheld Hypercardioid Dynamic Microphone with On/Off Switch MC-1 Microphone Stand Adapter Carrying Pouch Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Audix OM2S Handheld Hypercardioid Dynamic Microphone with On Off Switch in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAudix OM2-S Specs | | | Sound Field | Mono | | Operating Principle | Pressure Gradient | | Transducer | Dynamic | | Tube | No | | Polar Pattern | Hypercardioid | | Frequency Range | 50 Hz to 16 kHz | | Maximum SPL | 140 dB SPL | | Impedance | 290 Ohms | | Sensitivity | 1.6 mV/Pa at 1 kHz | | | | Output Connectors | 1 x 3-Pin XLR | | Length | 6.93" / 176 mm | | Diameter | 2.09" / 53 mm | | Weight | 10.83 oz / 307 g | | | | Package Weight | 1.1 lb | | Box Dimensions (LxWxH) | 9.0 x 4.5 x 2.5" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 56 owners. Add your rating and experience with the product.
