User Manual for Audix OM5TRIO Handheld Hypercardioid Dynamic Microphone Click to enlarge the picture
Contents of the user manual for the Audix OM5TRIO Handheld Hypercardioid Dynamic Microphone
- Product category: Dynamic Microphones Audix
- Brand: Audix
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Audix Dynamic Microphones
 |
User manual for the Audix OM5TRIO Handheld Hypercardioid Dynamic Microphone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Audix product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Audix user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Audix product will considerably shorten its lifespan!
|

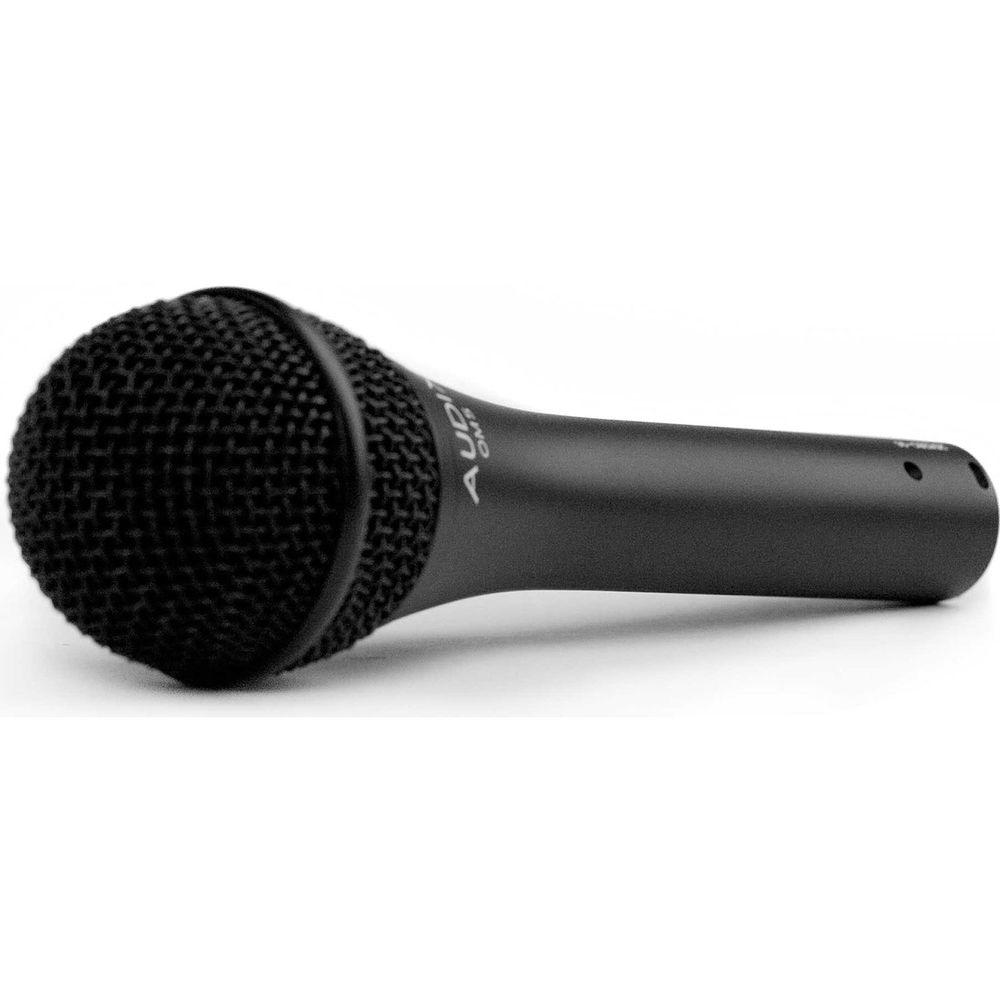

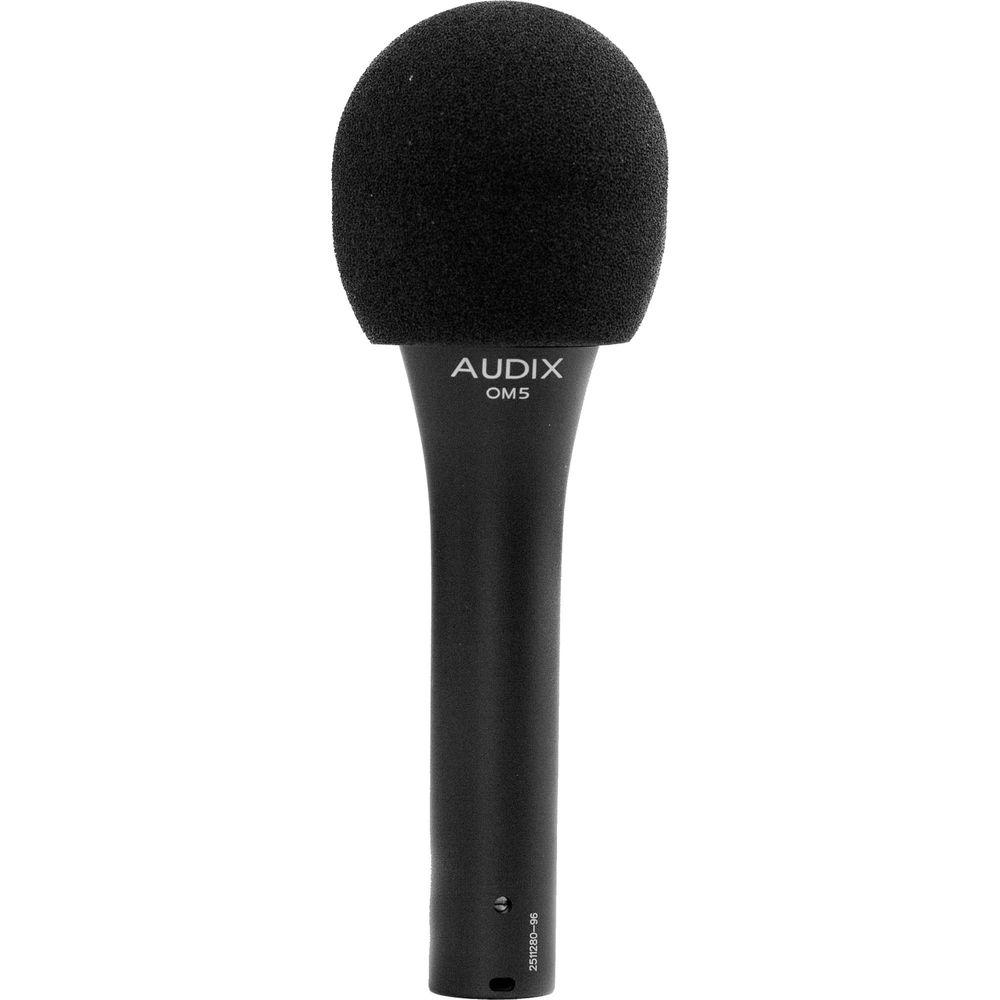

Product description The Audix OM5TRIO is a bundle of three handheld hypercardioid dynamic microphones. They are optimized for reproduction of vocals, speech, horns, guitars, and drums in live sound, studio sessions, and broadcast applications. Each mic boasts low handling noise and a hypercardioid polar pattern, which is effective in minimizing residual ambience and feedback caused by nearby monitors and speakers. The dynamic element's low-mass diaphragm responds quickly to transients and handles sound pressure levels up to 144 dB. Each mic produces a frequency response of 48 Hz to 19 kHz with a dip at 120 Hz, a mild rise in the low-mid frequencies, and a wide presence boost. The gold-plated XLR 3-pin output ensures compatibility with most microphone preamps and mixer inputs, and the zinc alloy body with a dent-resistant steel mesh grille provides road-ready protection and durability. The OM5TRIO was designed, assembled, and tested in the USA, and ships with microphone clips and carrying pouches.. - Ideal for vocals, speech, horns, guitars, flute, percussion, and drums
- Hypercardioid polar pattern provides off-axis rejection of over 30 dB and high gain before feedback
- 48 Hz to 19 kHz frequency response with attenuation at 120 Hz to reduce boominess, a mild rise in the low-mid frequencies for added body, and a presence boost for high-end clarity
- VLM Type C capsule delivers great transient response
- High maximum SPL of 144 dB easily handles vocals, drums, and amplified instruments
- Rugged zinc alloy casing with a dent-resistant steel mesh grille

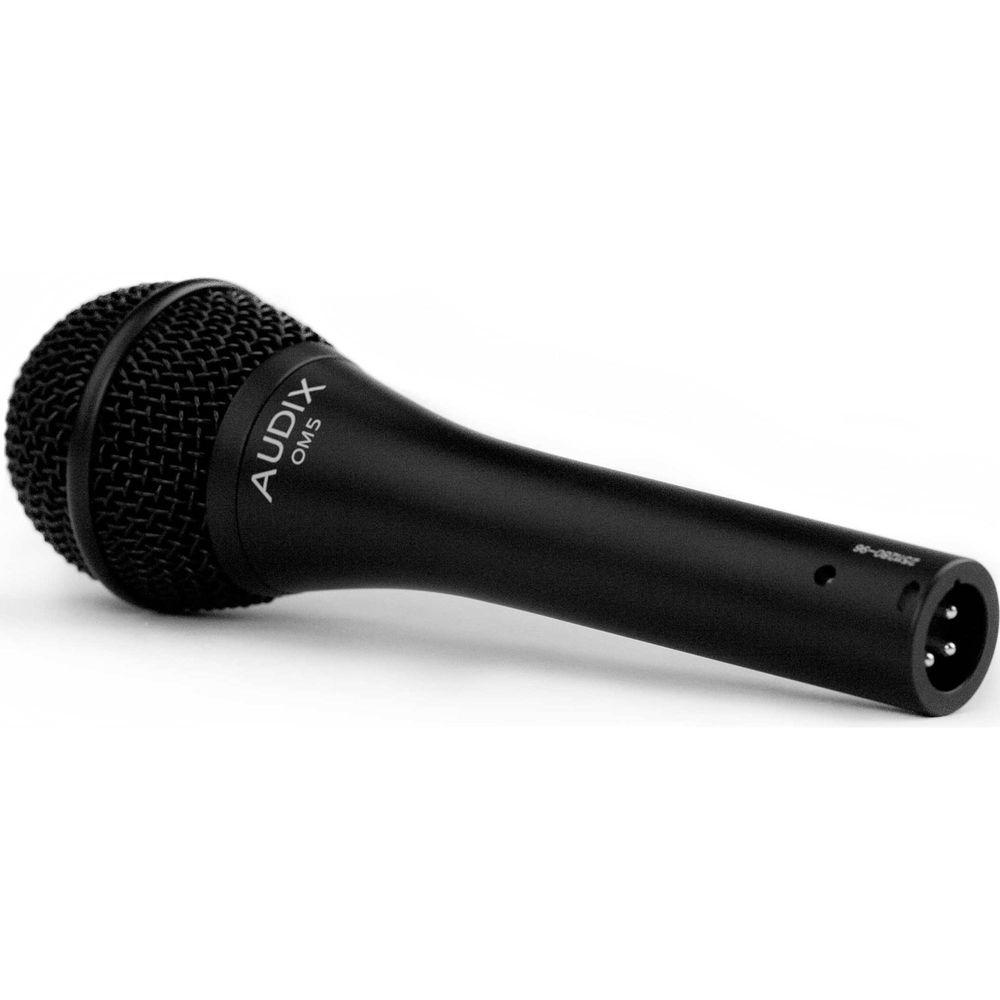

- Gold-plated XLR 3-pin connector for optimal conductivity and compatibility with most microphone preamps
- Designed, assembled, and tested in the United States of America

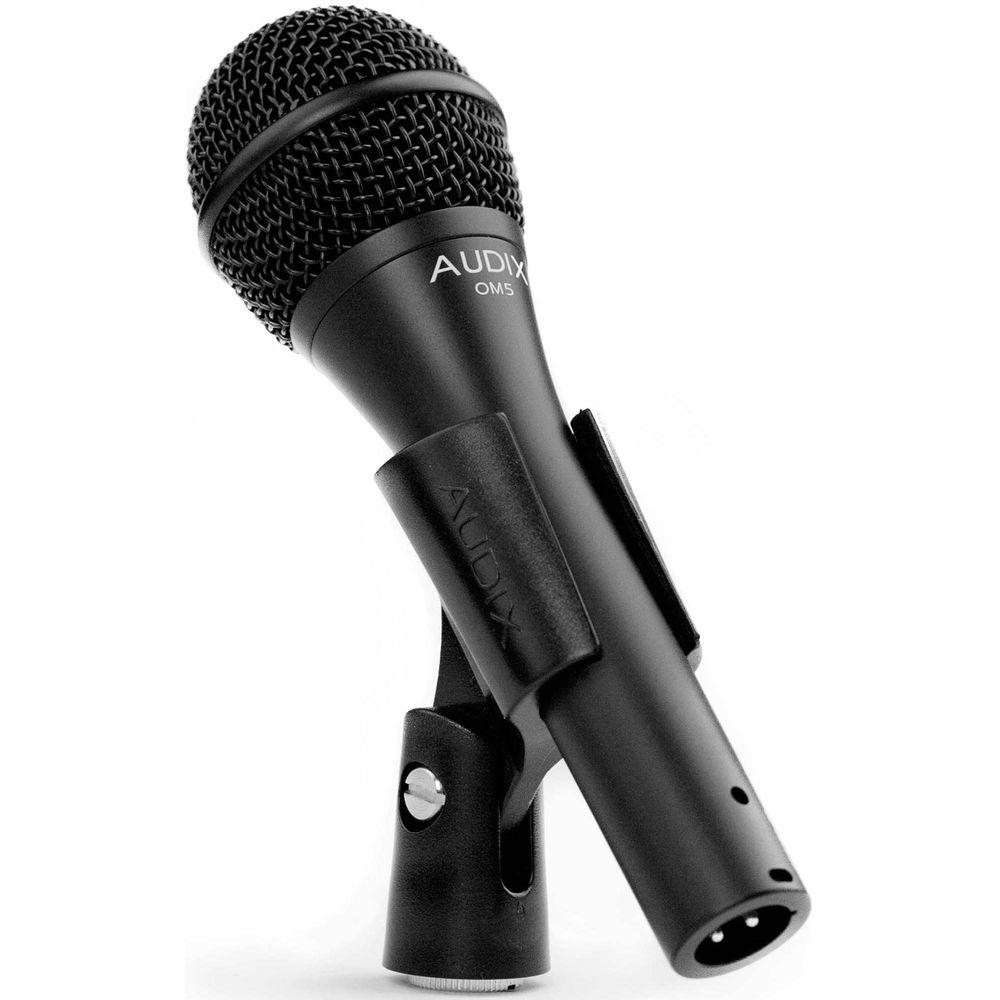

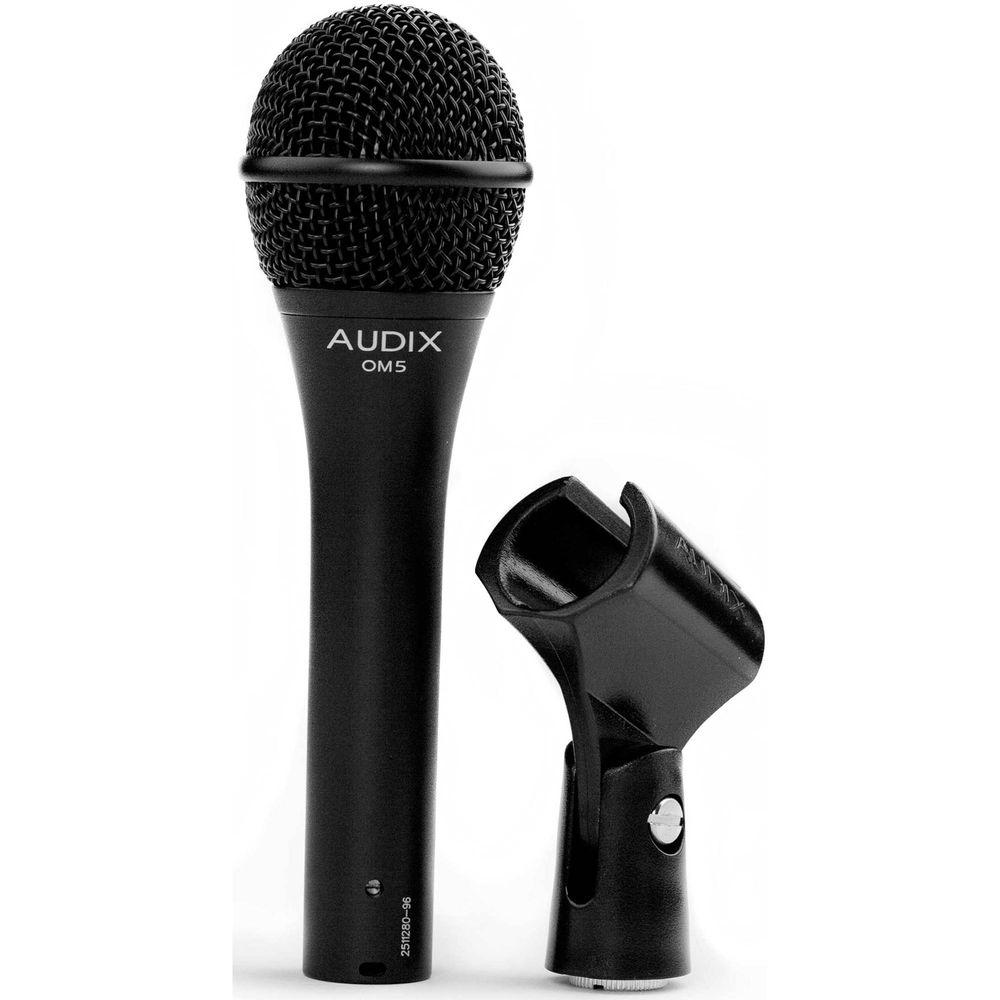

In the Box Audix OM5TRIO Handheld Hypercardioid Dynamic Microphone (3 Pack) 3 x MC-1 Microphone Stand Adapter vdzxzzwwbewdvyae 3 x Carrying Pouches Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Audix OM5TRIO Handheld Hypercardioid Dynamic Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAudix OM5 Specs | | | Sound Field | Mono | | Transducer | Dynamic | | Tube | No | | Polar Pattern | Hypercardioid | | | | Output Connectors | 1 x 3-Pin XLR | | Length | 6.93" / 176 mm | | Diameter | 2.09" / 53 mm | | Weight | 11.64 oz / 330 g | | | | Package Weight | 2.85 lb | | Box Dimensions (LxWxH) | 10.0 x 6.0 x 4.0" |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 62 owners. Add your rating and experience with the product.
