User Manual for Audix OM6 Handheld Hypercardioid Dynamic Microphone Click to enlarge the picture
Contents of the user manual for the Audix OM6 Handheld Hypercardioid Dynamic Microphone
- Product category: Dynamic Microphones Audix
- Brand: Audix
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Audix Dynamic Microphones
 |
User manual for the Audix OM6 Handheld Hypercardioid Dynamic Microphone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Audix product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Audix user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Audix product will considerably shorten its lifespan!
|

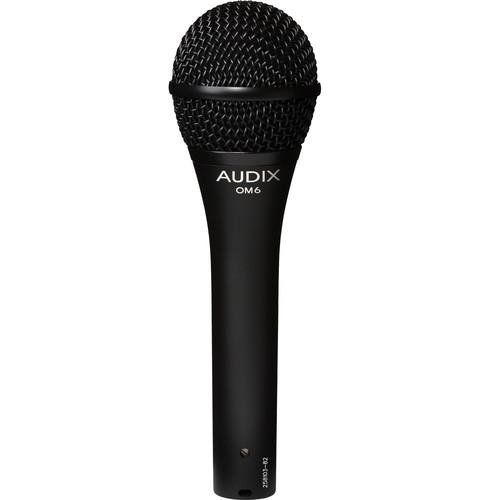

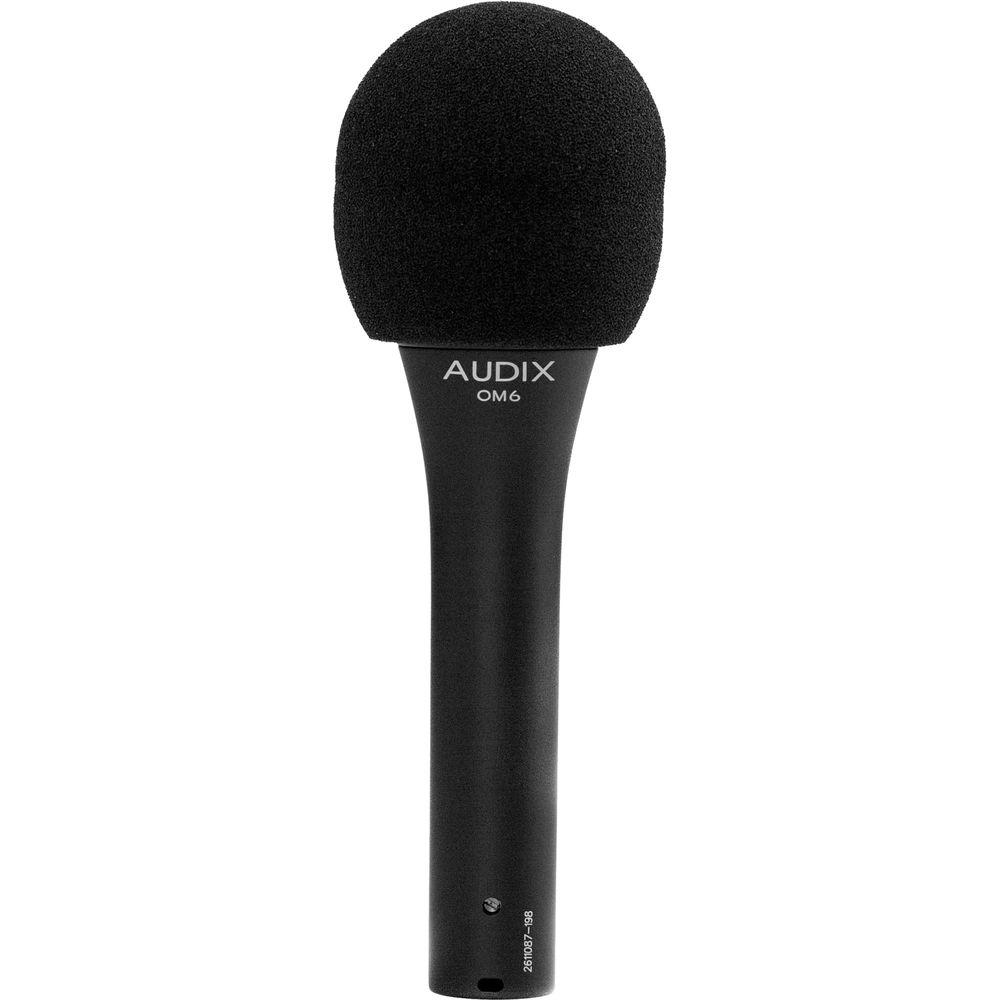

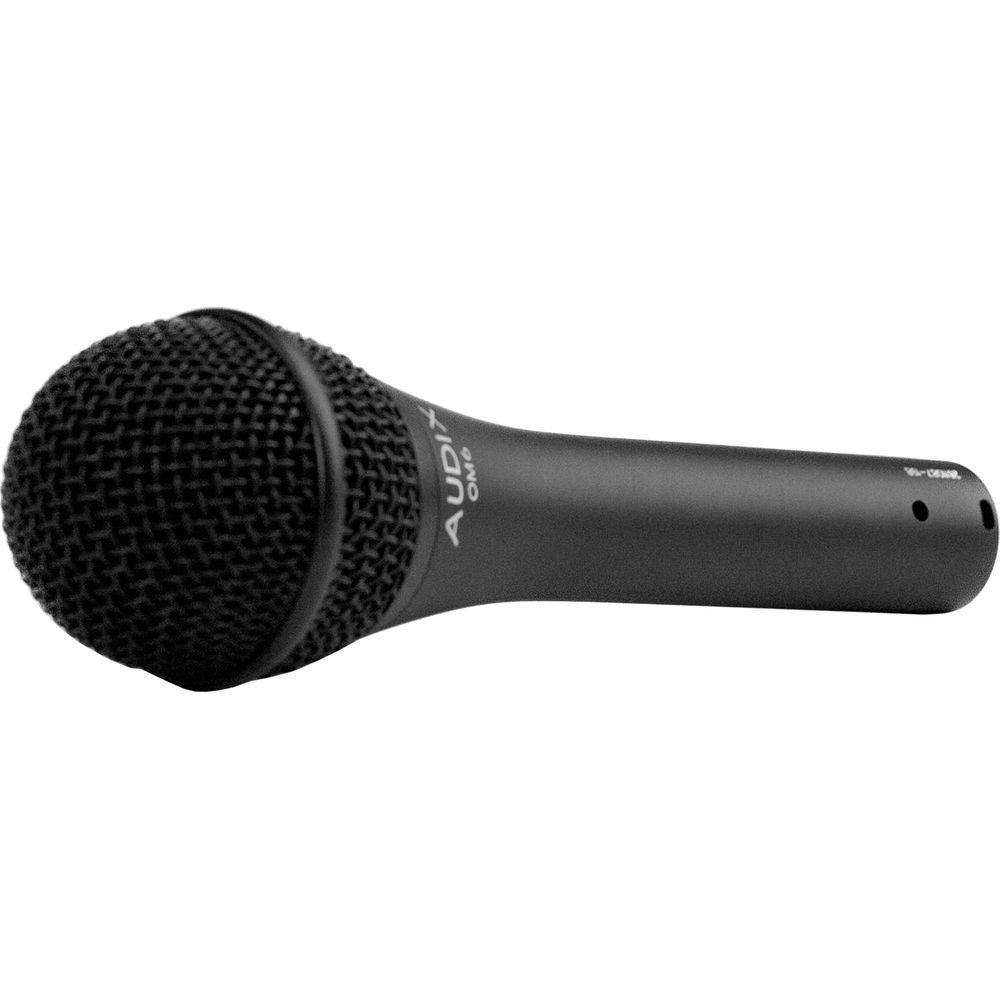

Product description The Audix OM6 is a handheld hypercardioid dynamic microphone optimized for full-range reproduction of vocals, speech, horns, guitars, and drums in live sound, studio sessions, and broadcast applications. It boasts low handling noise and a hypercardioid polar pattern, which is effective in minimizing residual ambience and feedback caused by nearby monitors and speakers. The dynamic element's low-mass diaphragm responds quickly to transients and handles sound pressure levels up to 144 dB. It produces a condenser-like frequency response of 40 Hz to 19 kHz with detailed midrange and a high-end boost. The gold-plated XLR 3-pin output ensures compatibility with most microphone preamps and mixer inputs, and the zinc alloy body with a dent-resistant steel mesh grille provides road-ready protection and durability. The OM6 was designed, assembled, and tested in the USA, and ships with a microphone clip and carrying pouch. - Ideal for vocals, speech, horns, guitars, flute, percussion, and drums
- Hypercardioid polar pattern provides off-axis rejection of over 25 dB and high gain before feedback
- Wide frequency response with an articulate midrange, a smooth rising response from 2 to 10 kHz, and an extended bass response down to 40 Hz
- VLM Type-C capsule delivers great transient response
- High maximum SPL of 144 dB easily handles vocals, drums, and amplified instruments
- Rugged zinc alloy casing with a dent-resistant steel mesh grille

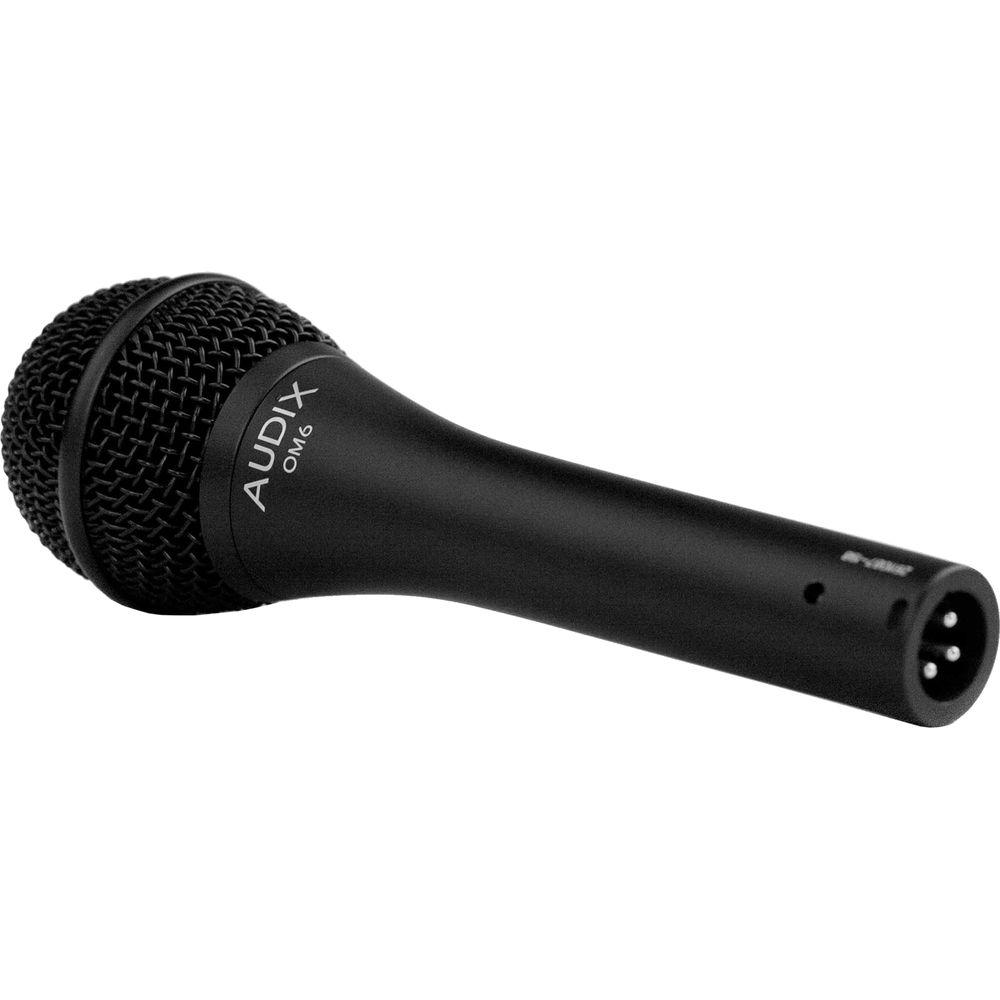

- Gold-plated XLR 3-pin connector for optimal conductivity and compatibility with most microphone preamps
- Designed, assembled, and tested in the United States of America

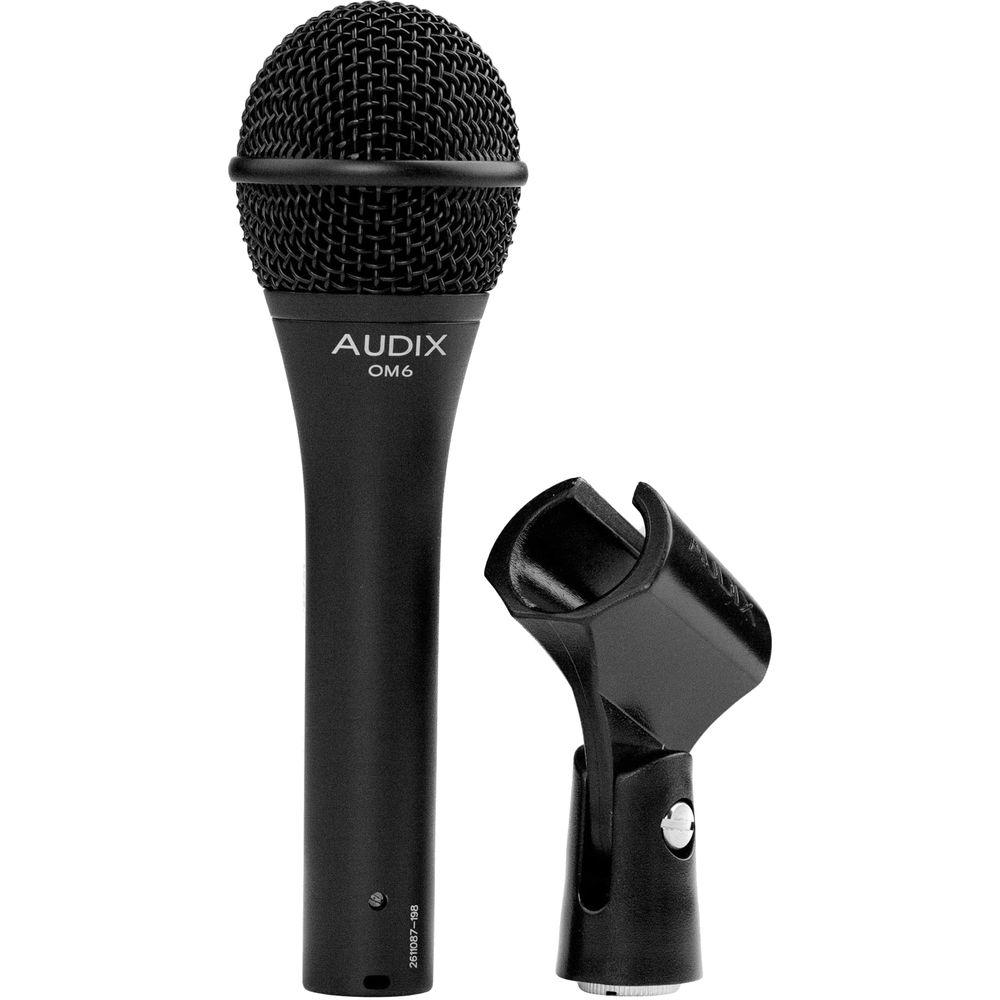

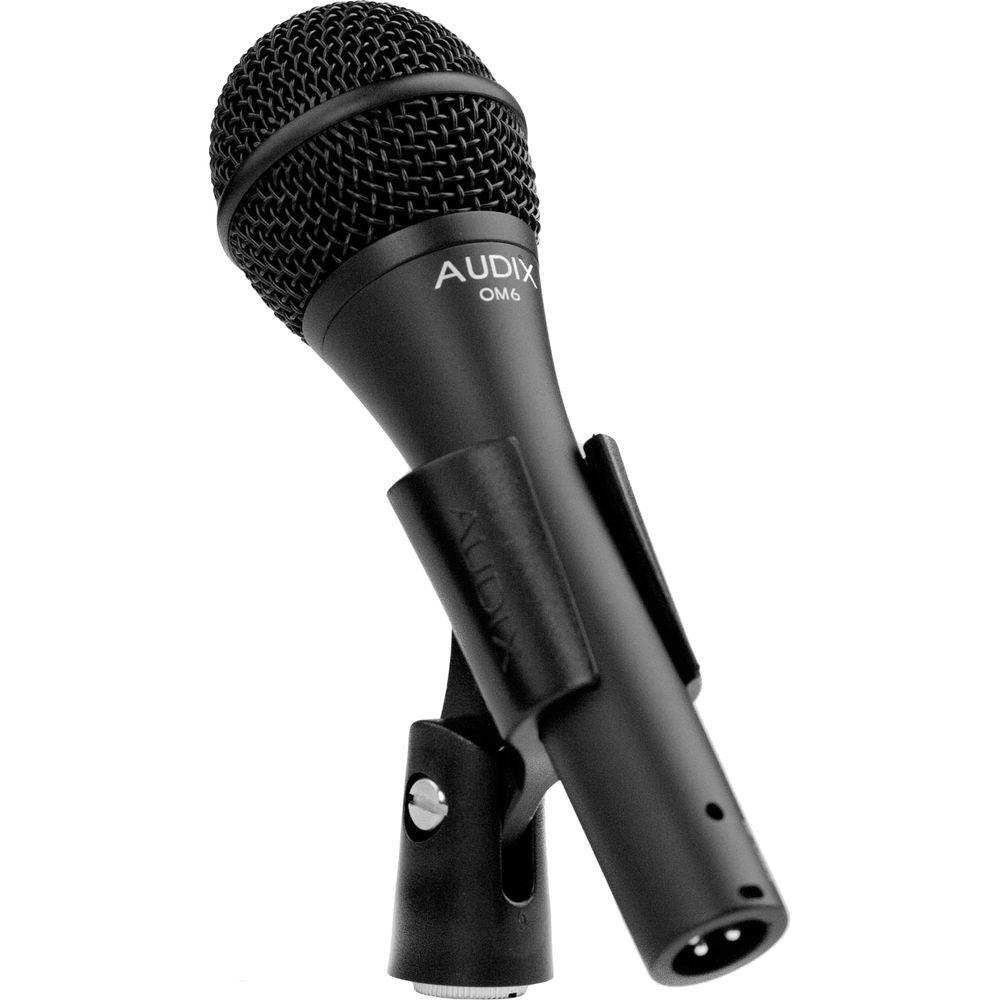

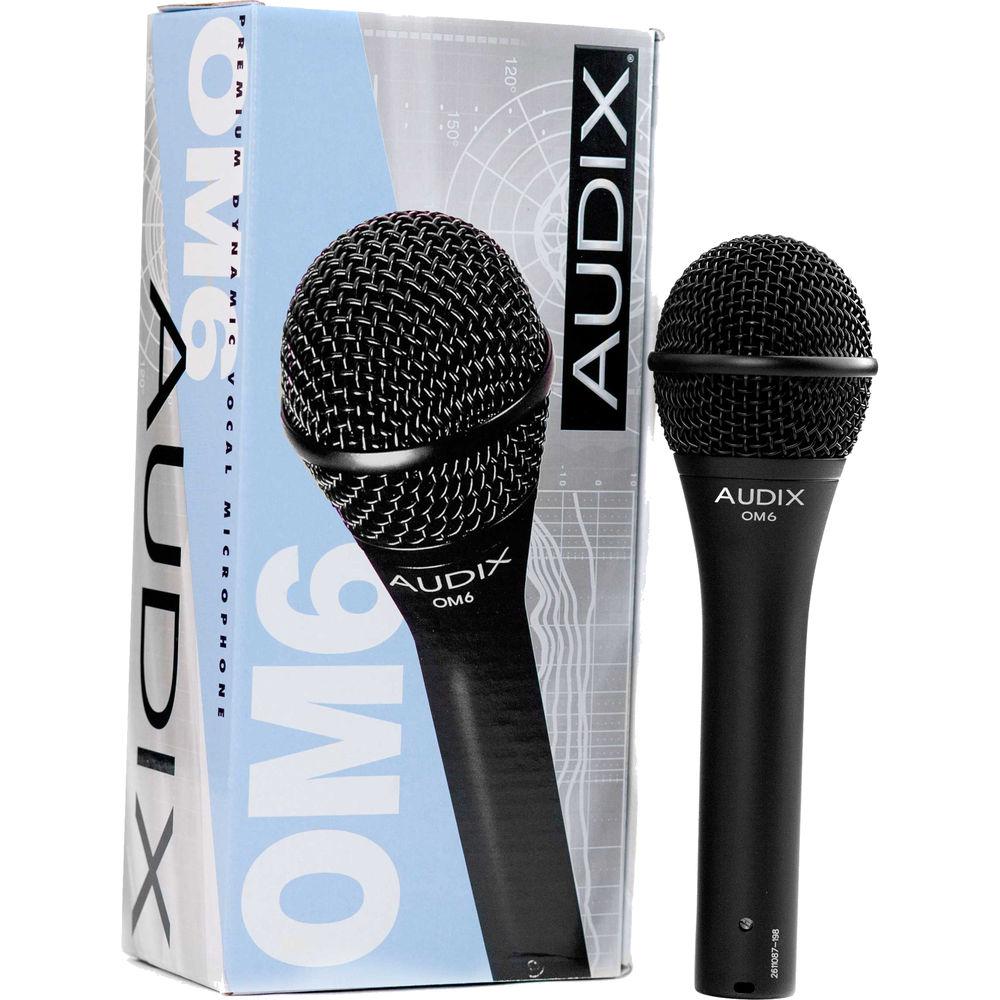

UPC: 687471101094 In the Box Audix OM6 Handheld Hypercardioid Dynamic Microphone MC-1 Microphone Stand Adapter Carrying Pouch Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Audix OM6 Handheld Hypercardioid Dynamic Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAudix OM6 Specs | | | Sound Field | Mono | | Operating Principle | Pressure Gradient | | Transducer | Dynamic | | Tube | No | | Polar Pattern | Hypercardioid | | Frequency Range | 40 Hz to 19 kHz | | Maximum SPL | 144 dB SPL | | Pad | None | | Impedance | 290 Ohms | | Sensitivity | 1.5 mV/Pa at 1 kHz | | Low-Cut Filter | None | | | | Output Connectors | 1 x 3-Pin XLR | | Length | 6.93" / 176 mm | | Diameter | 2.09" / 53 mm | | Weight | 10.83 oz / 307 g | | | | Package Weight | 1.0 lb | | Box Dimensions (LxWxH) | 8.9 x 4.3 x 2.7" |
