User Manual for Audix OM7 Handheld Hypercardioid Dynamic Microphone Click to enlarge the picture
Contents of the user manual for the Audix OM7 Handheld Hypercardioid Dynamic Microphone
- Product category: Dynamic Microphones Audix
- Brand: Audix
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Audix Dynamic Microphones
 |
User manual for the Audix OM7 Handheld Hypercardioid Dynamic Microphone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Audix product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Audix user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Audix product will considerably shorten its lifespan!
|

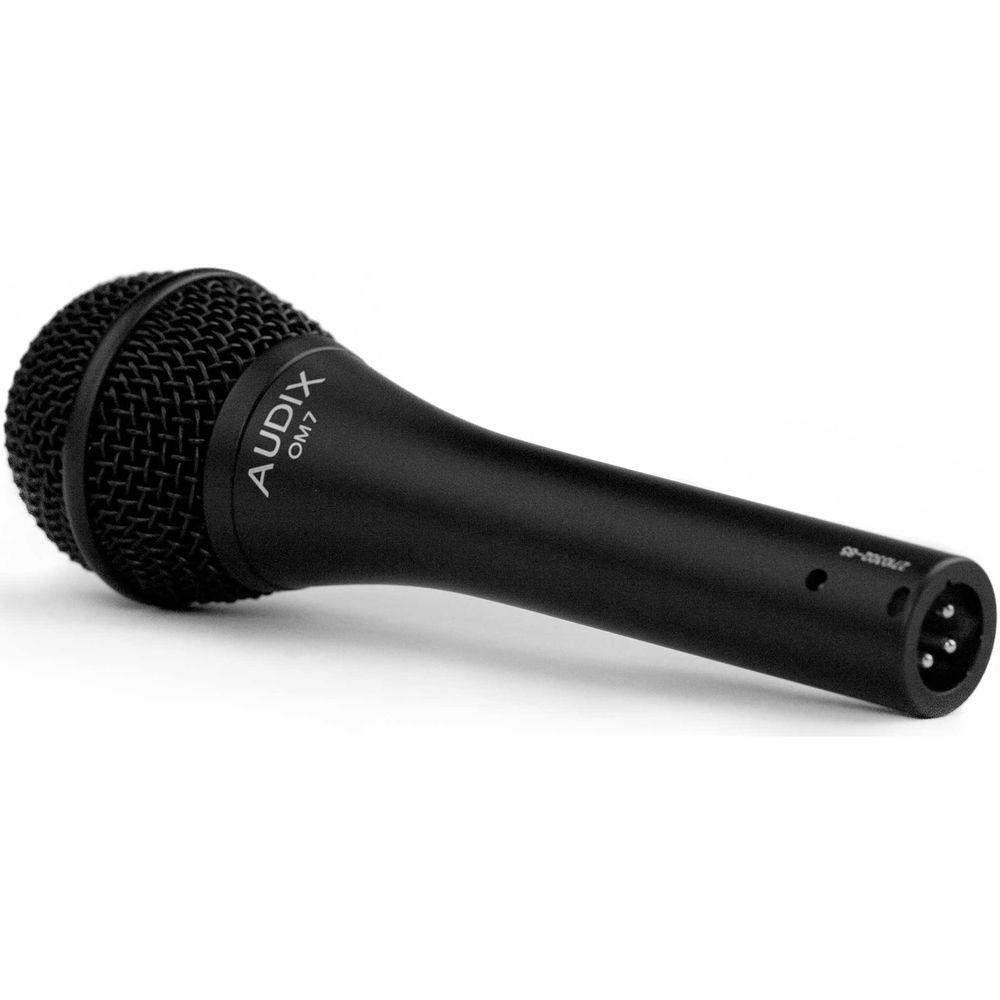

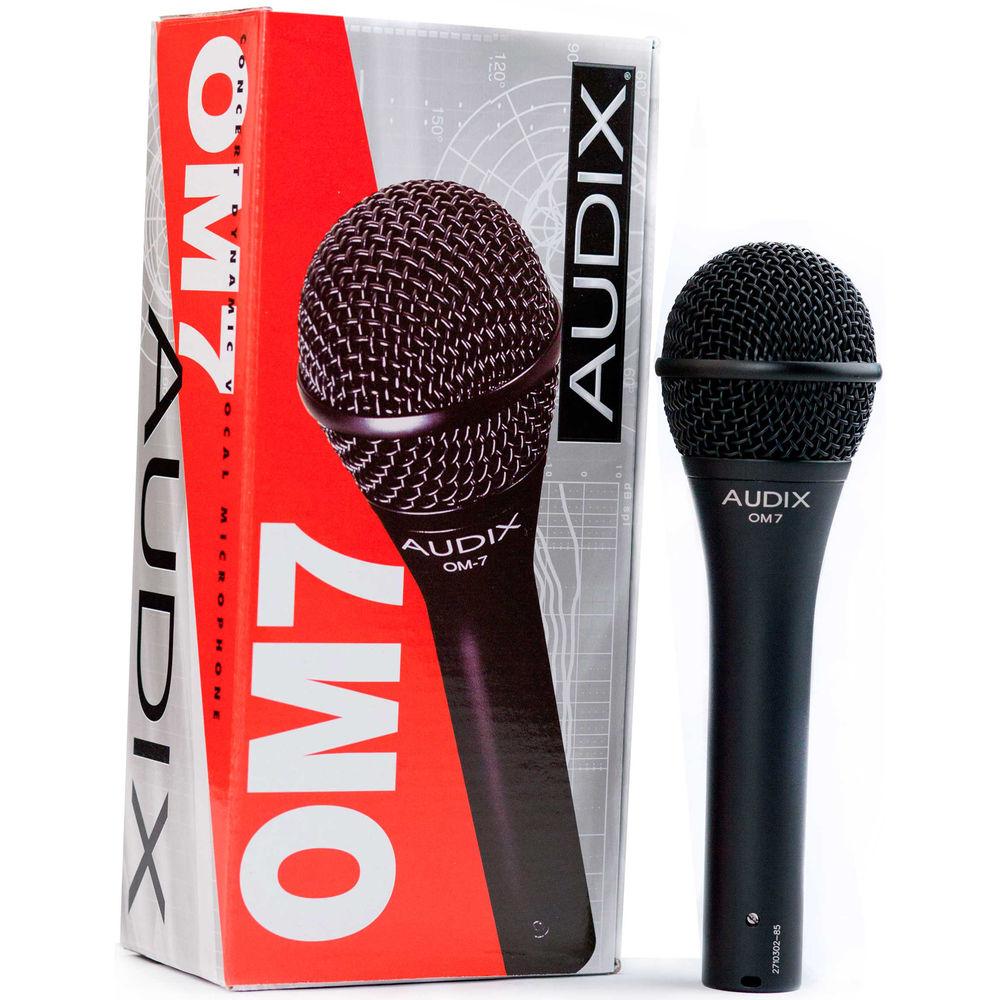

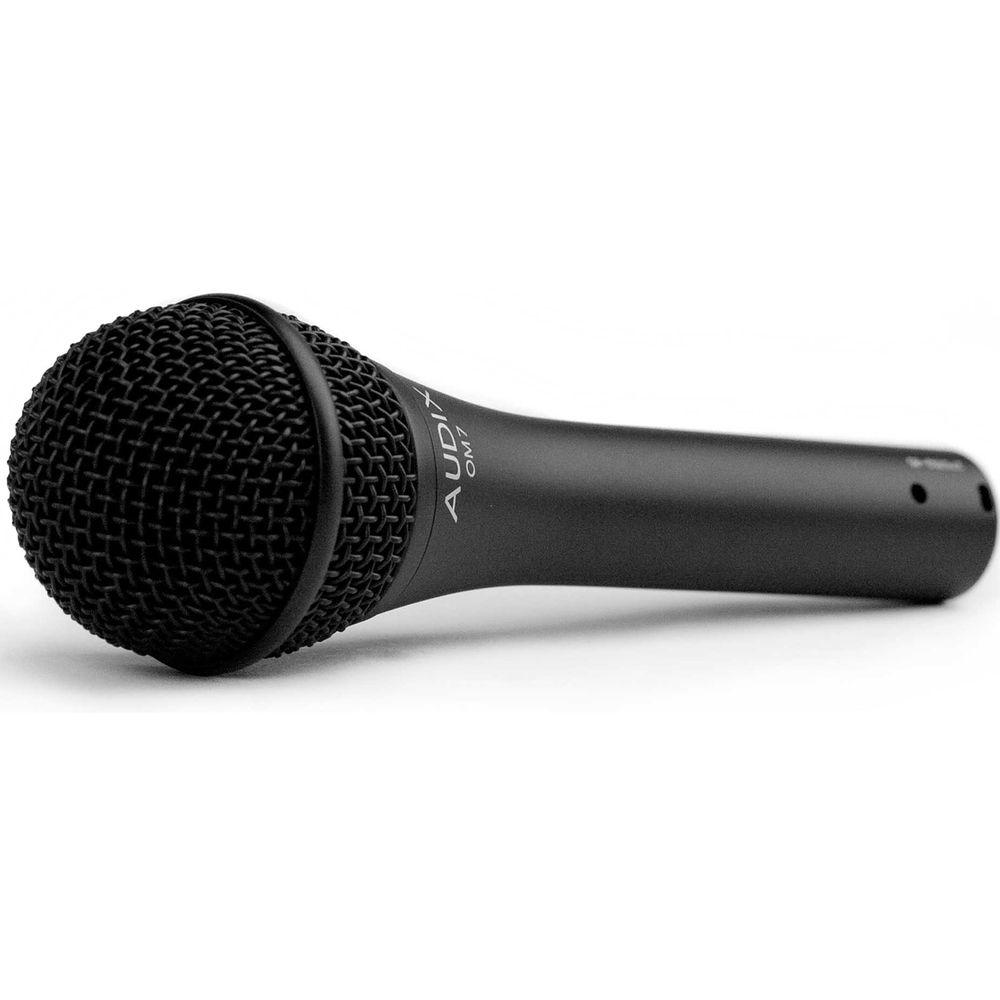

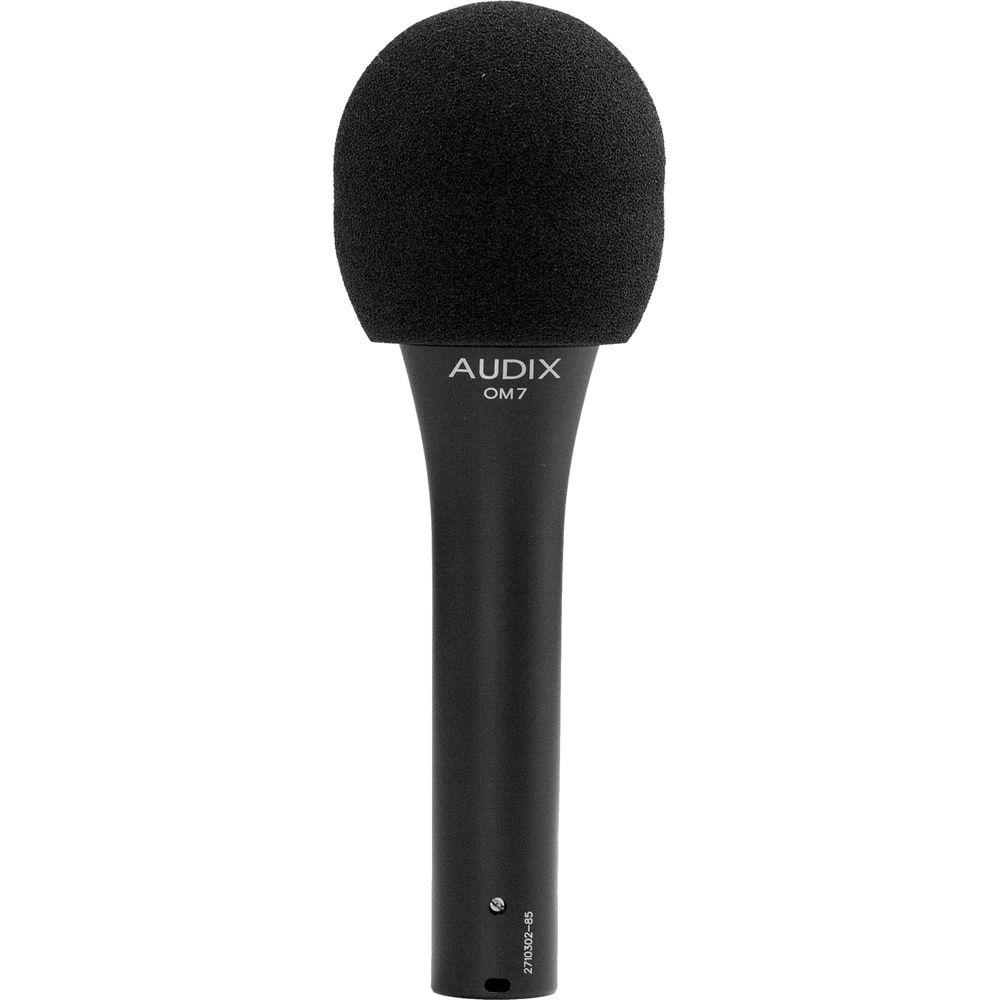

Product description The Audix OM7 is a handheld hypercardioid dynamic microphones optimized for clear reproduction of high-level sources such as vocals, speech, horns, guitars, and drums in live sound, studio sessions, and broadcast applications. It boasts low handling noise and a hypercardioid polar pattern, which is effective in minimizing residual ambience and feedback caused by nearby monitors and speakers. The dynamic element's low-mass diaphragm responds quickly to transients and handles sound pressure levels up to 144 dB. In order to accommodate loud sound sources and deliver high gain before feedback, the OM7's output is approximately ten decibels lower than that of traditional dynamic mics.It produces a frequency response of 48 Hz to 19 kHz with a mild rise in the low-mid frequencies and a wide presence boost. The gold-plated XLR 3-pin output ensures compatibility with most microphone preamps and mixer inputs, and the zinc alloy body with a dent-resistant steel mesh grille provides road-ready protection and durability. The OM7 was designed, assembled, and tested in the USA, and ships with a microphone clip and a carrying pouch. - Ideal for vocals, speech, horns, guitars, flute, percussion, and drums
- Hypercardioid polar pattern provides off-axis rejection of over 30 dB and extremely high gain before feedback
- 48 Hz to 19 kHz frequency response with a mild rise in the low-mid frequencies for added body, and a presence boost for high-end clarity
- VLM Type C capsule delivers great transient response
- High maximum SPL of 144 dB easily handles vocals, drums, and amplified instruments
- Unconventionally low output level (8 to 10 dB lower than typical dynamic microphones) serves as a natural pad at the capsule in order to maintain high fidelity at the source
- Intentionally low output level makes the OM7 best suited for use with mixing consoles and mic preamps that have plenty of headroom to compensate for the OM7's low output
- Rugged zinc alloy casing with a dent-resistant steel mesh grille
- Gold-plated XLR 3-pin connector for optimal conductivity and compatibility with most microphone preamps
- Designed, assembled, and tested in the United States of America

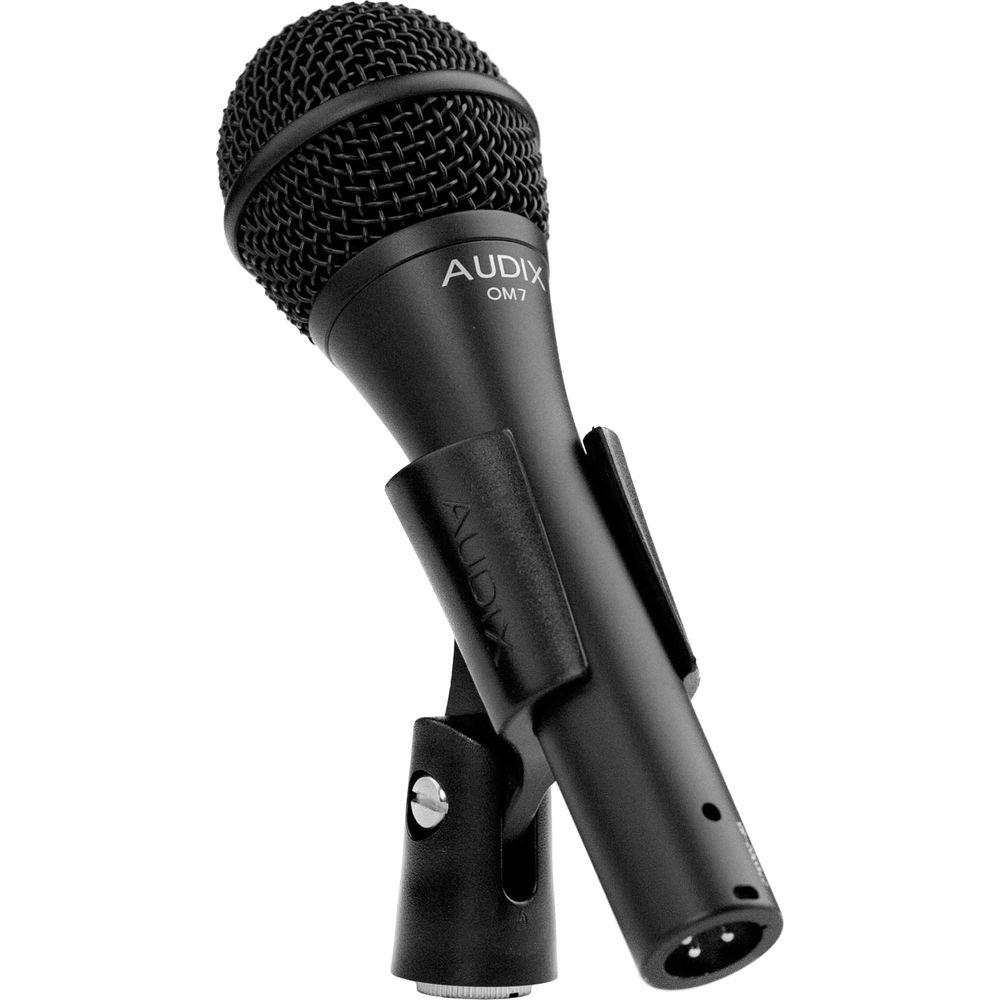

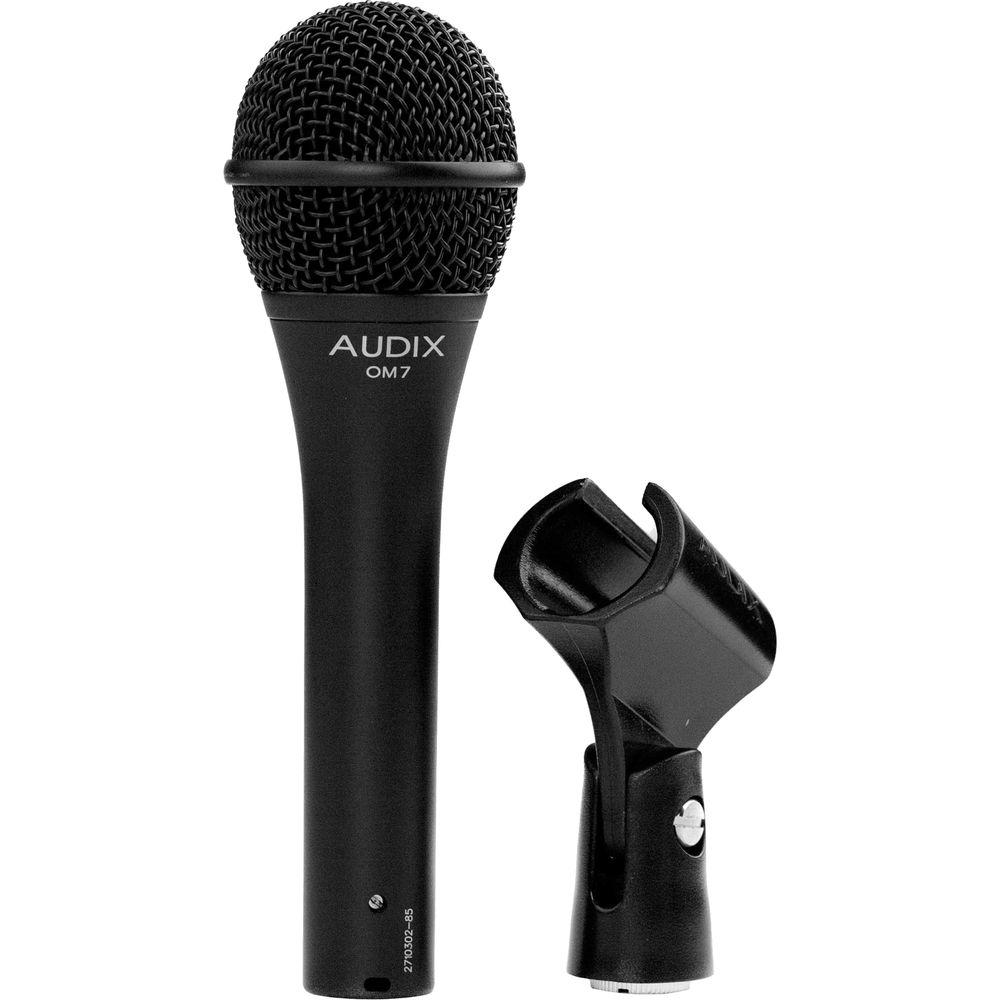

UPC: 687471101100 In the Box Audix OM7 Handheld Hypercardioid Dynamic Microphone MC-1 Microphone Stand Adapter Carrying Pouch Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Audix OM7 Handheld Hypercardioid Dynamic Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAudix OM7 Specs | | | Sound Field | Mono | | Operating Principle | Pressure Gradient | | Transducer | Dynamic | | Tube | No | | Polar Pattern | Hypercardioid | | Frequency Range | 48 Hz to 19 kHz | | Maximum SPL | 144 dB SPL | | Pad | None | | Impedance | 50 Ohms | | Sensitivity | 0.8 mV/Pa at 1 kHz | | Low-Cut Filter | None | | | | Output Connectors | 1 x 3-Pin XLR | | Length | 6.93" / 176 mm | | Diameter | 2.09" / 53 mm | | Weight | 10.83 oz / 307 g | | | | Package Weight | 1.04 lb | | Box Dimensions (LxWxH) | 9.0 x 4.3 x 2.5" |
