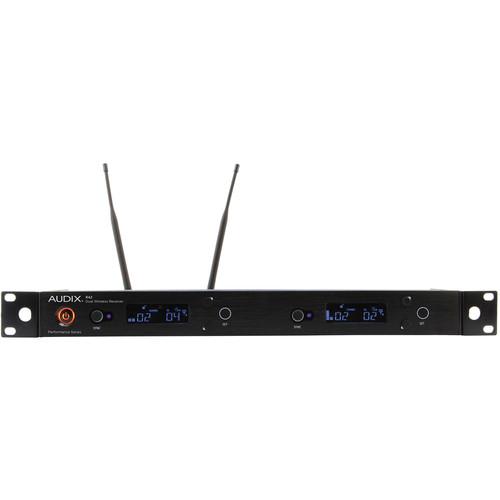

User Manual for Audix R42 Kit-A Performance Series Dual-Channel UHF Diversity Receiver Click to enlarge the picture
Contents of the user manual for the Audix R42 Kit-A Performance Series Dual-Channel
- Product category: Wireless Receivers Audix
- Brand: Audix
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Audix Wireless Receivers
|
User manual for the Audix R42 Kit-A Performance Series Dual-Channel contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Audix product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Audix user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Audix product will considerably shorten its lifespan!
|
Product description The Audix R42 Kit-A is a Performance Series dual-channel UHF diversity receiver designed to deliver enhanced range and easy configuration for musicians, vocalists, presenters, and public speakers in houses of worship, concert venues, conferences, and live stage applications. It offers 106 pre-coordinated frequencies across 32 MHz of bandwidth in the 522 to 554 MHz frequency band. Use two wireless microphones (available separately) from up to 300' away. One-touch sync and auto scan functions provide simple and efficient setup. The high-contrast LCD shows a host of information such as battery level, frequency, and AF/RF signal strength, which can be optimized via adjustable AF and RF gain. XLR and 1/4" outputs allow compatible connectivity with the balanced or unbalanced inputs on your mixing console. The R42 Kit-A ships with two antennas, two BNC cables, an audio cable, one power supply, and a rackmount kit. - Incorporate up to eight systems to use 16 unique channels simultaneously
- Dual-channel receiver supports two wireless microphones
- 32 MHz wide spectrum tuning
- 106 pre-coordinated frequencies
- High-contrast LCD shows RF and AF signal strength, group/channel/frequency, level/squelch, battery level, and more
- One-touch sync via infrared
- One-touch scan eliminates inefficient manual tuning
- Ground-lift switch helps eliminate ground loops or hum
- Metal strain relief for power cable
- Adjustable AF and RF level
- Selectable lock function prevents the transmitter from being accidentally muted or powered off
UPC: 687471821060 In the Box Audix R42 Kit-A Performance Series Dual-Channel UHF Diversity Receiver (A: 522 to 554 MHz) 2 x BNC Cables 2 x Antennas Audio Cable Power Supply Rackmount Kit Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Audix R42 Kit-A Performance Series Dual-Channel UHF Diversity Receiver in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAudix R42KIT Specs | Frequency Band | 522 to 554 MHz | | Bandwidth | 32 MHz | | # Of Simultaneous Systems | Up to 8 | | Switchable Frequencies | 106 pre-coordinated frequencies | | Wireless Range | Up to 300' / 91 m | | Antenna Connector | 2 x BNC (8 VDC, 150 mA) | | Outputs | 2 x XLR 3-pin balanced
2 x 1/4" TS unbalanced | | Audio Output Level | XLR: -12 dBV at 25 kHz deviation, 600-Ohm load, +6 gain
1/4": -18 dBV at 25 kHz deviation, 10-Ohm load, +6 gain | | Audio Level Control | -12 to +9 dB in 3 dB steps | | Frequency Response | 45 Hz to 18 kHz | | Compander | 2:1 | | Pilot Tone | 32 kHz | | Receiving System | Single tuner, antenna diversity | | Signal to Noise Ratio | 105 dB at 30 kHz deviation (A-weighted) | | Total Harmonic Distortion (THD) | ≤0.7% (33 kHz deviation at 1 kHz) | | Sensitivity | 5 dB
