User Manual for Audix SCX1-HC Studio Condenser Microphone Click to enlarge the picture
Contents of the user manual for the Audix SCX1-HC Studio Condenser Microphone
- Product category: Small Diaphragm Condenser Audix
- Brand: Audix
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Audix Small Diaphragm Condenser
 |
User manual for the Audix SCX1-HC Studio Condenser Microphone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Audix product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Audix user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Audix product will considerably shorten its lifespan!
|

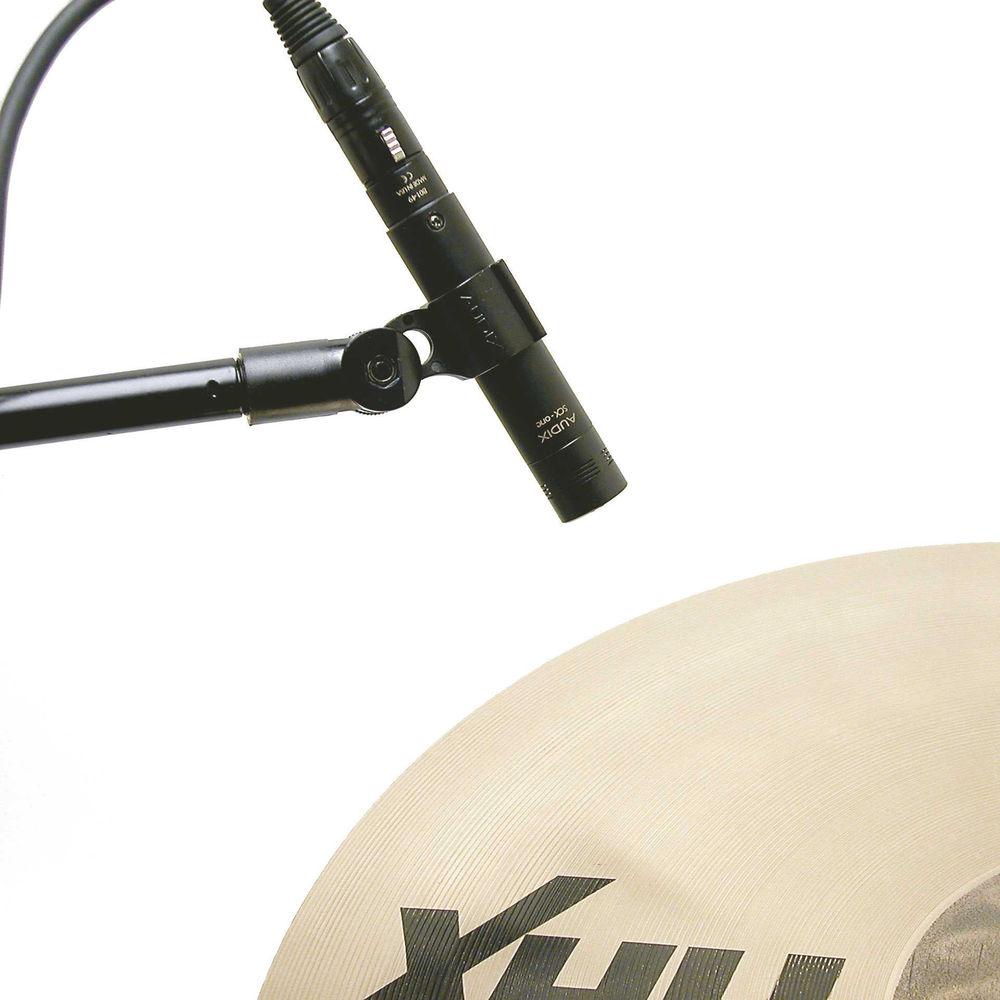

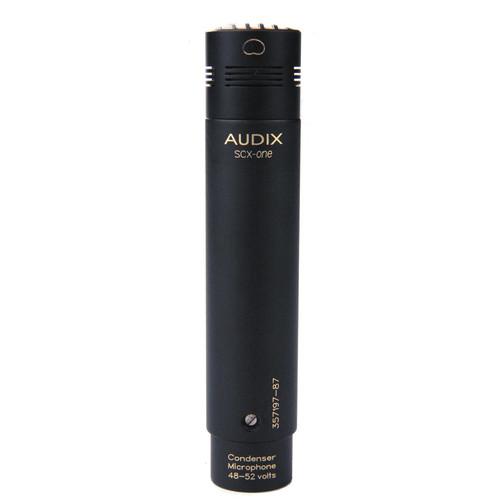

Product description The SCX1-HC Studio Condenser Microphone from Audix offers a versatile condenser microphone system that can be used for vocal, general instrument, and ambiance capturing applications. It features a modular capsule design, allowing you to switch the included hypercardioid capsule with separately sold cardioid and omnidirectional capsules. When used near monitors and speakers, the hyper-cardioid polar pattern provides maximum signal rejection at the off-axis sections of the microphone head, providing a low noise floor and high gain-before-feedback response. Transformerless circuitry and surface mount technology provide a compact profile and quiet signal response with a low noise floor. The microphone's high sensitivity and wide frequency response are suitable for use with vocals, guitar, strings, drums, percussion, overhead cymbals, and similar sounds. A high SPL rating of 130 dB enables the capsule to accurately pick up transient (peaking) signal without noise caused by distortion overload. The package includes an external foam windscreen for reducing wind, sibilance, and pop noise, a nylon molded snap-on clip, and a foam lined wooden case. - Hypercardioid Polar Pattern
- The hyper-cardioid polar pattern provides maximum signal rejection at the off-axis sections of the microphone head, providing a low noise floor and high gain-before-feedback response.
- Modular Capsule Design
- A modular capsule system allows you to switch the included hypercardioid capsule with separately sold cardioid and omnidirectional capsules.
- Surface Mount Technology
- Surface mount technology provides a small, compact profile for quick, easy, and unobtrusive microphone placement.
- Transformerless Design
- Transformerless output circuitry results in high signal to noise ratio and high signal output.

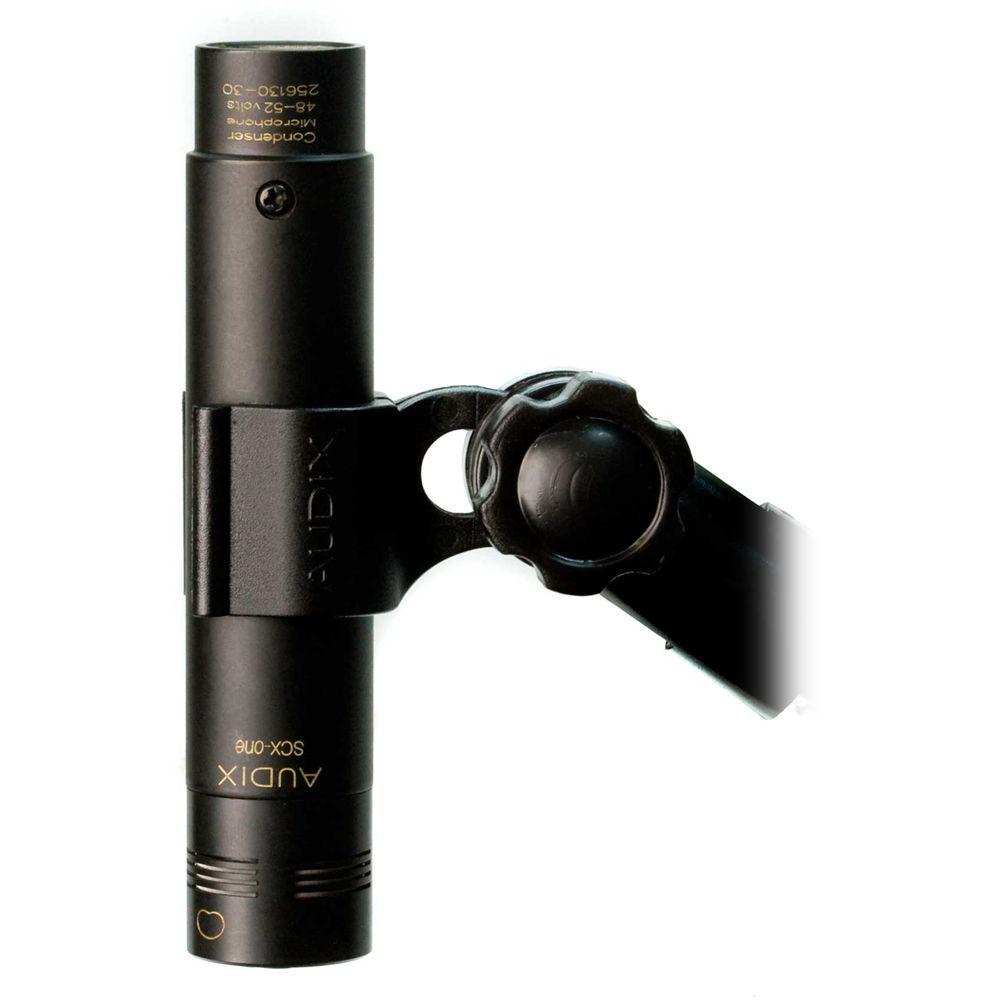

UPC: 687471241066 In the Box Audix SCX1-HC Studio Condenser Microphone (Hypercardioid Polar Pattern) Microphone Clip ztqwsbtedxcteqdyz CASEWOOD Foam Lined Wooden Case WS81C External Foam Windscreen Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Audix SCX1-HC Studio Condenser Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAudix SCX1/HC Specs | | | Transducer | Condenser | | Polar Pattern | Hypercardioid | | Frequency Range | 40 Hz to 20 kHz | | Signal to Noise Ratio | 80 dB | | Equivalent Noise Level | 14 dB A-Weighted | | Maximum SPL | 130 dB SPL | | Impedance | 200 Ohms | | Sensitivity | 17 mV/Pa at 1 kHz | | Dynamic Range | 116 dB | | | | Output Connectors | 1 x 3-Pin XLR | | Operating Voltage | 48 V | | Length | 4.09" / 104 mm | | Weight | 4.02 oz / 114 g | | | | Package Weight | 1.75 lb | | Box Dimensions (LxWxH) | 9.55 x 5.8 x 3.85" |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 29 owners. Add your rating and experience with the product.
