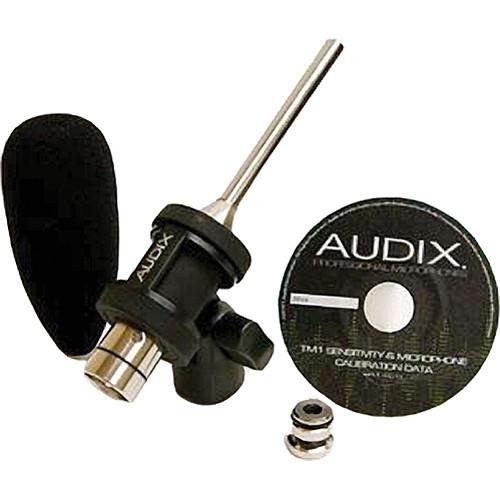

User Manual for Audix TM1 Test & Measurement Microphone Click to enlarge the picture
Contents of the user manual for the Audix TM1 Test & Measurement Microphone
- Product category: Stereo & Specialty Microphones Audix
- Brand: Audix
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Audix Stereo & Specialty Microphones
|
User manual for the Audix TM1 Test & Measurement Microphone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Audix product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Audix user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Audix product will considerably shorten its lifespan!
|
Product description The Audix TM1 Test & Measurement Microphone features a 6mm pre-polarized condenser element with a wide, linear and accurate frequency response for test and measurement analysis, acoustic calibration, real-time analyzers, ambient room capturing and more. The TM1 features a flat frequency response of 20Hz to 25kHz for accurate reproduction and pristine detail. Its 6mm capsule features an omnidirectional polar pattern with a linear response at the direct and off-axis sections of the microphone. The TM1 is features a 4-plate brass construction, switchcraft XLR output, nickel plate finish and shock absorbent o-rings. - 6mm pre-polarized condenser capsule
- Precision machined brass housings
- Replaceable electronics and capsule
Applications - Room analysis software programs
UPC: 687471061299 In the Box Audix TM1 Test & Measurement Microphone DCLIP Heavy Duty Tension Fit Mic Clip P1 Carrying Pouch Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Audix TM1 Test & Measurement Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAudix TM1 Specs | Transducer | Pre-polarized condenser | | Frequency Response | 20Hz to 25kHz +/-2dB | | Polar Pattern | Omnidirectional | | Output Impedance | 200 Ohms | | Sensitivity | 6.5mV / Pa @ 1k | | Max Input Sound Level (SPL) | 130dB with distortion < 1%
140dB Max | | Signal-to-Noise Ratio | 66dB | | EIN | 28dB (A weighted) | | Dynamic Range | 112dB | | Connector | Switchcraft male XLR | | Power | 18-52 volts phantom | | Polarity | Positive pressure on diaphragm produces positive voltage on pin 2 relative to pin 3 of output XLR connector | | Housing | 4 piece precision machined brass | | Finish | Nickel | | Length | 5.9" (150mm) | | | | Package Weight | 0.555 lb | | Box Dimensions (LxWxH) | 8.9 x 4.35 x 2.7" |
