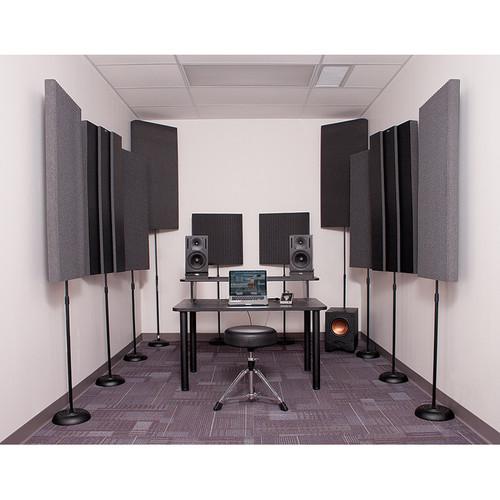

Product description The charcoal Auralex ProducerMAX Portable Room Treatment Kit offers a portable, absorptive, and expandable solution for controlling unwanted room reflections in run-and-gun audio production applications. Ideal for situations when boundary-mounted acoustical treatments are not feasible or desired, the kit can be quickly positioned to create an accurate monitoring environment for recording, editing, and mixing in the studio, on stage, in the classroom, at home, and more. The ProducerMAX kit includes six ProMAX v2 stand-mounted acoustical panels designed to control the room's axial modes, and two DeskMAX v2 stand-mounted nearfield panels to help with insufficient rear-wall trapping. Two Studio6 bass traps provide low-frequency damping for a flatter, low-frequency room response. Two pairs of ProPAD monitor isolation pads provide sonic isolation between your speakers and their resting surface, improving the accuracy and clarity of your monitoring system. The kit ships with floor stands for the panels and bass traps. - ProMAX V2 Acoustic Panels with Floor Stands (Charcoal) This pair of charcoal ProMAX V2 from Auralex provides a highly-effective solution for reducing unwanted acoustic reflections and dialing in the desired amount of room ambience, in professional recording facilities, on stage or in home studios. Portable and lightweight, this treatment is ideal when working in locations where permanent mounting is not feasible. Each panel is 2'-wide, 4'-tall, and 3"-thick. ProMAX V2 features a plastic backside constructed for sound absorption that is higher compared to the original version. Two adjustable mounting stands allow you to rotate, space, and position each panel, and finely tune your sound based on your particular recording environment.
- Lightweight, portable sound-absorption solution for professional and residential settings
- Use in locations where permanent mounting is not feasible
- Reduce unwanted acoustical reflections – dial in the desired amount of room ambience
- Tame chaotic reverberation and early-reflection sound waves
- Semi-reflective, angled rear surface
- Plastic backing constructed for more absorption from the backside than with original ProMAX
- Highly effective control of axial modes
- Mounting stands with adjustable height
UPC: 818105013128 - DeskMAX Stand-Mounted Acoustic Panels (Charcoal, Set of 2) The charcoal Auralex DeskMAX Stand-Mounted Acoustic Panels (Set of 2) is designed as a portable, lightweight, highly effective absorption treatment for run-and-gun recording, mixing, and performance applications.
Equally appropriate in the studio, classroom, or home office, the DeskMAX can be used anywhere boundary-mounted acoustical treatments aren't feasible or desired. UPC: 818105008216 - Studio6 Bass Trap with MAX-Stand (Single) The Studio6 Bass Trap with MAX-Stand from Auralex is a high performance broadband absorber capable of controlling frequencies from 40 Hz to 4 kHz. With a slim profile design of 2 x 4' and a depth of 6", the Studio6 can be used in a variety of places such as ceiling, walls and corners. The panel can be adhered using the optional Foamtak, or Tubetak Pro adhesives, or by using the included MAX-Stand, which allows for mobile placement with height of 8'.
-
- “A” Mount (flush with surface) NRC: 1.45
- “J” Mount (45° angle between two perpendicular surfaces) NRC: 2.20
- Low frequency control in a 2’ x 4’ footprint with a slim 6” profile
- Stand mountable, also mounts to room walls and corners
- Can be adhered using Foamtak or Tubetak Pro
- Includes MAX-Stand for convenient portable mounting, allowing freedom of placement. The stand can be raised to a height of 8' for excellent versatility for a variety of working environments
UPC: 818105012886 - ProPAD Studio Monitor Isolator (4-Pack) This is a 4-pack of ProPAD Studio Monitor Isolators, which are designed to reduce the mechanical resonance caused when studio monitors are placed directly on furniture. By isolating studio monitors you can improve midrange resolution, improve low frequency definition, and focus the soundstage. ProPAD isolators are angle-adjustable to allow optimization of the listening zone and accommodate most 5.25", 6.5", or 8" woofer near-field monitors. The pads are made of 3/4" melamine-wrapped MDF with a thick layer of 100% recycled slip-resistant rubber for isolation.
- Increased mid-range resolution
- Deeper, more focused soundstage
- Improved low-frequency definition
- Angle adjustable to optimize listening axis
- Significant reduction of extraneous mechanical resonance

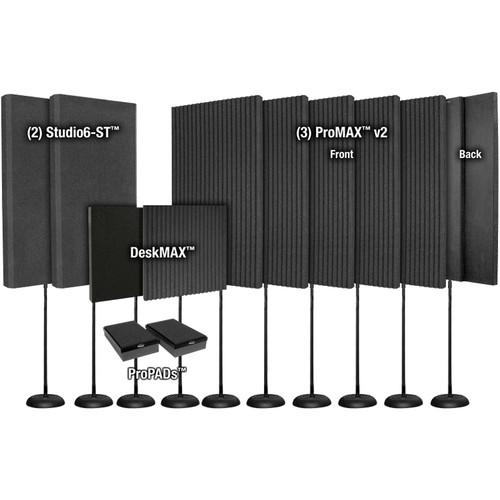

In the Box Bundle Items 3 x ProMAX V2 Acoustic Panels with Floor Stands (Charcoal) rzrqbrbabfdfcquyeqtfayxwdzzvcaytsatxx - 2 x ProMAX V2 Panels (2 x 4')
DeskMAX Stand-Mounted Acoustic Panels (Charcoal, Set of 2) 2 x Studio6 Bass Trap with MAX-Stand (Single) ProPAD Studio Monitor Isolator (4-Pack)
Also Includes Table of Contents
|
Upload User Manual
Have you got an user manual for the Auralex ProducerMAX Portable Room Treatment Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - ProMAX V2 Acoustic Panels with Floor Stands (Charcoal)
| Dimensions (W x H) | 2.0 x 4.0' / 0.6 x 1.2 m | | Thickness | 3.0" / 76.2 mm | | | | Box Dimensions (LxWxH) | 50.5 x 26.5 x 8.5" | - DeskMAX Stand-Mounted Acoustic Panels (Charcoal, Set of 2)
| Color | Charcoal | | Dimensions | 24 x 24 x 3" / 61.0 x 61.0 x 7.6 cm | | Weight | 6 lb / 2.7 kg | | | | Box Dimensions (LxWxH) | 23.5 x 23.5 x 2.7" | - Studio6 Bass Trap with MAX-Stand (Single)
| Stand | Height 8' / 2.4 m | | Dimensions (L x W x D) | Panel: 48.0 x 24.0 x 6.0" / 121.9 x 61.0 x 15.2 cm | | | | Box Dimensions (LxWxH) | 50.0 x 27.0 x 9.0" | - ProPAD Studio Monitor Isolator (4-Pack)
| Construction | 0.75" (1.90 cm) melamine-wrapped MDF base
0.38" (0.95 cm) ISO-Plate with slip resistant top
User configurable Platfoam dual wedge base | | Dimensions (W x D x H) | 8.00 x 13.00 x 2.13" (20.00 x 33.00 x 5.40 cm) each ProPAD | | Weight | 4.0 lb (1.8 kg) per panel | | | | Box Dimensions (LxWxH) | 25.0 x 16.0 x 13.0" |
