Product description

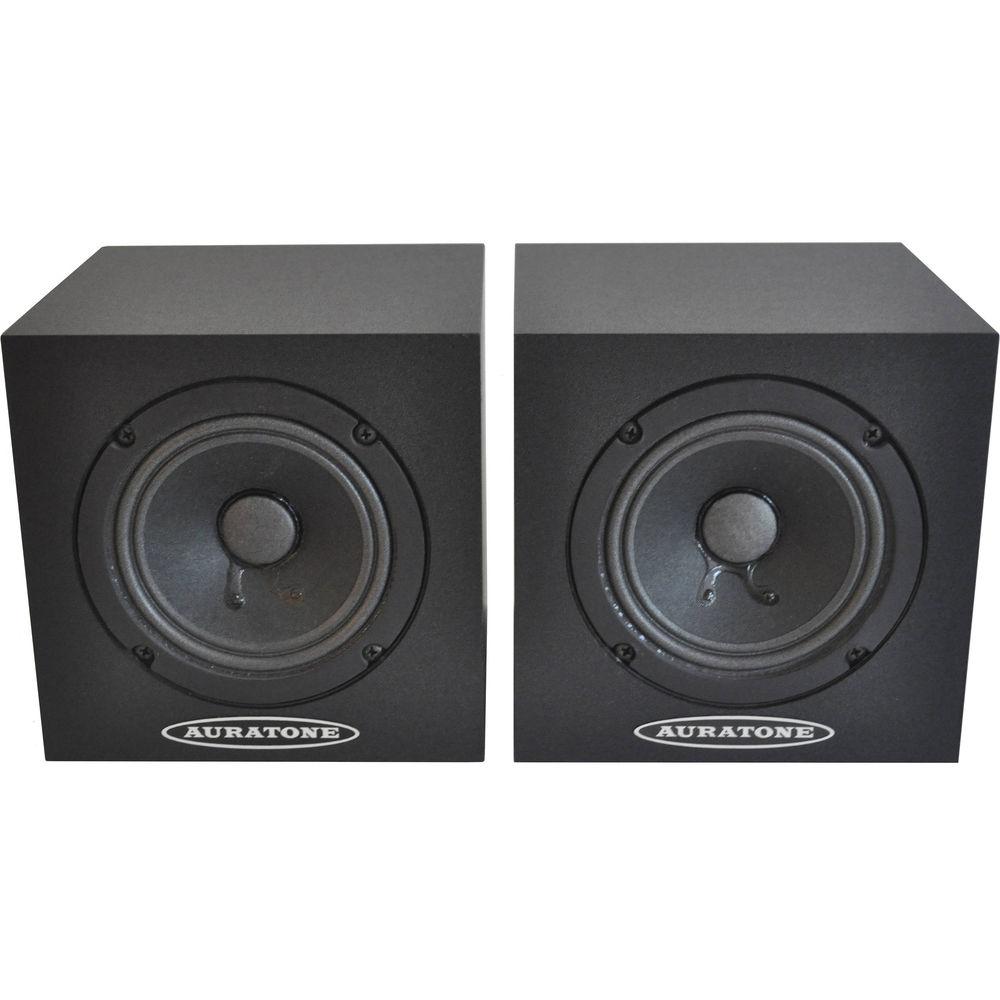

This bundle provides two black Auratone 5C Monitors with a CPA50 Stereo Power Amp. The Auratone 5C Super Sound Cube is a passive studio monitor based upon the original design, featuring a remanufactured version of the original drivers, and this package comes with two of them.

These monitors, which became popular with mix engineers in the 1970s and 80s, were used as real-world reference speakers in the recording studio. Built with a durable cabinet and a 4.5" full-range driver, each 5C Super Sound Cube is a suitable reference monitor that will help you make choices for mix translation to typical consumer speakers.

These passive speakers are available here with the CPA-50 Stereo Power Amplifier, which utilizes Class D amplification to deliver 50W RMS of power to each monitor. The amplifier sports Neutrik XLR inputs as well as binding posts for outputs that are designed to be wired directly to the monitors. The amplifier has a rugged steel chassis and is efficient, with a low-heat design and low power consumption.
    Monitors
    • 4.5" full-range driver
    • 25W RMS / 50W peak
    • 8 Ohms
    Amplifier
    • 50+50W RMS into 4 Ohms
    • 25+25W RMS into 8 Ohms
    • 1 x 100W into 8-Ohm bridged mode
    • Use as a stereo amplifier or as a monoblock in bridged/bi-amp modes (via internal jumpers)
    • Balanced Neutrik XLR inputs
    • Efficient, low-heat design with low power consumption
    • Consumes 6W of power when idling
    • Consumes <0.5W in standby mode
    • Thermal, voltage overload and current overload protection
    • Standby, fault, and bridge indicators
    • Rugged steel chassis
    • Stackable design
In the Box Auratone 5C Monitors with CPA50 Stereo Power Amp (Pair)
  • Limited 1-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the Auratone 5C Monitors with CPA50 Stereo Power Amp in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    Auratone 5C Super Sound Cube Specs

    Monitor Type Passive Full-Range
    Enclosure Sealed, Shielded
    Power Rating 25 W RMS
    50 W Peak
    Impedance 8 Ohms
    Drivers Full-Range Driver: 1 x 4.5" / 11.43 cm Full-Range
    Frequency Range 80 Hz to 15 kHz
    Frequency Response 80 Hz to 15 kHz
    Maximum Sound Pressure Level (SPL) 90 dB
    Total Harmonic Distortion (THD) 0.025%
    Protections and Limiting Fuse

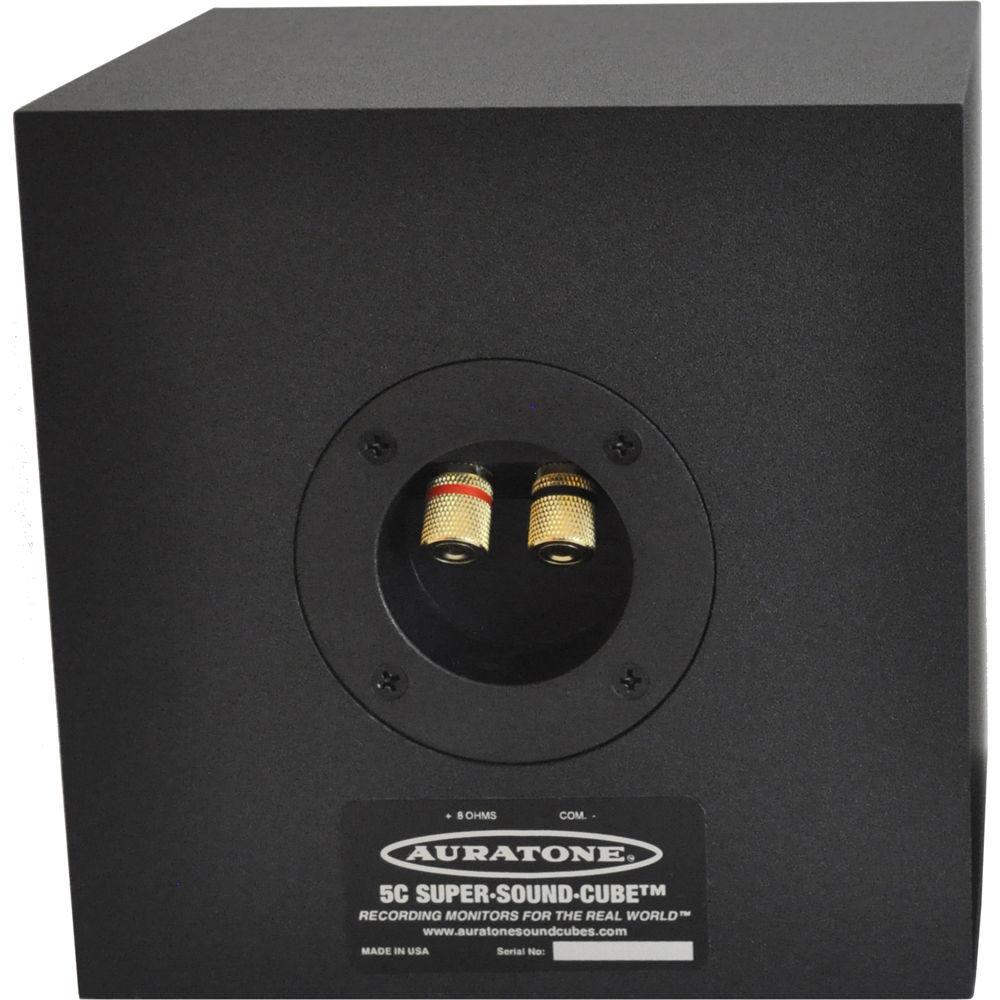

    I/O 2 x Binding Post Analog Input
    AC Input Power 90 to 132 VAC at 50/60 Hz
    180 to 264 VAC at 50/60 Hz
    Power Consumption 0.5 W (Standby)
    6 W (Typical)
    8 W (Maximum)
    Enclosure Material MDF
    Dimensions (W x H x D) 6.5 x 6.0 x 6.5" / 16.5 x 15.2 x 16.5 cm
    6.5 x 2.0 x 7.2" / 165.0 x 51.0 x 184.0 mm (Amplifier)
    Weight 2.8 lb / 1.3 kg
