User Manual for Auray BAI-2X Two-Section Broadcast Arm with Internal Springs and Integrated XLR Cable Click to enlarge the picture
Contents of the user manual for the Auray BAI-2X Two-Section Broadcast Arm with
- Product category: Studio Arms & Accessories Auray
- Brand: Auray
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Auray Studio Arms & Accessories
 |
User manual for the Auray BAI-2X Two-Section Broadcast Arm with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Auray product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Auray user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Auray product will considerably shorten its lifespan!
|

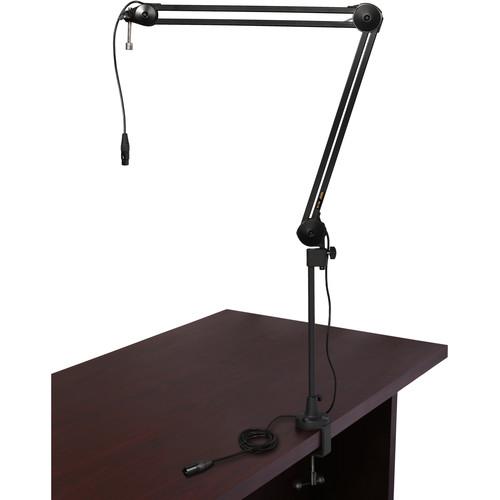

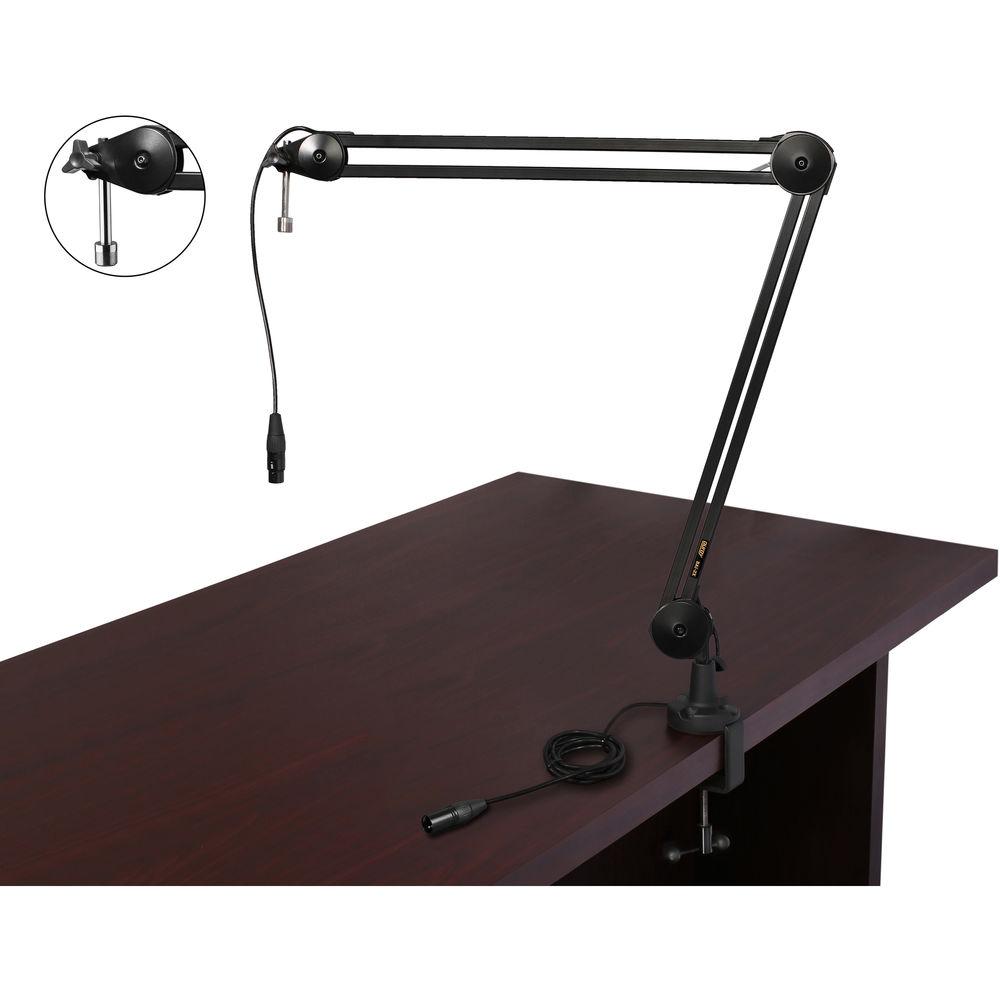

Product description The Auray BAI-2X is a two-section broadcast arm with internal springs and an integrated XLR cable. This versatile and sturdy broadcast arm is great for studio as well as home use. It's ideal for broadcast, voiceover, and podcasts.
The BAI-2X broadcast arm is designed with internal springs that provide a clean and sleek look. The internal balance springs are precision engineered to support and hold in place microphones of up to 5 lb. (2.27 kg). The design also minimizes handling noise when re-positioning the arm. The broadcast arm features a standard 5/8"-27 microphone stud mount that is compatible with most shockmounts and microphone clips. The angle of the microphone stud mount can be adjusted and secured with the locking knob, and the angle is maintained when re-positioning the arm. This eliminates the need to readjust it every time the arm is moved. With an extension of up to 40 inches, and the ability to rotate the arm 360°, the BAI-2X allows for precise microphone placement.

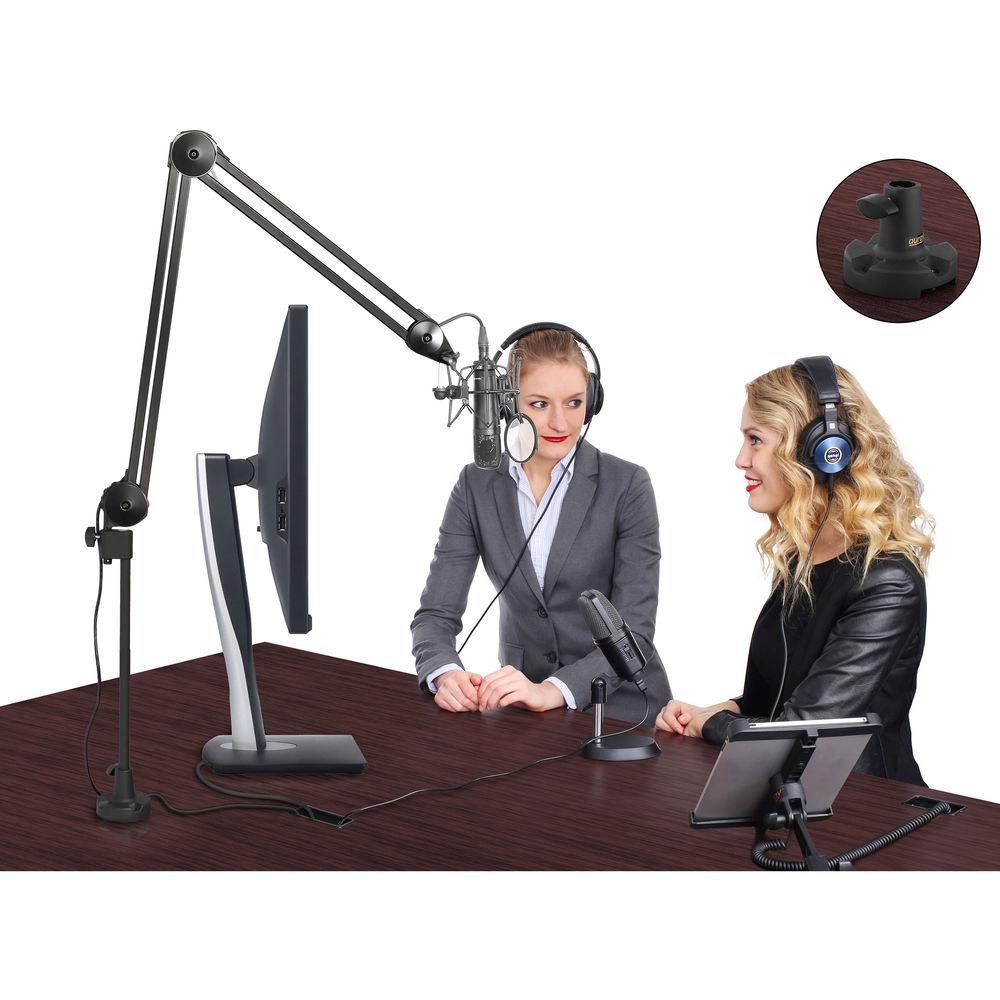

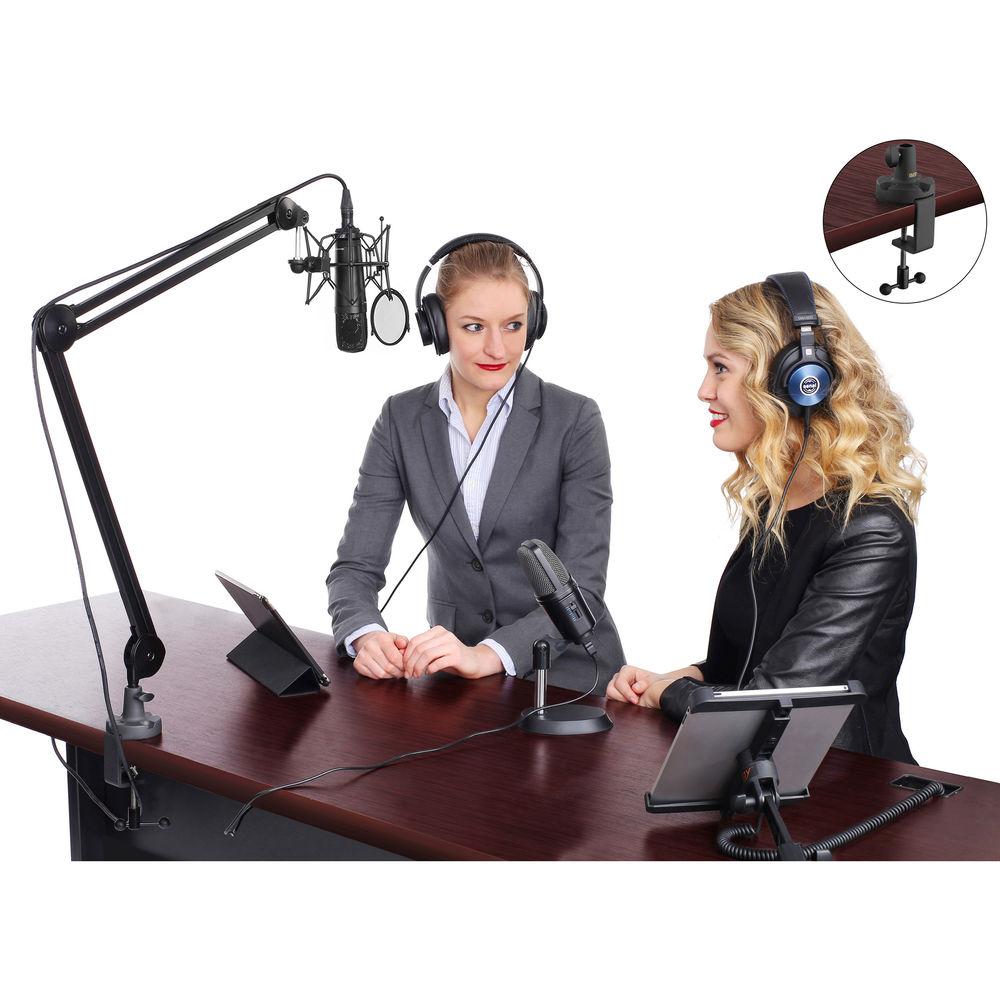

The BAI-2X also features a heavy-duty combo mount that consists of a sturdy C-clamp and a heavy-metal desktop mount. The C-clamp is capable of fastening onto desktops up to 2.3" thick. The C-clamp's slim design minimizes the clearance needed to mount it between a desk and wall. The desktop mount detaches from the C-clamp and provides the option of permanent installation to a desktop with the mounting screws (included). A 14" riser is included for adding height to the broadcast arm in order to extend over computer or studio monitors. - Versatile
- Ideal for studios as well as home use
- Internal Springs
- Internal springs provide smooth, noise-free positioning and clean and sleek profile
- Sturdy
- Supports microphones up to 5 lb. (2.27 kg)
- Compatibility
- The 5/8"-27 standard microphone thread is compatible with most shockmounts and microphone clips
- Precision
- Extends up to 40" (101.6 cm) and rotates 360° allowing for precise microphone placement
- XLR Cable
- The integrated 15-foot (457.2 cm) XLR cable provides a secure, locking connection and excellent signal transfer
- Extra Height
- A 14" (13.6 cm) riser is included. It provides extra height to the broadcast arm for extending over computer or studio monitors
- Combo Mount
- The heavy-duty combo mount is comprised of a C-clamp for clamping to a desktop up to 2.3-inch (5.8 cm) thick, and a detachable desktop mount for permanent attachment to a desktop with the included screws
- 14" Riser
- The included riser adds 14" of height to the broadcast arm so that it can easily extend over computer or studio monitors

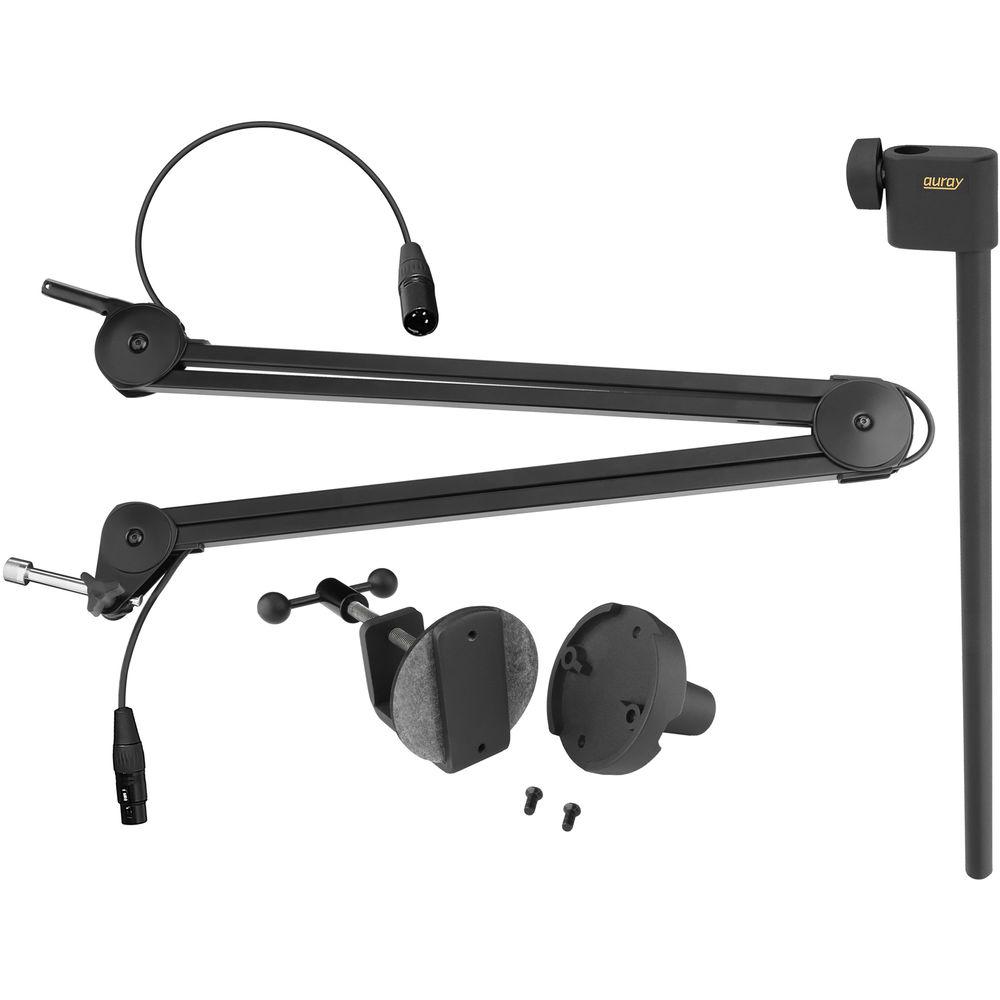

UPC: 847628578272 In the Box Auray BAI-2X Two-Section Broadcast Arm with Internal Springs and Integrated XLR Cable BAC-1 Universal Interchangeable Combo Mount for Broadcast Arms eswtefzxrebvrutxuswr 4 x Mounting Screws BAR-1 14" Riser for Broadcast Arms Limited 1-Year Warranty User Manual PDF 786.1kb Table of Contents
|
Upload User Manual
Have you got an user manual for the Auray BAI-2X Two-Section Broadcast Arm with Internal Springs and Integrated XLR Cable in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAuray BAI-2X Specs | Length | 40" (101.6 cm) | | Weight Capacity | 5 lb (2.27 kg) | | Microphone Mount | 5/8"-27 standard microphone thread | | Clamping Range | 2.3" (5.8 cm) | | Riser | 14" (35.56 cm) | | Cable | XLR M to XLR F: 15' (457.2 cm) | | Weight | 4.47 lb. (2.02 kg) | | | | Package Weight | 6.45 lb | | Box Dimensions (LxWxH) | 23.5 x 7.4 x 3.5" |
