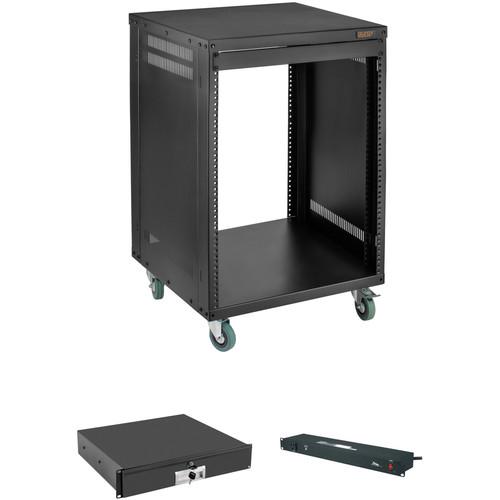

User Manual for Auray ERS-12U Equipment Rack with Drawer and Power Conditioner Kit Click to enlarge the picture
Contents of the user manual for the Auray ERS-12U Equipment Rack with Drawer
- Product category: Rack Furniture Auray
- Brand: Auray
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Auray Rack Furniture
|
User manual for the Auray ERS-12U Equipment Rack with Drawer contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Auray product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Auray user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Auray product will considerably shorten its lifespan!
|
Product description The Auray ERS-12U Equipment Rack with Drawer and Power Conditioner Kit from includes a 12 RU ERS-12U steel equipment rack with 3" casters, an RD-L-2U two-space locking rack drawer with two keys, and a Furman M-8x2 power conditioner and surge protector with eight switched outlets. The kit offers a convenient solution for safely mounting and rolling your AV equipment while supplying it with noise-free and spike-free power. The drawer provides storage space to keep your accessories organized and easily accessible. - Auray ERS- 12U Steel Equipment Rack with 3" Casters (12 RU) The ERS- 12U Steel Equipment Rack with 3" Casters from Auray is a durable, twelve-space rack unit that is designed with vented side panels in order to promote airflow throughout the rack. It can be used in several environments including professional recording and broadcast studio applications. In addition, the ERS-12U is supported by three-inch locking casters for easy movement and access to the back of your gear.
- Steel Construction
- The solid construction of the ERS-12U makes it at home in several environments such as professional recording or broadcast studios, and it can handle loads of up to 440 pounds
- Vented Side Panels
- Each side panel is vented to promote airflow throughout the rack and dissipate heat
- Three-Inch Locking Casters
- The heavy-duty, three-inch locking casters make it easy to move the rack when it is fully loaded. They give you easy access to the back of your gear, and the casters securely lock to keep the rack stationary
UPC: 847628598126 - Auray RD-L-2U Two-Space Locking Rack Drawer (2 RU) The RD-L-2U Two-Space Locking Rack Drawer from Auray is a rugged steel drawer that is designed for demanding environments including broadcast, recording, and live applications. The drawer features glides that provide a smooth and quiet operation, and it extends to permit easy access to hard-to-reach items. The locking feature offers security for valuable tools, gear, and accessories. Two keys are included. UPC: 847628598201
- Middle Atlantic PWR-9-RP Essex Rackmount Power 9-Outlet Horizontal Power Distribution The horizontal, 9-outlet Middle Atlantic PWR-9-RP Essex Rackmount Power Distribution Unit provides affordable power distribution in a compact, rackmount form factor. Designed for use in Essex racks, this 15A rackmount unit features surge protection and filtering.
-
- Value power option, specially designed for the Essex collection
- Line to neutral surge protection and filtering, which eliminates noise
- UL Listed
- 15 Amps
- Flat black finish
- Space-saving single rack-space design
- Integrated circuit breaker with surge protection status LED
- Front-facing convenience outlet
- 9' power cord
- Ground/bonding stud
UPC: 656747240133 In the Box - ERS- 12U Steel Equipment Rack with 3" Casters (12 RU) zwzsbaqztwcc
- Assembly Hardware
- Limited 3-Year Warranty
- RD-L-2U Two-Space Locking Rack Drawer (2 RU)
- Middle Atlantic - PWR-9-RP Essex Rackmount Power 9-Outlet Horizontal Power Distribution zwzsbaqztwcc
Table of Contents
|
Upload User Manual
Have you got an user manual for the Auray ERS-12U Equipment Rack with Drawer and Power Conditioner Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Auray ERS- 12U Steel Equipment Rack with 3" Casters (12 RU)
| Rack Form Factor | 12 RU | | Load Capacity | 440 lb / 199.6 kg | | Caster/Wheel | 3" / 7.6 cm | | Material of Construction | Steel | | Exterior Dimensions (W x H x D) | 19.7 x 27.6 x 18.1" / 50 x 70 x 46 cm | | Weight | 34.4 lb / 15.6 kg | | | | Box Dimensions (LxWxH) | 26.5 x 21.25 x 6.0" | - Auray RD-L-2U Two-Space Locking Rack Drawer (2 RU)
| Material of Construction | Steel | | Exterior Dimensions (W x H x D) | 19 x 3.5 x 15.75" (48.3 x 8.8 x 40 cm) | | Interior Dimensions (W x H x D) | 16.25 × 3.25 × 15.25" (41.3 × 8.3 × 38.7 cm) | | Maximum Weight Capacity | 40 lb (18.1 kg) | | Weight | 14 lb (6.35 kg) | | | | Box Dimensions (LxWxH) | 21.0 x 18.5 x 5.0" | - Middle Atlantic PWR-9-RP Essex Rackmount Power 9-Outlet Horizontal Power Distribution
| Outlets | Number of Outlets: 9 | | Cable Type | Corded | | Finish | Flat black | | UL Standards Tested | 1449 | | Termination | 9.0' / 2.7 m cord with NEMA 5-15P plug | | Surge Protection | Basic | | Mounting | Mounting: Horizontal
Mounting Points: 2 | | Certifications | RoHS: Yes | | Power | Power Input: 120 VAC, 15 A, 60 Hz
Outlet: 125 VAC, 12 A, 60 Hz | | Dimensions (D x H x W) | 4.3 x 1.8 x 19.0" / 109.2 x 44.5 x 482.6 mm | | Weight | Not specified by manufacturer | | | | Box Dimensions (LxWxH) | 21.1 x 7.4 x 3.9" |
