User Manual for Auray LED6-XLR4 6-LED Gooseneck Light Click to enlarge the picture
Contents of the user manual for the Auray LED6-XLR4 6-LED Gooseneck Light
- Product category: Lights & Accessories Auray
- Brand: Auray
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Auray Lights & Accessories
 |
User manual for the Auray LED6-XLR4 6-LED Gooseneck Light contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Auray product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Auray user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Auray product will considerably shorten its lifespan!
|

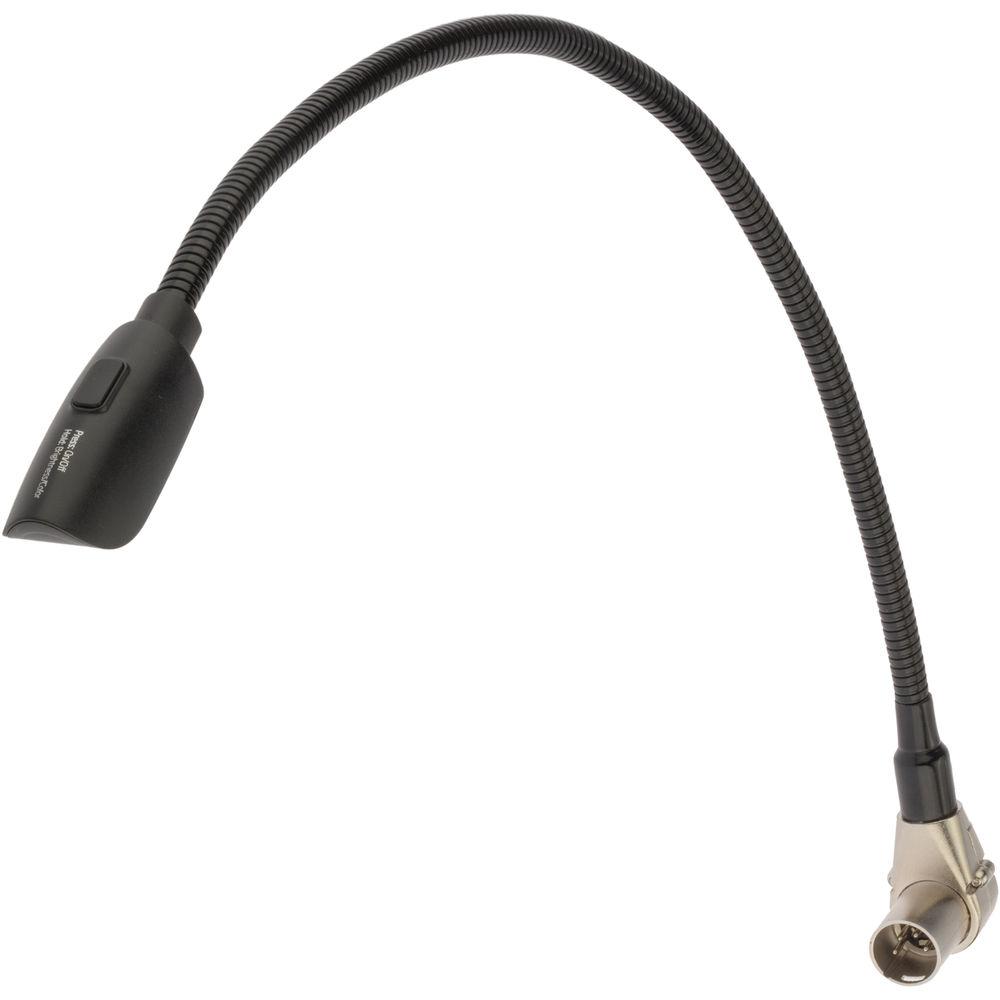

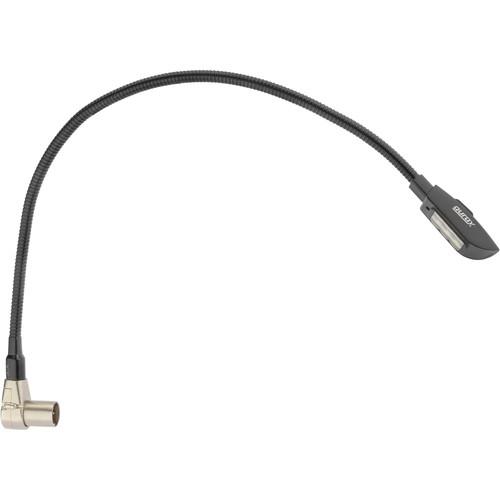

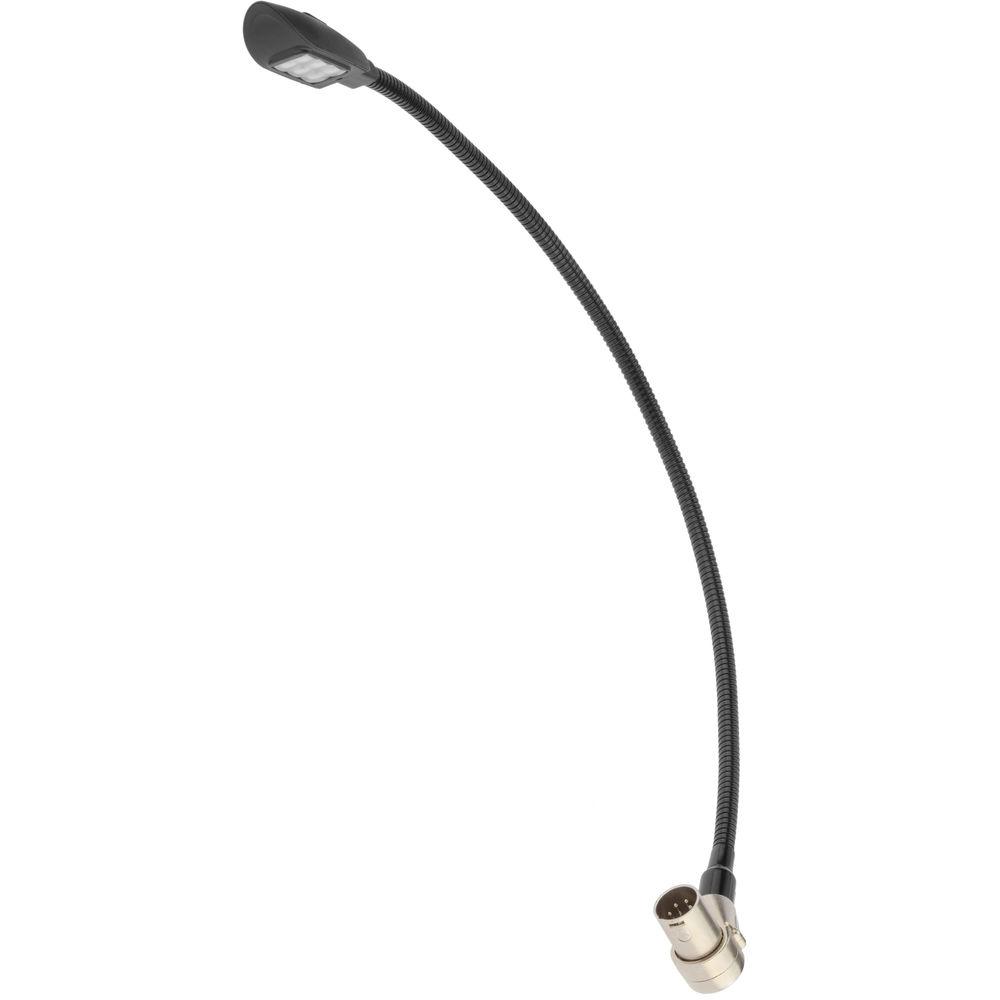

Product description The Auray LED6-XLR4 is a 6-LED gooseneck light designed for audio engineers and lighting technicians in houses of worship, concert venues, theaters, and other live stage applications. The flexible 18" gooseneck allows versatile positioning for optimal angling and orientation. Adjust the brightness via the three-step control, for illumination levels appropriate to the amount of ambient light. Switch the LEDs from white to red if your environment demands discreet and shadow-free lighting. Being long-lasting, cool-running, and efficient, the LEDs are designed to keep your gear visible for years to come. With an XLR 4-pin male connector, the LED6-XLR4 is powered via any 12 VDC XLR 4-pin lamp output port on a mixing console or lighting board. - XLR 4-Pin Connector

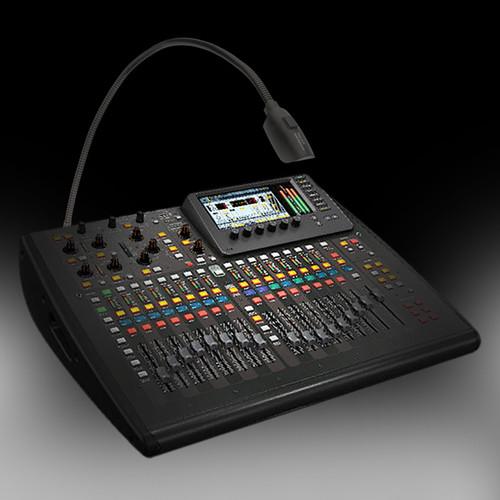

- Simply connect the LED6-XLR4 to an available XLR 4-pin lamp port to obtain immediate illumination. With a XLR 4-pin male plug, it is compatible with 12 VDC XLR 4-pin lamp output sockets, which are found on many mixing consoles and lighting boards.
- Brightness-Adjustable White Light
- The three-step brightness control allows ideal lighting to suit your surroundings. Opt for a low glow or switch to a bright beam, whatever suits your workstation.

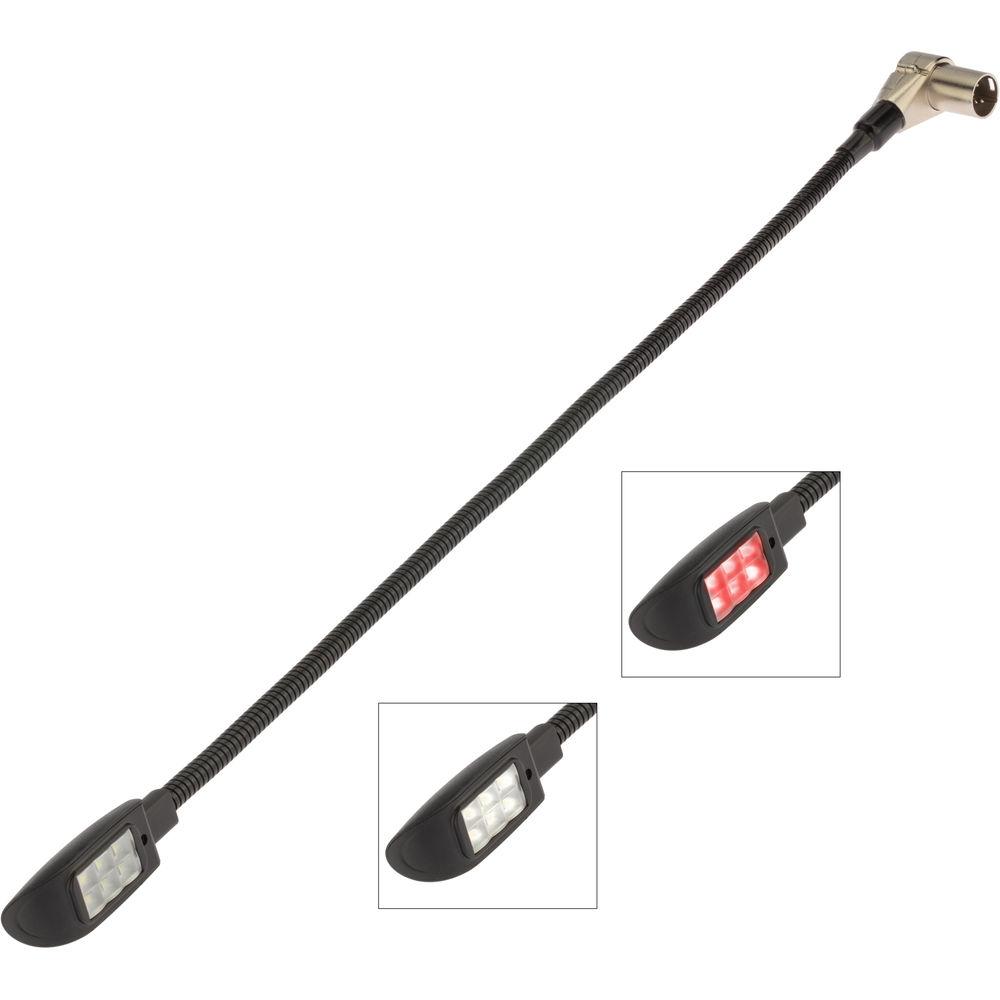

- Selectable Red Light
- Utilize the red-light option to eliminate distracting shadows and conspicuous light in notably dark environments.
- Low-Heat, Long-Life LEDs
- The six LEDs boast device-friendly efficiency, effectively avoiding power overdraw. By emitting minimal heat even throughout extended periods of use, the LEDs can be placed close to equipment without compromising safety.
UPC: 847628008670 In the Box Auray LED6-XLR4 6-LED Gooseneck Light (XLR 4-Pin) Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Auray LED6-XLR4 6-LED Gooseneck Light in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAuray LED6-XLR4 Specs | Length | 18" / 45.7 cm | | Bulb | 6-LED lamp | | Connector | XLR 4-pin male | | Pin Configuration | Pin 1: Not connected
Pin 2: Not connected
Pin 3: Ground
Pin 4: 12 V | | Power Requirements | 12 VDC | | Construction Material | Metal and plastic | | Weight | 6.6 oz / 187 g | | Certifications | CE, WEEE | | | | Package Weight | 0.585 lb | | Box Dimensions (LxWxH) | 11.5 x 7.8 x 1.2" |
