Auray RF-C20 Studio Isolation Kit with

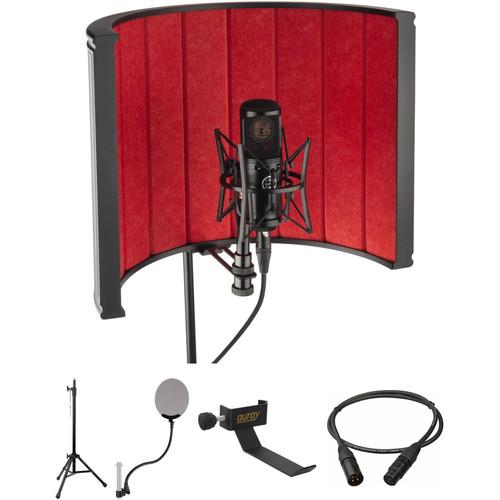

User Manual for Auray RF-C20 Studio Isolation Kit with RF-C20 Filter, RFMS-580 Tripod Stand, Pop Filter, Headphone Clamp & Mic Cable

• Product category: Pop & Reflection Filters Auray
• Brand: Auray
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Auray Pop & Reflection Filters

Product description

• Auray RF-C20 Studio Isolation Filter (Red Composite, Metal Back) The red composite, metal back RF-C20 Studio Isolation Filter from Auray provides a solution for music producers, broadcasters, and podcasters looking to help isolate a microphone and achieve better recordings in a space that is less than ideal for capturing audio. The Auray Studio Isolation Filter makes capturing clean, dry vocals or instrument recordings sound more natural with less sonic coloration.The RF-C20 fits on a medium- to heavy-duty microphone stand and uses a rugged aluminum mesh frame, four-layers of acoustic treatment, a vented metal back, plus a layer of acoustic composite fiber to absorb unwanted ambient noise and control acoustic reflections. In a nutshell, if your recording vocals, voiceovers, or podcasts in an untreated room with hard surfaces, the RF-C20 provides advanced microphone isolation for better-sounding results.
  Microphone Isolation
  • Recording, broadcasting, or podcasting in rooms with little-to-no acoustic treatment can wash-out vocal or instrument audio recordings with echo reflections. The Auray Studio Isolation Filter minimizes reflections of unwanted noise bouncing off hard surfaces and entering your microphone. Usually, expensive acoustic foam is required on studio walls to absorb reflections and get a "dry" sound. With this reflection filter, you can achieve similar results in your own room or workspace.
  Four-Layer Acoustic Treatment
  • Four layers of acoustic treatment help to isolate your vocal and instrument recordings. A thick layer of composite fiber surrounds your microphone and absorbs unwanted reflections, as well as additional noise coming in from the room. Two more layers of fabric and a perforated mesh layer help deaden and disperse sound waves, leaving your incoming audio clean and dry with little to no coloration.
  Adjustable Microphone Position
  • Getting the right position with your microphone to capture vocals or instruments is a crucial step when recording audio. The RF-C20 allows you to adjust the microphone position horizontally and vertically. Slide the microphone closer to the filter for that dry sound or slide the microphone away from the filter to add more of the room ambience. You can also adjust the microphone height to fit the person or instrument you're recording. You can even alter the angle of the filter and microphone with a simple twist of a knob.
  Mounting Options
  • The Auray Studio Isolation Filter can be mounted three ways. Use the clamps to attach the filter to medium- to heavy-duty boom and microphone stands. The clamps provide quick attachment and minimize setup time. An included 5/8- to 3/8" adapter allows you to seat the filter directly to the top of your mic stand. In addition, you can mount the isolation filter upside down to a mic boom arm for overhead recording.
  UPC: 847628013827
• Auray RFMS-580 Reflection Filter Tripod Mic Stand The RFMS-580 Reflection Filter Tripod Mic Stand from Auray features heavy duty steel construction and is capable of providing sturdy support to your reflection filter and studio microphone at the same time. The tripod stand design features collapsible legs for convenient storage and a telescoping center column that can be adjusted to reach a maximum working height of 76", including a standard reflection filter.

  The stand also features non-slip feet for added traction on hard surfaces as well as a 5/8" threaded adapter for attaching a shockmount or mic clip.
  • Provides sturdy support to a microphone and a reflection filter at the same time
  • May also be used as a speaker stand (may require 3/8" thread adapter)
  UPC: 847628576827
• Auray PFMR Metal Pop Filter with Gooseneck (5.5") The Auray PFMR Metal Pop Filter features a 5.5" diameter and a 13.5" attached gooseneck for flexible positioning on microphone stands. The pop filter minimizes annoying pops, and dampens excessive sibilance in recordings. UPC: 847628562905
• Auray COHH-2 - Clamp On Headphone Holder For Mic Stand The Auray COHH-2 - Clamp-On Headphone Holder for Microphone Stand easily attaches to microphone stands that are up to 1.2" (30mm) in diameter to provide a hanging hook that supports two pairs of studio headphones. With a sturdy all-metal construction, the holder attaches to the microphone stand using a durable threaded locking knob which ensures the headphones remain in place and are conveniently accessible while tracking in the studio.
  Organize your Studio
  • Keep headphones accessible and uncluttered when tracking
  Supports Two Pairs of Headphones
  • Provides sufficient support for two full-size pairs of studio headphones
  Durable Locking Knob
  • Assures that hook will not slip once firmly attached to mic stand
  Versatile
  • Fits mic Stands with tube diameters up to 1.2" (30mm)
  Sturdy
  • All-metal construction ensures years of reliable use
  UPC: 847628580312
• Mogami Gold Studio XLR Female to XLR Male Microphone Cable (Black, 15') The black, 15' Mogami Gold Studio XLR Female to XLR Male Microphone Cable is a high-quality, 4-conductor cable engineered for maximum rejection of RFI and EMI, accurate signal transmission with low noise, and durability. It uses the company's Neglex twisted, double-conductor quad cable with a spiral, bare copper shield, which is effective in maintaining signal integrity, even when used with unbalanced equipment, in professional or home studios suffering from wiring and grounding problems.The cable is terminated with black-body, gold-plated XLR connectors, and features a 0.236" diameter jacket, ideal for applications where a small-diameter quad mic cable is required.

  Key Features

  • Studio and broadcast-quality microphone cable wired with Mogami 2534 Neglex twisted quad-conductor cable
  • Ideal for home studios suffering from wiring and grounding problems—maintains signal quality when used with unbalanced equipment
  • Served (spiral) bare copper shield for long-lasting protection against RFI and EMI
  • XLPE (Cross-Linked Polyethylene) conductor insulation
  • Terminated with black-body, 3-pin XLR connectors (XLR female to XLR male)
  • Gold-plated contacts to prevent corrosion
  • 0.236" jacket diameter—for use where a small-diameter quad mic cable is required
  • Limited lifetime warranty
  UPC: 801813075830

• RF-C20 Studio Isolation Filter (Red Composite, Metal Back) truxxawqufzs
• Mounting Hardware
• Limited 1-Year Warranty

• RFMS-580 Reflection Filter Tripod Mic Stand

• PFMR Metal Pop Filter with Gooseneck (5.5")

• COHH-2 - Clamp On Headphone Holder For Mic Stand

• Mogami - Gold Studio XLR Female to XLR Male Microphone Cable (Black, 15')

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Auray RF-C20 Studio Isolation Filter (Red Composite, Metal Back)

  Material of Construction	Composite Fiber, Aluminum
  Dimensions (H x W x D)	14.6 x 17.5 x 13.3" / 37.2 x 44.5 x 33.8 cm
  Weight	8.2 lb / 3.7 kg

  Box Dimensions (LxWxH)	19.5 x 17.0 x 13.0"

• Auray RFMS-580 Reflection Filter Tripod Mic Stand

  Thread Size	5/8"
  Folded Height	35.2" (89.4 cm)
  Adjustable Height Range	42 to 68" (106.7 to 172.7 cm)
  Weight	5.2 lb (2.36 kg)

  Box Dimensions (LxWxH)	35.75 x 5.0 x 4.25"

• Auray PFMR Metal Pop Filter with Gooseneck (5.5")

  Box Dimensions (LxWxH)	13.0 x 6.8 x 2.0"

• Auray COHH-2 - Clamp On Headphone Holder For Mic Stand

  Dimensions (H x W x L)	1.75 x 3 x 5.25" (4.4 x 7.6 x 13.3 cm)
  Weight	0.25 lb (113.4 g)

  Box Dimensions (LxWxH)	6.0 x 4.0 x 2.0"

• Mogami Gold Studio XLR Female to XLR Male Microphone Cable (Black, 15')

  Connector 1	3-Pin XLR Male
  Connector 2	3-Pin XLR Female
  Cable Length	15' / 4.6 m
  Outer Diameter	0.236" / 6 mm
  Shielding	Bare Copper Spiral
  Conductor Material	Oxygen-Free Copper (OFC)
  Number of Conductors	4
  Wire Gauge	24 AWG
  Contact Plating	Gold
  Jacket Type	Polyvinyl Chloride (PVC)
  Insulation Type	Polyethylene
  Conductor Capacitance	29.6 pF/ft at 1 kHz

  Box Dimensions (LxWxH)	9.37 x 7.165 x 0.787"
