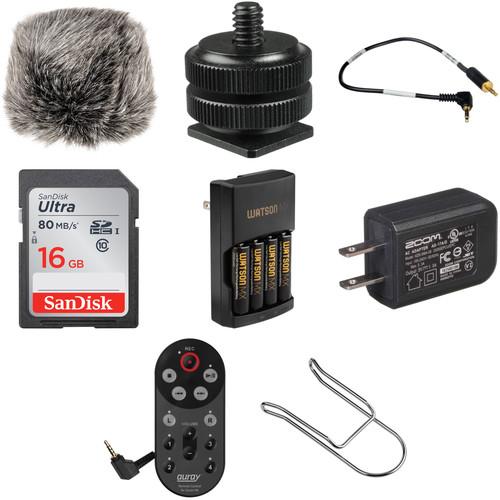

Product description The Auray Zoom H6 HDSLR Accessory Kit from B&H provides you with all the essential accessories you need to start using your portable recorder with your HDSLR. The kit comes with an Auray Custom Windbuster, Auray RC-ZH6 Remote Control with belt clip for Zoom H6, Hot Shoe to 1/4"-20 Male Post Adapter, ACH4-25R Line-to-Mic Attenuator Cable, 16GB SDHC Memory Card, 4-Hour Rapid Charger with four AA NiMH rechargeable batteries, and an AC-17 AC Adapter. - Auray WRW-H2N Custom Windbuster for Zoom H2n The Auray WRW Series Custom Windbusters provide dual layered wind protection and are designed to substantially reduce unwanted broadband wind noise and vocal pops with minimal high frequency loss.
This WRW-H2N Custom Windbuster has been tailor-made to fit the Zoom H2n and is designed to be used either on its own or over a foam windscreen. It also fits the Zoom H5 and H6 X/Y Mic over its existing foam windcreen. The simulated fur outer layer works in tandem with the acoustic cloth inner lining to protect the microphone element from air bursts without muffling the sound.
When used on the Zoom H2n, this windbuster is effective in minimizing wind noise and plosive sounds. It is most effective in light breeze to moderate breeze conditions (4-17 mph) and users can generally expect a 20dB to 30dB reduction in wind noise with modest dampening of high frequencies. For most applications, the modest high frequency dampening is a worthwhile exchange for the substantial wind noise reduction.
In addition to dual layered wind protection, the WRW-H2N helps prevent moisture and dirt from damaging your recorder's microphone. The windbuster is designed to fit the Zoom H2n recorder.
The WRW-H2N Custom Windbuster for the Zoom H2n digital recorder offers an extremely effective dual layered solution for wind protection. - Zoom H2n, H5 & H6 X/Y Mic with foam
UPC: 847628556201 - Revo Hot Shoe to 1/4"-20 Male Post Adapter This Revo Hot Shoe to 1/4"-20 Male Post Adapter has a threaded 1/4"-20 stud on the top and a "cold" male flash shoe on the bottom. This handy little adapter allows you to mount camera accessories that only come with a 1/4"-20 socket to cameras, rigs, camera brackets, and any tripod or light stand that only feature a flash shoe. For added security, the knurled locking ring assures a tight connection to the accessory.
- Attaches to Camera Hot Shoe
- This adapter attaches to your camera's hot shoe, converting it into a 1/4"-20 male post.
- Compatible With Female 1/4"-20 Threads
- Mounts any item with a female 1/4"-20 thread to the camera hot shoe.
- Lightweight, Durable Aluminum Construction
- Made from durable and lightweight aluminum, this accessory won't weigh you and your gear down with unnecessary bulk and weight.
UPC: 847628555822 - Whirlwind WHH4NL3.5 Line-to-Microphone Attenuator Cable for HDSLR Cameras The Whirlwind WHH4NL 3.5 Line-to-Microphone Attenuator Cable measures 1' (30.48cm) long and is specifically designed to connect the line outputs on portable recording devices (such as the Zoom H4N and Zoom H1), to the microphone inputs on HDSLR cameras. The cable features -25dB of attenuation and a right angled connection at the camera's end for added convenience. UPC: 692465021821
- SanDisk 16GB Ultra UHS-I SDHC Memory Card (Class 10) Record Full HD 1080p video with this Class 10 compliant 16GB Ultra UHS-I SDHC Memory Card from SanDisk. With enhanced data read speeds of up to 80 MB/s this Ultra SDHC memory card is designed to suit the needs of compact and mid-range point and shoot cameras. You can also save and store a variety of files such as music, movies, documents and more. The writable label found on the card allows you to write down what is saved to the card while the built-in write protect switch helps to prevent accidental data loss. This card, as with most SanDisk cards, comes shock, temperature, x-ray, magnet, and waterproof to take your files with you nearly anywhere you go.
- Class 10 performance for Full HD Video (1080p)
- Read speeds up to 80 MB/s
- Writable label for easy identification and organization
- Engineered with UHS-I bus architecture
- This SD memory card comes shock, temperature, x-ray, magnet, and waterproof proof
UPC: 619659136451 - Watson MX 4-Hour Rapid Charger and 4 MX AA NiMH Batteries Power up your photo equipment, flashlights, gaming devices, and other electronics via the Watson MX 4-Hour Rapid Charger with 4 MX AA NiMH Batteries. The 1.2V, 2550mAh nickel-metal hydride cells are pre-charged, rechargeable up to 500 times, and capable of retaining 85% of their capacity after 1 year in storage. The Rapid unit will charge 4 of them in about 310 minutes, or 2 in about 160 minutes. It's also compatible with optional AA NiCd batteries, or AAA NiMH or NiCd cells.
The charger's integrated micro-controller ensures that each battery is charged to its full capacity, and an automatic cut-off feature prevents overcharging. Should the controller and automatic cut-off functions both fail, the safety guard timer will kick in to ensure that power is still shut off after 6 hours. Additionally, the charger features protection against short circuits and reverse polarity. Two charging channels are individually monitored, and two LED indicators display battery status. In order to enable use all over the world, the charger runs on 100-240 VAC power. As a bonus, its compact outlet prongs can fold inwards, making the unit more compact for storage and travel. UPC: 847628599529 - Zoom AD-17 AC Adapter for R8, H6, H2n, H1, H1n, H3-VR & Q2HD Recorders The AC-17 AC Adapter from Zoom is used to power the R8, H6, H2n, H1, H3-VR & Q2HD Recorders. Note: Note: This is a replacement adapter for R8 Recorder and separately sold accessory for the H6, H2n, H1, and Q2HD Recorders. UPC: 884354010409
- Auray RC-ZH6 Remote Control for Zoom H6 Handy Recorder Allowing you to control record, play, pause, stop, and scrub functions on your Zoom H6 Handy recorder from up to 4' away, the RC-ZH6 Remote Control for Zoom H6 Handy Recorder from Auray can be used to prevent handling noise while recording. The remote allows you to create and scan through markers, while the built-in recording and clip indicators provide you with visual feedback. A stereo record enable function lets you to create stereo pairs on adjacent channels when using external stereo microphones, or alternatively each XLR input can be record enabled independently. The RC-ZH6 requires no batteries for operation, and has integrated cable management for its 4' long cable.
- For use with your Zoom H6 Handy Recorder
- Record, play, stop, pause, fast forward, rewind, and add marks from up to 4' away
- Indicator lights show status of record-enabled tracks and blink to indicate signal overload
- Record enable per channel, with the ability to set up stereo pairs
- Ideal for preventing handling noise
UPC: 847628578616 - Auray RCZH6-BC Belt Clip for RC-ZH6 & RC-ZH5 Remote Controls The Auray RCZH6-BC is a belt clip accessory that fits Auray's RC-ZH6 and RC-ZH5 remote controls for the Zoom H5 and H6 Handy Recorders. The belt clip is simple to attach, easy to remove, and provides a hands-free solution for recording in the field. The sturdy all-metal construction fits snuggly around the remote's outer edge, keeping it secure and accessible throughout the recording.
- Fits RC-ZH5 & RC-ZH6 Remote Controls
- The RCZH6-BC belt clip is designed to fit Auray's remote controls for the Zoom H5 and Zoon H6 Handy Recorders
- Keeps the Remote Accessible
- The belt clip keeps the remote accessible providing a hands-free solution to recording in the field
- Secure Fit
- The belt clip is easy to attach and fits around the remote, holding it securely in place
UPC: 847628585140 In the Box - WRW-H2N Custom Windbuster for Zoom H2n wccqftydcqzattbwxcxzuabsszabyxeqzadt
- Limited 1-Year Warranty
- Revo - Hot Shoe to 1/4"-20 Male Post Adapter
- Whirlwind - WHH4NL3.5 Line-to-Microphone Attenuator Cable for HDSLR Cameras
- SanDisk - 16GB Ultra UHS-I SDHC Memory Card (Class 10)
- Watson - MX 4-Hour Rapid Charger and 4 MX AA NiMH Batteries
- Zoom - AD-17 AC Adapter for R8, H6, H2n, H1, H1n, H3-VR & Q2HD Recorders
- RC-ZH6 Remote Control for Zoom H6 Handy Recorder
- RCZH6-BC Belt Clip for RC-ZH6 & RC-ZH5 Remote Controls
Table of Contents
|
Upload User Manual
Have you got an user manual for the Auray Zoom H6 HDSLR Accessory Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Auray WRW-H2N Custom Windbuster for Zoom H2n
| | | Box Dimensions (LxWxH) | 4.7 x 2.5 x 1.1" | - Revo Hot Shoe to 1/4"-20 Male Post Adapter
| Bottom Mount | 1 x Accessory Foot | | Top Mount | 1 x 1/4"-20 Male | | | | Box Dimensions (LxWxH) | 5.9 x 3.4 x 1.1" | - Whirlwind WHH4NL3.5 Line-to-Microphone Attenuator Cable for HDSLR Cameras
| Cable Diameter | 0.1" / 2.5 mm | | Conductor Type | PCOCC-A | | Insulator | Perfluoroalkoxy (PFA) | | Connector Plating | Gold | | Sheath Material | TPE | | Number of Conductors | 2.0 | | Temperature Rating | 176°F / 80°C | | Weight | 1.92 oz / 54.4 g | | | | Box Dimensions (LxWxH) | 6.5 x 4.8 x 0.5" | - SanDisk 16GB Ultra UHS-I SDHC Memory Card (Class 10)
| Card Type | SDHC | | Storage Capacity | 16 GB | | Bus Type | UHS-I | | Speed Class | 10 | | Bus Interface Speed | UHS Class I | | Data Transfer | Read Speed: 80 MB/s Maximum (Burst)
Write Speed: 10 MB/s Minimum | | Durability | Magnet-Proof, Shockproof, Temperature Extremes, Waterproof, X-Ray Proof | | Operating Temperature | -13 to 185°F/ -25 to 85°C | | Storage Temperature | -40 to 185°F/ -40 to 85°C | | Built-in Write-Protect Switch | Yes | | | | Box Dimensions (LxWxH) | 4.3 x 4.0 x 0.1" | - Watson MX 4-Hour Rapid Charger and 4 MX AA NiMH Batteries
| | | Configuration | 2 or 4 x AA or AAA NiMH or NiCd batteries | | Input Voltage | 100-240 VAC, 50/60 Hz | | Output Voltage | 2.8 VDC, 500 mAh | | Charging Time | 4 x AAA 950 mAh: About 190 minutes
2 x AAA 950 mAh: About 95 minutes
4 x AA 2550 mAh: About 310 minutes
2 x AA 2550 mAh: About 160 minutes | | Operating Temperature | 32 to 113°F / 0 to 45°C | | Dimensions | 2.7 x 1.3 x 4.3" / 6.9 x 3.3 x 10.9 cm | | Weight | 2.8 oz / 79.4 g | | | | Quantity | 4 x | | Size | AA | | Chemistry | NiMH (nickel-metal hydride) | | Capacity | 2550 mAh | | Output Voltage | 1.2 V | | Durability | Rechargeable up to 500 times | | Temperature Range | Down to -4°F / -20°C | | | | Box Dimensions (LxWxH) | 7.8 x 4.1 x 0.4" | - Zoom AD-17 AC Adapter for R8, H6, H2n, H1, H1n, H3-VR & Q2HD Recorders
| | | Box Dimensions (LxWxH) | 3.5 x 2.1 x 1.8" | - Auray RC-ZH6 Remote Control for Zoom H6 Handy Recorder
| Cable Length | 4' (1.2 m) | | Dimensions (H x W x L) | 3.5 x 0.5 x 1.5" (8.9 x 1.3 x 3.8 cm) | | Weight | 1.6 oz (45 g) | | | | Box Dimensions (LxWxH) | 5.4 x 3.4 x 0.9" | - Auray RCZH6-BC Belt Clip for RC-ZH6 & RC-ZH5 Remote Controls
| Dimensions | 3.25 x 0.25" (8.3 x 0.6 cm) | | Weight | 0.1 lb (45.4 g) | | | | Box Dimensions (LxWxH) | 3.25 x 2.0 x 0.1" |
