AUROVIS 360° Spherical VR Camera

Search your instruction manual in PDF to download

User Manual for AUROVIS 360° Spherical VR Camera

Click to enlarge the picture
AUROVIS 360° Spherical VR Camera Contents of the user manual for the AUROVIS 360° Spherical VR Camera
  • Product category: All 360 Video Cameras AUROVIS
  • Brand: AUROVIS
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for AUROVIS All 360 Video Cameras

AUROVIS 360° Spherical VR Camera AUROVIS 360° Spherical VR Camera AUROVIS 360° Spherical VR Camera AUROVIS 360° Spherical VR Camera
User manual for the AUROVIS 360° Spherical VR Camera contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any AUROVIS product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official AUROVIS user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a AUROVIS product will considerably shorten its lifespan!



Product description

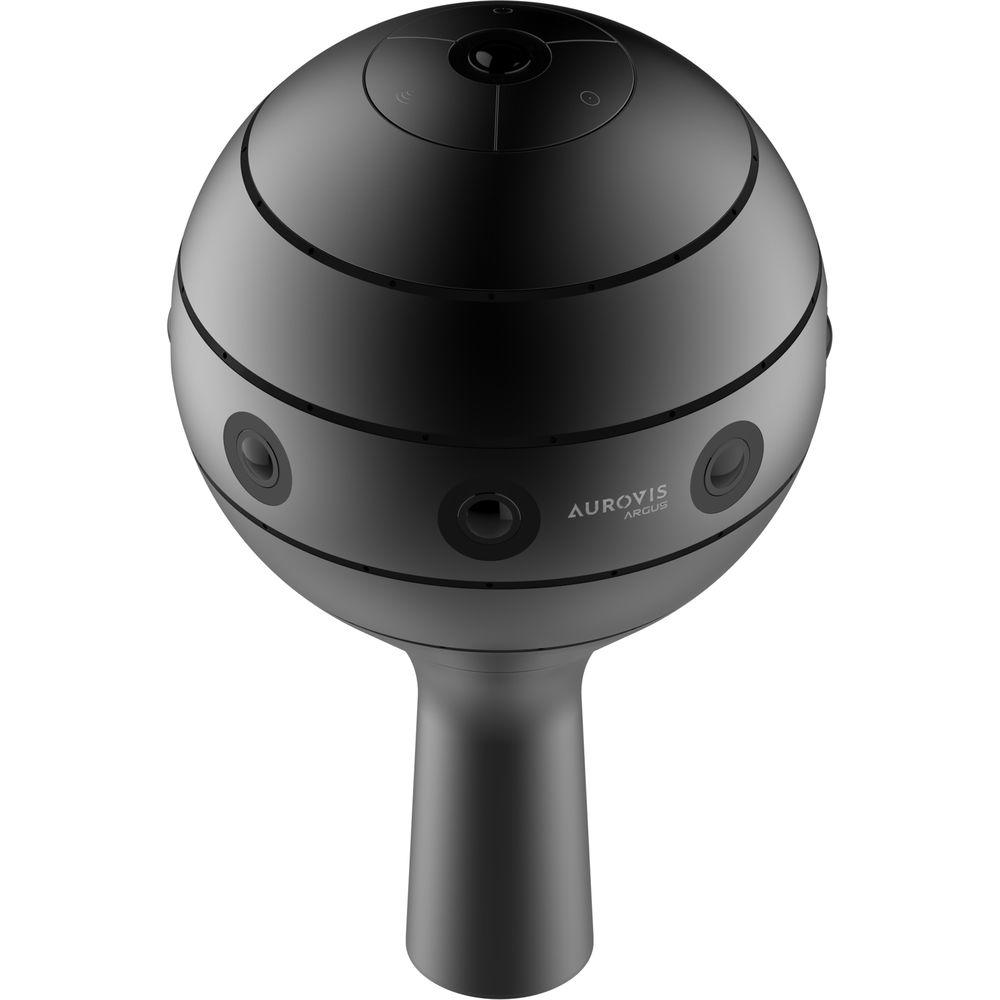

Immerse your viewers in 3D audio and 360° VR video with the 360° Spherical VR Camera from AUROVIS. This sphere-shaped camera features nine glass fisheye lenses, real-time video stitching, nine CMOS sensors, and 64 ambisonic MEMS microphones for capturing 3D audio and the entire three-dimensional world around you.

On the outside, the camera's aluminum and PC-ABS construction protects it from the elements and is rated IP53 for dust and splash protection. It features a USB 3.0 port, RJ45 Ethernet, a microSD slot, an audio line in, and six Panasonic 18650 lithium-ion rechargeable batteries. The camera's nine lenses feature a 185° wide fisheye view at f/2.2, and it is controlled by a smartphone app that connects via 2.4 or 5 GHz Wi-Fi.

The imaging system relies on nine Sony Exmor R & STARVIS CMOS sensors that record a maximum resolution of 4096 x 2048p30 MP4/H.264 video, and 4096 x 2048 JPG/RAW stills. Time-lapse and image stabilization features assist with recording quality, and settings such as gamma and white balance are configurable. The system relies on real-time FPGA stitching within the camera using a proprietary algorithm so your footage can be ready to live stream via RTSP/RTMP right from the camera. 3D spatial audio is recorded on its 64 MEMS mics with AAC encoding and 24-bit, 48 kHz sampling.

All imaging and audio recordings are stored on a microSD card or a mobile SSD plugged into the USB port.
    FPGA Video Stitching
  • An FPGA inside the camera can stitch 360° video in real time using a proprietary AUROVIS algorithm. Internal real-time stitching helps create an instant live preview for composing shots and allows for live streaming straight out of camera.
    Surround Audio
  • The camera records and codes spatial audio using 5th order ambisonics. Sound is mapped in full 360° to 3D video, enabling you to create sounds from any direction and draw the user's attention to where you want them to look. Spatial audio is essential to VR as it creates a believable experience that matches the user's senses, immersing them into the video you have captured.
    Live Streaming
  • Plug the camera into your computer via USB 3.0 for 360° live video. The AUROVIS VR camera supports RTMP and RTSP streaming formats with widely accepted H.264 encoding.
    Smartphone Application
  • Download the smartphone application to control the camera and its settings such as white balance, gamma, and time-lapse.
In the Box AUROVIS 360° Spherical VR Camera
  • Limited 1-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the AUROVIS 360° Spherical VR Camera in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    AUROVIS AU36VRC Specs

    Stitching Resolution 4K
    Internal/External Stitching Internal, External Stitching
    360 Stitched Video Format 4096 x 2048 at 30 fps (MP4)
    Still Image Resolution JPEG: 8.3 Megapixel, 4096 x 2048
    Number of Lenses 9
    Sensor 1-Chip CMOS
    Maximum Aperture f/2.2
    Lens Elements 7
    Angle of View 185°
    Recording Media 1 x microSD (128 GB Maximum)
    Built-In Mic Yes
    Channels 64.0-Channel Surround
    Audio Format AAC
    Sampling Frequency AAC: 48.0 kHz
    IP Rating IP53
    Wi-Fi Yes, Wi-Fi 5 (802.11ac)
    Inputs 1 x 1/8" (3.5 mm) Mono Line Input
    1 x RJ45
    Outputs 1 x USB 3.0
    Microphone Input Yes
    Headphone Jack None
    Battery 6 x Rechargeable Lithium-Ion Battery Pack
    Max Runtime: 2 Hours per Charge
