User Manual for Autel Robotics X-Star Premium Quadcopter with 4K Camera and 3-Axis Gimbal

Click to enlarge the picture
Autel Robotics X-Star Premium Quadcopter with 4K Camera and 3-Axis Gimbal Contents of the user manual for the Autel Robotics X-Star Premium Quadcopter with
  • Product category: See All Drones Autel Robotics
  • Brand: Autel Robotics
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Autel Robotics See All Drones

Autel Robotics X-Star Premium Quadcopter with 4K Camera and 3-Axis Gimbal Autel Robotics X-Star Premium Quadcopter with 4K Camera and 3-Axis Gimbal Autel Robotics X-Star Premium Quadcopter with 4K Camera and 3-Axis Gimbal Autel Robotics X-Star Premium Quadcopter with 4K Camera and 3-Axis Gimbal Autel Robotics X-Star Premium Quadcopter with 4K Camera and 3-Axis Gimbal Autel Robotics X-Star Premium Quadcopter with 4K Camera and 3-Axis Gimbal Autel Robotics X-Star Premium Quadcopter with 4K Camera and 3-Axis Gimbal
User manual for the Autel Robotics X-Star Premium Quadcopter with contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Autel Robotics product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Autel Robotics user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Autel Robotics product will considerably shorten its lifespan!



Product description

Aerial Photography and Drone Glossary Read More
  • Autel Robotics: Meet the X-Star Premium
  • Autel Robotics X-Star Premium In Action: Kayaking
  • Autel Robotics X-Star Premium: Unboxing Autel Robotics Autel Robotics
  • Autel Robotics X-Star In Action: Saguaro Lake, Arizona
  • Autel Robotics X-Star: Unboxing

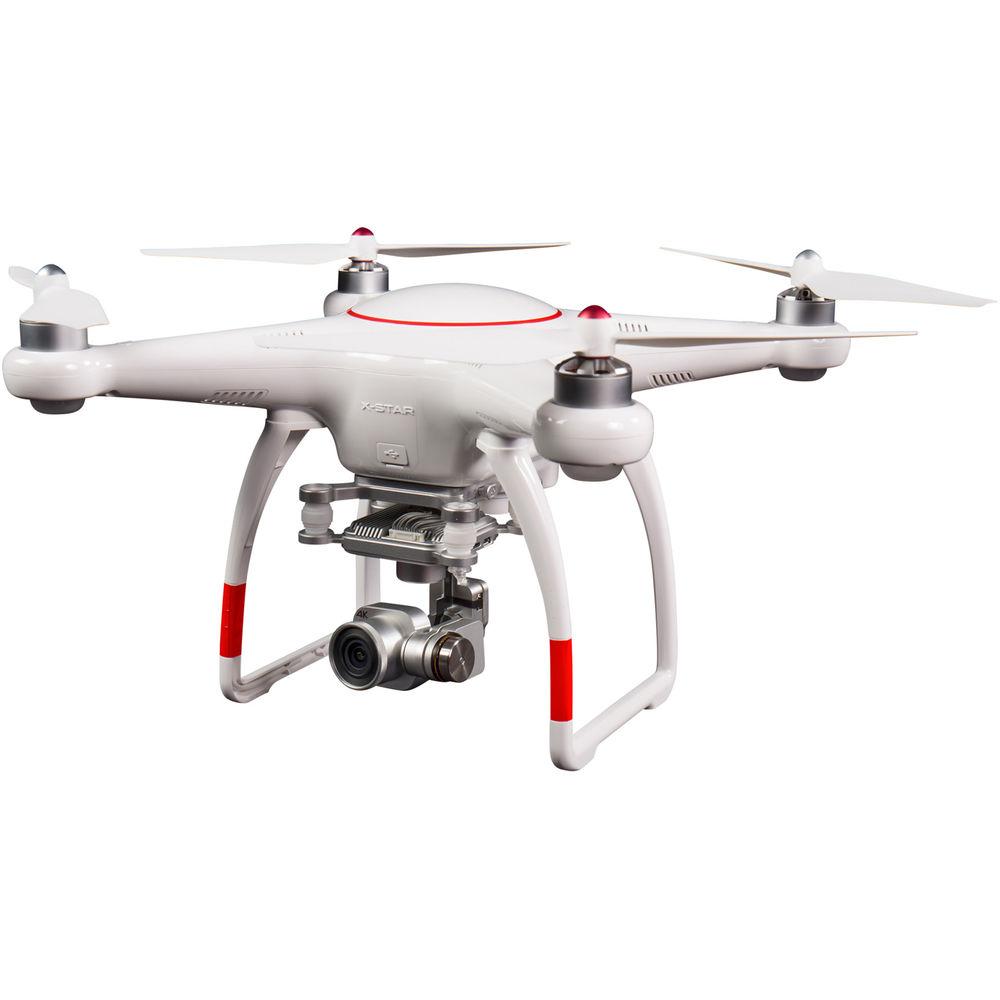

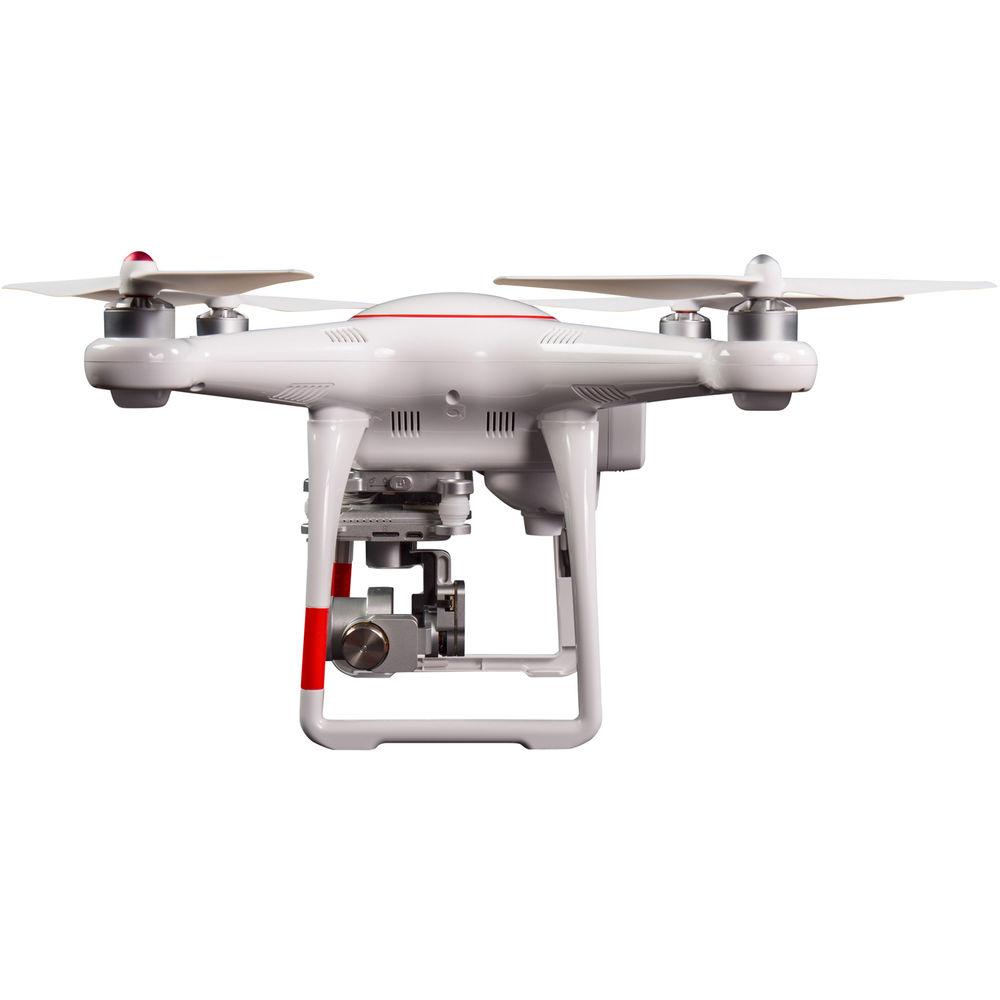

Shoot DCI & UHD 4K video and snap 12MP still photos with the X-Star Premium from Autel Robotics. The quadcopter's intelligent flight control system enables assisted flight modes including Follow, Orbit, Waypoints, and GoHome. GPS provides precise positional data outdoors, while the Starpoint Positioning System measures flying height and optically tracks position in situations where GPS satellites are out of reach. A mobile device (available separately) can be paired with the X-Star Premium to access advanced features as well as monitor a 720p HD live feed from the camera.

The quadcopter comes ready-to-fly, meaning that a transmitter (radio controller), flight battery, battery charger, propellers, 64GB microSD card, and hard transit case come included (mobile device available separately).

4K / 12MP Gimbal-Stabilized Camera

    Video Capture
    • The X-Star camera, with its Sony Exmor R sensor, captures 4K video at 30 fps, 2.7K at 60 fps, 1080p at 120 fps, and – for super slow motion – 720p at 240 fps. Video is recorded in full quality to a microSD card in-camera. Additionally, a live HD feed is beamed to the ground-end for monitoring and reference recording on a mobile device
      Photo Capture
    • The X-Star camera takes 12MP still photos in JPEG, RAW, or RAW & JPEG. Available photo modes include Single Shot, Burst, AEB, Bracketed Frames, and Time-Lapse
      Super-Wide-Angle Lens
    • The lens features an FOV of 108° with the camera in its widest image mode. This provides a wide field-of-view that encompasses a large part of the scene in front of the lens while not delving into fisheye territory

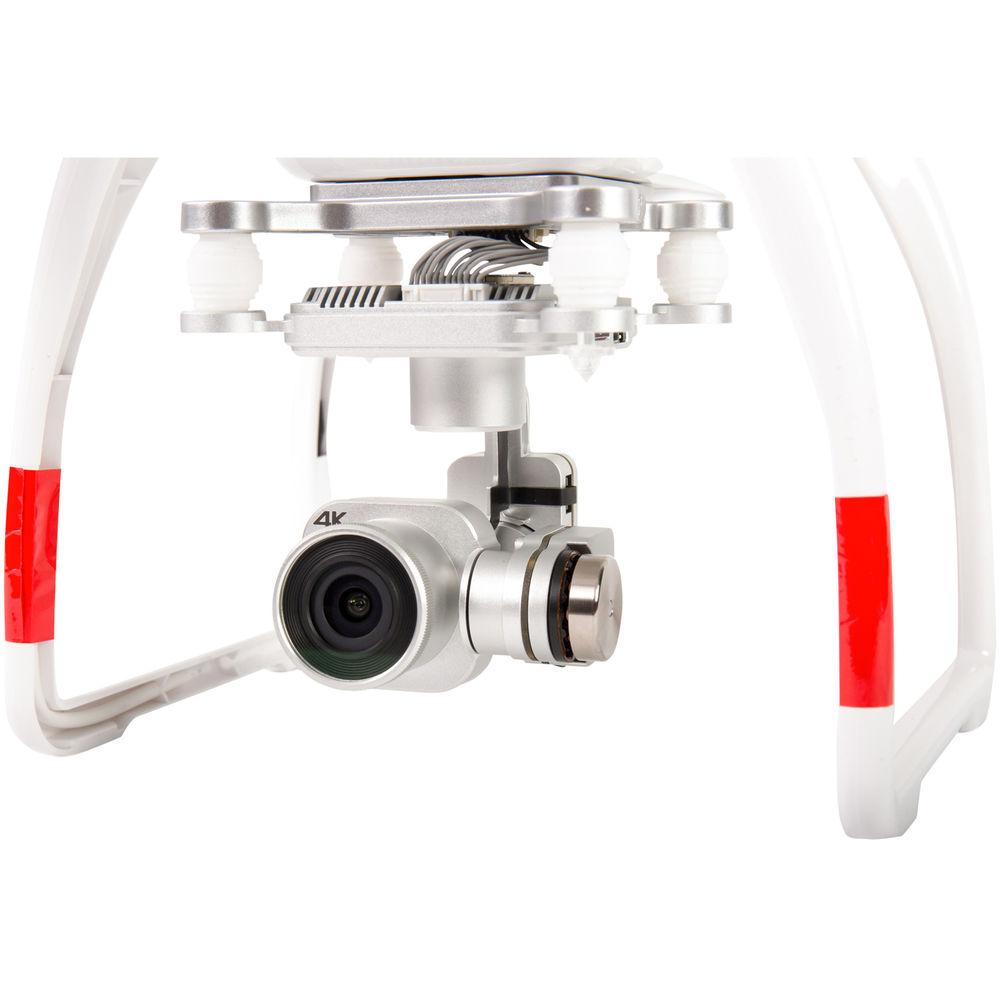

      Gimbal Stabilization
    • The camera is mounted via a 3-axis gimbal. This provides stabilization and allows independent camera movement relative to the quadcopter. The gimbal can be detached to store separately from the aircraft

    Radio Controller and Mobile App

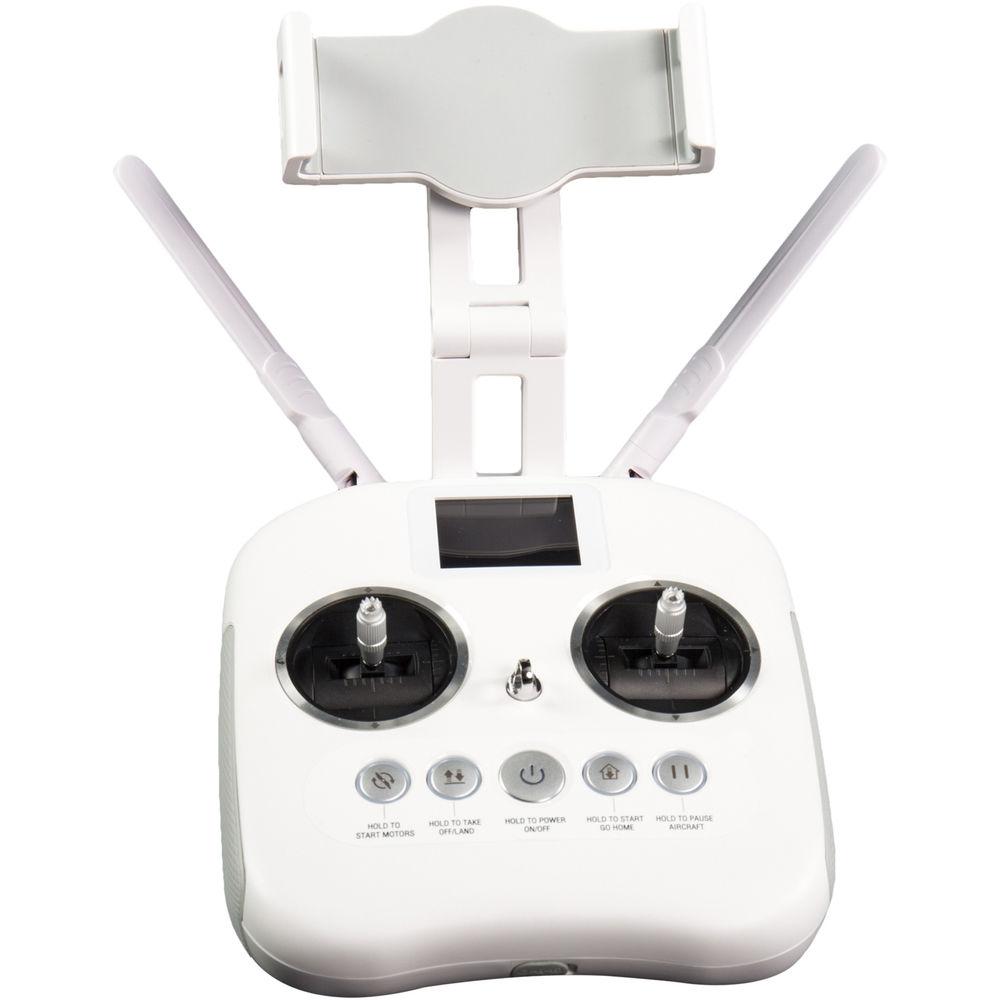

      Transmitter (Radio Controller)
    • A pre-bound transmitter is included with the X-Star Premium. In addition to sticks for basic throttle and movement controls, function keys are provided to activate assisted flight modes or snap a shot with the camera. An integrated LCD screen provides vital flight data
      StarLink App
    • The StarLink mobile app allows you to gain additional functionality as well as view a live 720p HD image from the camera. With it, you can adjust camera settings, monitor in-flight telemetry data, access advanced flight control settings, and utilize the Smart Pre-flight Check. A mobile device holder that attaches to the transmitter is included (compatible mobile device available separately)

    Flight Controller

      SecureFly
    • Helps keep the quadcopter on course, even if affected by wind or in the presence of magnetic interference that can throw off the compass
      Starpoint Positioning System
    • The Starpoint Positioning System lets X-Star Premium stay accurately positioned at low altitudes, even without GPS
      GPS Enabled
    • Works with both GPS and GLONASS for precise position when used outdoors
      Flight Control Modes
    • Computer-assisted flight modes include Follow, Orbit, Waypoints, and GoHome
      Beginner Mode
    • Beginner Mode sets strict bounds on aircraft performance to avoid mistakes

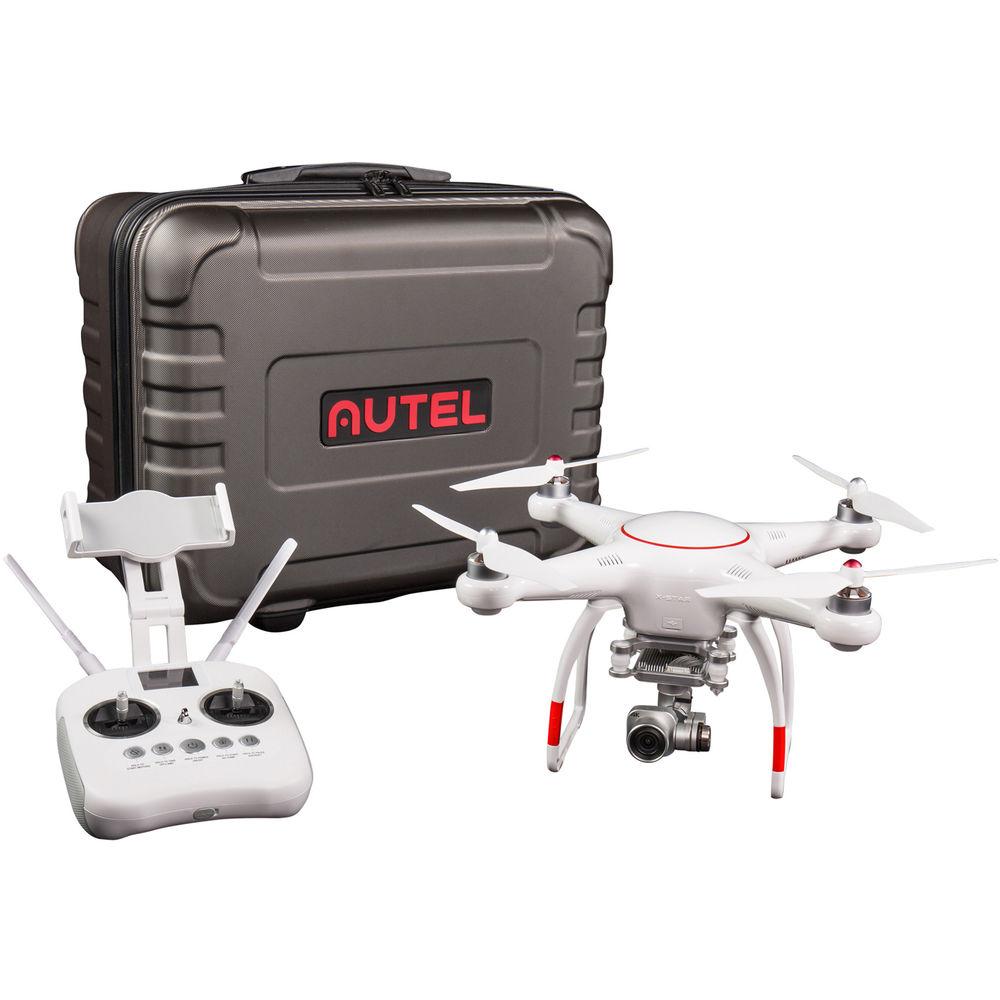

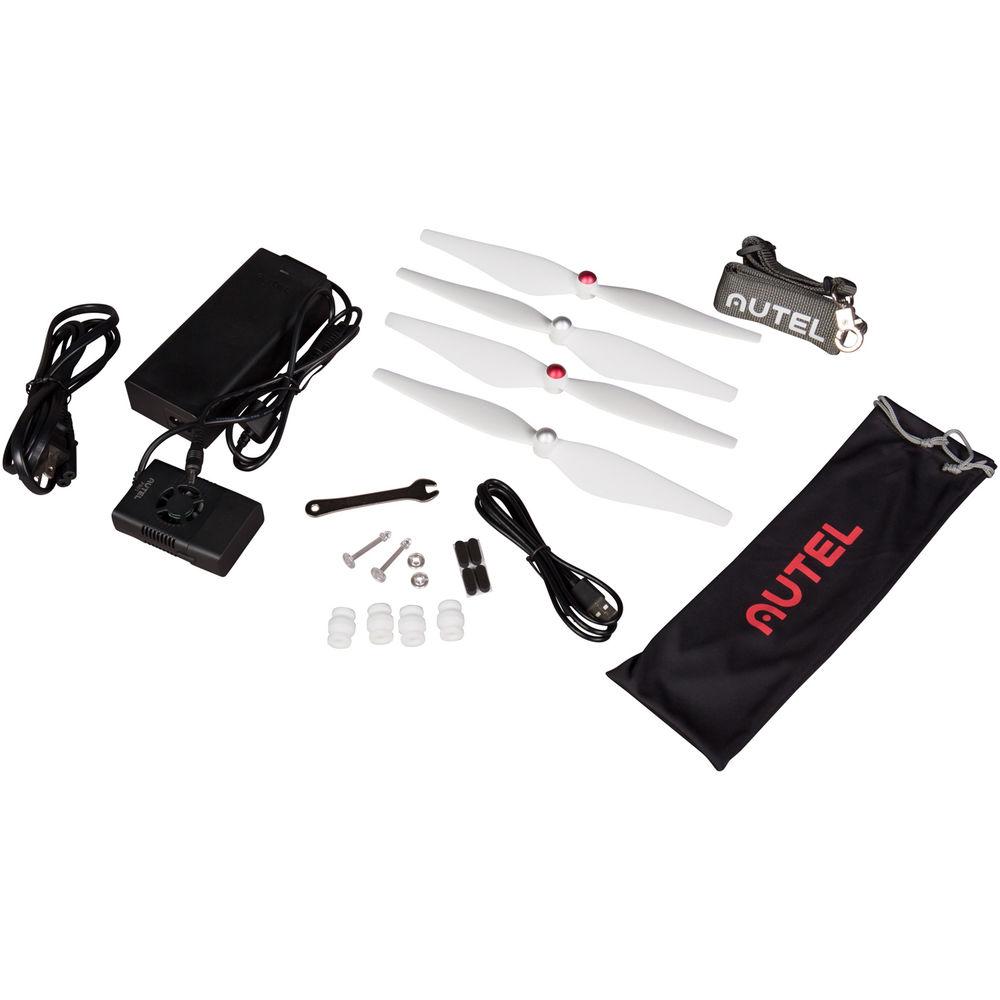

    UPC: 889520010092 In the Box Autel Robotics X-Star Premium Quadcopter with 4K Camera and 3-Axis Gimbal

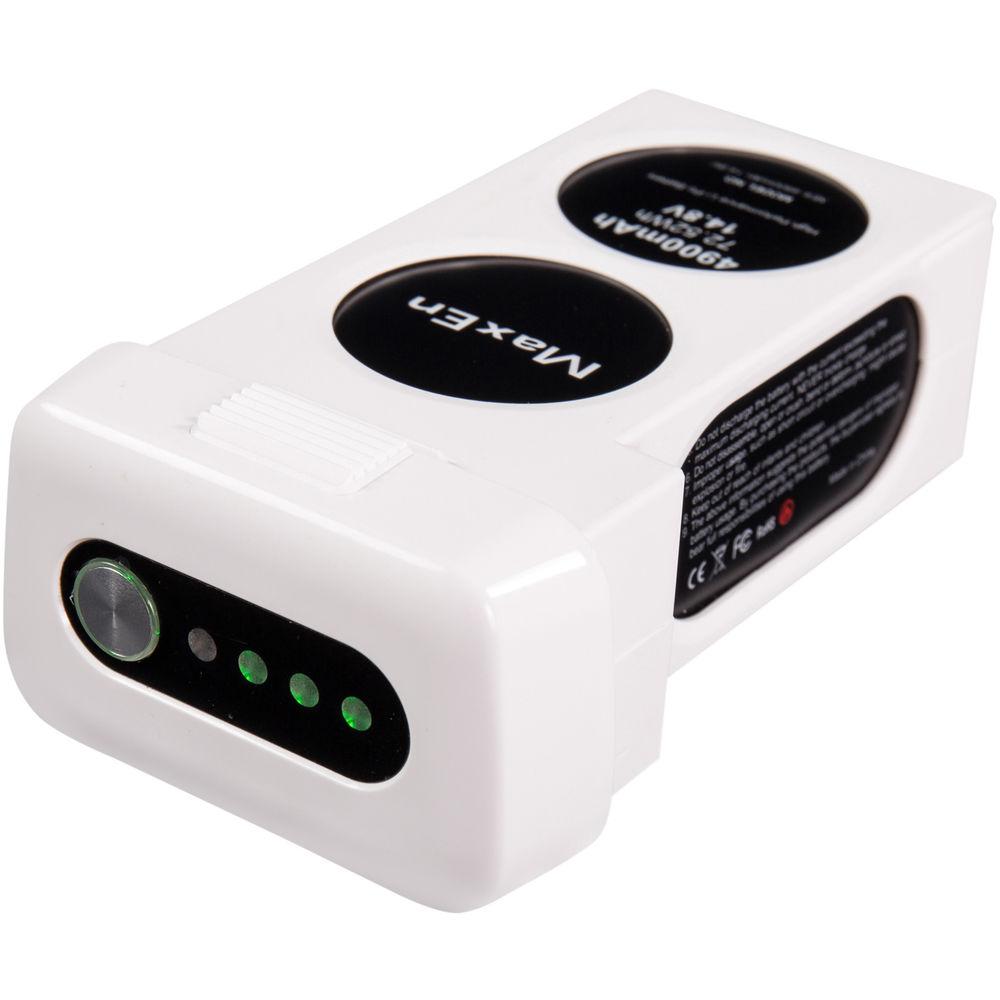

  • 4900mAh Flight Battery
  • Battery Charger
  • 4 x CW / CCW Propeller Pairs
  • 64GB microSD Card
  • Premium Hard Case
  • Limited 1-Year Warranty
  • Camera in the Sky: Using Drones in Wedding Photography and Videos Peter Ward_1 02/29/2016 vuxxvcsfuy Some Good News for Photographers and Filmmakers Who Use Drones Peter Ward_1 02/23/2015 User Manual PDF 5.9mb Table of Contents




    Upload User Manual

    Have you got an user manual for the Autel Robotics X-Star Premium Quadcopter with 4K Camera and 3-Axis Gimbal in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    Autel Robotics XSPRMWH Specs

    Flight Time Up to 25 minutes
    Takeoff Weight Up to 3.52 lb / 1.6 kg
    Maximum Speed Ascent: 13.4 mph (6 m/s)
    Descent: 6.7 mph (3 m/s)
    Horizontal: 35 mph (16 m/s)
    Hover Accuracy Horizontal: ±6.5' / 2 m
    Vertical: ±3.2' / 1 m
    Maximum Yaw Angular Velocity 150°/s
    Maximum Tilt Angle GPS Mode: 20°
    ATTI Mode: 30°
    Flight Control Modes GPS
    Attitude
    IOC (Intelligent Orientation Control)
    Receiver Frequency: 5.727 to 5.8 GHz
    Frequency Control Signal: 5.727 to 5.8 GHz
    Communication Distance 1.25 miles / 2000 m
    Transmitter Power 125 mW
    Working Current App Connected: 400 mA / 3.7 V
    App Disconnected: 1400 mA / 3 .7 V
    Connectivity 1 x USB Type-A female for mobile device connection
    Mobile Device Holder Fits smartphones/tablets up to 7.5" (19 cm) wide
    Power Consumption 5.2 W
    Battery Type: Internal
    Chemistry: Lithium-ion polymer
    Capacity: 6000 mAh
    Battery Life: Up to 25 minutes
    Operating Temperature 32 to 122°F / 0 to 50°C
    Storage Temperature <3 months: -4 to 113°f > >3 Months: 72 to 82°F / 22 to 28°C
    Dimensions 6.8 x 5.1 x 8" / 17.1 x 13 x 20.3 cm
    Weight 1.85 lb / 840 g (including battery)
    Sensor Sony Exmor R
    Lens FOV: Up to 108° (depending on setting)
    Photo Resolution 12 MP
    Video Resolutions DCI 4K (4096x2160): 30p
    UHD 4K (3840x2160): 30p
    2.7K: 60p
    1080: 120p
    720: 240p
    Photo Modes Single shot
    Bursts (3/5/7-shot)
    AEB
    Bracketed frames
    Time-lapse (5/7/10/20/30 second intervals)
    File Formats Photo: JPG, DNG, JPG+DNG
    Video: MOV, MP4
    Recording Media microSD/SDHC/SDXC: 4 to 64 GB; Class 10 / UHS-1 or faster

    Note: FAT32 and exFAT file systems supported
    Operating Temperature 32 to 104°F / 0 to 40°C
    Number of Axes 3
    Chemistry Lithium-ion polymer (LiPo)
    Capacity 4900 mAh
    Voltage 14.8 V
    Charging Time Approximately 1-hour with supplied charger
    Operating Temperature Charging: 50 to 113°F / 10 to 45°C
    Discharging: -4 to 140°F / -20 to 60°C
    Storage Temperature 14 to 113°F / -10 to 45°C
    Storage Humidity Humidity: 5 to 70%
    Name StarLink App
    System Requirements iOS, Android
    Size 9.4 x 5.5"
    Connectivity 1 x micro-USB
    Operating Temperature 32 to 104°F / 0 to 40°C
    Storage Temperature -4 to 176°F / -20 to 80°C
    Dimensions Diagonal Wheelbase: 13.8" / 352 mm
    Package Weight 12.2 lb
    Box Dimensions (LxWxH) 19.0 x 16.0 x 10.0"
