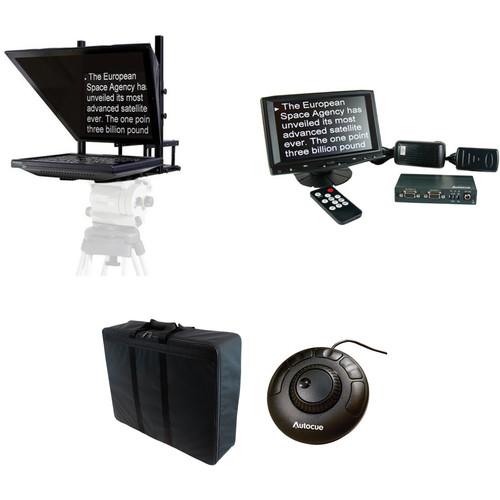

User Manual for Autocue QTV 17" Starter Series Kit Click to enlarge the picture
Contents of the user manual for the Autocue QTV 17" Starter Series Kit
- Product category: Teleprompters Autocue/QTV
- Brand: Autocue/QTV
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Autocue/QTV Teleprompters
|
User manual for the Autocue QTV 17" Starter Series Kit contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Autocue/QTV product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Autocue/QTV user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Autocue/QTV product will considerably shorten its lifespan!
|
Product description Anatomy of a Teleprompter Read More A comprehensive 17" starter solution, this Autocue 17" Starter Series Kit, from , includes a complete 17" entry-level prompter package, 7" remote preview monitor kit, reinforced carry case, and ergonomic, desk-based hand controller. The prompter package consists of a 17" monitor, 70:30 prompter glass, prompter hood, icon-based software (Mac/Win), and security dongle. It is compatible with virtually any camera, from DSLRs to standard size ENG cameras, and offers a 20 ft. reading range. The 17" monitor has a 1280 x 1024 resolution, 300 nit brightness, and 1000:1 contrast ratio, and offers dual-screen functionality.
The preview monitor kit allows an operator to remotely see what the presenter sees on the prompter glass and to make speed, text, and other adjustments as needed, to ensure that everything goes right. The hand controller replaces a keyboard, offering instead five programmable buttons, a jog wheel, and scroll wheel in a compact design providing for more precise control. It interfaces with your computer via USB connection. Pack everything into the elegant carry case, which is soft on the outside, custom-compartmentalized inside, and zippered all around. The prompter package comes pre-assembled and ready for use out-of-the-box. - Autocue/QTV Starter Series 17" Teleprompter Package The Starter Series 17" from Autocue/QTV is a complete, entry-level prompting package compatible with all cameras from DSLR to standard size ENG without a counterbalance weight. This solution uses a mounting system with 3 possible configurations: on-camera, straight-read above camera, and floor- or tripod-standing straight-read. The included software is icon-based to facilitate its use, both the Windows and Mac versions are included. This unit is delivered flat-packed and pre-assembled, making it ready for almost immediate use upon delivery.
- Complete Solution
- This solution includes all the software and hardware required to form a complete prompting solution.
- Compatibility
- Compatible with all cameras from DSLR to standard size ENG without a counterbalance weight.
- 3-in-1 Solution
- This solution offers (3) different ways to configure its mount: on-camera, straight-read above camera, and floor- or tripod-standing straight-read.
- Setup & Configuration
- This unit is delivered flat-packed and pre-assembled.
- Software
- This solution's QStart software component is icon-based for ease of use, and supports Windows and Mac operating systems.
- Autocue/QTV SSP15 & SSP17 Portable Carry Case The SSP15 & SSP17 Portable Carry Case from Autocue/QTV is a reinforced carry case to transport your SSP15 or SSP17 Teleprompter. The case has custom built foam inserts and compartments to store your SSP15 or SSP17 package.
- Autocue/QTV ShuttleXpress Hand Control The ShuttleXpress Hand Control from Autocue / QTV is an ergonomic desk-based, hand controller designed to facilitate scripting. It offers an optical pot, (5) programmable buttons, (1) jog wheel, and (1) scroll wheel. The unit interfaces with your computer via a USB connection.
- Control & Precision
- Use this practical and convenient tool to transfer control of your prompter from the imprecision of a keyboard to the precision of a shuttle wheel and jog wheel.
UPC: 743870005118 - Autocue/QTV 7" Teleprompter Preview Monitor Kit The 7" Teleprompter Preview Monitor Kit from Autocue/QTV for the Starter series range of Teleprompters allows the operator to preview output as it appears to the presenter on the prompter monitor. This kit consists of a 7" monitor, 4x out VGA splitter, and 3.2’ (1m) VGA cable.
The included 7" preview monitor only supports a VGA output. In the Box - Starter Series 17" Teleprompter Package weqxuzryydrewas
- 17" LCD Prompter Monitor
- Teleprompter Hood
- Ready-Built Prompter Mounting System
- Prompter Glass
- QStart Teleprompter Software
- 10m VGA Cable
- USB Security Dongle
- Limited 3-Year Warranty
- SSP15 & SSP17 Portable Carry Case weqxuzryydrewas
- ShuttleXpress Hand Control
- 7" Teleprompter Preview Monitor Kit
Table of Contents
|
Upload User Manual
Have you got an user manual for the Autocue QTV 17" Starter Series Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Autocue/QTV Starter Series 17" Teleprompter Package
| Viewable Size (diagonal) | 17" | | Brightness | 300 nits | | Contrast Ratio | 1000:1 | | Reading Range | 20' (6m) | | Resolution | 1280 x 1024 | | Panel | 70:30 glass | | Input Signal | Composite (BNC)
VGA
S-Video | | Standards | NTSC
PAL
SECAM | | Power | Power Input: 100 to 240VAC, 50/60Hz, 12V/4.16A
Power Consumption: 50W maximum | | Weight | 16.7 lb (7.6 kg) | | | | Box Dimensions (LxWxH) | 40.0 x 26.0 x 10.0" | - Autocue/QTV SSP15 & SSP17 Portable Carry Case
| Compatibility | SSP15 or SSP17 Teleprompter | | Dimension | 27.6 x 22.6 x 7.9" (70.0 x 57.5 x 20.0 cm) | | | | Box Dimensions (LxWxH) | 27.0 x 23.2 x 7.7" | - Autocue/QTV ShuttleXpress Hand Control
| Material | Plastic | | Finish | Black | | Interface | USB | | Dimensions | Not specified by manufacturer | | Weight | Not specified by manufacturer | | | | Box Dimensions (LxWxH) | 5.6 x 5.4 x 2.0" | - Autocue/QTV 7" Teleprompter Preview Monitor Kit
| | | Screen Size (Diagonal) | 7.0" (177.8 mm) | | Aspect Ratio | 16:9 | | Resolution | 854 x 480 pixels (native), 1366 x 768 pixels (maximum) | | Pixel Pitch | 0.0635 x 0.190 mm | | Scan Frequencies | 60 to 72 Hz | | Response Time | 15 ms | | Viewing Angle | 130, 120º | | Brightness | 300 cd/m² | | Contrast Ratio | 500:1 | | LCD Backlight | LED | | Screen Rotation | Flip x, flip y | | Video Inputs | VGA, composite | | Input Power | 12 VDC | | Mount Type | VESA 75, ¼" BSW thread, vertical slot mount mechanism | | | | Ports | 1 x VGA in, 4 x out | | Voltage | 9 VDC | | | | Box Dimensions (LxWxH) | 13.4 x 10.8 x 6.7" |
