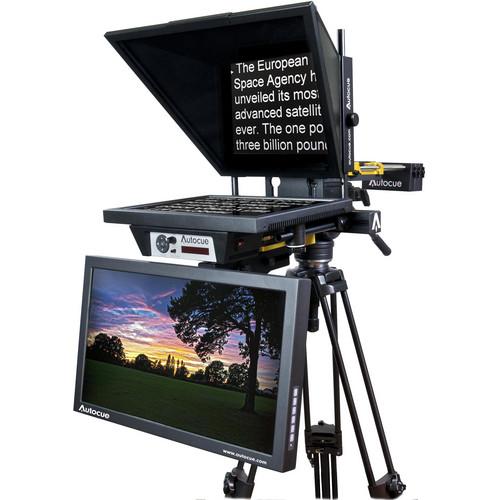

User Manual for Autocue QTV 22" Talent Feedback Monitor Click to enlarge the picture
Contents of the user manual for the Autocue QTV 22" Talent Feedback Monitor
- Product category: Teleprompter Accessories Autocue/QTV
- Brand: Autocue/QTV
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Autocue/QTV Teleprompter Accessories
|
User manual for the Autocue QTV 22" Talent Feedback Monitor contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Autocue/QTV product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Autocue/QTV user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Autocue/QTV product will considerably shorten its lifespan!
|
Product description The Autocue/QTV 22" Talent Feedback Monitor is a widescreen SDI monitor for Autocue's Master Series teleprompters. A new mounting system enables conveniently attaching the monitor right below the teleprompter to let on-camera talent see their presentations live.
The monitor features HD-SDI, DVI, VGA, S-Video, and Composite inputs and an HD-SDI output. The native resolution is 1920 x 1080 HD and contrast ratio is 3000:1.
The OSD adjustment menu allows selecting color temperatures between 5500K and 10000K and a user-definable color within this range, and gamma is selectable between 3.0 and 1.8. Aspect ratio can be set as 5:4, 4:3, full, full aspect, native, and user defined, and if your input is by VGA, a screen adjustment feature helps find the one correct position for each display mode.
A power adapter and several connection cables come included. - Key Features
-
- Widescreen monitor for Autocue's Master Series teleprompters
- Mounts right below the teleprompter
- HD-SDI, DVI, VGA, S-Video and Composite inputs; HD-SDI output
- 1920 x 1080 HD native resolution
- 3000:1 contrast ratio
- Color temperatures selectable between 5500K and 10000K
- Gamma selectable between 3.0 and 1.8
In the Box Autocue/QTV 22" Talent Feedback Monitor 22" LCD Monitor Back Plate Mount Power Adapter D-Sub Cable DVI Cable S-Video Cable BNC Cable Power Cable User Manual 1-Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Autocue QTV 22" Talent Feedback Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAutocue/QTV MON-TFM/22/001 Specs | Size | 21.5" wide display (54.6 cm) | | Supported Resolutions | 1920 x 1080 @ 60 Hz (native resolution)
1280 x 1024 @ 60 Hz
1024 x 768 @ 60 Hz
800 x 600 @ 60 Hz
640 x 480 @ 60 Hz | | Pixel Pitch | 0.248 x 0.248 mm | | Viewing Angle | 170°/160° H/V | | Brightness | 250 nit typ. | | Contrast Ratio | 3000:1 typ. | | Response Time | 25 ms typ. | | Dot Frequency | 173 MHz (max) | | Connections | Inputs:
1x HD-SDI
1x VGA
1x DVI-D
1x S-Video
1x CVBS
Output:
1x HD-SDI | | VESA Compatibility | 100 mm VESA spacing | | Power Supply | 12 VDC | | Power Consumption | 40 W max | | Power Saving | EPA, VESA compliant | | Operating Temperature | 32 to 104°F (0 to 40°C) | | Storage Temperature | -4 to 149°F (-20 to 65°C) | | Relative Humidity | 5 to 90%, non condensing | | MTBF | > 50,000 hours (excluding backlight) | | Dimensions | Without mount: 20.1 x 12.3 x 2.3" (51.2 x 31.4 x 6 cm) | | Weight | With mount: 16.5 lb (7.5 kg) |
