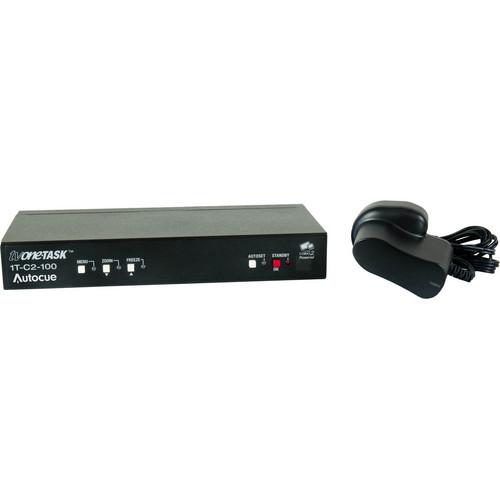

User Manual for Autocue QTV VGA to Composite Video Converter Click to enlarge the picture
Contents of the user manual for the Autocue QTV VGA to Composite Video
- Product category: Signal Converters Autocue/QTV
- Brand: Autocue/QTV
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Autocue/QTV Signal Converters
|
User manual for the Autocue QTV VGA to Composite Video contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Autocue/QTV product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Autocue/QTV user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Autocue/QTV product will considerably shorten its lifespan!
|
Product description The Autocue/QTV VGA to Composite Video Converter quickly and easily generates a composite output from a PC or laptop from its VGA port, in order to connect to a teleprompter monitor via composite. - Key Features
-
- Size and position automatically via AutoSet or Manual functions
- User-definable image size presets
- Image freeze one video frame
- Non-volatile memory settings
- Zoom range variable up to 10x zoom
- Shrink range variable to 10%
- Horizontal and/or vertical image mirroring
- Full digital horizontal filtering
- CORIO2 proprietary conversion technology
- 24-bit color resolution (16.8 million colors)
- 108MHz sampling rate
- 24-bit, 4:4:4 digital sampling
- Firmware memory flash, upgradeable via RS-232
- 8-bit digital video encoder
- RGB video adjustments
- Computer Input
-
- Signal type: Analog RGBHV, RGBS, RGsB, YPbPr
- Sync TTL Level, 10K ohm, positive or negative
- Auto-terminating into 75 ohm
- 1x HD-15 female connector with loop-through
- RGB level range: 0.5 - 2.0 Vp-p
- Automatic scan rate detection
- PC resolutions: up to 2048 x 2048
- HDTV resolutions: up to 1080p
- Vertical refresh rate: up to 250Hz
- Max horizontal scan rate: 150KHz
- Compatible with PC and Mac
- 1x composite video on BNC
- 1x YC (S-video) on 4-pin mini-DIN connector
- Video Outputs
-
- NTSC, PAL, PAL-M, PAL- N, SECAM television standards
- 75 ohm impedance
- 2x composite video on BNC
- 2x YC (S-video) on 4-pin mini-DIN connector
- Computer loop-through on 1x HD-15 female connector
- Control Methods
-
- Front panel buttons and OSD
- RS-232 interface via D9 female connector
- Infrared remote via IRC-5 remote control
In the Box Autocue/QTV VGA to Composite Video Converter Power Adapter (US, UK, Euro, AU) Operations Manual Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Autocue QTV VGA to Composite Video Converter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAutocue/QTV DN-VGA/004 Specs | Signal Type | Analog RGBHV, RGBS, RGsB, YPbPr | | Sync | TTL Level, 10K ohm, positive or negative | | Termination | Auto-terminating into 75 ohm | | Input | 1x HD-15 female connector with loop-through
1x composite video on BNC
1x YC (S-video) on 4-pin mini-DIN connector | | Output | 2x composite video on BNC
2x YC (S-video) on 4-pin mini-DIN connector
Computer loop-through on 1x HD-15 female connector | | RGB Level Range | 0.5 - 2.0 Vp-p | | Resolutions Supported | PC resolutions up to 2048 x 2048
HDTV resolutions up to 1080p | | Vertical Refresh Rate | Up to 250 Hz | | Maximum Horizontal Scan Rate | 150 KHz | | Television Standards | NTSC, PAL, PAL-M, PAL- N, SECAM | | Impedance | 75 ohm | | Power | External power supply 12 VDC @ 1 A | | Compliance | Main units: FCC, CE, RoHS
Power supplies: UL, CUL, CE, PSE, GS, RoHS | | Operating Temperature | 32 to 122°F (0 to 50°C) | | Operating Humidity | 10 to 85%, non-condensing | | Storage Temperature | 14 to 158°F (-10 to 70°C) | | Storage Humidity | 10 to 85%, non-condensing | | Dimensions | 1.18 x 7.87 x 3.54" (3 x 20 x 9 cm) | | Weight | 1.14 lb (.52 kg) |
