Product description The Autocue VGA Video Splitter (1x4) by Kramer outputs a single VGA signal to 4 devices. This device is ideal when you need to send the same computer VGA signal out to multiple prompters.
Along with a high bandwidth of 400MHz and ID bit control this device incorporates Kramer's Kr-isp Advanced Sync Processing which, by restoring the sync signal waveform, overcomes the problem of low sync, thus ensuring compatibility with a greater range of computer devices.
EDID PassThru is another important function used by this device to pass EDID/HDCP signals from a source to the display. An optional rack adapter (RK-3T) is available for installing three of these units, side by side, in a 1U rack space. - Kr-isp Advanced Sync Processing - Ensures compatibility with a wide range of computers (even if the sync level is too low) by restoring the sync signal waveform. Kr−isp advanced sync processing can be enabled or disabled.
- EDID PassThru - Passes EDID/HDCP signals from source to display.
- Selectable Sync Input Impedance - 75Ω (video), 510Ω (Graphics/TTL)
- Compact Kramer TOOLS - 3 units can be rack mounted side−by−side in a 1U rack space with the optional RK−3T rack adapter

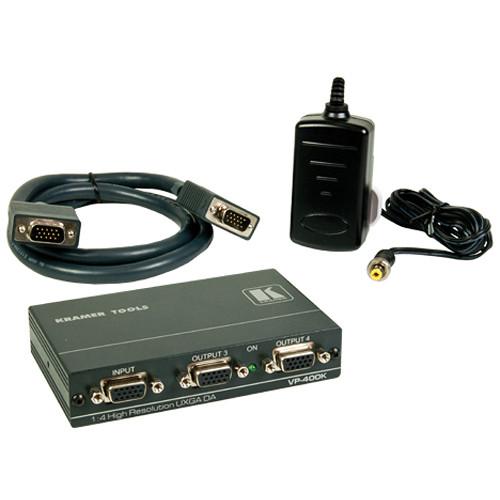

In the Box Autocue/QTV VGA Video Splitter (1x4) 3' (0.9 m) VGA Male/Male Cable Power Supply (5VDC/2.6A) Mounting Bracket 7-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Autocue QTV VGA Video Splitter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAutocue/QTV DN-VGA/002 Specs | Input | 1 UXGA on an 15-pin HD connector | | Output | 4 UXGA on 15-pin HD connectors | | Output Level | Max. output level: 2.2Vpp | | Bandwidth | 400MHz / 3dB | | Differential Gain | 0.03% | | Differential Phase | 0.03° | | K-Factor | <0.05% | | Signal to Noise Ratio | 72dB @ 5MHz | | Controls | Internal ID BIT switch; internal analog/TTL switches for setting the sync | | Coupling | DC | | Options | RK-3T 19" rack adapter | | Power Requirements | 5VDC. 130mA | | Dimensions (WxDxH) | 4.8 x 2.8 x 1" (122 x 71 x 25mm) | | Weight | 0.7 lbs (0.3kg) |
