Autoscript Epic-IP 15" Prompt Monitor with

User Manual for Autoscript Epic-IP 15" Prompt Monitor with VITC Support and Integrated 15" Talent Monitor Kit

• Product category: Teleprompters Autoscript
• Brand: Autoscript
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Autoscript Teleprompters

Product description

• EVO-IP Prompt Monitor with VITC/D-VITC Inputs and Power Supply (15") Sporting a thin design, the Autoscript EVO-IP Prompt Monitor is a 15" monitor that interfaces directly with WinPlus-IP software (available separately) using its LAN connector. In addition to LAN, the monitor supports HD-SDI and composite inputs, providing you choice in how you get your text into your prompter system. Along with its thin and lightweight design, the monitor incorporates four tally lights, providing 270° of visibility around the teleprompter. The EVO-IP is a high-bright, high-contrast solution for clear and readable text in virtually any brightness conditions.
  • Networks directly to WinPlus-IP for simple integration and perfect synchronization without a scroll box
  • 1.6" thick and lightweight at 6.6 lb
  • Back plate houses a quick release mechanism that allows rapid attachment/detachment of the monitor to/from the Intelligent Prompting mounting system

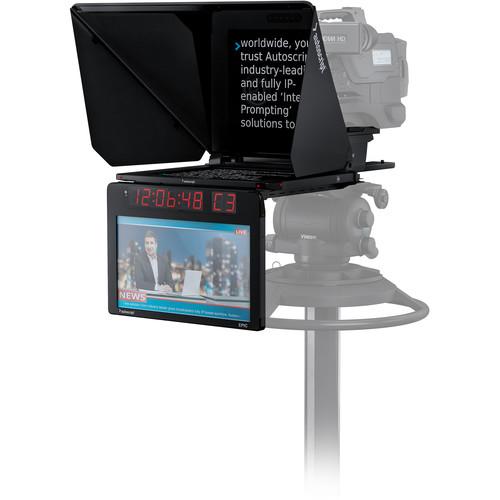

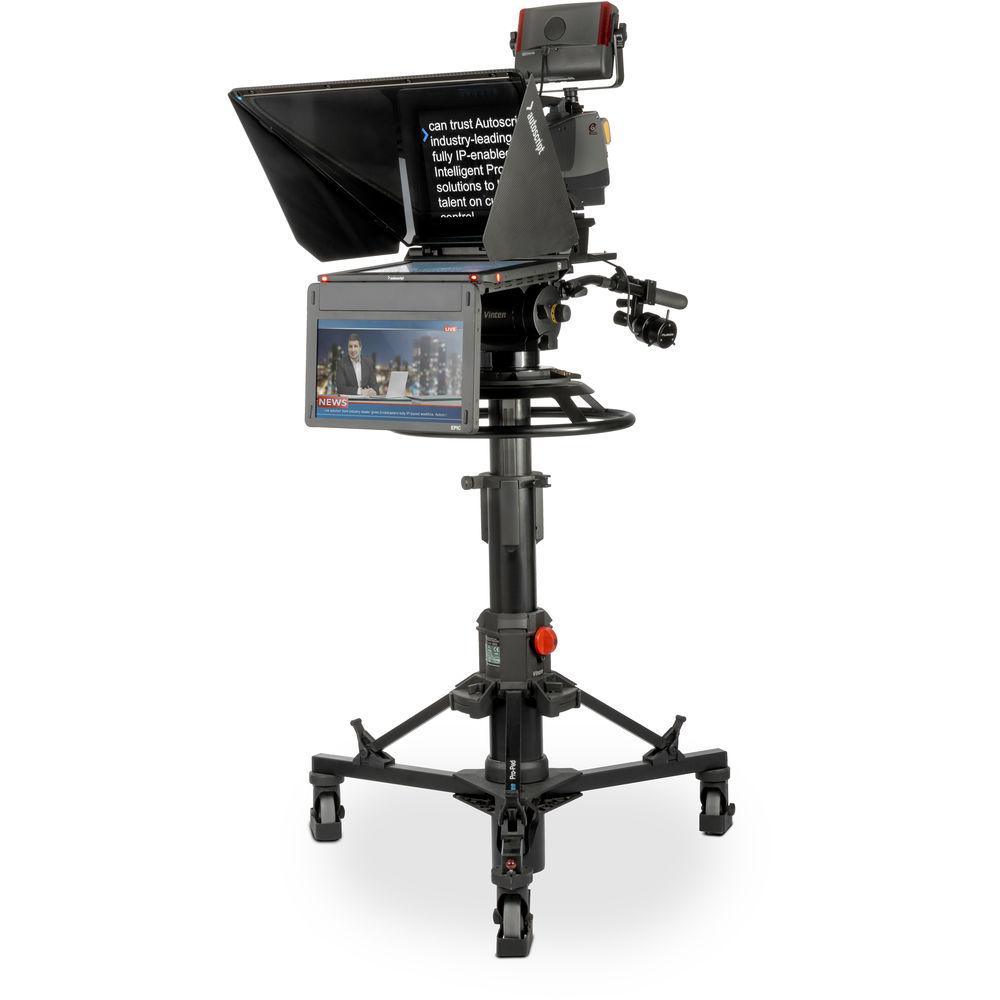

• 15" Epic Talent Monitor Only Autoscript's 15" Epic Talent Monitor is designed to attach to an Autoscript EVO-IP15M, thus upgrading both units to an EPIC-IP15 integrated prompt/talent monitor system. The talent monitor sits just below the teleprompter and allows the talent to see themselves within the frame, providing them instant visual feedback. It attaches to the prompt monitor using a friction hinge that enables you to adjust its viewing position or fold it under the prompt monitor.

  The external power and drive electronics for the monitor are supplied by the EVO-IP monitor, which is required for this monitor to work. This allows the talent monitor to be extremely lightweight and thin for a monitor with its screen size, and it also makes it easier to work with than a monitor that requires internal power and drive electronics.
  • The friction hinge enables mounting this monitor to an EVO-IP15M prompt monitor, and adjusting the tilt so the talent can see themselves best. As the ETM monitor is extremely lightweight for its size, it can easily be folded out of the way when not needed.

• Limited 2-Year Warranty

• Friction Hinge

• Limited 2-Year Warranty

Also Includes

• Carbon Fiber Hood
• Mounting System & Camera Carriage Assembly
• Tally Sensor and Cable
• Cable Tray

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• EVO-IP Prompt Monitor with VITC/D-VITC Inputs and Power Supply (15")

  Size	15" / 38.1 cm
  Resolution	1024 x 768
  Aspect Ratio	4:3
  Viewing Angle	Horizontal: 160° Vertical: 120°
  Brightness	1500 cd/m2
  Contrast	700:1

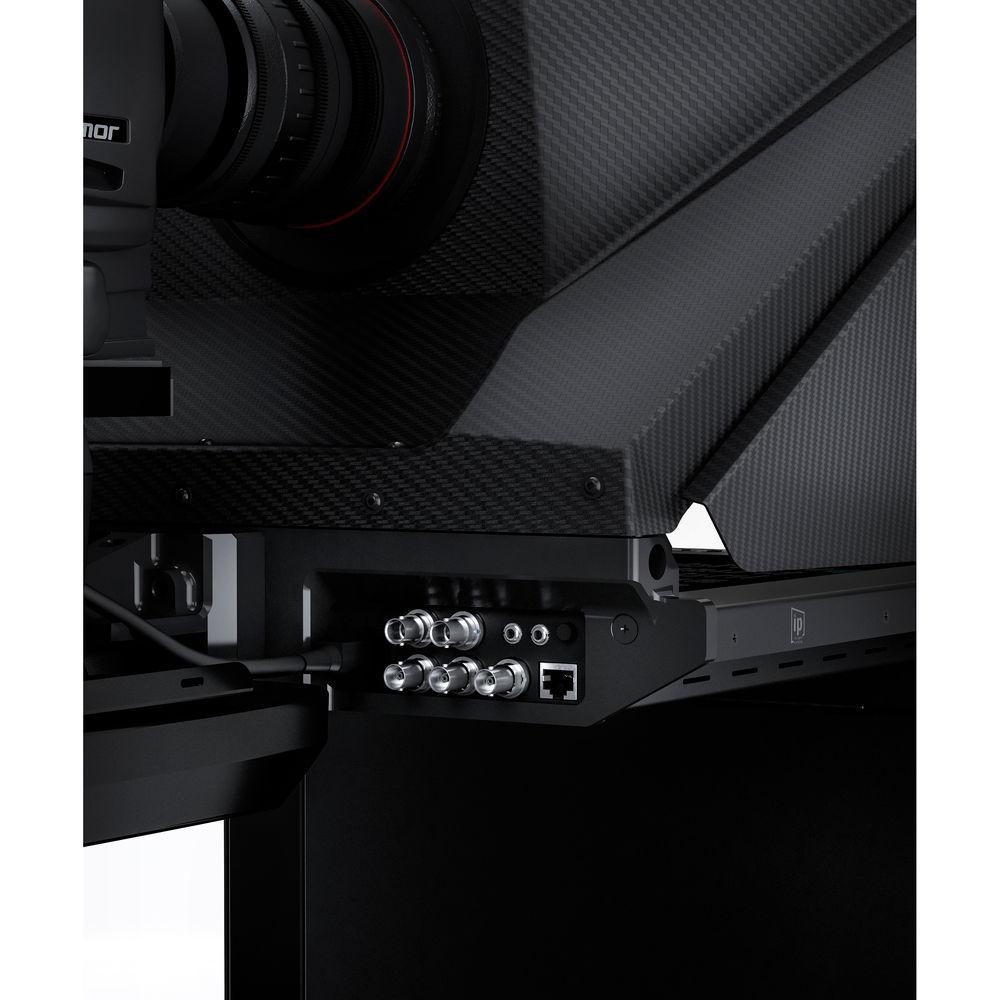

  Input Connectors	Text: LAN, 2 x HD-SDI, 2 x CVBS Tally: Opto Sensor Timecode: LTC, NTP, VITC, D-VITC
  Output Connectors	Repeat Tally 12 VDC
  Power	Input: 12 to 16.8 VDC Consumption: 25 W
  Dimensions	15.7 x 12.5 x 1.6" / 40.0 x 31.7 x 4.1 cm
  Weight	6.6 lb / 3.0 kg

• 15" Epic Talent Monitor Only

  Size	15.6" / 39.62 cm
  Resolution	1920 x 1080
  Brightness	400 cd/m2
  Aspect Ratio	16:9
  Viewing Angle	Horizontal: 140° Vertical 120°
  Contrast	500:1
  Input Connectors	HD-SDI CVSB
  Power	Input: 12 VDC Consumption: 17 W Connector: XLR
  Dimensions	15.75 x 11.22 x 0.75" / 40 x 28.5 x 1.9 cm
  Weight	5.1 lb / 2.3 kg
