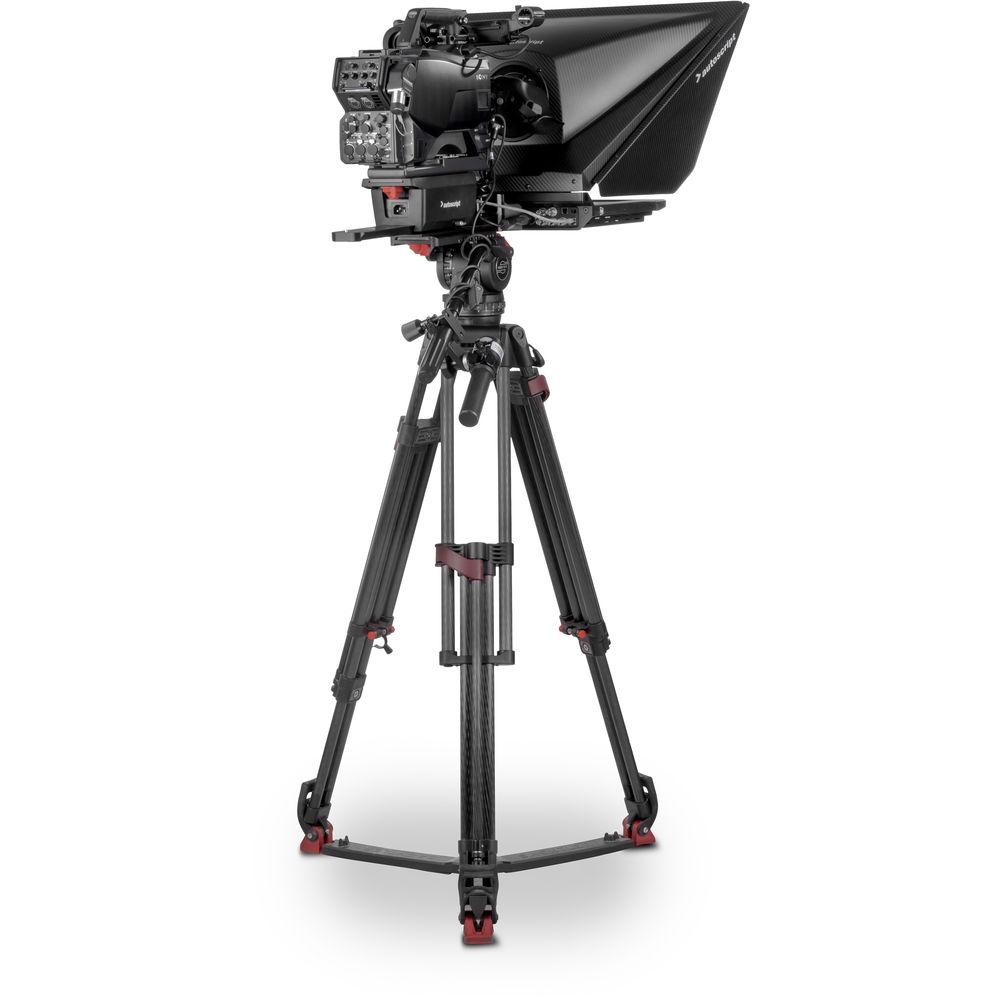

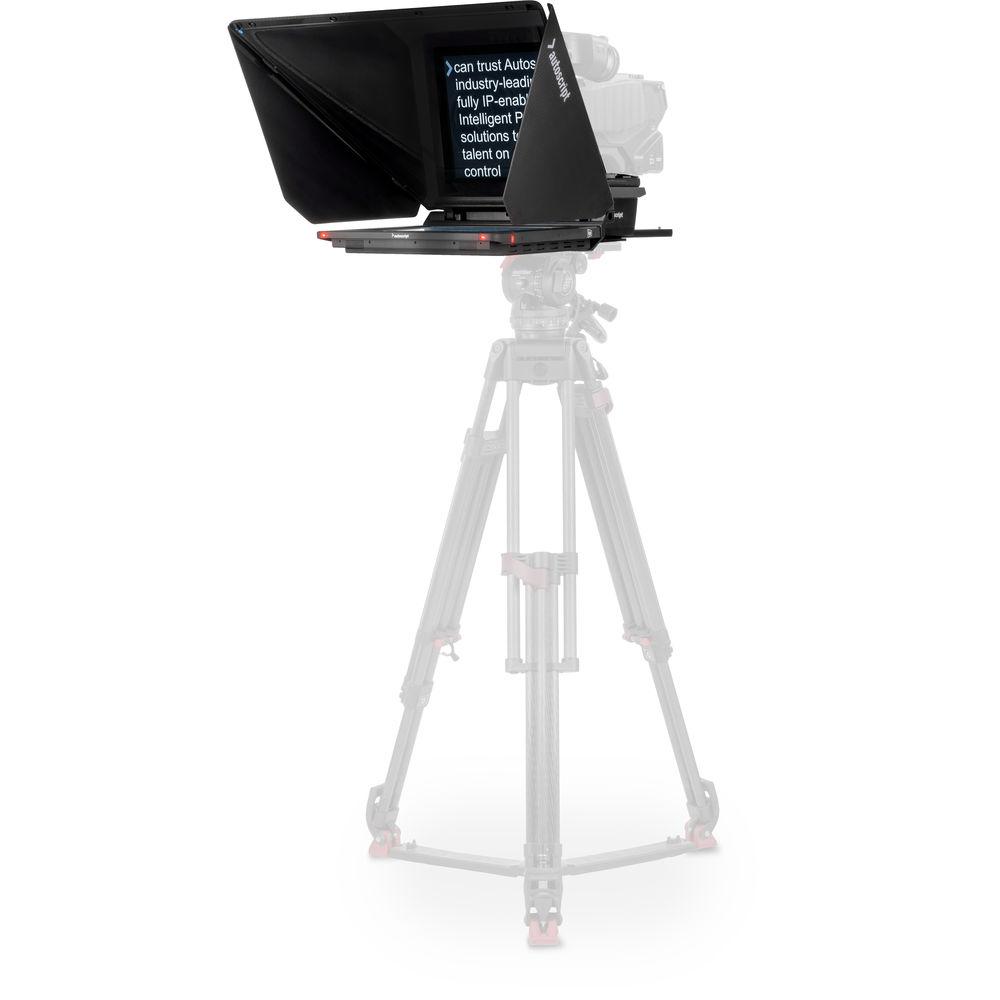

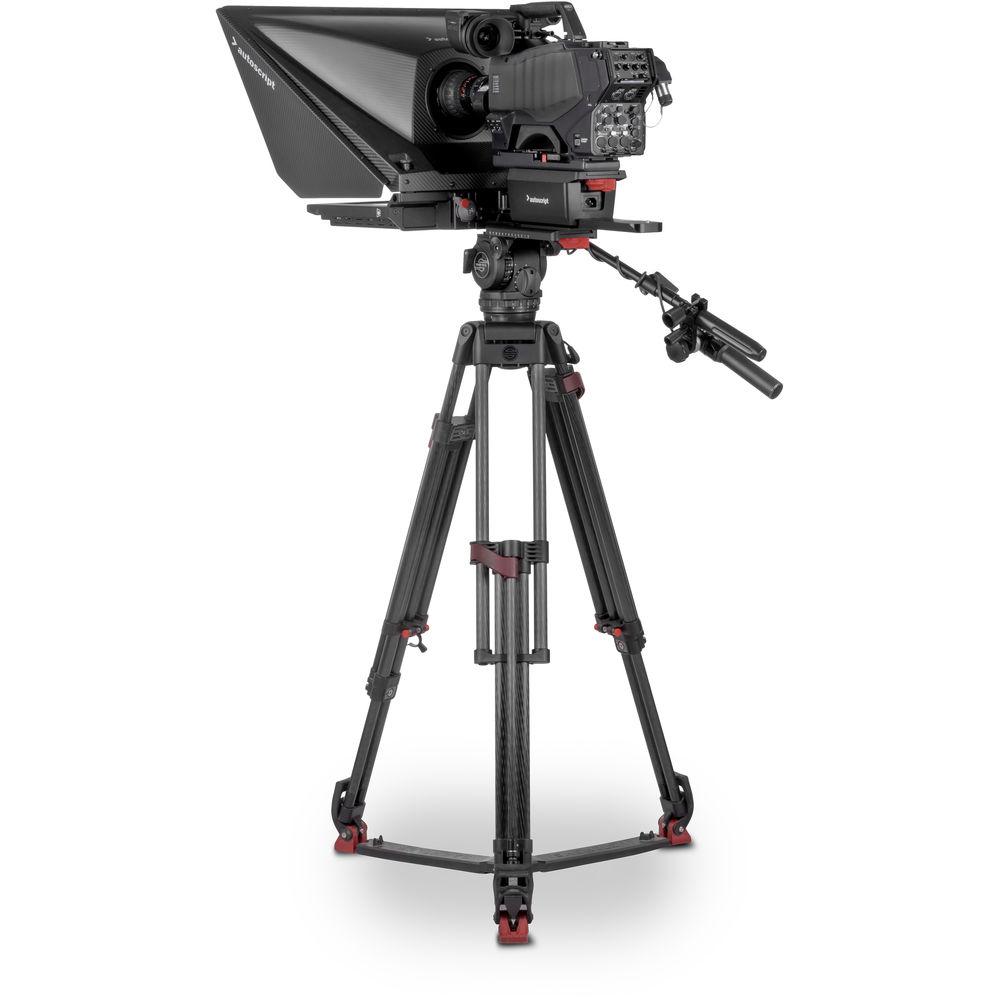

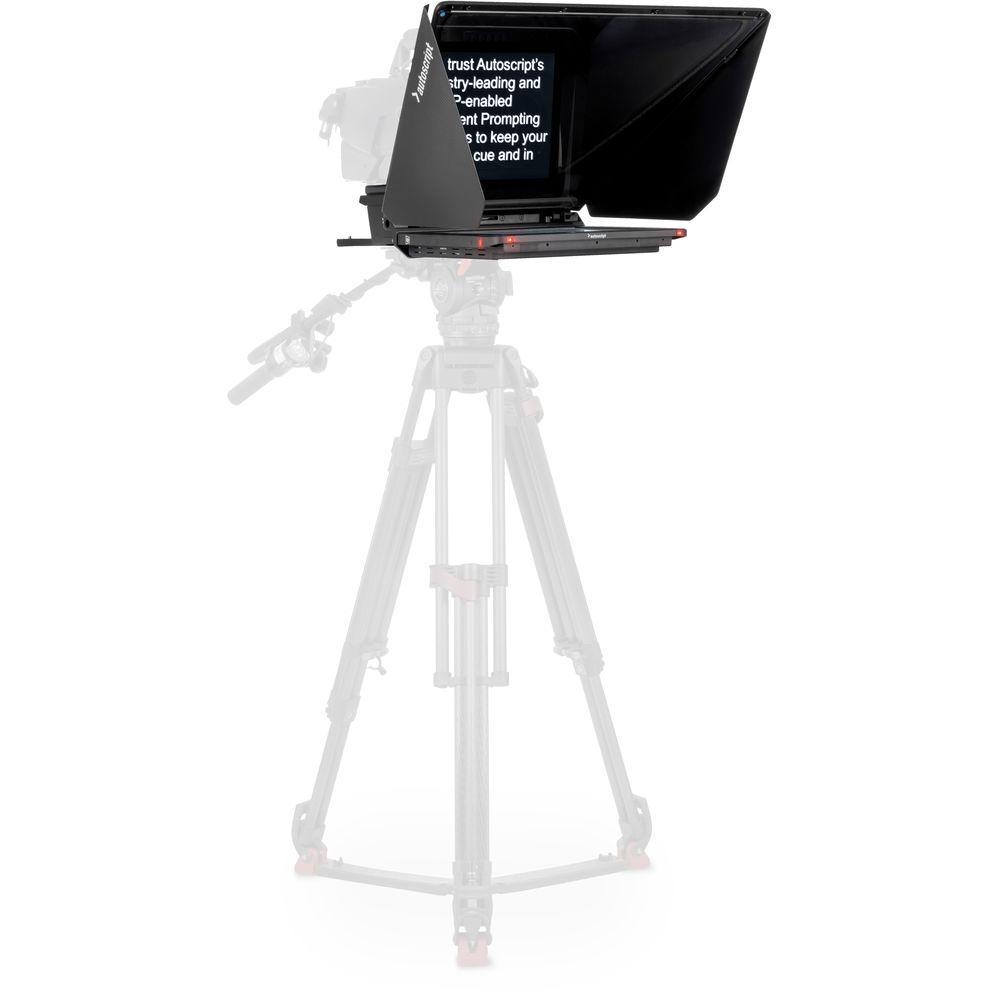

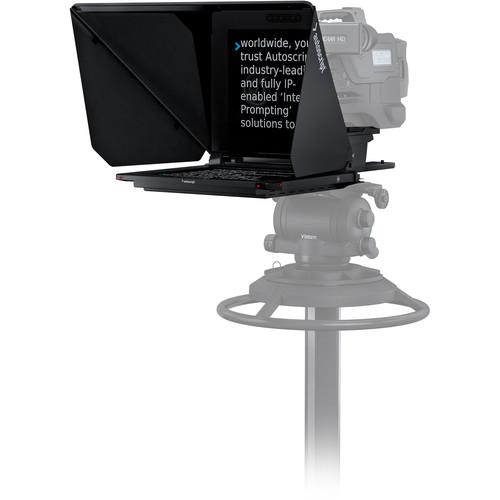

User Manual for Autoscript EVO-IP On-Camera Package with 15" Prompt Monitor Click to enlarge the picture
Contents of the user manual for the Autoscript EVO-IP On-Camera Package with 15"
- Product category: Teleprompters Autoscript
- Brand: Autoscript
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Autoscript Teleprompters
 |
User manual for the Autoscript EVO-IP On-Camera Package with 15" contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Autoscript product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Autoscript user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Autoscript product will considerably shorten its lifespan!
|
Product description Anatomy of a Teleprompter Read More - Autoscript EVO-IP and EPIC-IP monitors
Sporting a thin monitor designed to interface directly with WinPlus-IP software, the Autoscript EVO-IP On-Camera Package with 15" Prompt Monitor features a quick-release system with a folding carbon fiber monitor hood that reduces setup and breakdown time. The monitor is IP ready and supports LAN as well as HD-SDI and composite inputs, providing you choice in how you get your text into your prompter system.
Along with its thin and lightweight design, the monitor also features improved cable connection over previous models. The carbon fiber hood folds to protect the glass during transport and storage, while allowing you to use lenses as wide as 4.3mm without vignetting. Four integrated tally lights with tally pass through enables you to use this prompter in a multicam shoot. This is for the monitor, hood, and beamsplitter glass; support rods and mounting bracket not included. - The monitor is IP ready, which allows it to network directly to WinPlus-IP (not included) for simple integration and synchronization without a scroll box
- The design and construction of the hood reduces setup time and protects glass during transportation
- No counterbalance needed for most camera/lens configurations
- The Intelligent Prompting mounting system enables rapid setup with assured lens/prompt monitor alignment
In the Box Autoscript EVO-IP On-Camera Package with 15" Prompt Monitor EVO-IP Prompt Monitor (15") with Power Supply vtcsesqrsee Carbon Fiber Hood Tally Sensor and Cable Cable Tray Backplate Table of Contents
|
Upload User Manual
Have you got an user manual for the Autoscript EVO-IP On-Camera Package with 15" Prompt Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAutoscript EVO-IP15 Specs | Size | 15" / 38.1 cm | | Resolution | 1280 x 768 | | Aspect Ratio | 4:3 | | Viewing Angle | Horizontal: 160° | | Brightness | 1500 cd/m2 | | Contrast | 700:1 | | Input Connectors | Text: LAN, 2 x HD-SDI, 2 x CVBS
Tally: Opto Sensor
Timecode: LTC, NTP | | Output Connectors | Repeat Tally
12 VDC | | Power | 12-16.8 VDC, 25 W
Power Input: XLR 4-pin | | Dimensions | 15.75 x 12.48 x 1.63" / 40 x 31.7 x 4.15 cm | | Weight | 23.1 lb / 10.5 kg |
