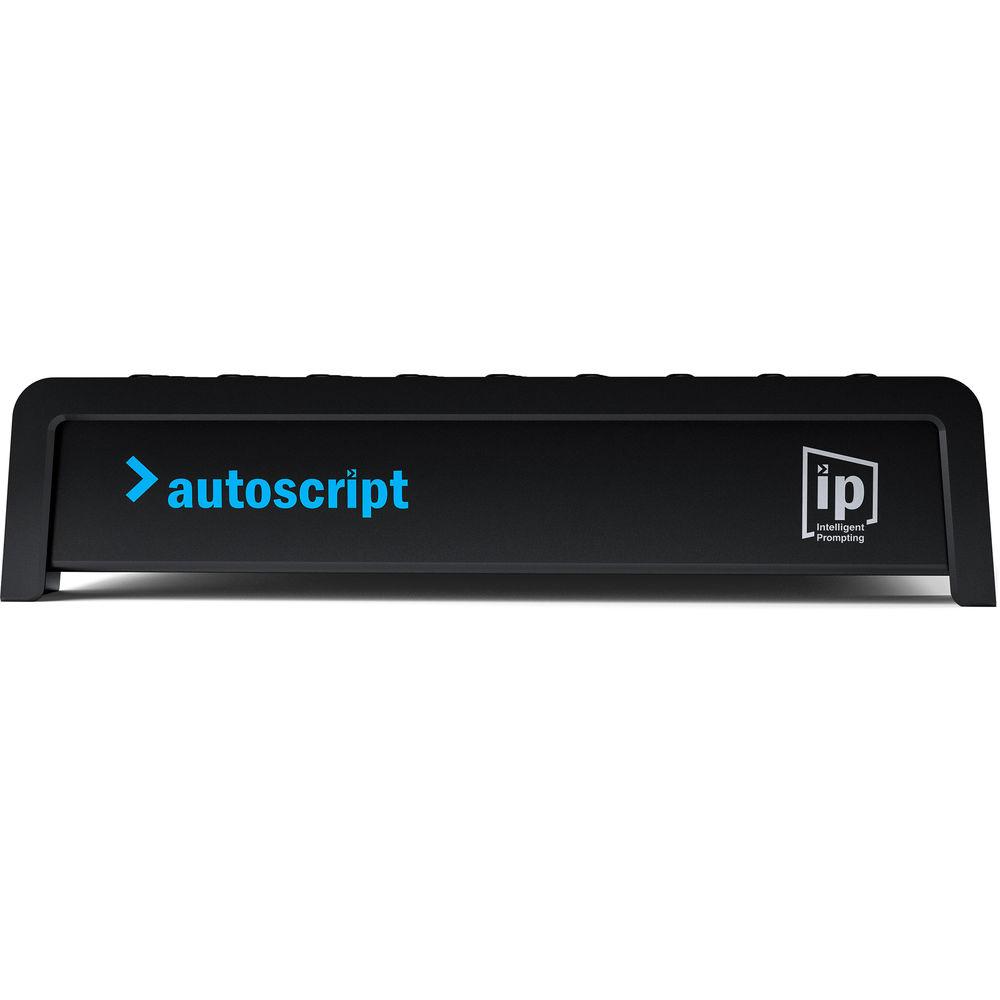

User Manual for Autoscript XBox-IP External IP Enabled HD HD-SDI Prompter Video Generator Click to enlarge the picture
Contents of the user manual for the Autoscript XBox-IP External IP Enabled HD
- Product category: Teleprompter Accessories Autoscript
- Brand: Autoscript
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Autoscript Teleprompter Accessories
 |
User manual for the Autoscript XBox-IP External IP Enabled HD contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Autoscript product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Autoscript user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Autoscript product will considerably shorten its lifespan!
|

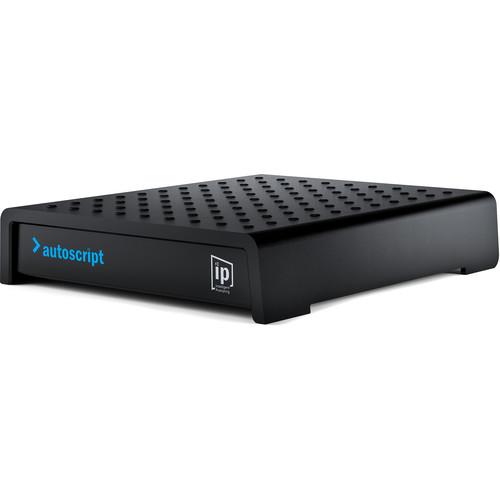

Product description The XBox-IP from Autoscript is an external IP-Enabled HD/HD-SDI prompter video generator that is composed of a compact scroll engine. As a prompting device, it networks via Ethernet to WinPlus-IP prompting software application, where users can monitor status, manage group updates, and remote upgrades. Dual HD-SDI outputs support the distribution of the teleprompter video to traditional prompter monitors. In addition, a PoE output can be used to power an intelligent prompting scroll control for single-controller setups. The XBox-IP has a tough, portable casing with a LED status indicator. Configuration of the XBox-IP device is done via the host PC with the WinPlus-IP software installed either locally or via the network. - Dual HD-SDI output distributes script video to traditional prompt monitors
- PoE output for scroll control avoids the need for 3rd party equipment in single-controller setups
- Network and status indicator
- Managed remotely in WinPlus-IP and auto detected for simple installation
- HC-IP desktop hand control and RJ45 Cat 5/6 cable are available separately
- The PSU-SC power supply (available separately) is required if the XBox-IP is being used as an independent unit without Power over Ethernet (PoE) switch
In the Box Autoscript XBox-IP External IP Enabled HD/HD-SDI Prompter Video Generator Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Autoscript XBox-IP External IP Enabled HD HD-SDI Prompter Video Generator in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

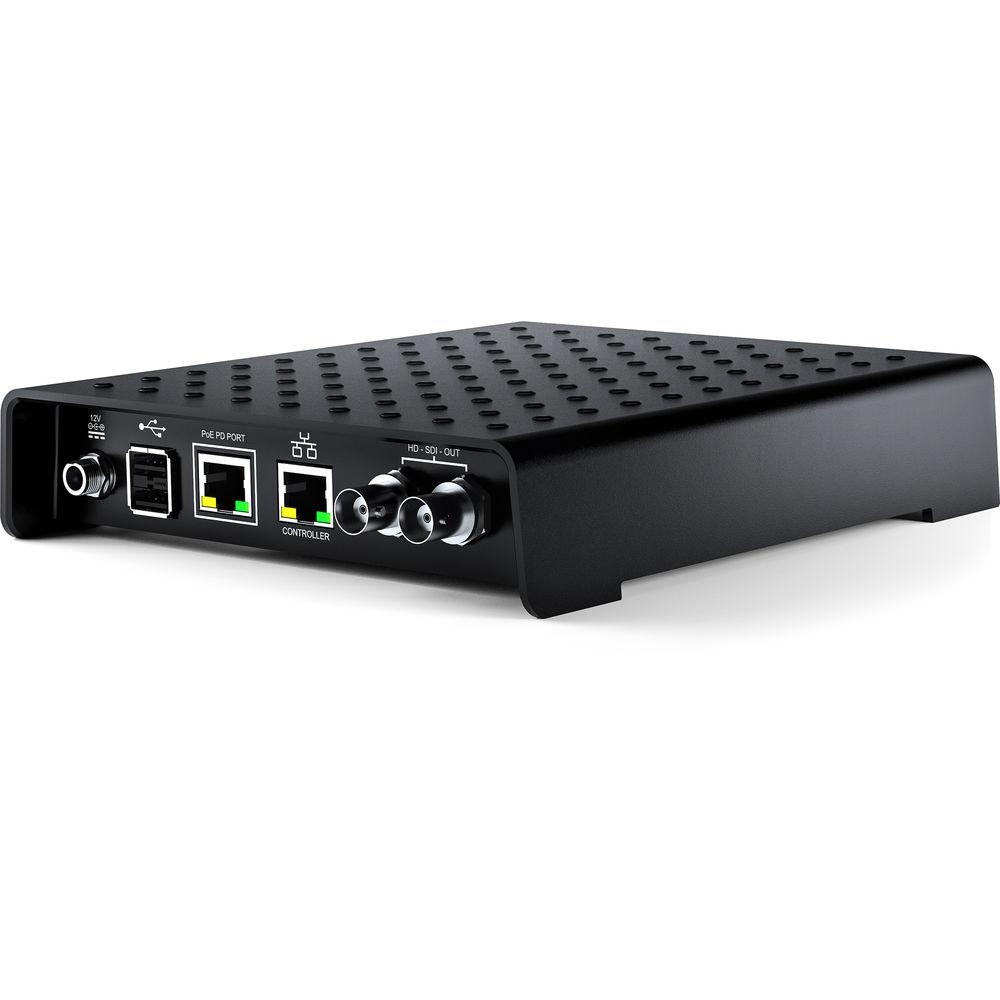

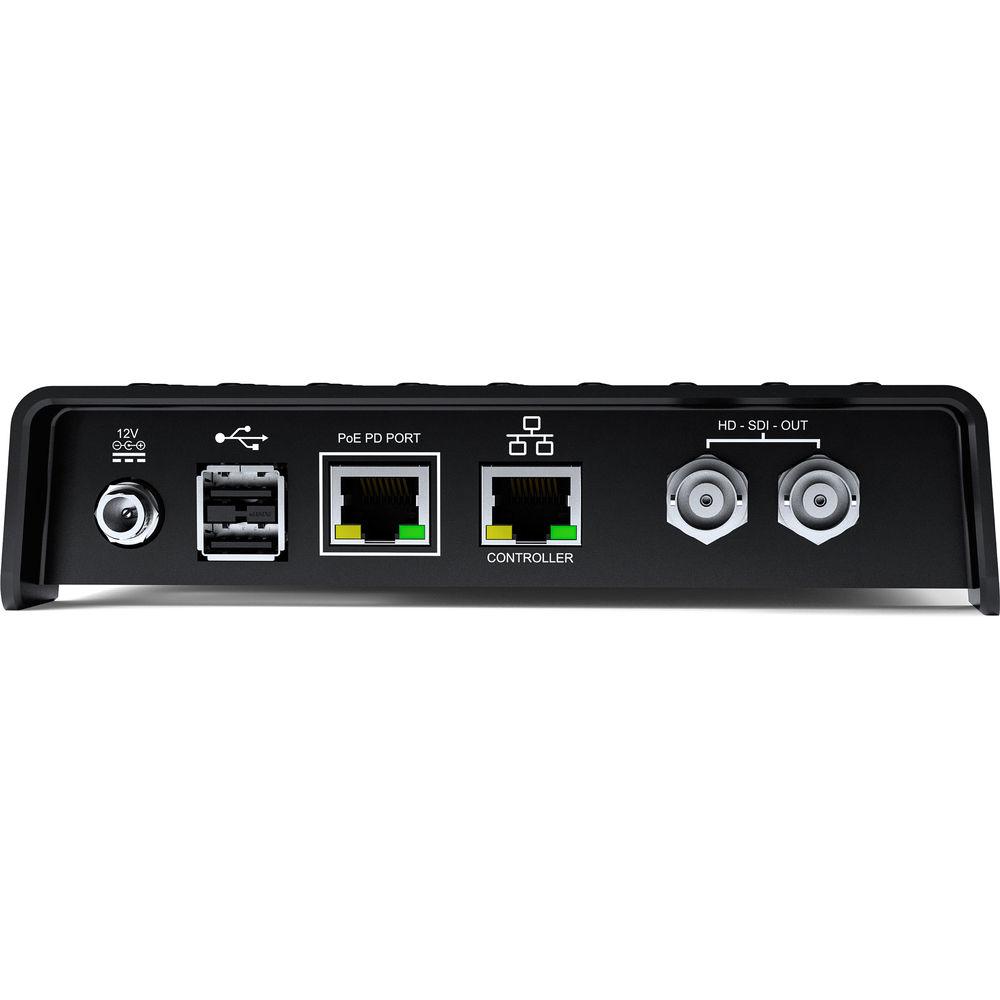

Technical parametersAutoscript A9009-0001 Specs | Connectors | 1 x DC barrel, 12 VDC Power Input
1 x RJ45, PoE Ethernet, Input
2 x HD-SDI, Video Output
1 x RJ45, PoE Controller Output
2 x USB Port | | Power Consumption | 8 W Maximum
With PoE Controller: 11 W | | Power | DC: 12 VDC, 1 A | | Video Formats | Selectable
1080p 60/50/29.97
1080i 60/59.94/50
720p 60/50 | | Power Supply | 100 - 230 VAC, 12 VDC 5 A | | Fuse | Internal: 3A PCB Mounted (Not User Serviceable) | | Certification | FCC | | Operating Temperature | 5 to 40°C / 41 to 104°F | | Storage Temperature | -20 to 60°C / -4 to 140°F | | Dimensions | 6.37 x 7.16 x 1.45" / 16.2 x 18.2 x 3.7 cm | | Weight | 1.3 lb / 600 g | | | | Package Weight | 2.1 lb | | Box Dimensions (LxWxH) | 11.7 x 7.0 x 3.6" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 04 owners. Add your rating and experience with the product.
Discussion
Ask our technicians if you have a problem with your settings,
or if anything is unclear in the user manual you have downloaded.
You can make use of our moderated discussion.
The discussion is public and helps other users of our website who may be encountering similar problems.
Post new comment to Autoscript XBox-IP External IP Enabled HD HD-SDI Prompter Video Generator
| Subject: SDI output | | Date: 17.01.2022 18:07:20 | Name: Keaotshepa Thai | Hi
My HD-SDI is not present on the output. Could it be a settings issue? | | Post reply |
