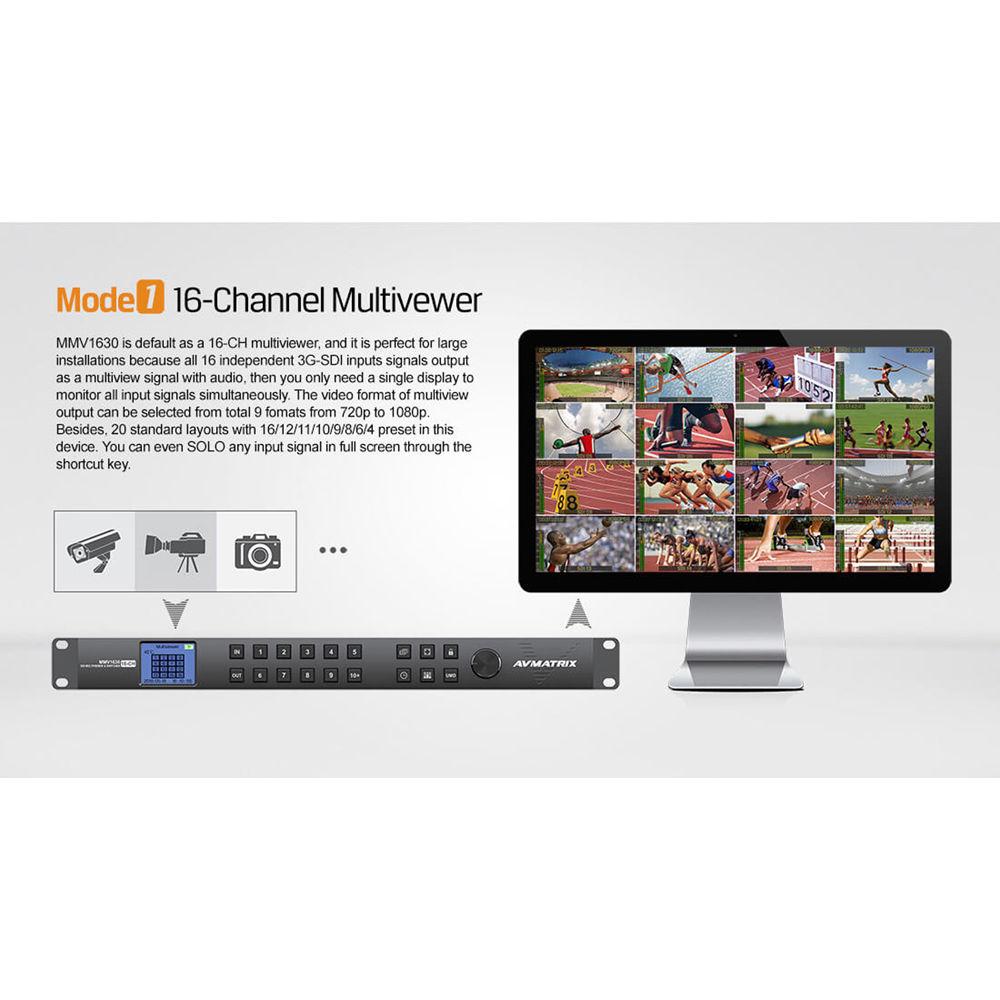

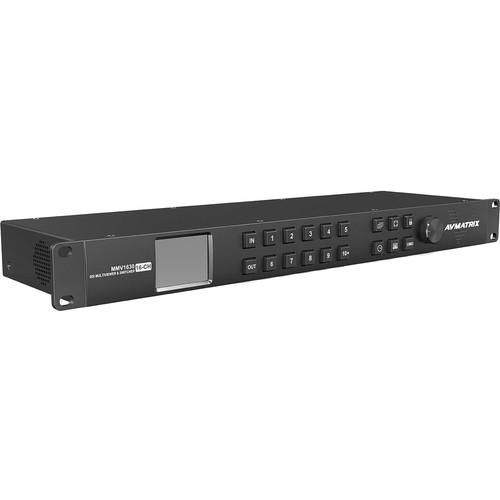

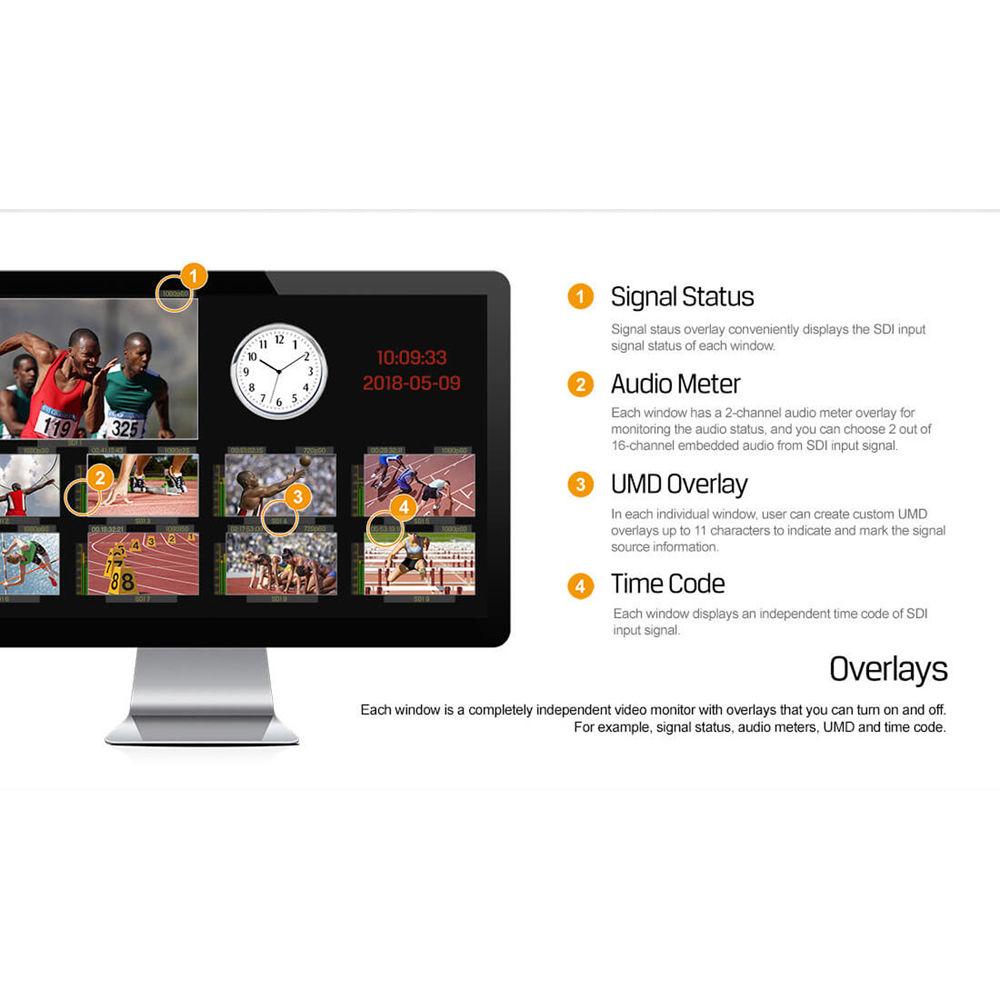

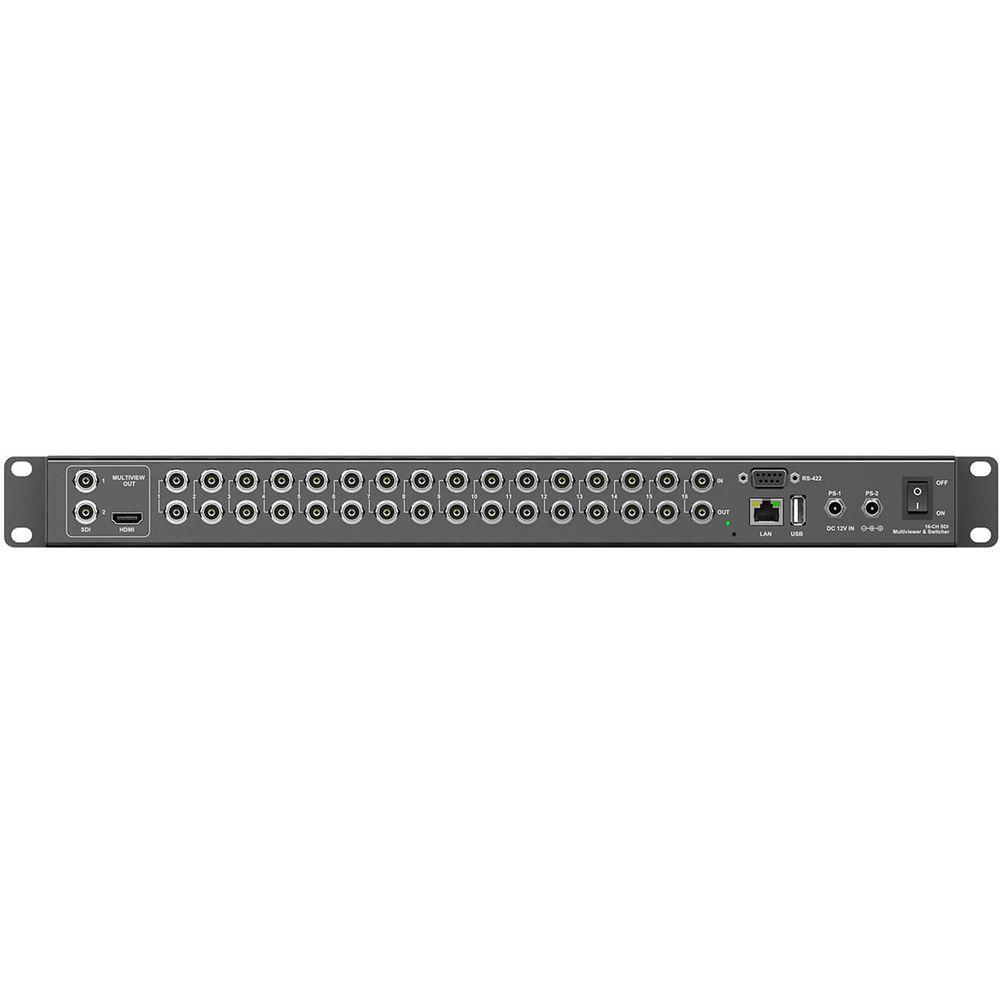

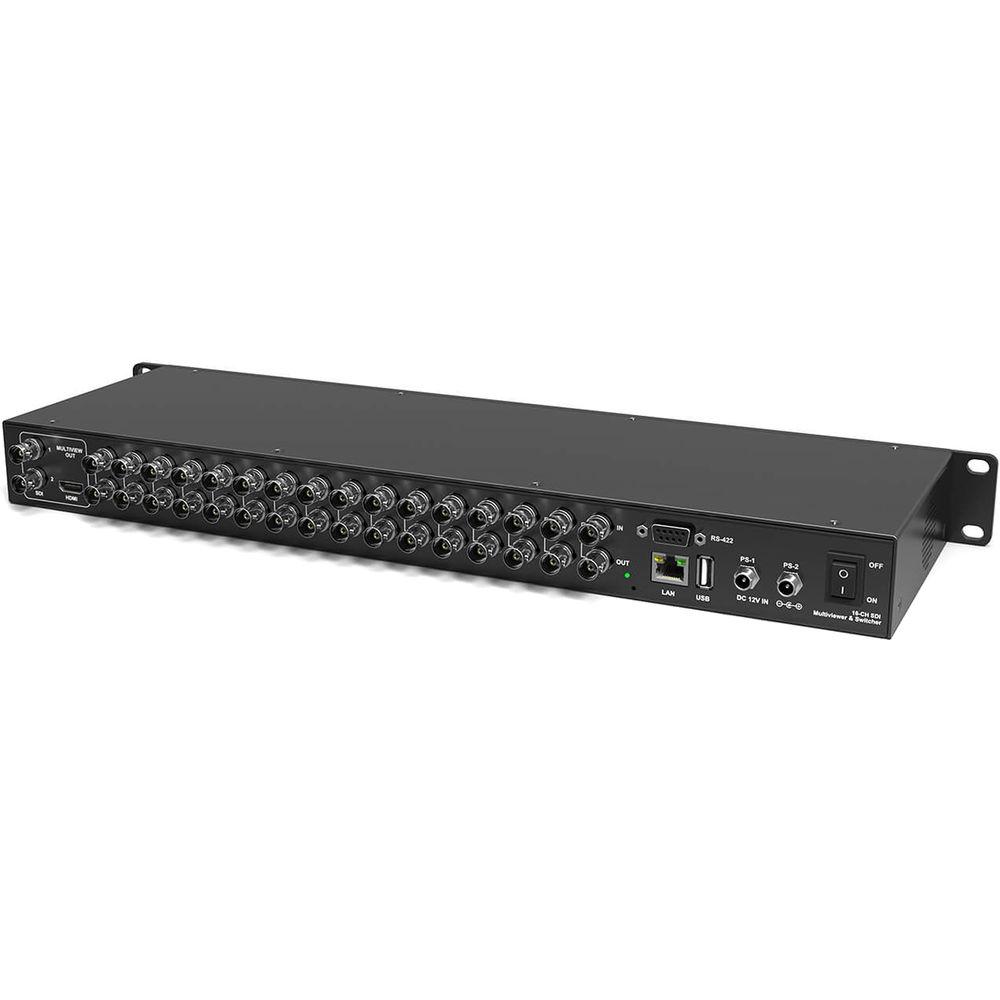

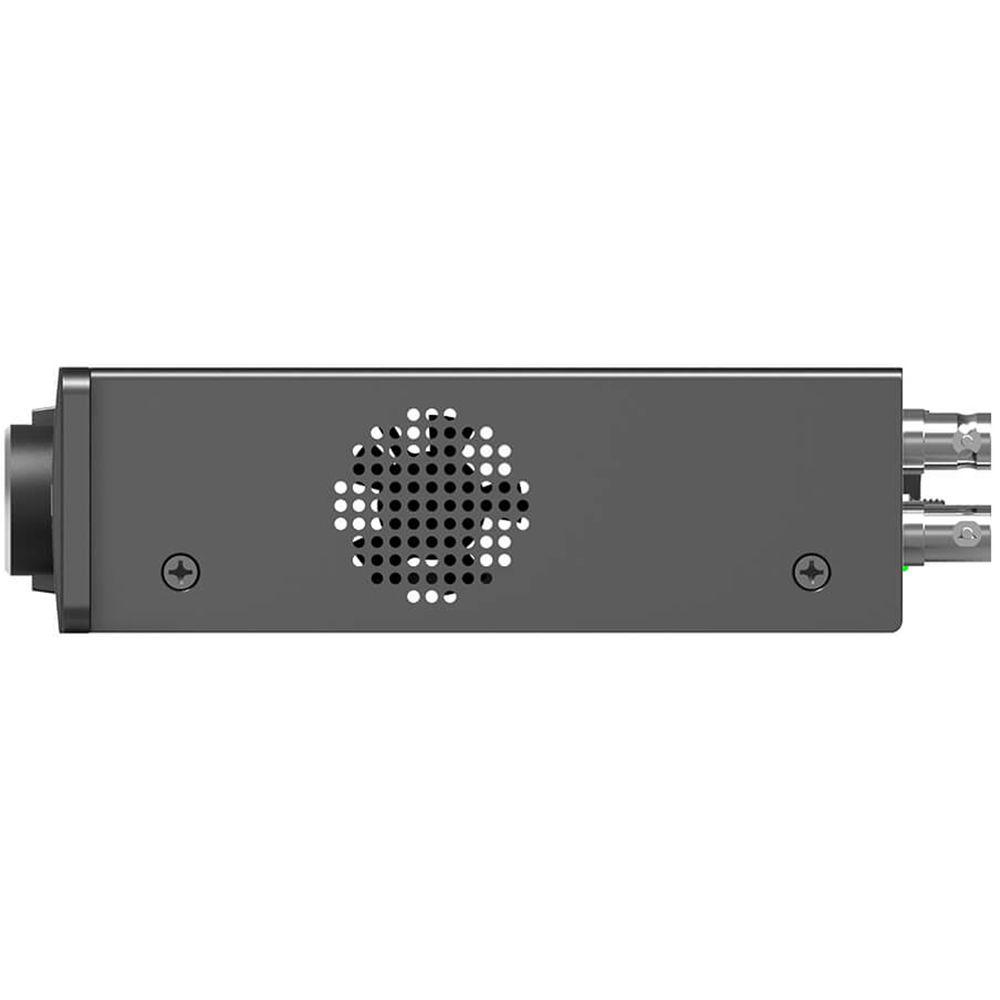

Product description The 1 RU 16-Channel 3G-SDI Multiviewer and Switcher from AV Matrix features two modes in one device. Mode 1 acts as a 16-channel multiviewer, with 16 independent 3G-SDI inputs. The video format of multiview outputs can be selected from nine formats from 720p to 1080p and include 20 standard layouts. The signals are viewed simultaneously on one display and each window is completely independent with overlays such as signal status, audio meter, UMD, and time code.

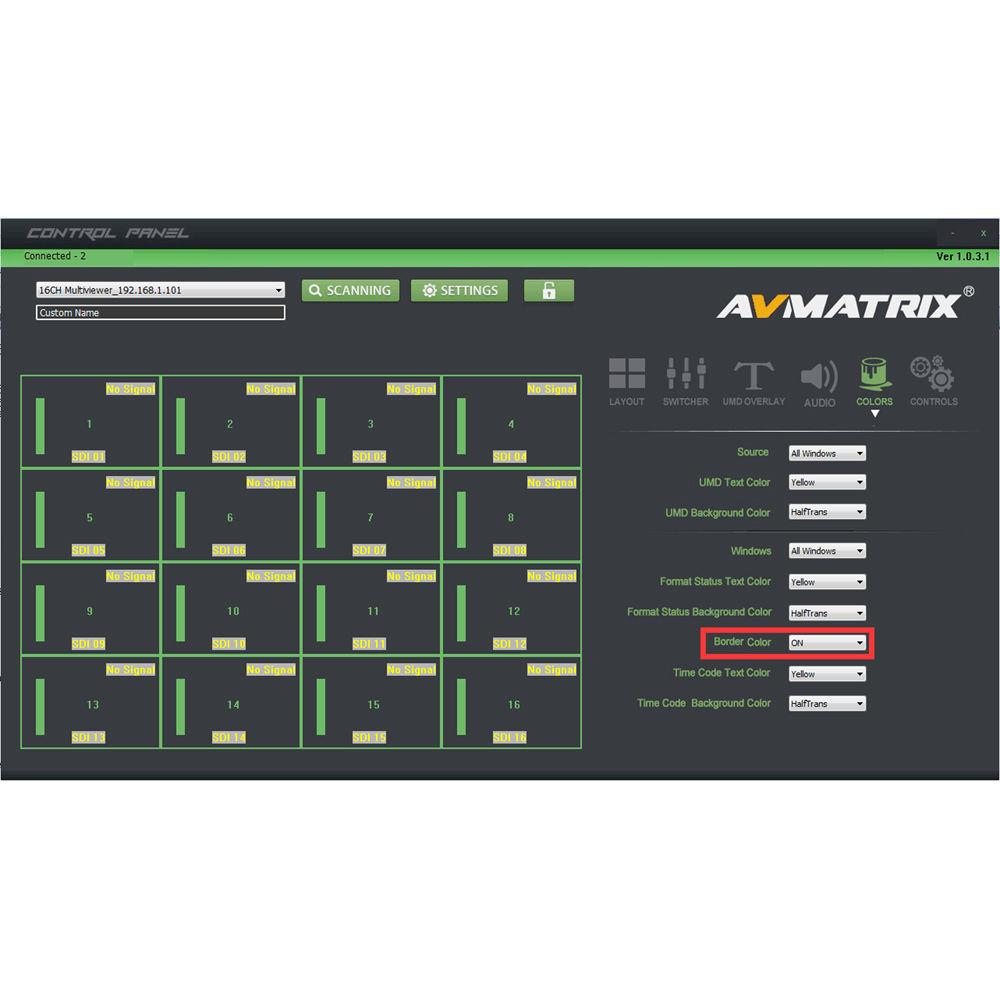

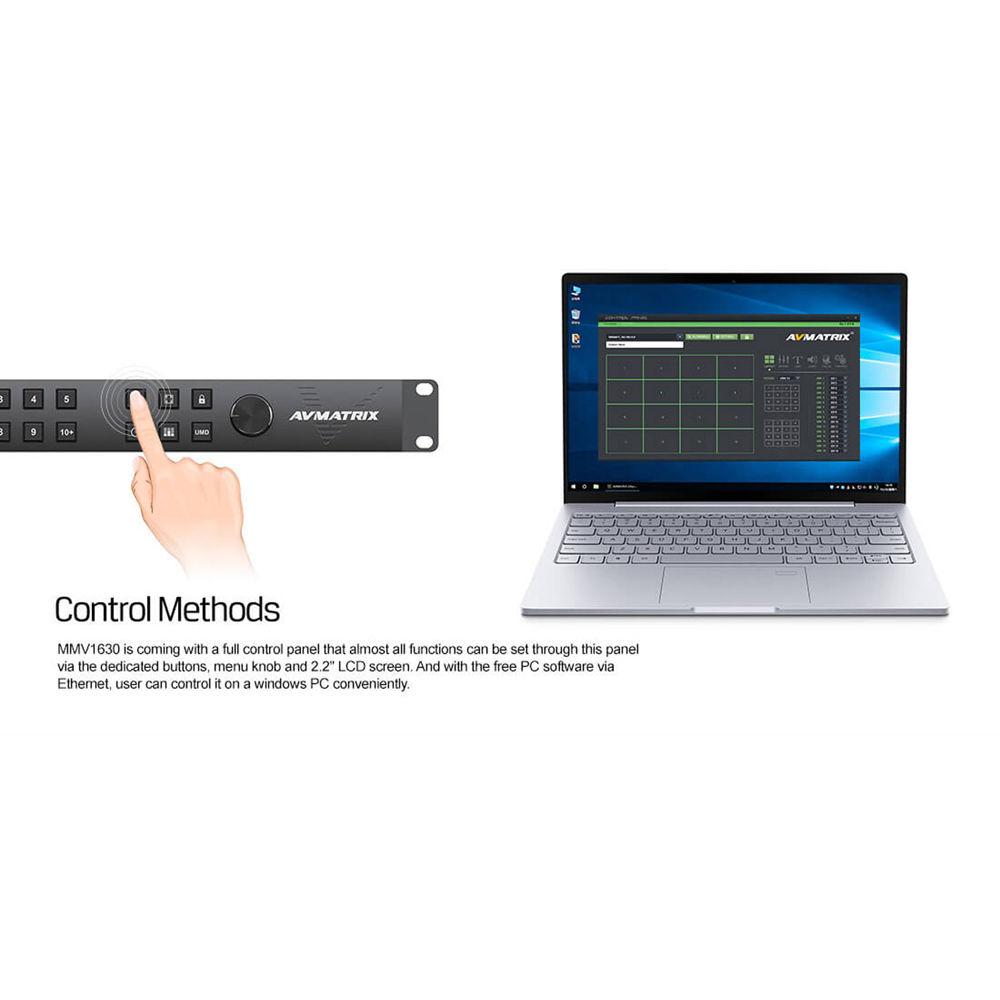

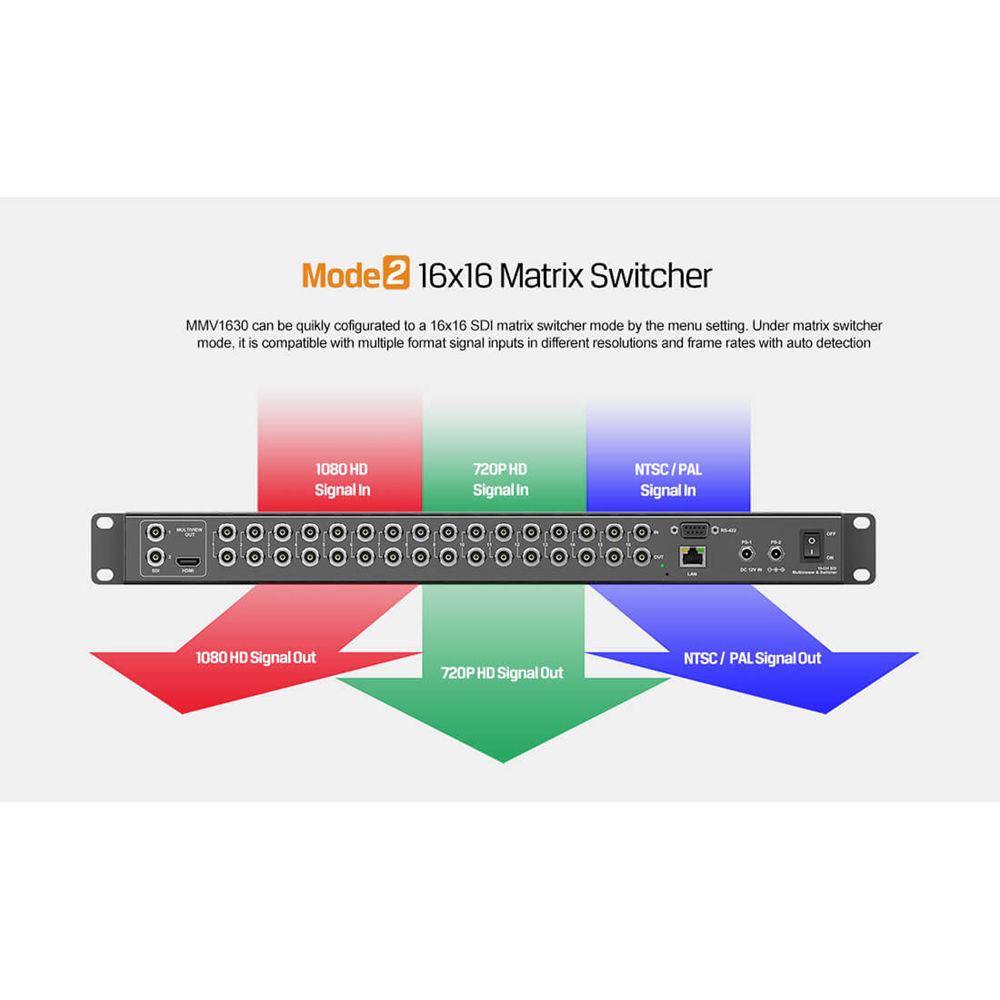

Mode 2 turns this device into a 16 x 16 SDI matrix switcher, compatible with multiple format signal inputs in different resolutions and frame rates with audio detection. The MMV1630 can be controlled using the buttons, knob, and LCD screen on the front panel, or with a PC software via Ethernet. A compact 1 RU design makes it suitable for any live broadcast or post production such as OB vans, broadcast control rooms, and studios. - 16 x 3G-SDI auto-detected inputs with loop outputs
- 2 x 3G-SDI and 1 x HDMI multiview scaling outputs with audio
- Full screen and 20 preset layouts with clock display
- Dual power design, redundant power
In the Box AV Matrix 16-Channel 3G-SDI Multiviewer and Switcher (1 RU) Power Adapter Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the AV Matrix 16-Channel 3G-SDI Multiviewer and Switcher in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAV Matrix MMV1630 Specs | | | Inputs | 16 x SD/HD/3G-SDI | | Loop Outputs | 16 x SD/HD/3G-SDI | | Outputs | 2 x SDI
1 x HDMI | | Resolution | SDI Input:
1920 x 1080p at 60/59.94/50/30/29.97/25/24/23.98 Hz
1920 x 1080PsF at 30/29.97/25/24/23.98 Hz
1920 x 1080i at 60/59.94/50 Hz
1280 x 720p at 60/59.94/50/30/29.97/25/24/23.98 Hz
625i 50 PAL
525i 59.94 NTSC
SDI/HDMI Output:
1080p at 60/50/30/25/24 Hz
1080i at 60/50 Hz
720p at 60/50 Hz | | SDI Auto Switching | Auto Selects SD, HD, and 3G-SDI on Input | | SDI Video Rates | SD/HD/3G-SDI | | SDI Compliance | SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M | | Color Space | YUV 4:2:2, YUV 4:4:4, RGB 4:4:4 (SDI Input)
YUV 4:2:2 (Multiview HDMI/SDI Output) | | | | Inputs | 16 x SD/HD/3G-SDI/DVB-ASI | | Outputs | 16 x SD/HD/3G-SDI/DVB-ASI | | SDI Format Support | 2048 x 1080p at 30/29.97/25/24/23.98 Hz
2048 x 1080PsF at 30/29.97/25/24/23.98 Hz
1920 x 1080p at 60/59.94/50/30/29.97/25/24/23.98 Hz
1920 x 1080PsF at 30/29.97/25/24/23.98 Hz
1920 x 1080i at 60/59.94/50 Hz
1280 x 720p at 60/59.94/50/30/29.97/25/24/23.98 Hz
625i 50 PAL
525i 59.94 NTSC | | SDI Auto Switching | Auto Selects SD, HD, and 3G-SDI on Input | | SDI Video Rates | SD/HD/3G-SDI | | SDI Compliance | SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 352M, SMPTE 372M, SMPTE 424M, SMPTE 425M, DVB-ASI | | Color Space | YUV 4:2:2, YUV 4:4:4, RGB 4:4:4, XYZ 4:4:4 | | | | Controls | Front Panel Buttons and Knob | | Connectors | LAN (Software and Update)

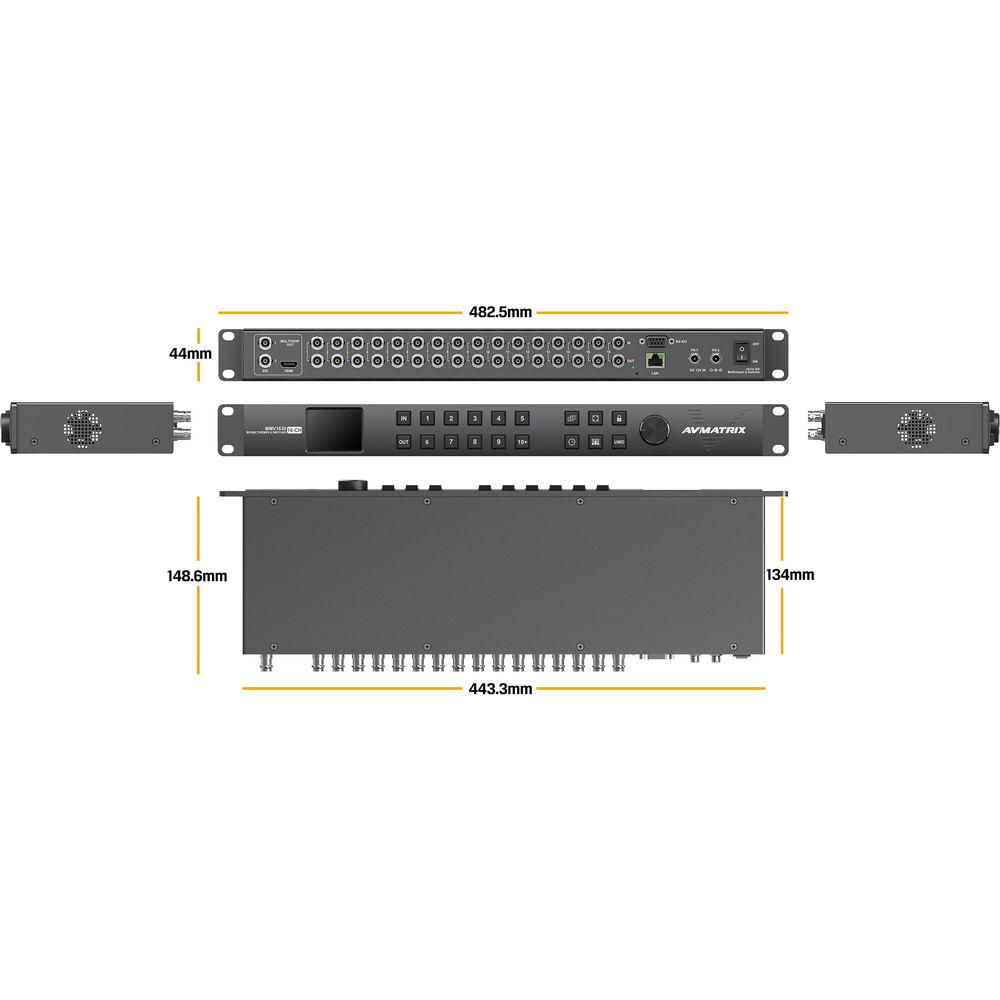

RS-422 (Reserve) | | Display | 2.2" / 5.6 cm LCD Screen | | Voltage | 12 to 20 VDC | | Power Supply | PS-1, PS-2, Power Redundancy | | Power Consumption | 36 W | | Operating Temperature | 32 to 140°F / 0 to 60°C | | Storage Temperature | -22 to 158°F / -30 to 70°C | | Humidity | 0 to 90% | | Rack Size | 1 RU | | Dimensions | 19.0 x 1.7 x 5.9" / 48.3 x 4.4 x 14.9 cm | | Weight | 4.4 lb / 2 kg |
