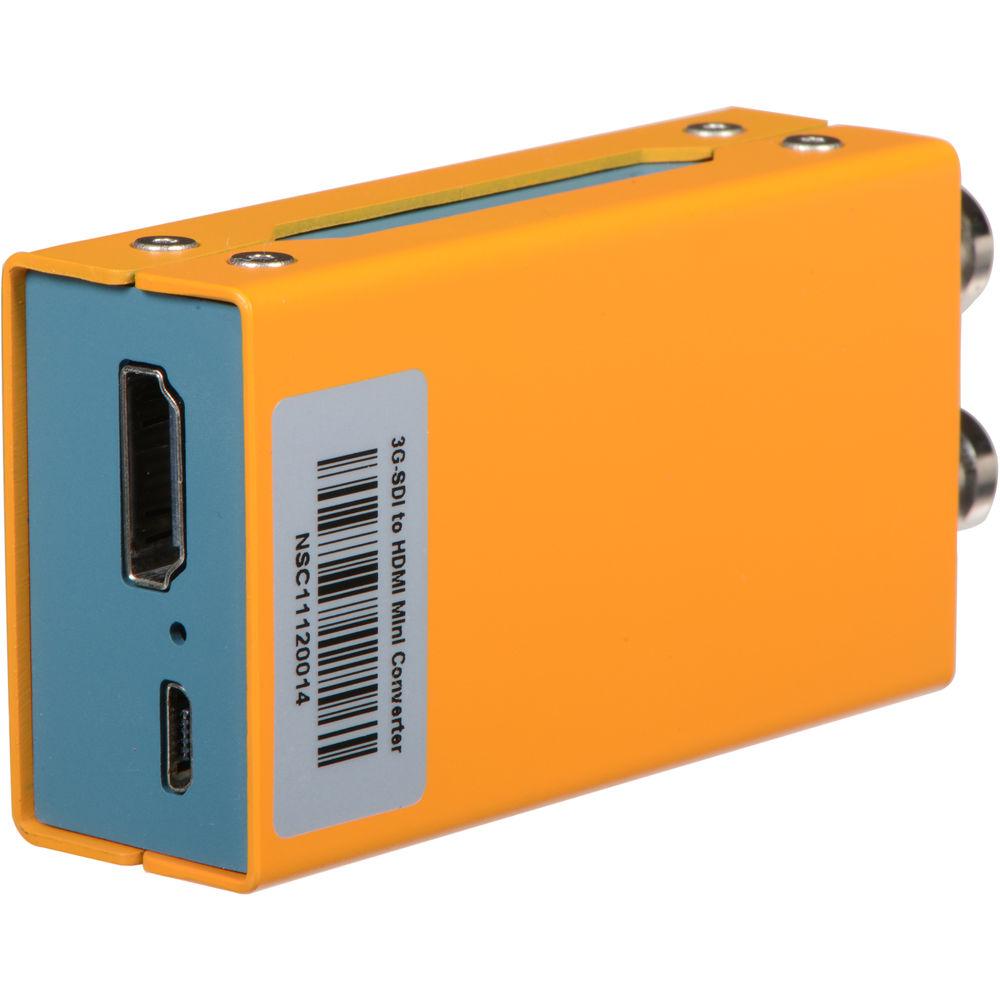

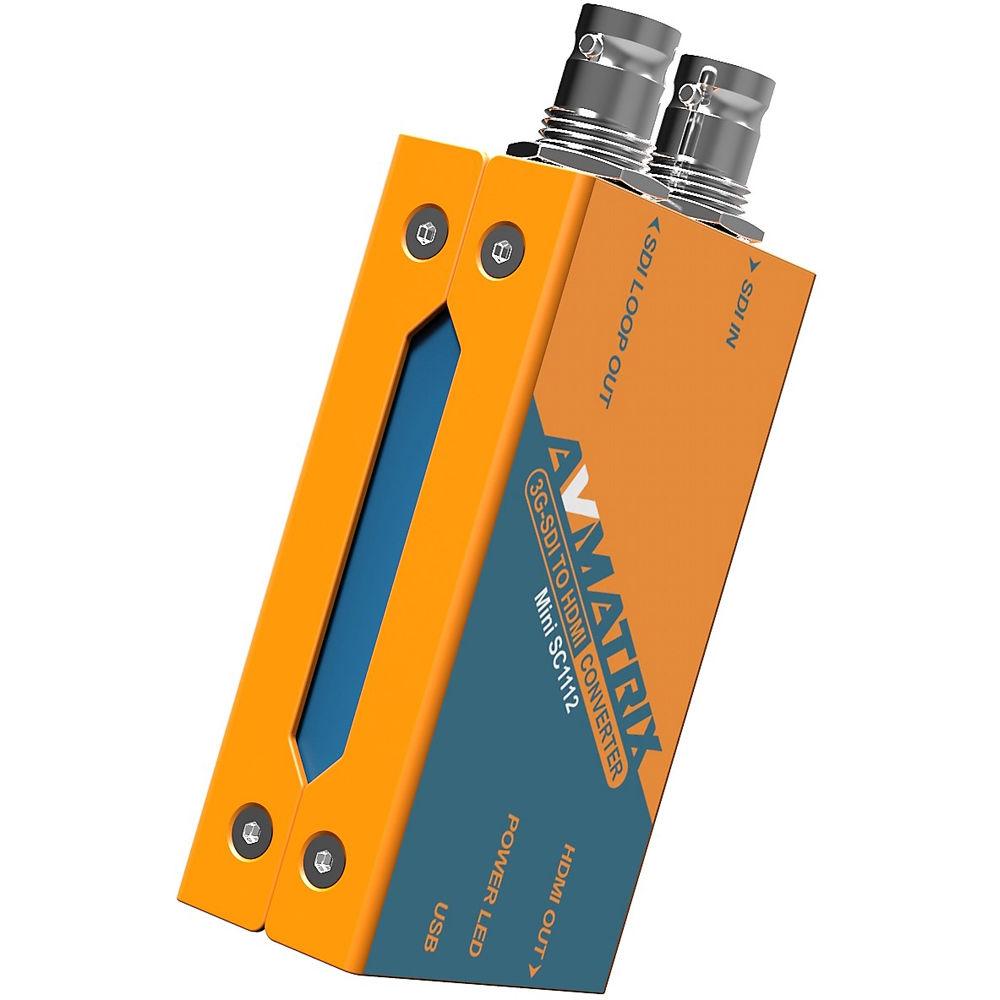

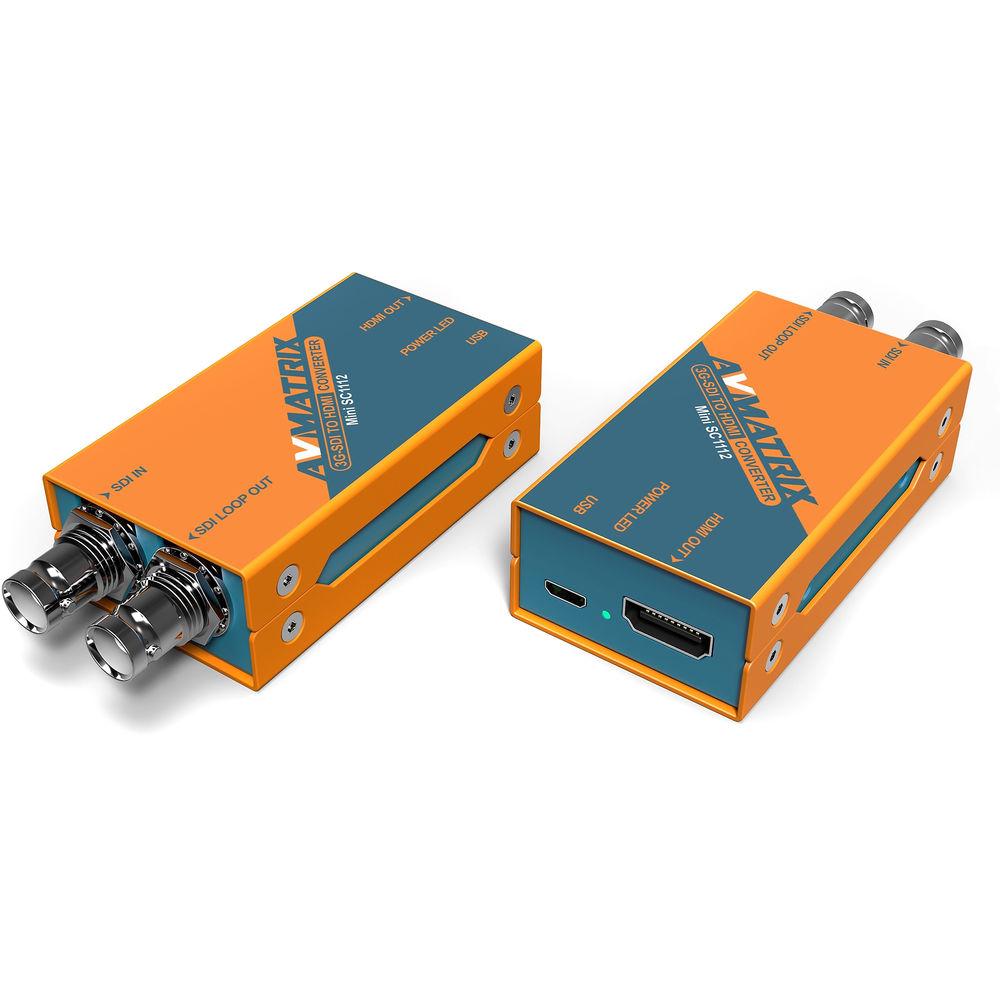

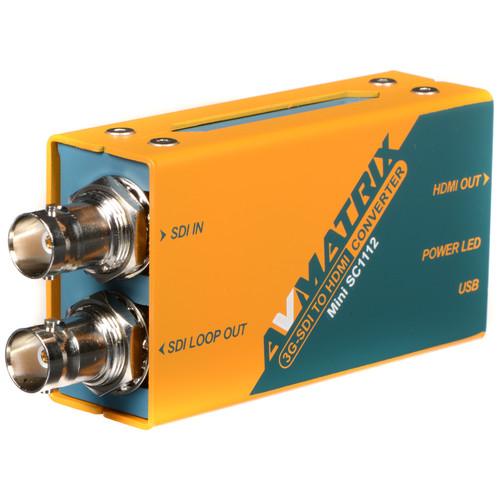

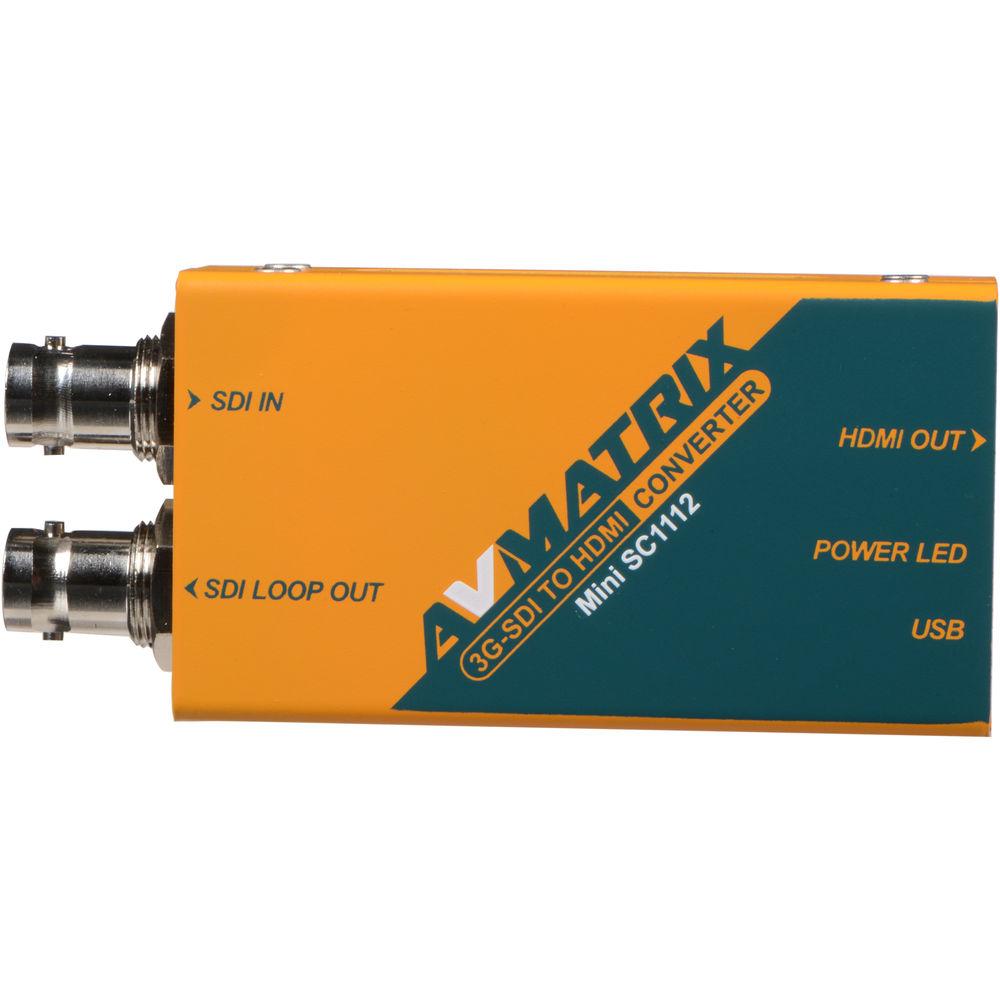

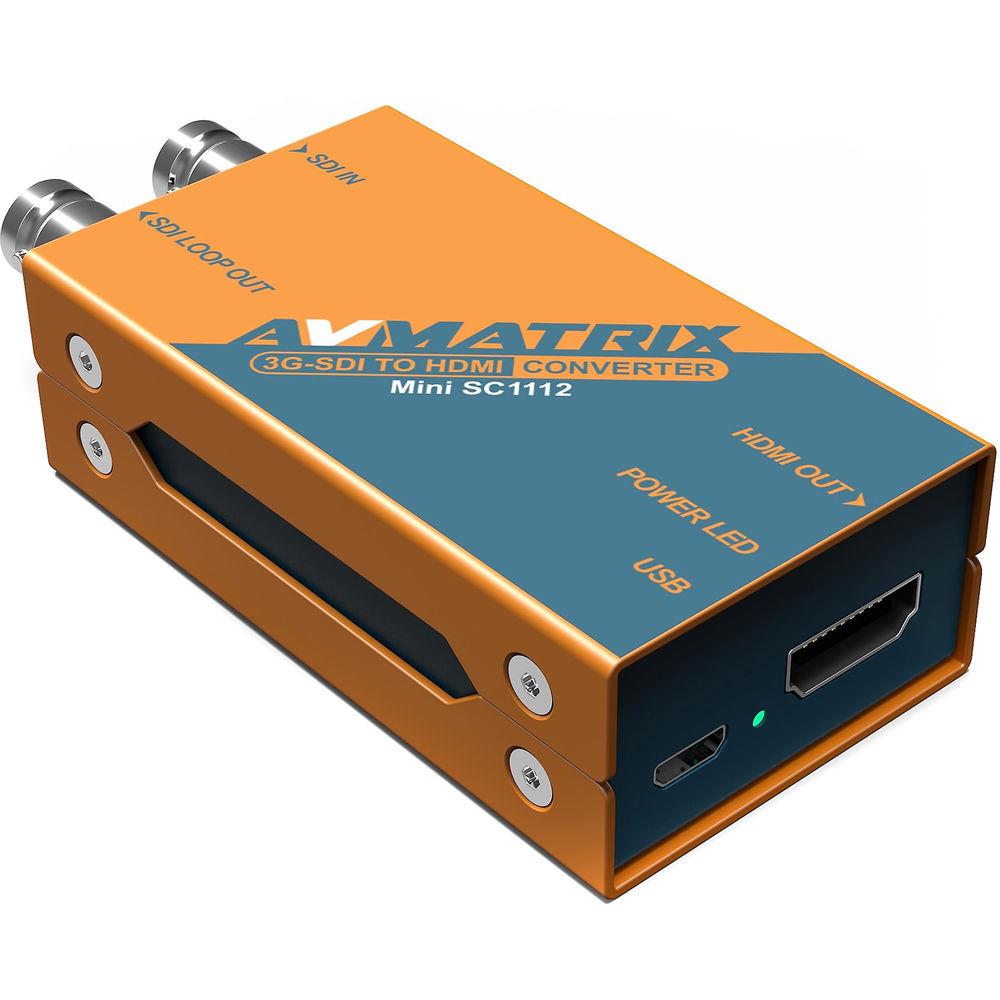

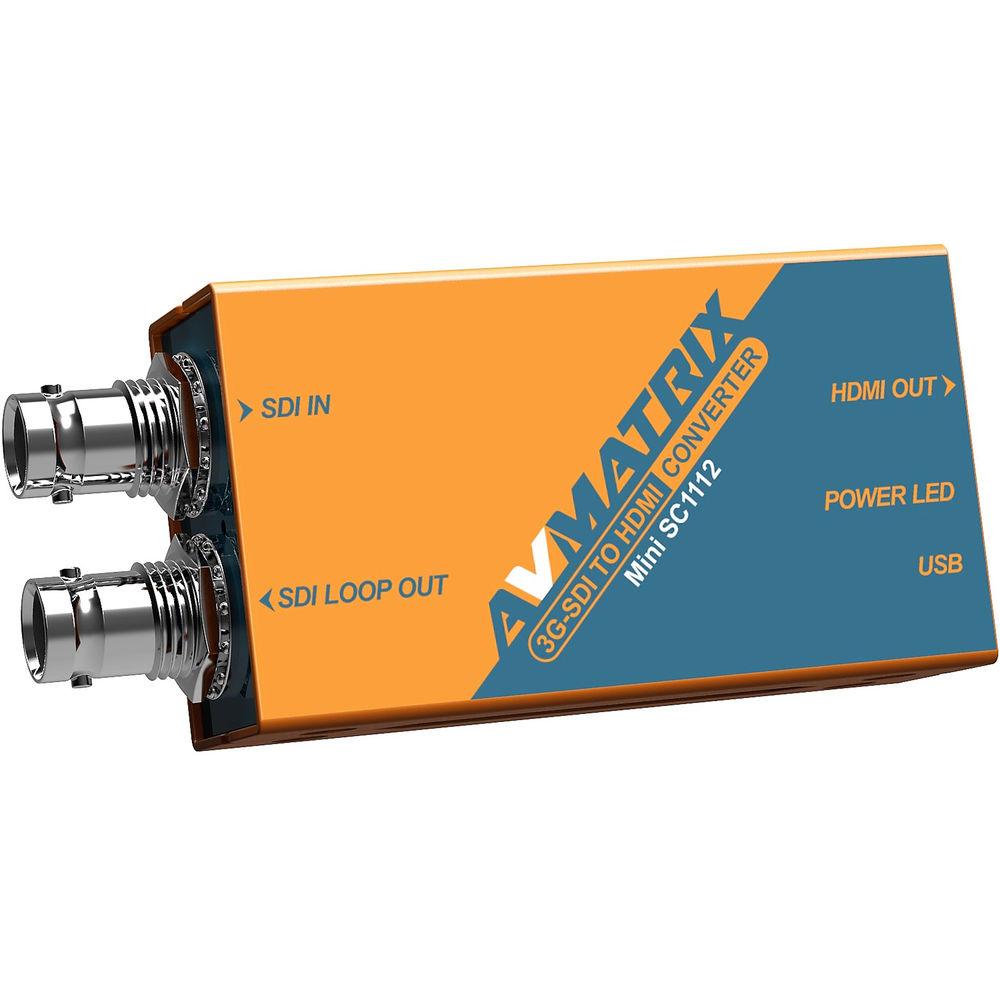

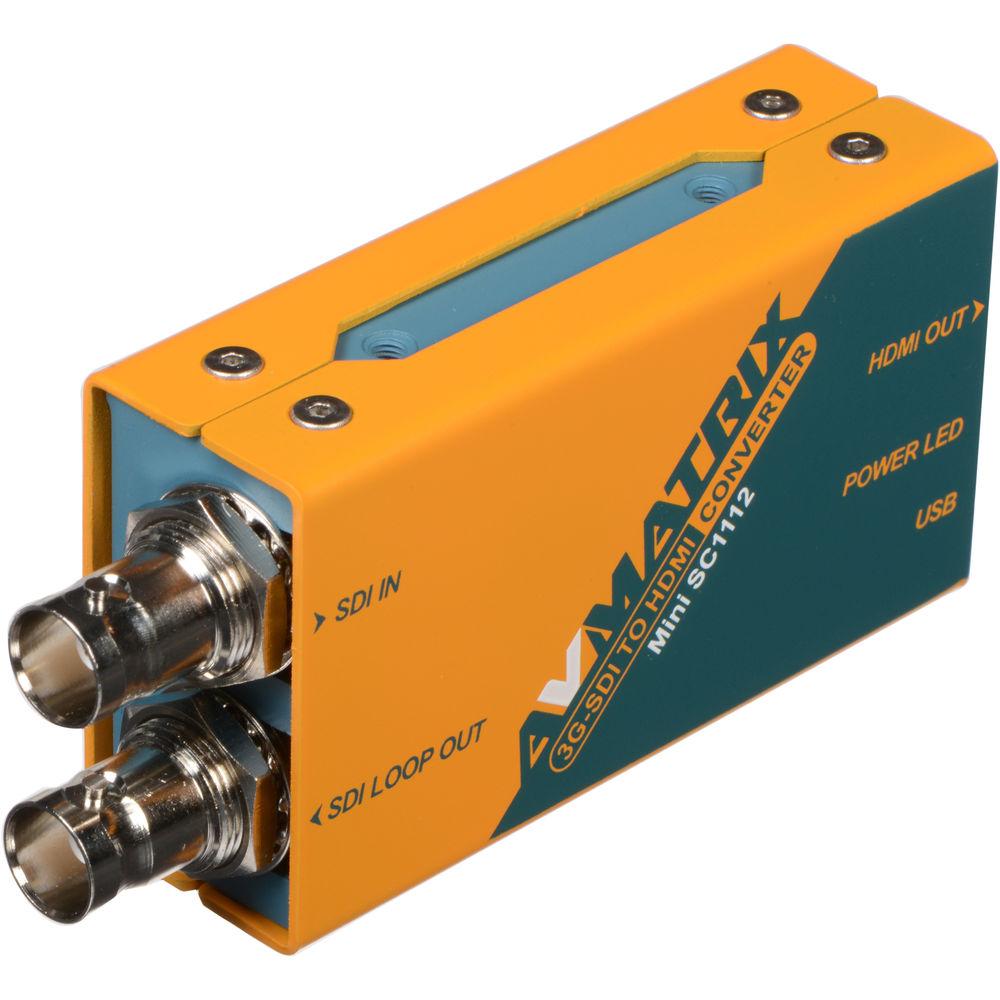

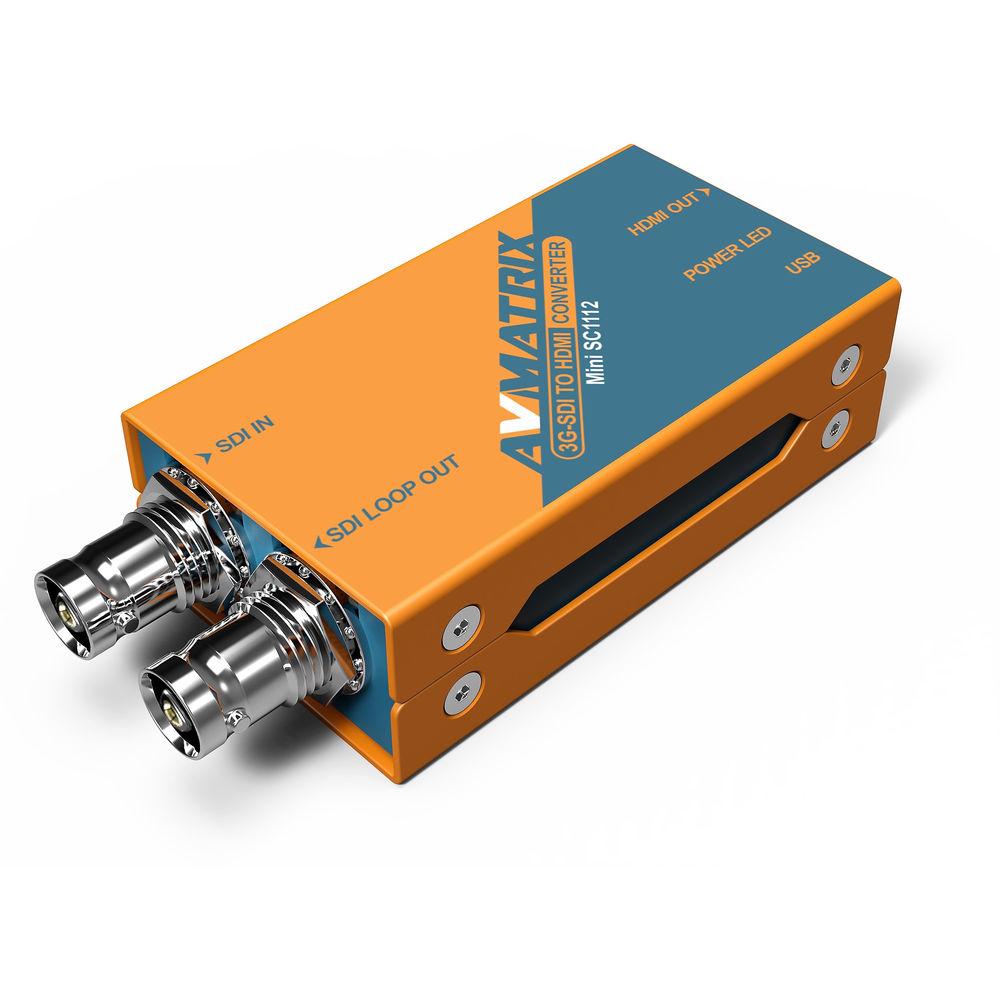

Product description The AVMatrix Mini SC1112 from Lilliput Electronics is an ultra-compact SDI to HDMI signal converter in a robust metal housing.

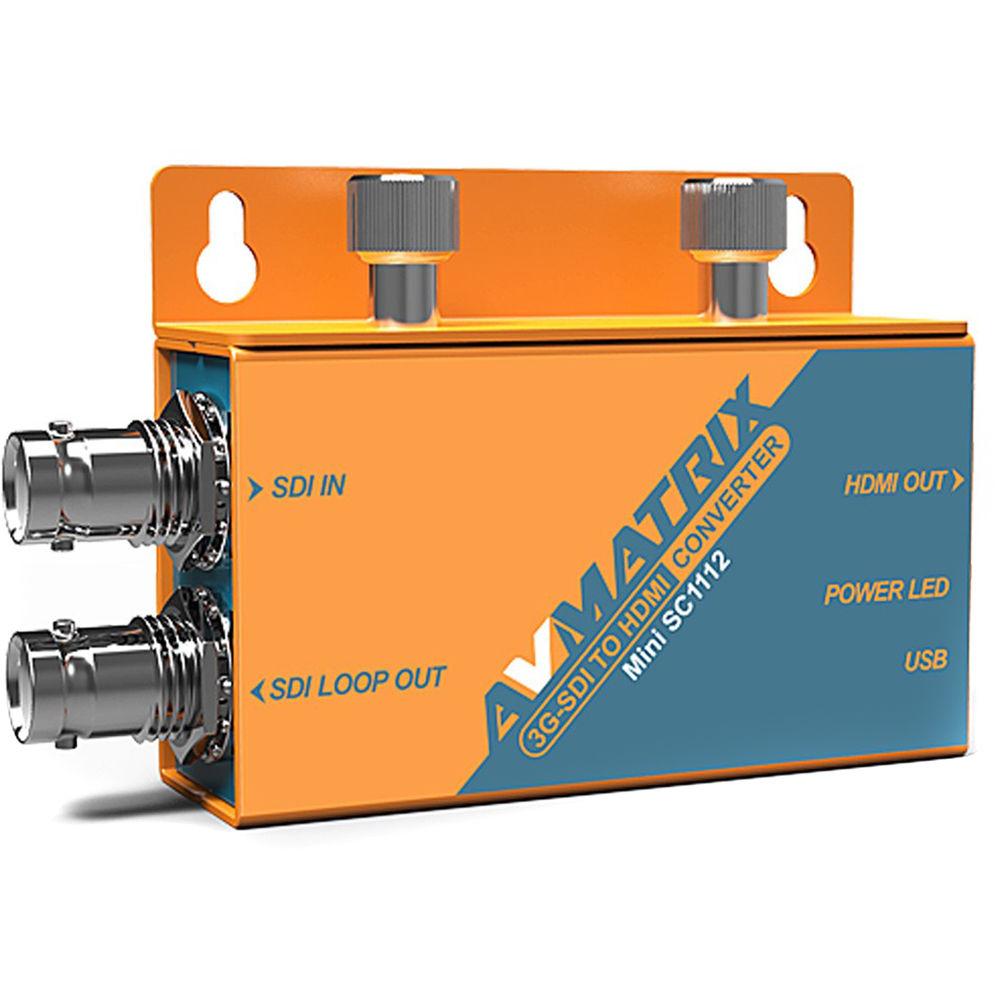

The Mini SC1112 features a 3G-SDI input and full-size HDMI output, and an SDI loop out for monitoring. It supports up to 1080p60 resolution and auto-selects between 3G, HD, and SD on input. EMC compliant, the Mini SC1112 can reliably be used 24 hours a day, 7 days a week without interruptions, lag, or delay. A mounting bracket is also included that easily attaches/detaches and allows for convenient mounting indoors or outdoors.
The Mini SC1112 has a USB port for power and an LED indicator that confirms power status. An AC adapter is supplied that connects into the micro-USB port to provide continuous power, but you can also connect it to other sources over a USB cable (included). For example, you can connect it to a laptop or a power bank. A 10,000mAh power bank will run the converter for approximately 24 hours.
The converter is also capable of working in a wide temperature range of -4 to 140°F. - Key Features
-
- 3G/HD/SD-SDI input (auto-selecting)
- HDMI Type-A output
- 3G/HD/SD-SDI loop out
- Supports up to 1080p60 resolution
- EMC compliant and works 24/7 without lag/delay
- Micro-USB port for power
- LED power indicator
- AC power adapter included
- Mounting bracket included
In the Box AV Matrix Mini SC1112 3G-SDI to HDMI Pocket-Size Broadcast Converter Mounting Bracket Power Adapter Micro-USB Cable Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the AV Matrix Mini SC1112 3G-SDI to HDMI Pocket-Size Broadcast Converter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAV Matrix SC1112 Specs | Input | 1 x 3G/HD/SD-SDI (auto-selecting; level A and B supported) | | Output | 1 x HDMI type-A
1 x 3G/HD/SD-SDI loop out | | SDI Format Support | 1080p at 50/59.94/60 fps
1080psf at 23.98/24/25/29.97/30 fps
1080p at 23.98/24/25/29.97/30 fps
1080i at 50/59.94/60 fps
720p at 24/25/30/50/59.94/60 fps
625i at 50 fps
525i at 59.94 fps | | SDI Compliance | SMPTE 292M/SMPTE 259M/SMPTE 424M | | SDI Color Space | YUV 4:2:2 | | HDMI Format Support | 1080p at 50/59.94/60 fps
1080p at 23.98/24/25/29.97/30 fps
1080i at 50/59.94/60 fps
720p at 24/25/30/59.94/60 fps
576i at 50 fps
480i at 60 fps | | HDMI Color Space | YUV 4:2:2 | | Power Port | 1 x micro-USB | | Power Consumption | 1.5 W | | Voltage Range | 3.3 - 5 V | | Operating Temperature | -4 to 140°F (-20 to 60°C) | | Storage Temperature | -22 to 158°F (-30 to 70°C) | | Relative Humidity | 0 to 90% non-condensing | | Dimensions | 2.9 x 1.6 x 0.9" (7.4 x 4.1 x 2.3 cm) | | | | Package Weight | 0.9 lb | | Box Dimensions (LxWxH) | 4.6 x 3.3 x 3.1" |
