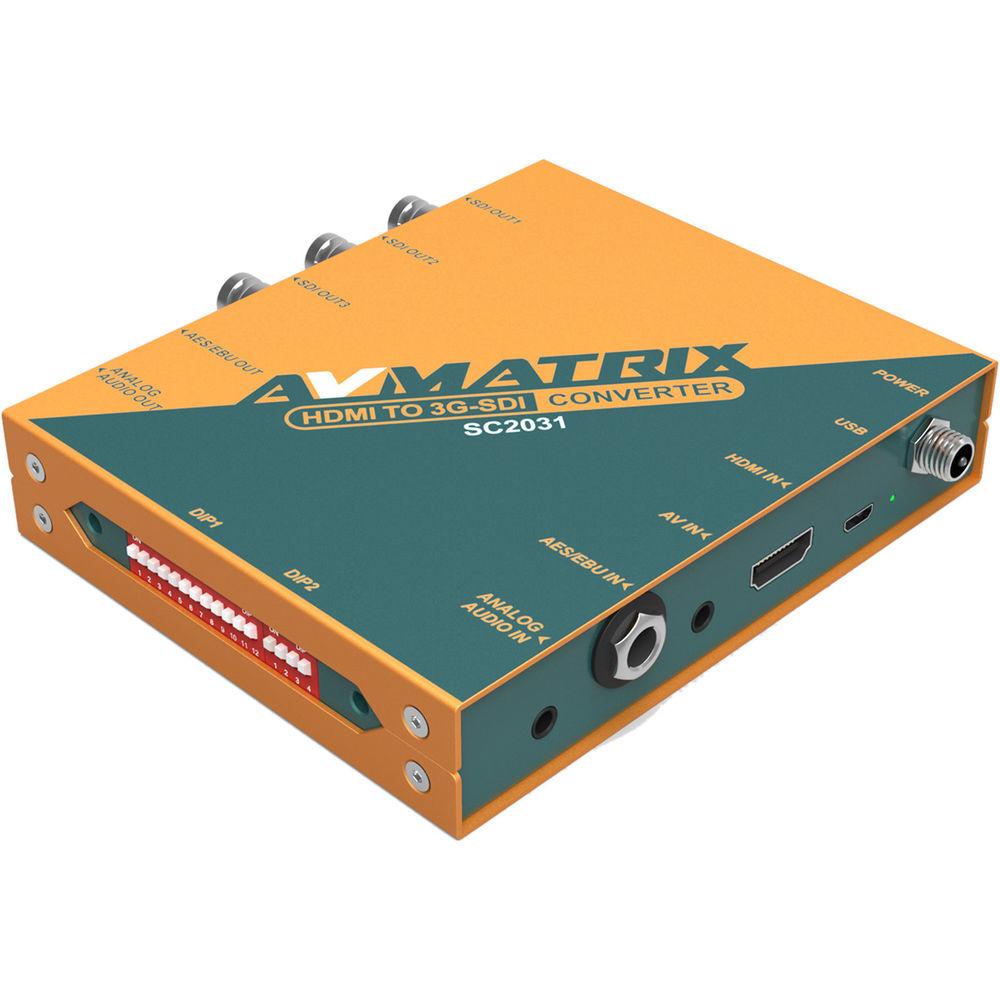

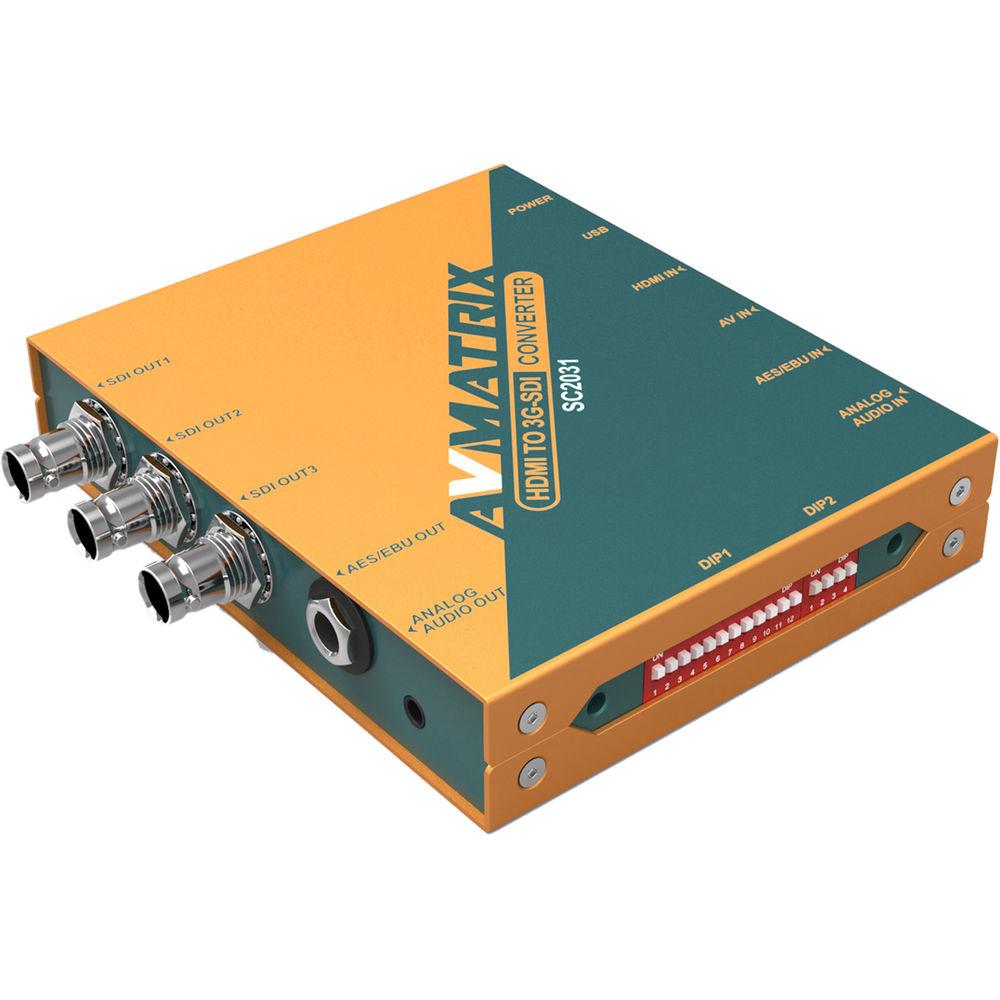

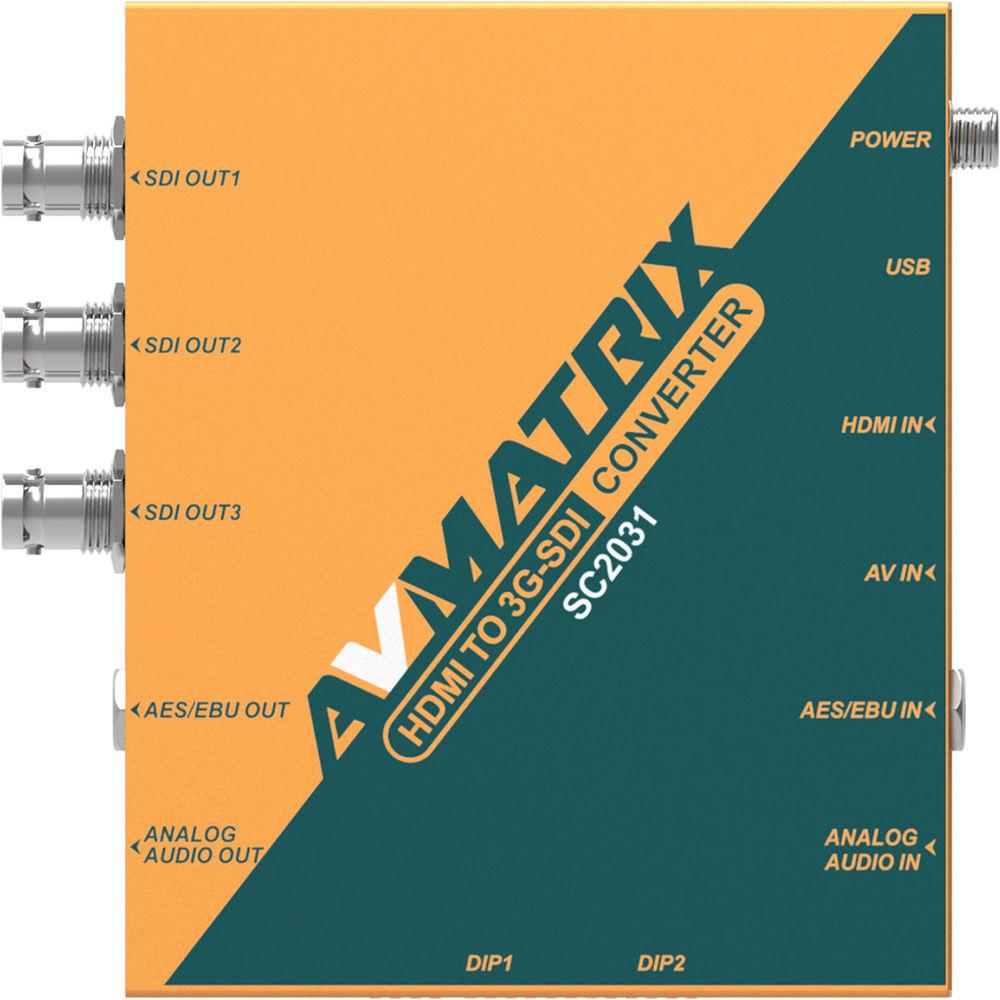

Product description The AV Matrix SC2031 HDMI/AV to 3G-SDI Scaling Converter is suitable for broadcasting and AV post production applications. It converts HDMI or AV signals to triple parallel SDI outputs for three different connecting devices at the same time. The output can realize pass-through or up/down scaling, frame rate conversion, and de-interlacing function. The converter supports a long distance and stable transmission without loss of signal quality. It also features AES/EBU or analog audio embedding and de-embedding. All the functions can be easily set by built-in DIP switches or remotely controlled using software when connected to a PC via USB. - HDMI, AV, AES/EBU, and analog audio inputs
- Three 3G-SDI, one AES/EBU, and one analog audio output
- Up/down scaling and frame rate conversion
- AES/EBU or analog audio embedding and de-embedding
- Input signal automatic detection and configuration
- LED indicators for power and signal lock
- Easy control via DIP switches
- Remotely control from PC via USB
- Software can be upgraded via PC
- Threaded locking power connector

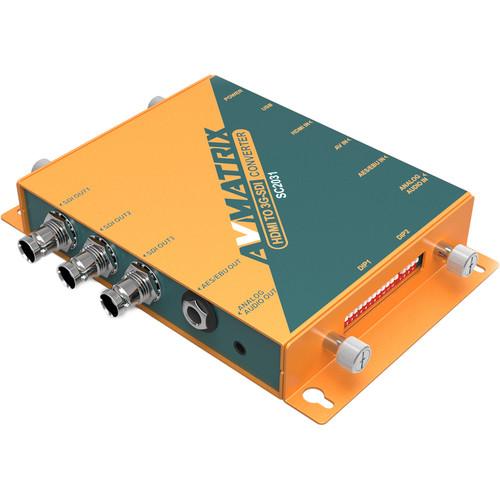

- Detachable bracket design for wall mounting

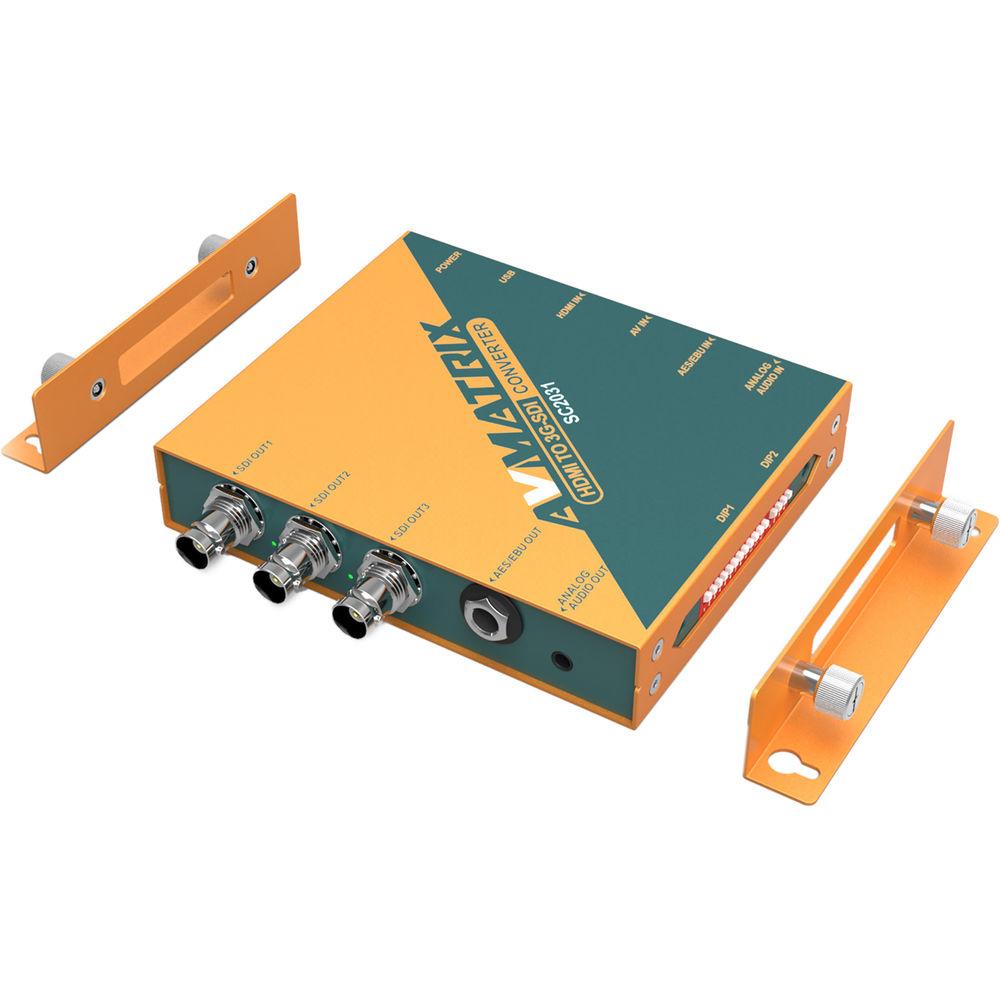

In the Box AV Matrix SC2031 HDMI/AV to 3G-SDI Scaling Converter 2 x Brackets Power Adapter Micro-USB Cable Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the AV Matrix SC2031 HDMI AV to 3G-SDI Scaling Converter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAV Matrix SC2031 Specs | Inputs | HDMI Video Input:
1 x HDMI type-A
AV Input:
1 x 1/8" (3.5 mm) jack
AES/EBU Digital Audio Input:
1 x 1/4" (6.35 mm) TRS jack
Analog Audio Input:
1 x 1/8" (3.5 mm) jack | | Outputs | SDI Video Output:
1 x SD/HD/3G-SDI, 1 x Alt 3G-SDI
AES/EBU Digital Audio Output:
1 x 1/4" (6.35 mm) TRS jack
Analog Audio Output: 1 x 1/8" (3.5 mm) jack | | HDMI Format Support | 1080p 60/59.94/50/30/29.97/25/24/23.98/23.973
1080i 60/59.94/50
720p 60/59.94/50/30/29.97/25/24/23.98
576p 50, 576i 50
480p 59.94, 480i 60/59.94 | | HDMI Color Space | YUV 4:2:2, YUV 4:4:4, RGB 4:4:4 | | CVBS Input | NTSC, PAL | | SDI Format Support | 1080p 60/50/30/25/24
1080i 60/50
720p 60/50/30/25/24
625i 50, 525i 60 | | SDI Video Rates | SD/HD/3G-SDI | | SDI Compliance | SMPTE 292M/SMPTE 259M/SMPTE 424M | | SDI Color Space | YUV 4:2:2 | | Power Connector | Threaded locking connector | | Power Supply | 12 VDC | | Power Consumption | 5 W | | Operating Temperature | -4 to 140°F (-20 to 60°C) | | Storage Temperature | -22 to 158°F (-30 to 70°C) | | Relative Humidity | 0 to 90% non-condensing | | Dimensions | 4.9 x 4.1 x 1.0" (125.5 x 104 x 24.5 mm) | | | | Package Weight | 2.85 lb | | Box Dimensions (LxWxH) | 6.7 x 6.7 x 3.5" |
