AV Toolbox AP-411 Lip Sync Corrector AV Toolbox AP-411 Lip Sync Corrector
User manual for the AV Toolbox AP-411 Lip Sync Corrector contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any AV Toolbox product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official AV Toolbox user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a AV Toolbox product will considerably shorten its lifespan!



Product description

The AP-411 Lip Sync Corrector from AV Toolbox is a compact tool that allows you to correct audio/video timing mismatches that create a loss of sync in program content. Typically, a loss of sync is cause by video arriving after audio, so the AP-411 provides up to 300 milliseconds of delay for the audio component to restore audio/video sync.

The device has stereo RCA input and output connectors, which can accept and output up to 2Vrms audio levels. It supports a 48kHz sample rate, and requires only 5VDC of power to operate. An AC adapter is provided.
  • Compact and lightweight design
  • Allows you to delay an audio signal by up to 300ms to restore audio/video sync to program content

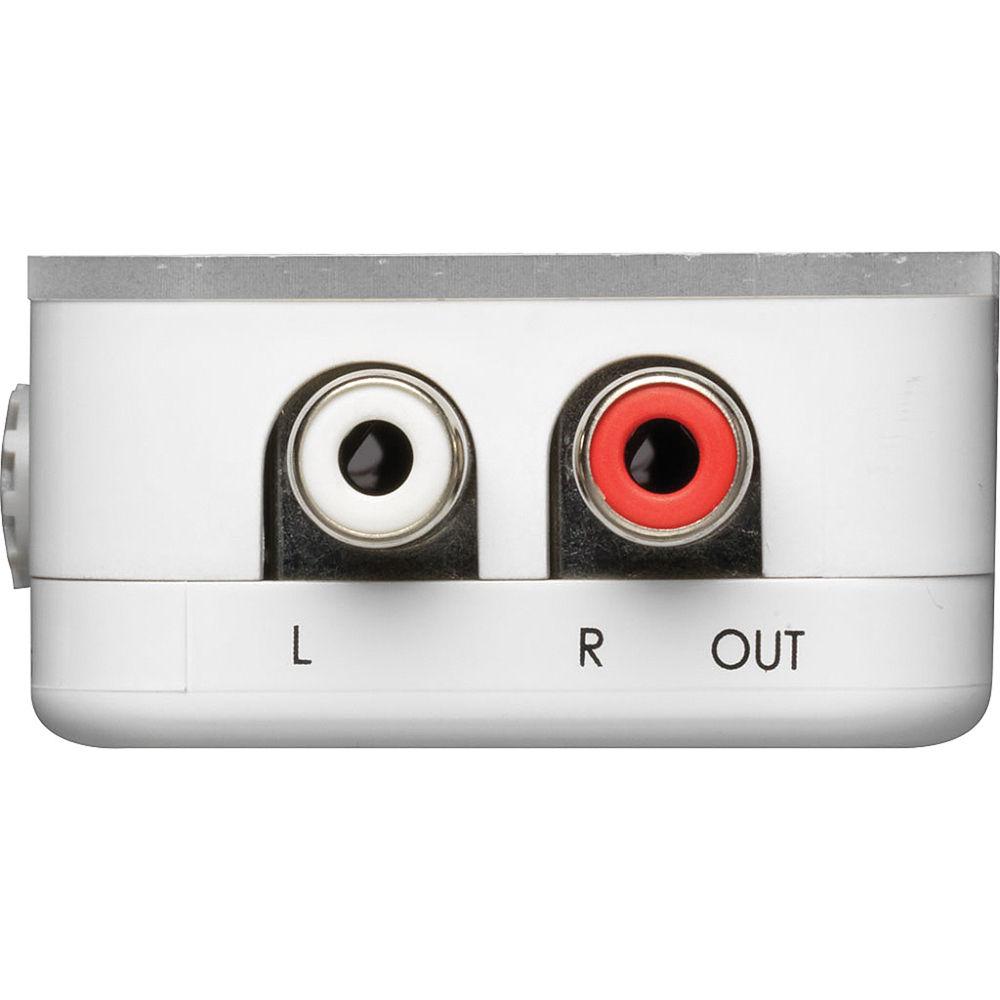

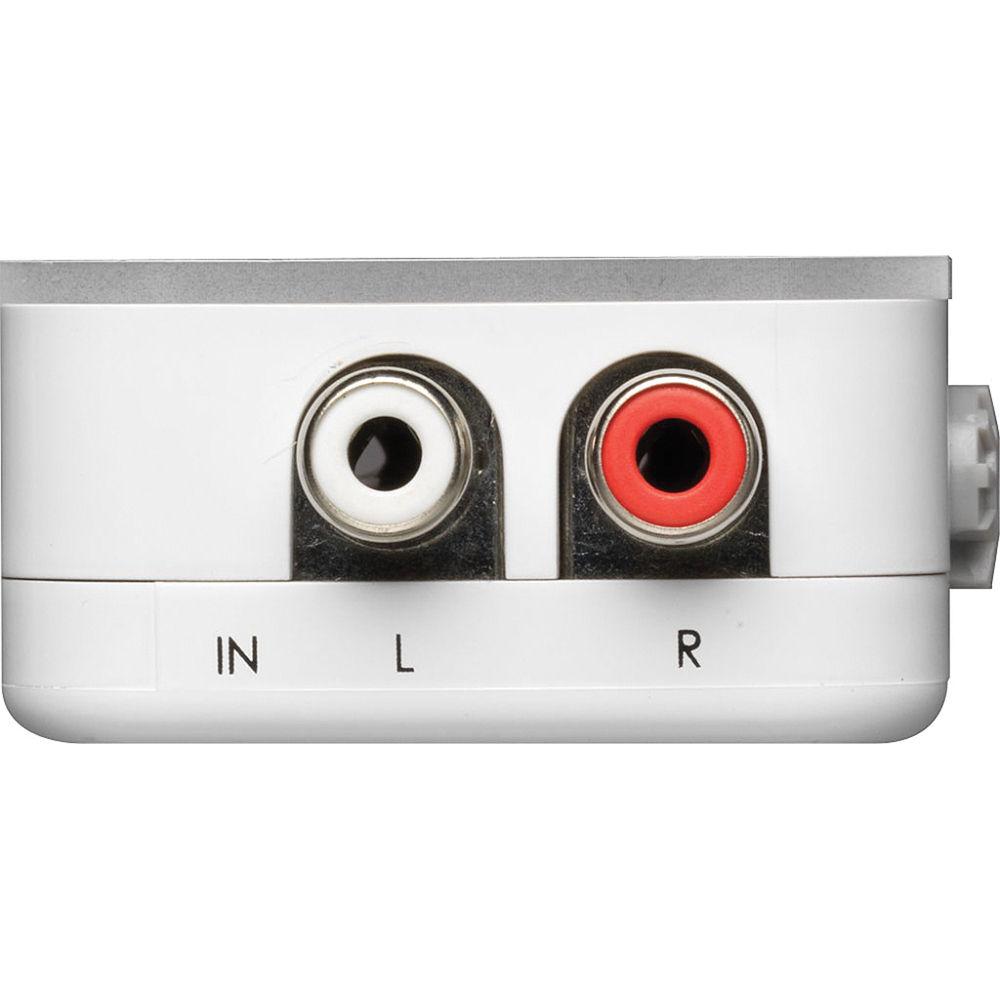

  • Stereo RCA input and output connectors for wide compatibility
  • Accepts and outputs audio levels up to 2Vrms, and supports 48kHz sample rates
  • Requires only 5VDC of power to operate, and an AC adapter is included
In the Box AV Toolbox AP-411 Lip Sync Corrector
  • AC Power Adapter
  • RCA Stereo Audio Cable (3' / 0.9m)
  • 1-Year Limited Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the AV Toolbox AP-411 Lip Sync Corrector in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    AV Toolbox AP-411 Specs

    Audio Inputs 1 x L/R stereo RCA jack
    Audio Outputs 1 x L/R stereo RCA jack
    Delay Up to 300 ms (selectable)
    S/N Ratio > 80 dB
    Crosstalk < -70 dB
    THD + N < 0.01%
    Audio Input Level 2 Vrms maximum (L/R)
    Audio Output Level 2 Vrms maximum (L/R)
    Audio Sampling Rate 48 kHz
    Audio Bandwidth 20 Hz - 20 kHz
    Operating Temperature 32 to 104°F (0 to 40°C)
    Operating Humidity 10 - 90% (non-condensing)
    Storage Temperature -4 to 140°F (-20 to 60°C)
    Storage Humidity 10 - 90% (non-condensing)
    Power Requirements 5 VDC at 1 A (0.5 W consumption)
    Power Connector 1 x Power input jack
    Regulations Audio Leveler: FCC, CE, RoHS
    Power Adapter: UL, CUL, CE, PSE, GS, RoHS
    Dimensions (WxHxD) 1.65 x 0.87 x 1.6" (42 x 22 x 41 mm)
    Weight 1.13 oz (32 g)
    Package Weight 0.45 lb
    Box Dimensions (LxWxH) 5.9 x 4.8 x 2.3"
