User Manual for AV Toolbox AVT-8710 Multi-Standard Time Base Corrector Click to enlarge the picture
Contents of the user manual for the AV Toolbox AVT-8710 Multi-Standard Time Base
- Product category: Video & Audio Processing AV Toolbox
- Brand: AV Toolbox
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for AV Toolbox Video & Audio Processing
 |
User manual for the AV Toolbox AVT-8710 Multi-Standard Time Base contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any AV Toolbox product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official AV Toolbox user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a AV Toolbox product will considerably shorten its lifespan!
|

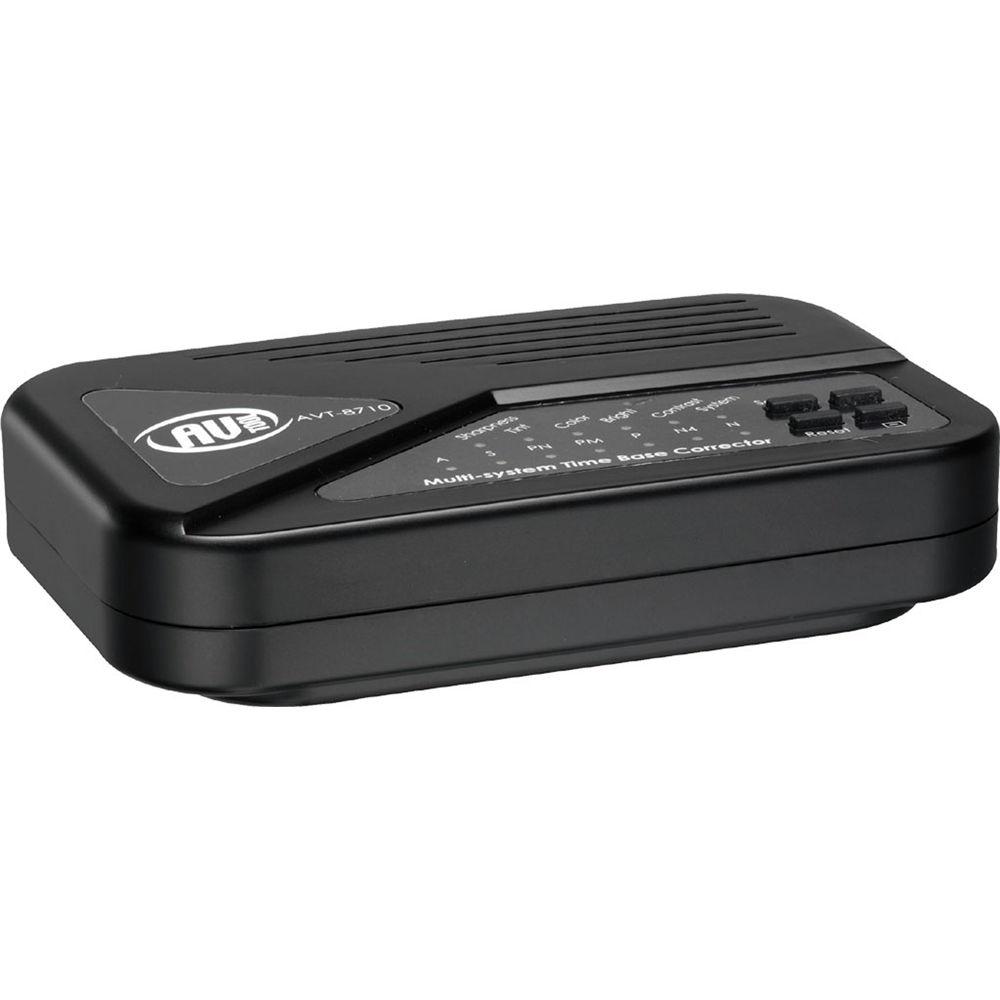

Product description The AVT-8710 is a multi-system time base corrector/frame synchronizer that accommodates most NTSC, PAL and SECAM video signal standards. It eliminates picture jitter and time base errors from videotape playback and ensures a stable on-screen image through the use of dual-field full-frame reconstruction. It restores distorted or misshapen vertical and horizontal sync and color burst signals.
An integral processing amplifier allows the adjustment of Brightness, Contrast, Color Saturation, Hue and Sharpness. A digital comb filter provides superior video signal decoding and the AGC (Automatic Gain Control) ensures a proper 1V output signal from an input signal range of 0.5 to 2.0 volts. A built-in color bar generator sends out a test pattern when there is no video input. The unit has composite video and S-Video in and out and comes with an external 15VDC power adapter. - Multi-Standard
- This unit will process NTSC, PAL and SECAM video signals for time base correction.
- AGC
- An Automatic Gain Control is offered to keep a 1 Vpp output signal consistent.
- Digital Comb Filter
- A digital comb filter provides superior signal decoding.
- TBC
- Eliminates picture jitter and time base errors from video tape playback.
- Color Bar Generator
- A built-in color bar generator sends out a test pattern when there is no video input.
In the Box AV Toolbox AVT-8710 Multi-Standard Time Base Corrector AC Power Adapter 1 Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the AV Toolbox AVT-8710 Multi-Standard Time Base Corrector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

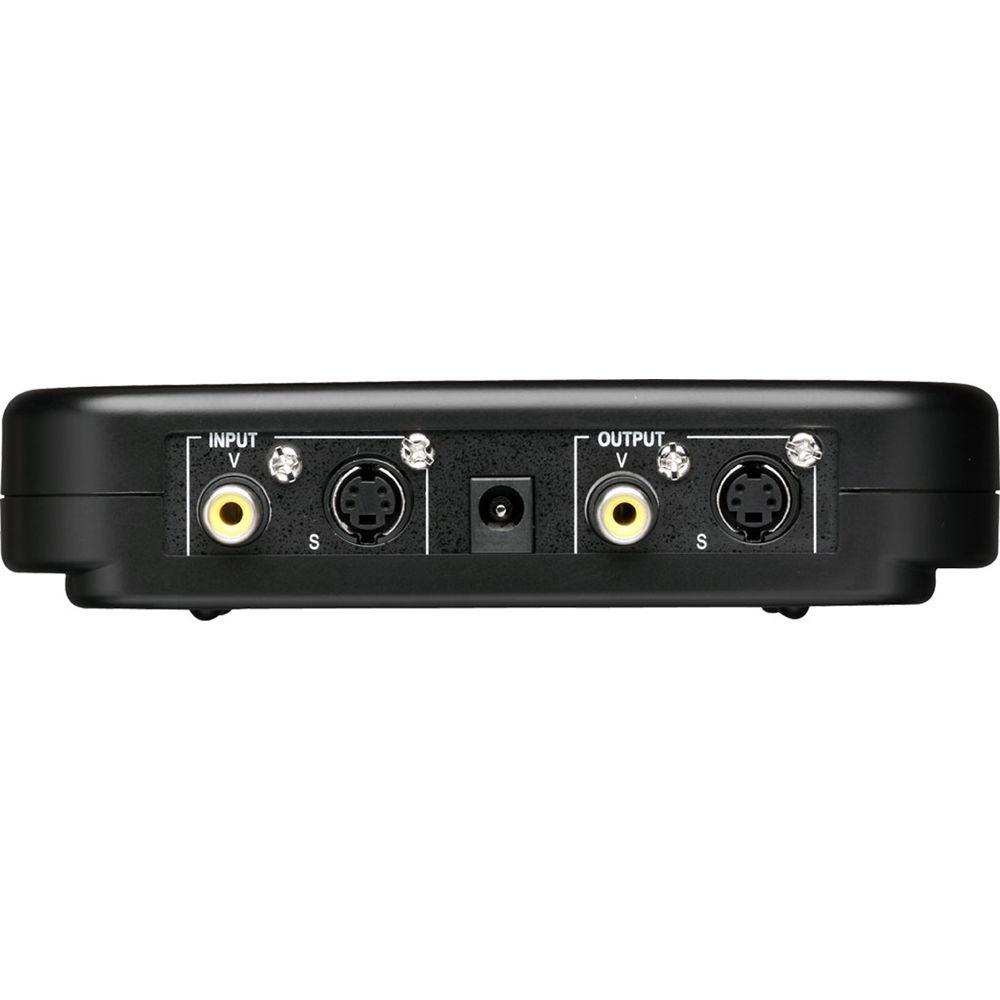

Technical parametersAV Toolbox AVT-8710 Specs | Video Standards | NTSC, NTSC 4.43, PAL (B, D, G, I, K), PAL-M, PAL-N, SECAM | | Input/Output | Composite Video: RCA (x1 Input, x1 Output)
Y/C S-Video: 4-Pin Connector (x1 Input, x1 Output) | | Control | Brightness
Contrast
Color
Tint (NTSC)
Sharpness
Television Standard | | AC Adapter | Included AC Adapter: 115 VAC to 15 VDC | | Dimensions (WxDxH) | 3.5 x 5.7 x 1.3" (9 x 14.5 x 3.3 cm) | | Weight | 7 oz (200g) | | | | Package Weight | 1.0 lb | | Box Dimensions (LxWxH) | 10.158 x 7.874 x 2.362" |
