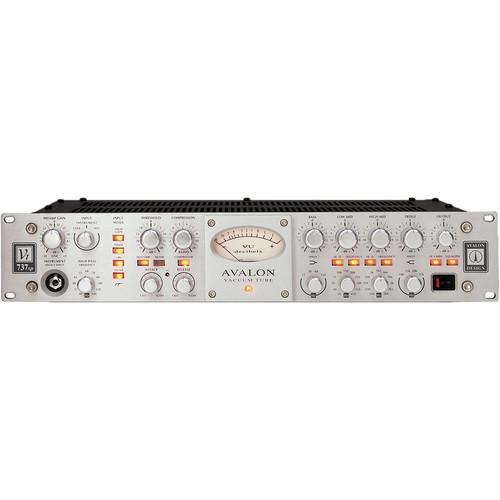

User Manual for Avalon Design VT-737SP - Channel Strip Click to enlarge the picture
Contents of the user manual for the Avalon Design VT-737SP - Channel Strip
- Product category: Channel Strips Avalon Design
- Brand: Avalon Design
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Avalon Design Channel Strips
|
User manual for the Avalon Design VT-737SP - Channel Strip contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Avalon Design product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Avalon Design user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Avalon Design product will considerably shorten its lifespan!
|
Product description The VT-737SP from Avalon is a single-channel, vacuum tube Class-A processor that combines a tube microphone preamp, instrument DI, opto-compressor, and a 4-band parametric EQ. The high-performance channel strip provides incredible warmth, depth, and character to digital recordings, and is a perfect front-end for digital audio workstations and broadcast studios. - Vacuum tube triode signal path
- High-performance microphone input transformer with +48V phantom power selection
- Instrument DI high source input with front panel connector
- High-gain switch boosts the overall gain of the preamplifier
- Full dynamic control from soft compression to hard- knee limiting can be achieved with threshold, ratio-compression, attack and release controls
- Special spectral control including de-ess is available with the dual sweep mid EQ to side-chain switch
- All discrete Class-A equalizer switchable between Pre/Post compressor
- High- and low-frequency bands provide the smooth characteristics of an all passive design
- Dual mid-bands include variable frequency and switched Q-width selection
- Range of the mid-bands is extended into the high- and low-bands by the use of x10 frequency multipliers
- Output level control provides a variable control of the overall signal path
- Large VU meter for output level and compressor gain reduction monitoring
In the Box Avalon Design VT-737SP - Channel Strip AC Power Cable One (1) Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Avalon Design VT-737SP - Channel Strip in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAvalon Design VT-737SP Specs | Number of Channels | Single | | Inputs | 1 x XLR Microphone (rear)
1 x XLR Balanced Line (rear)
1 x 1/4" TS Phone Instrument (front) | | Outputs | 1 x XLR | | Frequency Response | 10Hz to 200kHz, -3dB line in to line out | | Noise | EIN: -116dB, 22Hz to 22kHz unweighted | | | | Gain Range | Mic Pre: 0db to 58db
Instrument: 0dB to 30 dB
Line: -27dB to 28 dB | | Maximum Output | +30dB | | Input Impedance | Not specified by manufacturer | | Phantom Power | +48V | | | | Threshold Range | -30dB to +20dB | | Ratio | 1:1 to 20:1 | | Attack Time | 2mSec to 200mSec | | Release Time | 100mSec to 5Sec | | Slope | Not specified by manufacturer | | Sidechain | Internal with EQ | | | | Filter Type | Discrete Class A, variable active and switched passive design | | Frequency Bands | Treble: Switched, 10kHz, 15kHz, 20kHz, 32kHz
High-Mid: Variable 200Hz to 2.8kHz or 2kHz to 28kHz (10x switch)
Low-Mid: Variable 30Hz to 450Hz or 300Hz to 4k5Hz (10x switch)
Bass: Switched, 15Hz, 30Hz, 60Hz, 150Hz | | Bandwidth | Treble: Shelf
High-Mid: Hi-Lo Q
Low-Mid: Hi-Lo Q
Bass: Shelf | | Range (Boost/Cut) | Treble: +/- 20dB
High-Mid: +/- 16dB
Low-Mid: +/- 16dB
Bass: +/- 24dB range | | Light Indication | | | Threshold Range | Not applicable | | Ratio | Not applicable | | Attack Time | Not applicable | | | | Threshold Range | Not applicable | | Frequency Range | Not applicable | | | | Gate Threshold | Not applicable | | Gate Rate | Not applicable | | | | Dimensions (WxDxH) | 19" x 12" x 3 1/2" | | Weight | 22 lbs | | Specialties | Sealed silver relays for signal routing | | | | Package Weight | 28.0 lb | | Box Dimensions (LxWxH) | 23.0 x 18.5 x 8.3" |
