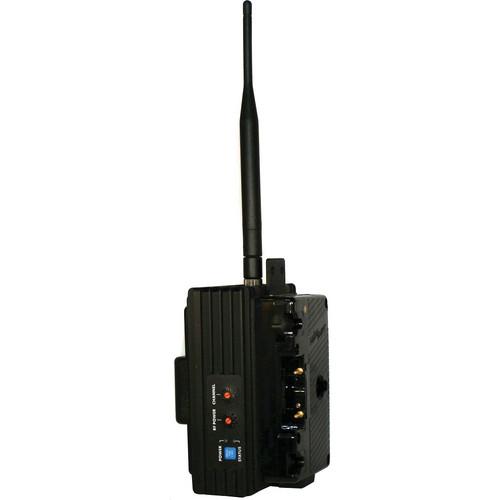

Product description The AValon RF OTX527-AB COFDM Digital Video Transmitter (AB Battery Mount) is a 16-channel video transmitter based on COFDM (Coded Orthogonal Frequency Division Multiplexing) digital video transmission. The OTX527-AB operates within a standard frequency range of 1.6 to 1.9 GHz or any 300MHz range in the L band.
You are provided with 1 video, 2 stereo audio, and data channels with a transmission rate of 19.2Kbps. It comes with a PC GUI that allows you to modify the allocations and parameters for the 16 preset channels. At the core of video transmission is the robust QPSK (Quadrature Phase Shift Keying) modulation technique. Also included is an AB battery mount.
Providing a high output power of 0.6 W, the OTX527-AB draws a low power of 6.5W DC. You can use the lightweight (1 lb / 0.45kg) and compact (4 x 5.25 x 1.5” / 100 x 130 x 40 mm) OTX527-AB for applications limited by heat and size, such as ENG, news gathering, video assist, UAV / UGV / USV video links, first responders, special forces, covert wireless video link, robots, and body worn transmitters. - 16-channel video transmitter based on COFDM (Coded Orthogonal Frequency Division Multiplexing) digital video transmission
- Operates within a standard frequency range of 1.6 to 1.9 GHz or any 300MHz range in the L band
- Includes 1 video, 2 stereo audio, and data channels with transmission rate of 19.2Kbps
- Allows you to modify the allocations and parameters for the 16 preset channels via a PC GUI
- Based on the robust QPSK (Quadrature Phase Shift Keying) modulation technique
- Provides a high output power of 0.6W
- Draws low power (6.5W DC)
- Includes AB Battery Mount
- Integrates a lightweight (1 lb / 0.45kg) and compact (4 x 5.25 x 1.5" / 100 x 130 x 40 mm) design
- Suitable for applications limited by heat and size, such as ENG, news gathering, video assist, UAV / UGV / USV video links, first responders, special forces, covert wireless video link, robots, and body worn transmitters
In the Box Avalon RF OTX527-AB COFDM Digital Video Transmitter (AB Battery Mount) 1 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Avalon RF OTX527-AB COFDM Digital Video Transmitter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAvalon RF OTX527-AB Specs | Frequency | 16 Preset Frequencies | | Bandwidth | Selectable at 2, 3, 4 MHz (Add Suffix N) or 5, 6, 7 or 8 MHz | | Frequency Range | 1.6 to 1.9 GHz or any 300MHz range in the L band | | Connectors | SMA (f) for RF output; LEMO size 0B for Power, Audio, & Data | | Power | Unregulated 9-20V DC, Nominal 12V @ 600mA (Max Power) | | Weight | 1 lb (0.45kg) | | Dimensions (WxHxD) | 4 x 5.25 x 1.5" (100 x 130 x 40 mm) |
