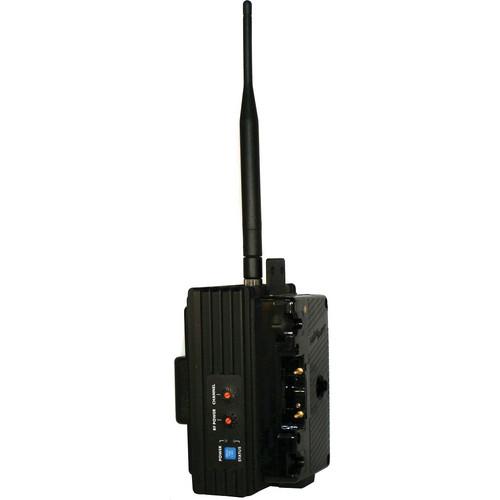

User Manual for Avalon RF OTX527 COFDM Digital Video Transmitter Click to enlarge the picture
Contents of the user manual for the Avalon RF OTX527 COFDM Digital Video
- Product category: Wireless Transmission Systems Avalon RF
- Brand: Avalon RF
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Avalon RF Wireless Transmission Systems
|
User manual for the Avalon RF OTX527 COFDM Digital Video contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Avalon RF product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Avalon RF user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Avalon RF product will considerably shorten its lifespan!
|
Product description The AValon RF OTX527 COFDM Digital Video Transmitter is a 16-channel video transmitter based on COFDM (Coded Orthogonal Frequency Division Multiplexing) digital video transmission. The OTX527 operates within a standard frequency range of 1.6 to 1.9 GHz or any 300MHz range in the L band.
You are provided with 1 video, 2 stereo audio, and data channels with a transmission rate of 19.2Kbps. It comes with a PC GUI that allows you to modify the allocations and parameters for the 16 preset channels. At the core of video transmission is the robust QPSK (Quadrature Phase Shift Keying) modulation technique.
Providing a high output power of 0.6 W, the OTX527 draws a low power of 6.5W DC. You can use the lightweight (1 lb / 0.45kg) and compact (4 x 5.25 x 1.5” / 100 x 130 x 40 mm) OTX527 for applications limited by heat and size, such as ENG, news gathering, video assist, UAV / UGV / USV video links, first responders, special forces, covert wireless video link, robots, and body worn transmitters. - 16-channel video transmitter based on COFDM (Coded Orthogonal Frequency Division Multiplexing) digital video transmission
- Operates within a standard frequency range of 1.6 to 1.9 GHz or any 300MHz range in the L band
- Includes 1 video, 2 stereo audio, and data channels with transmission rate of 19.2Kbps
- Allows you to modify the allocations and parameters for the 16 preset channels via a PC GUI
- Based on the robust QPSK (Quadrature Phase Shift Keying) modulation technique
- Provides a high output power of 0.6W
- Draws low power (6.5W DC)
- Integrates a lightweight (1 lb / 0.45kg) and compact (4 x 5.25 x 1.5" / 100 x 130 x 40 mm) design
- Suitable for applications limited by heat and size, such as ENG, news gathering, video assist, UAV / UGV / USV video links, first responders, special forces, covert wireless video link, robots, and body worn transmitters
In the Box Avalon RF OTX527 COFDM Digital Video Transmitter 1 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Avalon RF OTX527 COFDM Digital Video Transmitter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAvalon RF OTX527 Specs | Frequency | 16 Preset Frequencies | | Bandwidth | Selectable at 2, 3, 4 MHz (Add Suffix N) or 5, 6, 7 or 8 MHz | | Frequency Range | 1.6 to 1.9 GHz or any 300MHz range in the L band | | Connectors | SMA (f) for RF output; LEMO size 0B for Power, Audio, & Data | | Power | Unregulated 9-20V DC, Nominal 12V @ 600mA (Max Power) | | Weight | 1 lb (0.45kg) | | Dimensions (WxHxD) | 4 x 5.25 x 1.5" (100 x 130 x 40 mm) |
