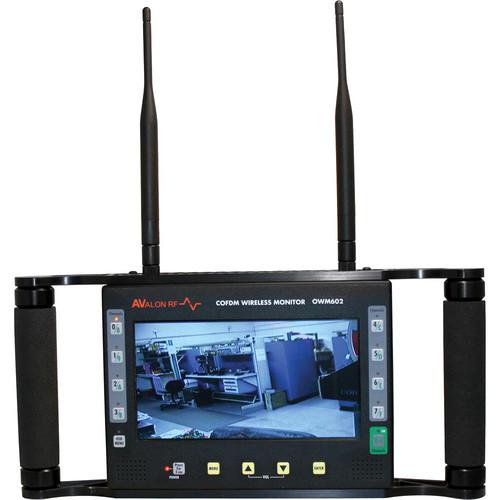

Product description The Avalon OWM602 COFDM Wireless Video Monitor is a digital wireless video monitor with a 7” widescreen LCD display, and is ideally suited for high mobility wireless video applications. It operates in the S band with a frequency range of 2.1 - 2.5 GHz or 2.3 - 2.7 GHz. Integrated into the wireless video monitor are 16 channels with a quick select option. You can select from dual aspect ratios of 16:9 and 4:3 for the display.
You are also provided with a built-in COFDM (Coded Orthogonal Frequency Division Multiplexing) diversity receiver integrating an audio amplifier with volume control. Display adjustments such as brightness, hue, saturation, contrast, and video source selection are enabled via an OSD menu.
With a lightweight (3.2 lb / 1.5kg) and compact (7.8 x 6 x 1.8” / 200 x 160 x 46 mm) design, the wireless video monitor can be used for wireless video applications such as UAV/UGV/AUV receiver, robust covert video systems, high performance video assist applications, and ENG confidence monitoring. You can also achieve sensitivity higher than -92dBm with the OWM602. - Digital wireless video monitor with a 7" widescreen LCD display
- Operates in the S band with a frequency range of 2.1 - 2.5 GHz or 2.3 - 2.7 GHz
- Includes 16 channels with a quick select option
- Allows you to select from dual aspect ratios of 16:9 and 4:3
- Includes a built-in COFDM (Coded Orthogonal Frequency Division Multiplexing) diversity receiver integrating an audio amplifier with volume control
- Enables display adjustments such as brightness, hue, saturation, contrast and video source selection via an OSD menu
- Integrates a lightweight (3.2 lb / 1.5kg) and compact (7.8 x 6 x 1.8" / 200 x 160 x 46 mm) design
- Suitable for wireless video applications such as UAV/UGV/AUV receiver, robust covert video systems, high performance video assist applications, and ENG confidence monitoring
- Offer sensitivity higher than -92dBm
In the Box Avalon RF OWM602 COFDM Wireless Video Monitor Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Avalon RF OWM602 COFDM Wireless Video Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAvalon RF OWM602 Specs | Channels | 16 Channels with Quick Select | | Bandwidth | Selectable at 2, 3, 4 MHz (Add Suffix N) or 5, 6, 7 or 8 MHz | | Frequency Range | S band with a frequency range of 2.1 - 2.5 GHz or 2.3 - 2.7 GHz | | Input/Output Connectors | Composite Video and audio output; external composite video input | | Power | Sony V-mount or unregulated 9-24V DC via external DC input | | Weight | 3.2 lb (1.5kg) | | Dimensions (WxHxD) | 7.8 x 6 x 1.8" (200 x 160 x 46 mm) | | Sensitivity | Better than -92 dBm | | Compliance | DVB-T standards |
