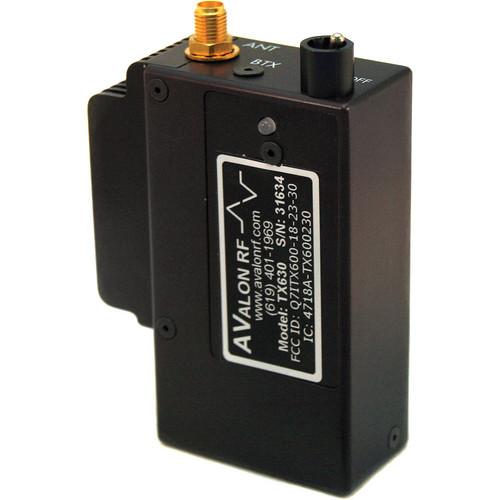

User Manual for Avalon RF RF TX630 Long Range Wireless Video Link Click to enlarge the picture
Contents of the user manual for the Avalon RF RF TX630 Long Range
- Product category: Wireless Transmission Systems Avalon RF
- Brand: Avalon RF
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Avalon RF Wireless Transmission Systems
|
User manual for the Avalon RF RF TX630 Long Range contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Avalon RF product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Avalon RF user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Avalon RF product will considerably shorten its lifespan!
|
Product description The RF TX630 Long Range Wireless Video Linktransfers broadcast-quality FM modulated video up to a distance of 1 mile in an open space and 1500’ (457.20 m) in an urban area without latency, and offers 1 video channel with 2 audio sub-carriers. Equipped with 16 factory preset channels, the TX630 link operates at a frequency between 2.15GHz to 2.5GHz. The RF output power can be remotely adjusted from 1mW to 950mW.
Built with a simple design, the transmitter is lightweight 0.33lb (150g) and comes with a manual on/off switch. The TX630 transmitter is ideal for use as a UAV/UGV and covert wireless video link and can also be used with Lapel and Helmet Cameras to transfer video and audio signals. Optional features include a TR423-1 half duplex serial communication channel, audio talk back, alarm, and telemetry channel - Transfers FM modulated video up to a distance of 1 mile in open space and 1500' (457.20 m) in urban area without latency
- Offers one video channel with two audio sub-carriers
- Equipped with 16 factory preset channels
- Works at a frequency between 2.15GHz to 2.5GHz
- RF output power can be remotely adjusted from 1mW to 950mW
- Built with a simple design
- Lightweight 0.33lb (150g) and comes with a manual on/off switch
- Ideal for use as a UAV/UGV and covert wireless video link and can also be used with Lapel and Helmet Cameras to transfer video and audio signals
- Power: unregulated 12V@680mA
- Optional features include a TR423-1 half duplex serial communication channel, audio talk back, alarm, and telemetry channel
In the Box Avalon RF RF TX630 Long Range Wireless Video Link Omni directional whip antenna 3-foot power cord with flying leads, to be connected by the customer User guide and operating manual A heavy-duty reusable carton 1 year warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Avalon RF RF TX630 Long Range Wireless Video Link in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAvalon RF TX630 Specs | Range | 1 mile in open space
1500' (457.20 m) in urban area | | Operating Frequency | 2.15GHz to 2.5GHz | | RF Output Power | 1mW to 950mW (adjustable) | | Weight | 0.33lb (150g) | | Power | 12V@680mA |
