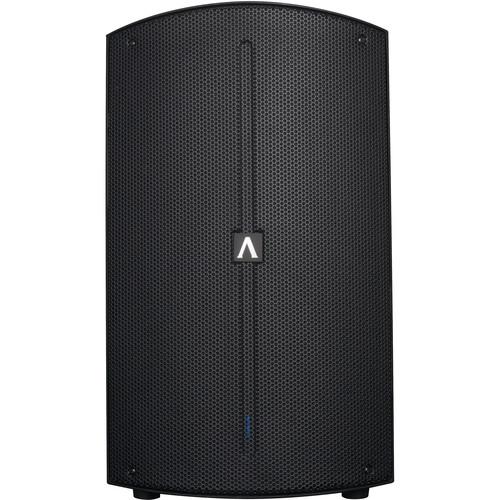

User Manual for Avante Audio A12 Achromic Series 12" 2-Way Active Loudspeaker Click to enlarge the picture
Contents of the user manual for the Avante Audio A12 Achromic Series 12"
- Product category: PA Speakers Avante Audio
- Brand: Avante Audio
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Avante Audio PA Speakers
|
User manual for the Avante Audio A12 Achromic Series 12" contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Avante Audio product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Avante Audio user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Avante Audio product will considerably shorten its lifespan!
|
Product description The Avante Audio A12 Achromic Series is a 12", two-way active loudspeaker with a 1200W peak dynamic amplifier and an integrated DSP for a variety of applications including clubs, bars, mobile DJs, public address engagements, schools, houses of worship, fitness centers, and more. The Class-D amplifier delivers 350W (RMS) to the woofer, while the Class-AB amplifier drives 50W (RMS) to the high-frequency compression driver, which combine to provide a frequency range of 60 Hz to 20 kHz with a peak SPL of 123 dB.
The integrated DSP offers four modes: Normal, Club, Live, and Speech, allowing you to custom tailor the speaker to your specific application. Additionally, there is a two-band EQ to further enhance the sound. The H-PP molded enclosure features a steel grille and a dual position pole mount with 0 or 7.5° options. The rear panel offers a balanced combo XLR-1/4" input, two RCA inputs, and a balanced XLR output for connecting additional speakers. There are independent gain controls for the XLR and RCA inputs. The Avante A12 Achromic Series loudspeaker ships with a power cord. -
- Amp Power: 1200W dynamic
- LF: Class-D 350W (RMS)
- HF: Class-AB 50W (RMS)
- Built-in digital signal processing (DSP) with LCD screen, EQ, and Presets
- Preset 1: Normal
- Preset 2: Live
- Preset 3: Club
- Preset 4: Speech
- Frequency Range: 60 Hz to 20 kHz
- Dispersion (H x V): 90 x 60°
- Output (Peak SPL at 1m): 123 dB
- Drivers: 12" woofer with 2.5" voice coil + 1.35" HF compression driver
- Inputs: Balanced combo XLR-1/4" and two RCA
- Output: Balanced XLR
- Enclosure: H-PP molded
- Grille: 1.2mm steel
- Handle: 1 x top, 1 x side
- Fly Points: 2 on top, 1 on back
- Pole Mounting: Dual position 0 or 7.5°
UPC: 818651020830 In the Box Avante Audio A12 Achromic Series 12" 2-Way Active Loudspeaker Power Cord Limited 2-Year Warranty, Extended to 3-Years with Registration Quick start Guide PDF 1.7mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Avante Audio A12 Achromic Series 12" 2-Way Active Loudspeaker in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAvante Audio A12 Specs | | | Configuration | Active 2-Way | | Total Power Capacity | 1200 W Peak
400 W RMS | | Amplifier Power Rating | LF:
350 W RMS
HF:
50 W RMS | | Amplifier Class | LF:
Class-D
HF:
Class-AB | | | | HF Driver | 1 x 1.4" / 34.3 mm Compression Driver | | LF Driver | 1 x 12" / 30.5 cm Woofer | | LF Voice Coil | 2.5" / 63.5 mm | | | | Frequency Range | 60 Hz to 20 kHz -10 dB | | Maximum SPL | 123 dB (Peak) | | | | Audio I/O | Combo XLR / 1/4" Balanced Input
2 x RCA Input
XLR Male Balanced Output | | | | AC Input Power | 115 VAC, 60 Hz | | Power Consumption | 400 W | | | | Mounting | 1 x Pole Socket (Dual Angle)
2 x (Top)
1 x (Rear) | | Handles | 1 x Top
1 x Side | | Construction Material | Metal Grille, Polypropylene | | Dimensions | 24.7 x 14.4 x 13.9" / 627.4 x 365.8 x 353.1 mm | | Weight | 35 lb / 15.9 kg | | | | Package Weight | 72.5 lb | | Box Dimensions (LxWxH) | 35.0 x 29.0 x 29.0" |
