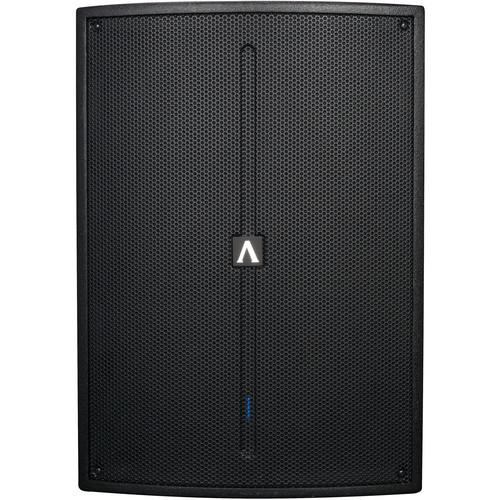

User Manual for Avante Audio A15S Achromic Series 15" Active Subwoofer Click to enlarge the picture
Contents of the user manual for the Avante Audio A15S Achromic Series 15"
- Product category: PA Speakers Avante Audio
- Brand: Avante Audio
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Avante Audio PA Speakers
|
User manual for the Avante Audio A15S Achromic Series 15" contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Avante Audio product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Avante Audio user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Avante Audio product will considerably shorten its lifespan!
|
Product description The Avante Audio A15S Achromic Series is a 15", active subwoofer with a 1600W peak dynamic amplifier and an integrated DSP, well suited for a variety of applications including clubs, bars, mobile DJs, public address engagements, schools, houses of worship, fitness centers, and more. The Class-D amplifier delivers 500W (RMS) to the woofer and provides a frequency range of 35 to 160 Hz with a peak SPL of 126 dB.
The integrated DSP offers two modes (normal and enforce) and three locations (normal, cardioid, and endfire), as well as standard subwoofer parameters including delay, polarity, and crossover settings. The 15mm plywood enclosure features two side handles, a steel grille, and a threaded speaker pole receptacle. The rear panel offers two balanced combo XLR-1/4" inputs and two balanced XLR outputs for connecting additional speakers. The Avante A15S Achromic Series subwoofer ships with a threaded speaker pole and a power cord. -
- Amp Power: 1600W dynamic, 500W RMS Class-D amplifier
- Built-in digital signal processing (DSP) with LCD screen, EQ, and Presets
- Frequency Range: 35 to 160 Hz
- Dispersion (H x V): Omnidirectional, cardioid
- Output (Peak SPL at 1m): 126 dB
- Driver: 15" woofer with 3" voice coil
- Inputs: 2 x balanced combo XLR-1/4"
- Outputs: 2 x balanced XLR
- Enclosure: 15mm plywood
- Grille: 1.5mm steel
- Handles: 2 on sides
- Pole Mounting: Ground stack
- Includes threaded speaker pole
UPC: 818651020854 In the Box Avante Audio A15S Achromic Series 15" Active Subwoofer Power Cord Speaker Pole Limited 2-Year Warranty, Extended to 3-Years with Registration Quick start Guide PDF 1.7mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Avante Audio A15S Achromic Series 15" Active Subwoofer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAvante Audio A15S Specs | | | Configuration | Active Subwoofer | | Total Power Capacity | 1600 W Peak
500 W RMS | | Amplifier Class | Class-D | | | | LF Driver | 1 x 15" / 38.1 cm Woofer | | LF Voice Coil | 3" / 76.2 mm | | | | Frequency Range | 35 Hz to 160 Hz -10 dB | | Maximum SPL | 126 dB (Peak) | | | | Audio I/O | 2 x Combo XLR / 1/4" Balanced Input
2 x XLR Male Balanced Output | | | | AC Input Power | 115 VAC, 60 Hz | | Power Consumption | 600 W | | | | Mounting | 1 x M20 (Top) | | Handles | 2 x Side | | Construction Material | Metal Grille, Plywood | | Dimensions | 24.1 x 16.9 x 23.9" / 612.1 x 429.3 x 607.1 mm | | Weight | 57 lb / 25.9 kg | | | | Package Weight | 72.6 lb | | Box Dimensions (LxWxH) | 28.5 x 27.0 x 21.0" |
