Product description 7 All-In-One Portable Speaker Systems for Special Events and Parties Read More ecdcsxeacbfacqzwzwfsexddvcaucyrabybecu The Avante Audio Achromic AS8 is a column PA system offering multiple configurations to suit floor or stage placement, making it ideal for musicians, vocalists, DJs, presenters, and more. The system is comprised of an active subwoofer enclosure, a passive speaker column, and a column spacer, which can be added or removed to allow compact or extended positions. A Class-D power amplifier delivers 800W of peak power—400W to the vented 8" neodymium subwoofer, and 400W to the six 2.75" neodymium drivers in the speaker column—for an overall system frequency response of 55 Hz to 20 kHz. Stream audio wirelessly from a mobile device via the built-in Bluetooth receiver, and connect a variety of sources such as a microphone, guitar/bass/keyboard, DJ mixer, and non-Bluetooth device. The integrated mixer allows easy control of channel levels and the 2-band master equalizer. Route the balanced XLR output to an installed PA system, analog mixer, or audio recorder. The AS8's rugged cabinets utilize polypropylene construction for lightness, while durable steel grilles protect the speakers from punctures, tears, and dents. A carry bag is included for convenient transport of the two column units. - Active 8" subwoofer enclosure with two column units—one is loaded with six precision-aligned 2.75" speaker cones, the other serves as a spacer to lift the speaker column up to optimal height

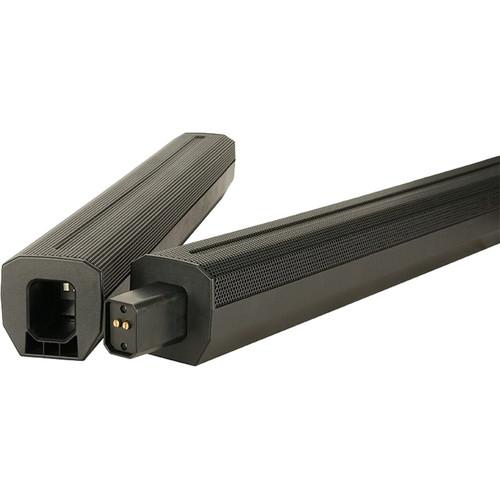

- SAM (Secure Array Mount) system allows the columns to lock securely to the sub and to one another without risk of being toppled over
- SAM connection passes the audio signal from the sub up to the columns, removing the need for speaker cables
- Class-D amplifier delivers 800W of peak power, and features a switching power design; a built-in limiter for protection against overloading
- Integrated 3-channel mixer with 2-band EQ
- Built-in Bluetooth audio connection enables wireless streaming of music from a smartphone, tablet, or laptop.
- Dual XLR-1/4" TRS combo inputs, stereo 1/4" input jacks, and a stereo 3.5mm input
- Balanced XLR line output for connection to a house PA system or an audio recorder
- Lightweight polypropylene cabinets with durable steel grilles

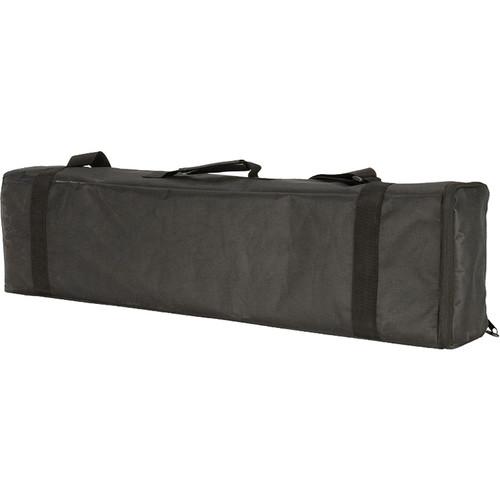

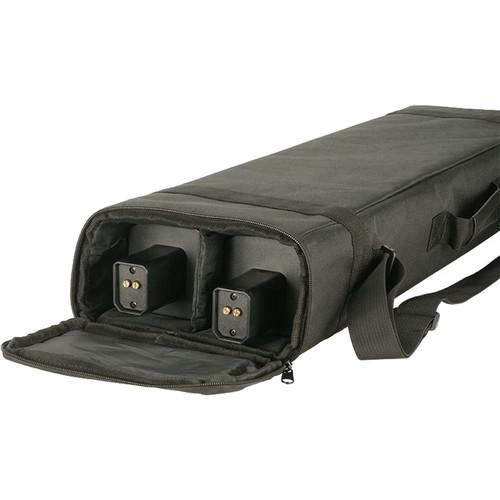

- Includes padded bag for carrying and protecting the column units
UPC: 818651026108 In the Box Avante Audio Achromic AS8 800W Column PA System with Mixer and Bluetooth Spacer Carry Bag Limited 2-Year Warranty Extendable to 3 Years upon Online Registration Table of Contents
|
Upload User Manual
Have you got an user manual for the Avante Audio Achromic AS8 800W Column PA System with Mixer and Bluetooth in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAvante Audio AS8 ACHRONIC Specs | Type | Subwoofer: Active
Speaker Column: Passive | | Amplifier Class | Class-D | | Amplifier Power | To Subwoofer: 400 W Peak, 120 W RMS
To Speaker Column: 400 W Peak, 120 W RMS | | LF Driver | 8.0" / 20.3 cm Neodymium Subwoofer with 1.5" / 3.8 cm Voice Coil | | HF Driver | 6 x 2.8" / 7 cm Neodymium Drivers | | Inputs | 2 x XLR-1/4" TRS Combo Jacks
2 x 1/4" Line Inputs
1 x 1/8" / 3.5 mm Stereo Mini Jack | | Outputs | 1 x 3-Pin XLR Male | | Maximum SPL | Subwoofer: 116 dB SPL
Speaker Column: 110 dB | | Frequency Response | Subwoofer: 55 to 200 Hz
Speaker Column: 180 Hz to 20 kHz | | Impedance | 4 Ohms | | Power Requirement | 100 to 240 VAC, 50/60 Hz, 250 W | | Construction Material | Cabinets: Polypropylene
Grilles: Steel (1 mm) | | Dimensions (H x W x D) | Subwoofer: 16.3 x 13.8 x 16.9" / 41.3 x 35.0 x 43.0 cm
Speaker Column: 34.3 x 3.8 x 3.8" / 87.0 x 9.6 x 9.6 cm
Spacer: 34.3 x 3.8 x 3.8" / 87.0 x 9.6 x 9.6 cm
Compact Configuration: 47.6 x 13.8 x 16.9" / 121 x 35 x 43 cm
Extended Configuration: 79.1 x 13.8 x 16.9" / 201 x 35 x 43 cm | | Weight | Subwoofer: 28.6 lb / 13 kg
Speaker Column: 11 lb / 5 kg
Compact Configuration: 39.6 lb / 18 kg
Extended Configuration: 50.6 lb / 23 kg |
