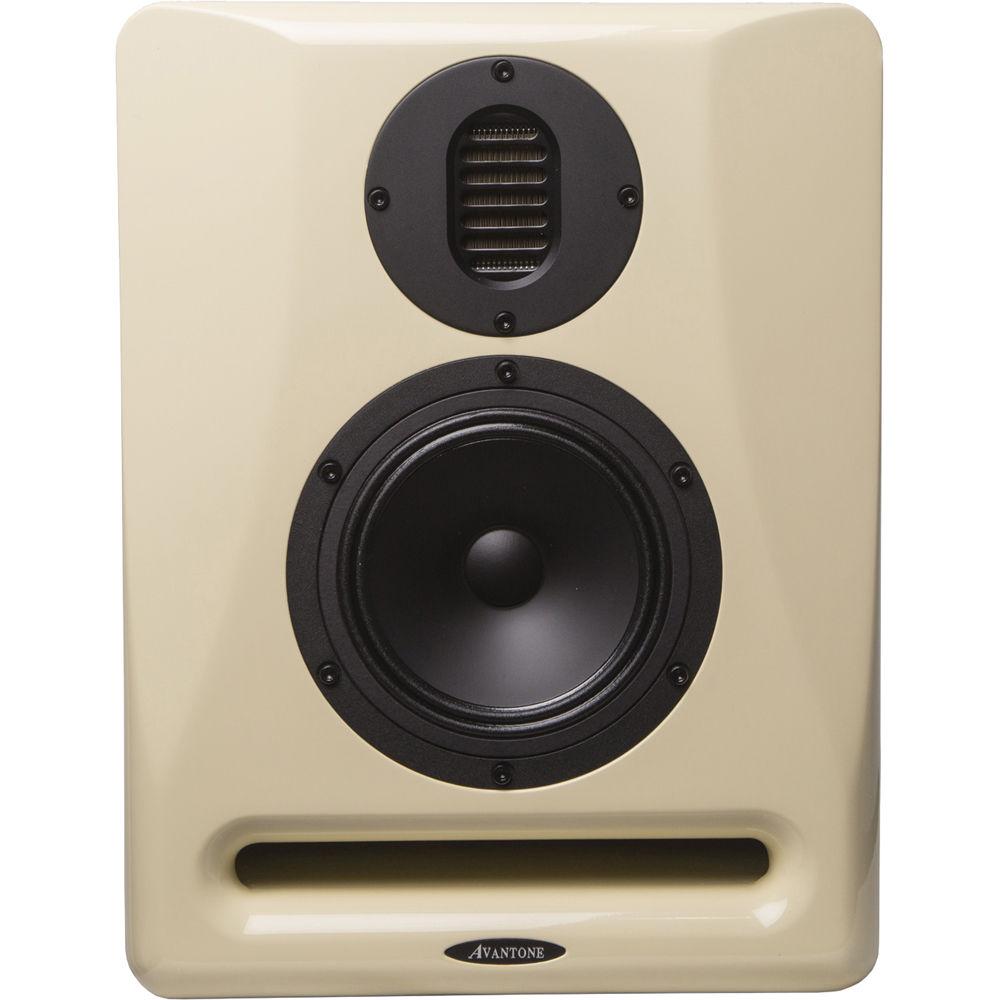

Product description The Avantone Abbey is a full-range studio monitor that extends down to 35 Hz thanks to its three-way design. Technically it sports four drivers in all: A high-frequency air-motion transformer, a 5.3” midrange driver, and two custom-designed 6.5 low-frequency drivers, which aid in the overall frequency response of 35 Hz to 38 kHz. This frequency response, coupled with its SPL rating of 106 dB and Class HD amplification, render the Abbey suitable for work in active recording environments, as well as mixing rooms, and even certain mastering locales.

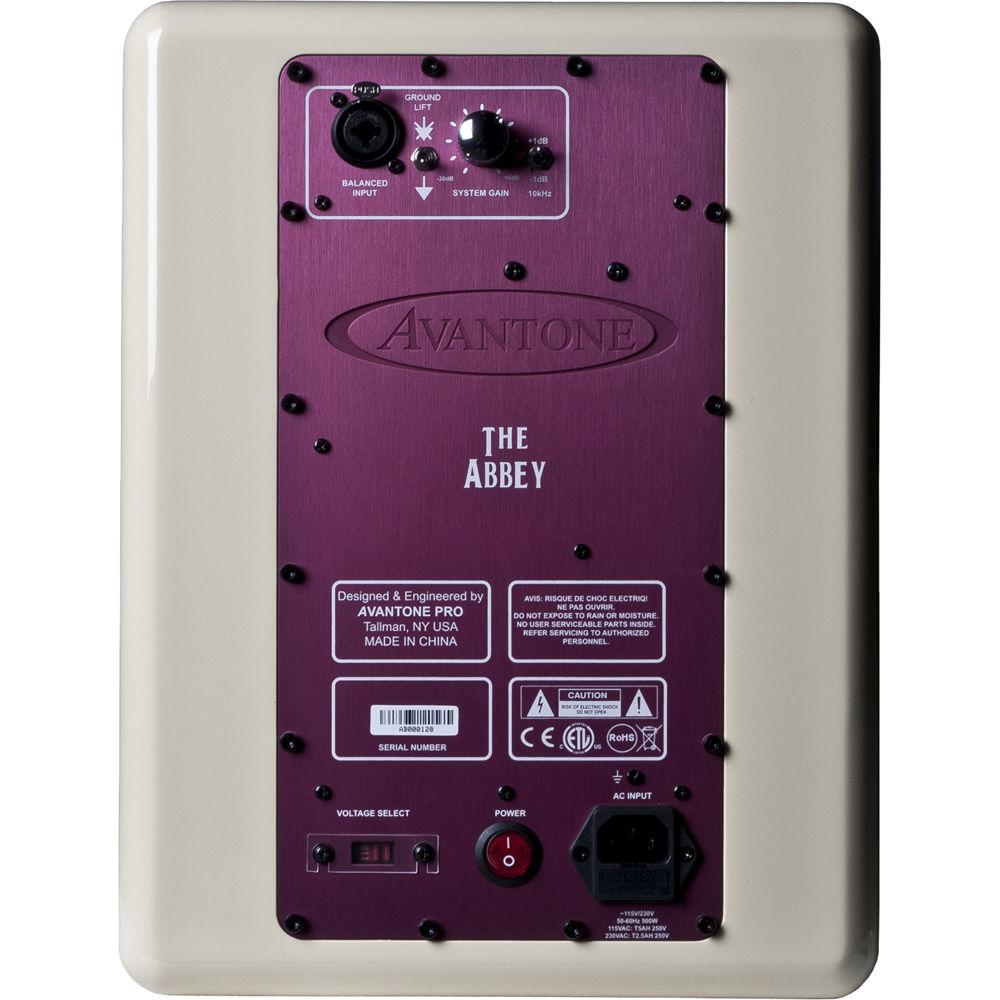

The cabinet itself is constructed out of 18mm MDF, utilizing polyester acoustical stuffing and a bass-reflex design to help it suit the needs of different acoustical spaces. The monitor's crossover points have been constructed to foster a natural transition between the drivers, operating both above and below the crucial midrange band to preserve the accuracy of that all-too-important register. This helps you judge elements such as vocals, guitars, keyboards, and more with greater prescision. The monitor excepts XLR and 1/4" connections, and work with +4 dBu and -10 dBV sources. Power cables are included. This particular Abbey is styled in a creme finish. - Key Features at a Glance
-
- Full-range design built to deliver a seamless transition through all frequency bands
- Delivers accurate transient response and broad spectral performance at all levels
- Rear vents aid in stabilizing internal temperature to help secure tube longevity
- Clear midrange for revealing important details in your mix
- Versatile design features to suit many different acoustical environments
- Relatively compact design to suit modern production environments
UPC: 638142858854 In the Box Avantone Pro Abbey 3-Way Active Monitor (Creme, Single) Power Cable Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Avantone Pro Abbey 3-Way Active Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAvantone Pro Abbey Specs | | | Monitor Type | Active 3-Way | | Enclosure | Bass-Reflex, Shielded | | Drivers | HF Driver: 1 x 5.6" / 364 cm Air Motion Transformer
MF Driver: 1 x 5.3" / 13.3 cm Paper Cone with 1" / 2.5 cm Voice Coil
LF Driver: 2 x 6.5" / 16.5 cm Woofer with 1.4" / 3.4 cm Voice Coil | | Amplification | HF Amplifier: Class-HD Rated at 100 W
MF Amplifier: Class-HD Rated at 100 W
LF Amplifier: Class-HD Rated at 200 W | | | | Frequency Range | 35 Hz to 38 kHz | | Maximum Sound Pressure Level (SPL) | 108 dB | | Signal-to-Noise Ratio | 113 dBA | | Total Harmonic Distortion (THD) | 0.2% | | Analog Input Sensitivity/Gain | +4 / -10 dBV (Continuously Variable) | | | | I/O | 1 x Combo XLR / 1/4" Balanced Analog Input | | | | Enclosure Material | Acoustical Stuffing, MDF | | Cooling | Passive Cooling | | Dimensions (W x H x D) | 10.6 x 14.2 x 15.2" / 26.9 x 36.1 x 38.6 cm | | Weight | 35.2 lb / 16.0 kg |
