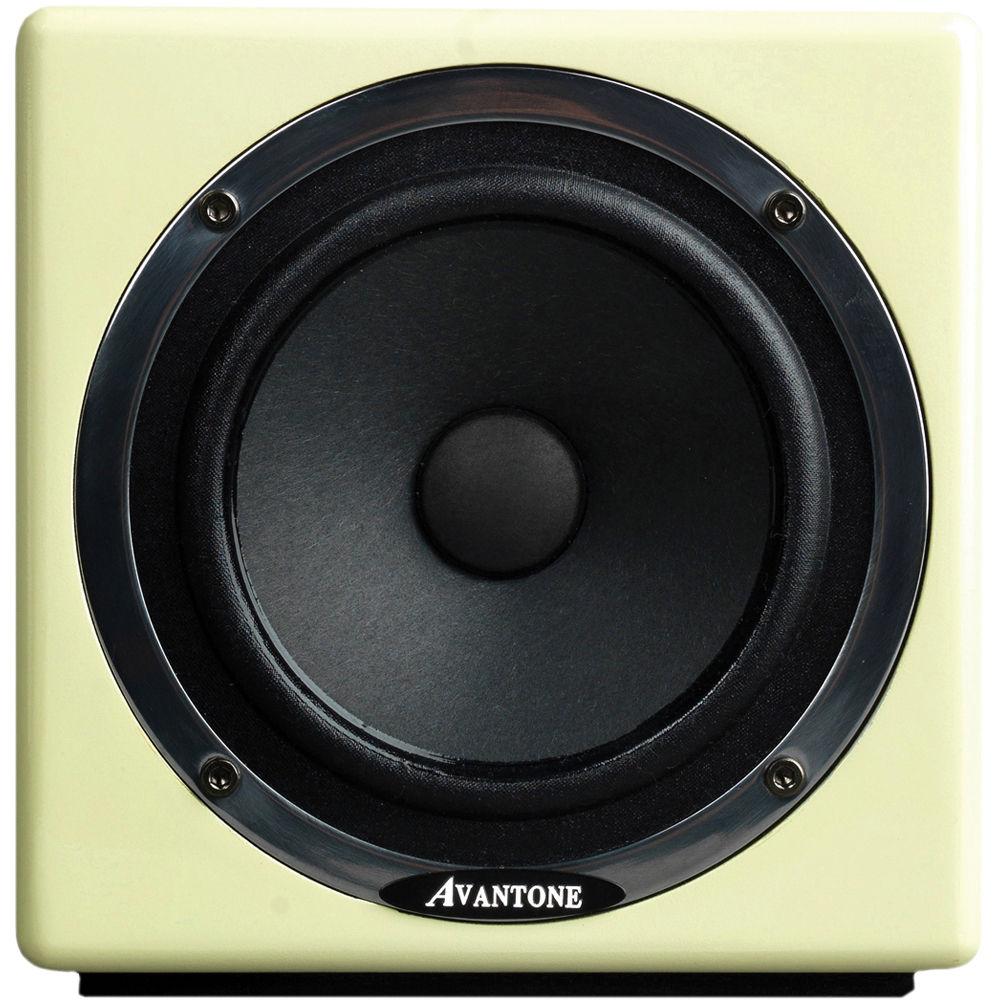

Product description The Avantone Active MixCube Powered Full-Range Mini Reference Monitor is a professional studio reference monitor specifically tailored to produce the useful musical range of 90 Hz to 17 kHz. In today's world of high definition media, it is still necessary to mix music that translates and sounds as defined on Lo-fi speakers such as laptops and Smartphones, as well as Hi-fi full-range HD audio systems. The Active MixCube provides audio engineers with accurate and detailed mid-frequency referencing, leaving the larger 2-way and 3-way monitoring systems to bass and high-frequency referencing.
The Active MixCube features a powerful and accurate 60W (RMS) amplifier and 5.25" driver enclosed in a handsome MDF cabinet with a retro-cream finish. The input connector is an XLR-combo connection with XLR and 1/4" TRS phone inputs that accept balanced and unbalanced signals. There is a variable gain control dial and on/off switch. The speaker features an external power supply with a 10 foot (3 meter) AC cable attached to the power supply, and an additional 10 foot (3 meter) cloth multi-pin cable that connects the power supply to the speaker. The Active MixCube's small size makes it easy to place in any studio setting, and as an added feature, Avantone installed a 5/8"-27 thread microphone stand fitting to the base of the speaker. - Mid Referencing
- Studios primarily use 2- and 3-way larger monitors designed to represent a wide range reference viewpoint at higher listening levels. However, in this newly developing age of High Definition Audio, there is still a need to also hear what your mix will sound like when played back over small "bass-challenged" systems such as televisions, clock radios, computers, car stereos, iPod docking stations, etc. It is important to make mixing judgments based partially on listening to reference monitors that will not impart tonal anomalies caused by crossovers or inferior full range drivers. Listening tests reveal that the MixCube has a smooth, more open, transparent top end response with extended bass while maintaining its basic original character

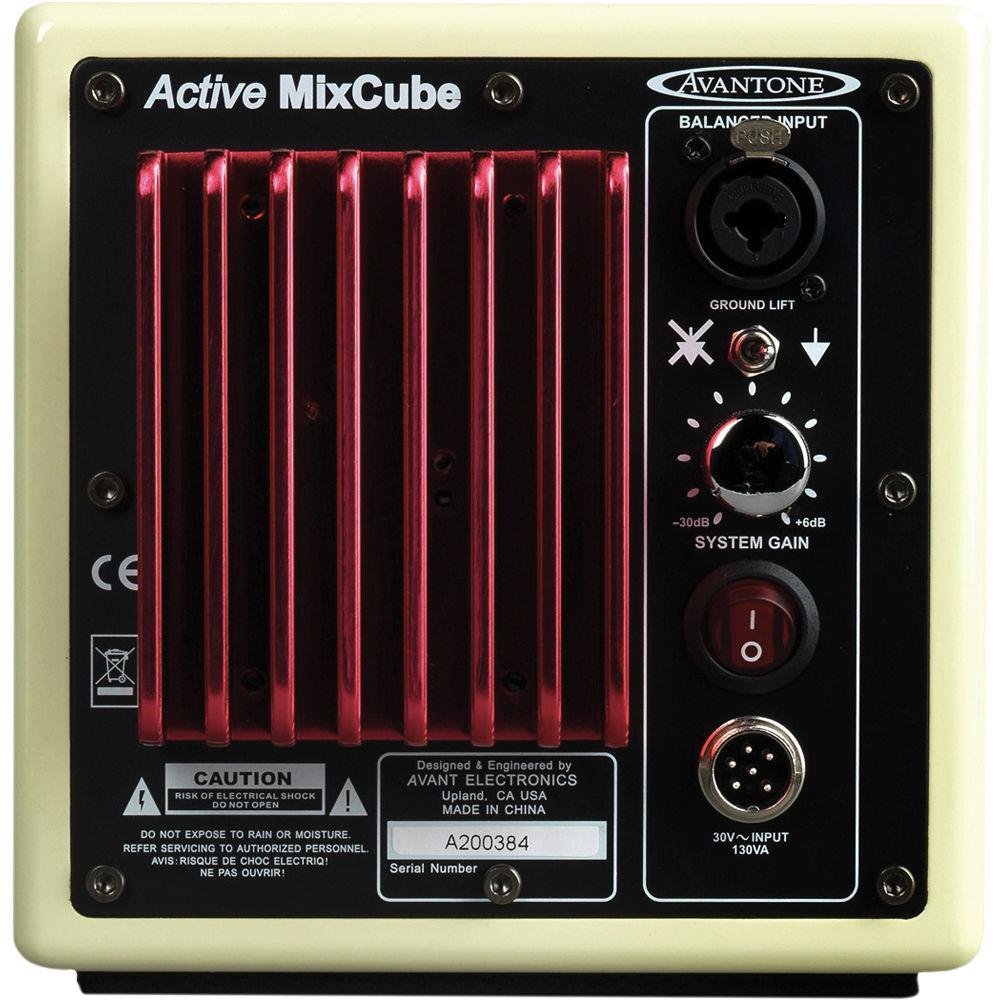

- Combo XLR Input
- Combo XLR/TRS input accepts a balanced male XLR plug as well as a 3-conductor balanced TRS 1/4" or a 2 conductor unbalanced TS 1/4" male plug. For unbalanced operation with a TS connector the minus signal is automatically grounded
- System Gain
- Variable control adjusts the sensitivity of the signal that appears at the input. Rotating the control clockwise increases the sensitivity while a counter-clockwise rotation decreases sensitivity. The adjustable gain range is from -30 to +6 dB. A setting of +6 allows a full, unimpeded signal to be sent to the amplifier
- AC Input
- This input is only to be used with the proprietary Avantone power supply. Tighten the cable/connector securely for reliable operation. There is a switch on the power supply for selecting the proper AC/Mains operating voltage for your location
- Ground Lift Switch
- By engaging this switch the pin 1 shield is lifted at the input jack. This can be used to aid in ground loop control of the incoming analog line signal
- Flexible Placement
- The bottom mic stand mounts will also allow you creative positioning options in unusual studio playback situations
UPC: 038081508955 In the Box Avantone Pro Active MixCube Powered Full-Range Mini Reference Monitors (Retro-Cream) - Single AC Mains Cable - 10' (3m) Power Supply with Attached Power Cable to Speaker - 10' (3m) Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Avantone Pro Active MixCube Powered Full-Range Mini Reference Monitors - Single in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAvantone Pro MixCube Specs | Type | Active (Self-powered) shielded full-range speaker | | Frequency Response | 90 Hz to 17 kHz (useful musical range)
Amp Frequency Response: 22 Hz to 50 kHz +0 dB/-3 dB (90 Hz to 50 kHz +/-0 dB) | | Impedance | Nominal 8Ω | | Maximum SPL | 104 dB @ 1 meter = 1% THD (pink noise) | | Amplifier Type | Class A/B | | Output Power | 60 watts RMS @ 0.005% THD (1 kHz) | | Noise | S/N: 113 dB | | Sensitivity | 0dBu (0.775 VRMS) input at maximum volume (+6 dB) = 104 dB SPL | | Driver | Proprietary design 5.25" cast aluminum frame / paper cone / shielded | | Cabinet | Sealed / 18 mm MDF / Dacron acoustical stuffing | | Inputs | XLR & TRS (Combo Jack) +4 dBu balanced & -10 unbalanced | | Dimensions | 6.5 x 6.5 x 6.5" (165 x 165 x 165 mm) | | Weight | 7.31 lb (3.31 kg) | | | | Package Weight | 13.7 lb | | Box Dimensions (LxWxH) | 12.8 x 10.2 x 8.4" |
