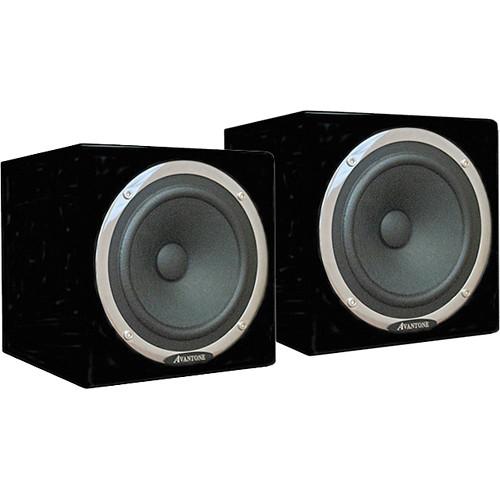

User Manual for Avantone Pro Avantone MixCubes Full-Range Mini Reference Monitors Click to enlarge the picture
Contents of the user manual for the Avantone Pro Avantone MixCubes Full-Range Mini
- Product category: Studio Monitors Avantone Pro
- Brand: Avantone Pro
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Avantone Pro Studio Monitors
|
User manual for the Avantone Pro Avantone MixCubes Full-Range Mini contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Avantone Pro product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Avantone Pro user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Avantone Pro product will considerably shorten its lifespan!
|
Product description The Avantone MixCubes Full-Range Mini Reference Monitors are a pair of passive professional studio reference monitors specifically tailored to produce the useful musical range of 90Hz to 17kHz. In today's world of high definition media, it is still necessary to mix music that translates and sounds as defined on lo-fi speakers such as laptops and smartphones, as well as hi-fi full-range HD audio systems. The MixCubes provide audio engineers with accurate and detailed mid-frequency referencing, leaving the larger 2-way and 3-way monitoring systems to bass and high-frequency referencing.The MixCubes are passive and handle up to 200 watts (8 ohms) from an external amplifier. The 5.25" driver is enclosed in a handsome MDF cabinet with a black finish. The input connector features 3-way CE rated plastic encased metal binding posts that accept up to 12-gauge wire, spade lugs and dual banana plugs. The MixCubes' small size make them easy to place in any studio setting, and as an added feature, Avantone installed 5/8"-27 thread microphone stand fittings to the base of each speaker. - Mid Referencing
- Studios primarily use larger 2-way & 3-way monitors designed to represent a wide range reference viewpoint at higher listening levels. However, in this newly developing age of High Definition Audio, there is still a need to also hear what your mix will sound like when played back over small "bass-challenged" systems such as televisions, clock radios, computers, car stereos, iPod docking stations, etc. It is important to make mixing judgments based partially on listening to reference monitors that will not impart tonal anomalies caused by crossovers or inferior full range drivers. Listening tests reveal that the MixCubes have a smooth, more open, transparent top end response with extended bass while maintaining their basic original character.
- 3-Way Binding Post Connections
- 3-way CE rated plastic encased metal binding post speaker connections accept up to 12-gauge wire, spade lugs and dual banana plugs
- Quality 5.25" Drivers
- The paper cone, chosen for its musical character, is custom designed & crafted using the finest New Zealand pulp with mica fibers added for lighter weight & rigidity. The cloth surround is made in Japan to exacting uniform thickness tolerances. The Top Plate and T-Yoke of the driver are made of Sumitomo 1008 low carbon steel, enabling the highest modeled flux density in the gap. The magnets are Y- 40 GRADE (MIL-SPEC) yielding a 43oz. high-power, low-distortion motor structure.
- Flexible Placement
- The bottom mic stand mounts will also allow you creative positioning options in unusual studio playback situations.
UPC: 794504980714 In the Box Avantone Pro Avantone MixCubes Full-Range Mini Reference Monitors (Black) Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Avantone Pro Avantone MixCubes Full-Range Mini Reference Monitors in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAvantone Pro MixCube Specs | | | Monitor Type | Passive Full-Range | | Enclosure | Sealed, Shielded | | Passive Power Handling | 10 to 200 W | | Impedance | 8 Ohms | | Drivers | Full-Range Driver: 1 x 5.25" / 13.33 cm Cone | | | | Frequency Response | 90 Hz to 17 kHz | | Maximum Sound Pressure Level (SPL) | 93 dB | | | | I/O | 2 x Binding Post Analog Input Accepts 12-Gauge Wire, Spade Lugs, or Banana Plug. | | | | Enclosure Material | Acoustical Stuffing, MDF | | Dimensions (W x H x D) | 6.5 x 6.5 x 6.5" / 165.0 x 165.0 x 165.0 mm | | Weight | 6.7 lb / 3.0 kg (Each) | | | | Package Weight | 15.5 lb | | Box Dimensions (LxWxH) | 18.8 x 9.4 x 9.2" |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 57 owners. Add your rating and experience with the product.
