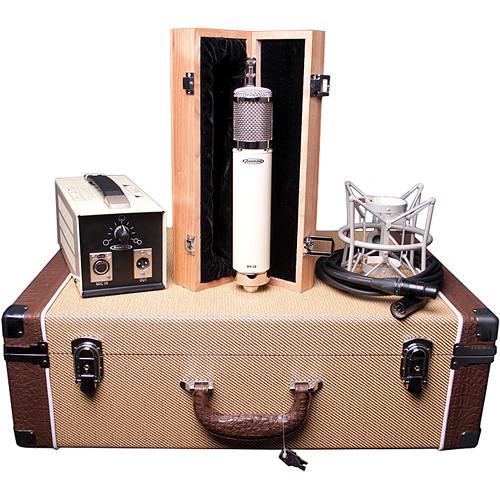

User Manual for Avantone Pro BV-12 Custom Tube Microphone Click to enlarge the picture
Contents of the user manual for the Avantone Pro BV-12 Custom Tube Microphone
- Product category: Tube Microphones Avantone Pro
- Brand: Avantone Pro
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Avantone Pro Tube Microphones
|
User manual for the Avantone Pro BV-12 Custom Tube Microphone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Avantone Pro product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Avantone Pro user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Avantone Pro product will considerably shorten its lifespan!
|
Product description The BV-12 Custom Tube Microphone from Avantone features transformer-coupled tube circuitry that has its origins in famous European vintage designs and a rugged microphone body and capsule assembly which are precision machined from brass, finished off with an elegant Butter Cream baked-on finish, and accented with polished nickel trim and grill.
The microphone utilizes dual 34mm gold sputtered thin Mylar capsule assemblies and the system ships with a dedicated universal power supply, from which any of nine polar patterns can be selected. An included shockmount allows for precise positioning while isolating the microphone from extraneous noises. A padded box and tweed carrying case provide protection while in transit. - Tube-type true condenser microphone with dedicated power supply
- Dual 34mm gold sputtered thin Mylar capsule assemblies
- "Hand Selected" Russian-made 6072A tube
- Delivers a warm, pleasing sonic character
- Custom retro shock mount allows a precise positioning of the microphone while inhibiting the transfer of unwanted vibrations
- PS-1 power supply offers access not only to omni, cardioid, and figure-8 patterns, but also 6 "in-between" settings
- Omni-mode works well in some rooms for ambient room recording
- Military-grade -10 dB pad switch
- Military-grade 80 Hz high-pass filter switch
In the Box Avantone Pro BV-12 Custom Tube Microphone PS-1 Power Supply AC Power Cable 7-Pin XLR Cable Shock Mount Padded Wooden Box Tweed Carry Case Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Avantone Pro BV-12 Custom Tube Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAvantone Pro BV-12 Specs | | | Transducer | Condenser | | Diaphragm | 1.34" / 34 mm | | Tube | Yes | | Frequency Range | 20 Hz to 20 kHz | | Signal to Noise Ratio | 78 dB | | Equivalent Noise Level | 17 dB | | Maximum SPL | 136 dB SPL | | Pad | -10 dB | | THD | 0.5% | | Impedance | 250 Ohms | | Sensitivity | 38 dB | | Low-Cut Filter | 6 dB/Octave @ 80 Hz | | | | Output Connectors | 1 x 7-Pin XLR | | Length | 9.33" / 237 mm | | Diameter | 1.81" / 46 mm | | Weight | 1.8 lb / 816 g |
