User Manual for Avantone Pro Cabernet C-Series Large-Capsule Multi-Pattern Tube Condenser Microphone Click to enlarge the picture
Contents of the user manual for the Avantone Pro Cabernet C-Series Large-Capsule Multi-Pattern
- Product category: Tube Microphones Avantone Pro
- Brand: Avantone Pro
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Avantone Pro Tube Microphones
 |
User manual for the Avantone Pro Cabernet C-Series Large-Capsule Multi-Pattern contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Avantone Pro product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Avantone Pro user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Avantone Pro product will considerably shorten its lifespan!
|

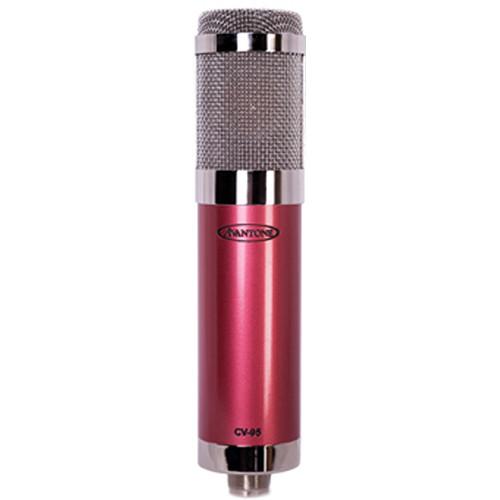

Product description The Cabernet C-Series Large-Capsule Multi-Pattern Tube Condenser Microphone from Avantone offers true professional performance and features a rugged body & capsule assembly constructed of brass. It features an elegant cabernet wine-red finish with polished nickel trim and capsule assembly. The transformer is equipped with a tube circuitry to deliver a professional performance.The Microphone houses a 25mm gold-sputtered 6-micron Mylar capsule. It uses high-grade polystyrene and metalized polypropylene capacitors in the audio path. The included Custom Retro Shockmount allows a precise positioning of the mic while preventing unwanted vibrations up into the mic for better results. The 9 polar patterns allow the mic to be used in a variety of applications.The gold-sputtered, 6-micron diaphragm has a unique high-frequency response that allows recordings to cut through the mix. The cardioid pattern is ideal on vocals and single instruments. The omni mode works well in incorporating some room sound into the track. The figure-8 pattern allows two vocalists to use the mic at the same time from opposite sides. -

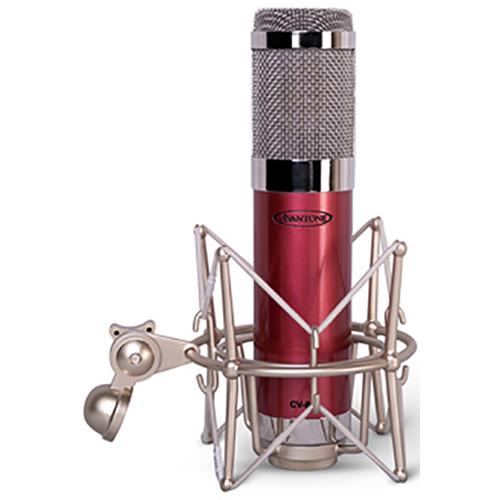

- Custom Retro Shockmount allows a precise positioning of the mic while preventing unwanted vibrations from going into the mic

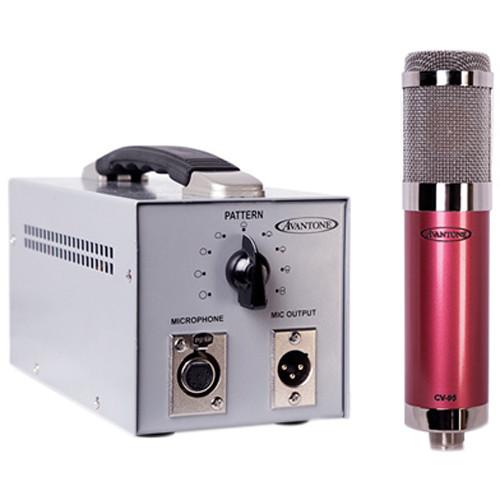

- Included PS-1BV multi-pattern power supply with cables offers access not only to the above omni, cardioid, and figure-8 patterns but also to six "in-between" settings
- Cardioid pattern is suitable for vocals
- Omni mode is suitable for ambient rooms
- Foam windscreen

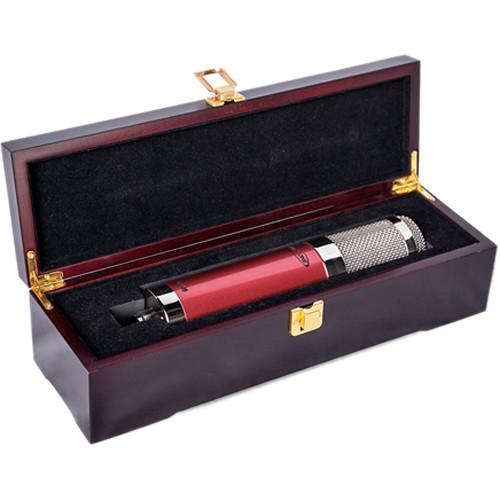

- Stylish padded genuine wooden mic box

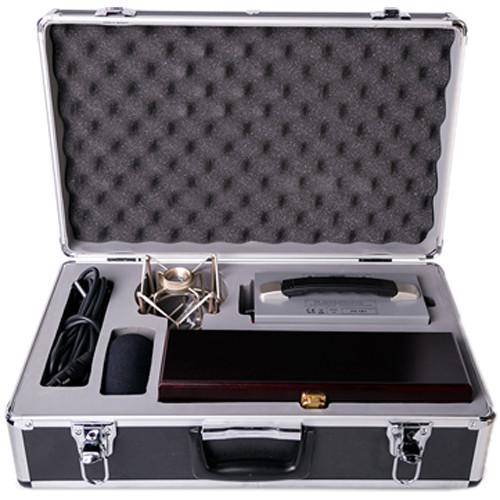

- Padded aluminum-storage/travel case included
In the Box Avantone Pro Cabernet C-Series Large-Capsule Multi-Pattern Tube Condenser Microphone Wooden Box Shockmount 7-Pin Cable Metal Road Case PS-1BV Power Supply Foam Windscreen Table of Contents
|
Upload User Manual
Have you got an user manual for the Avantone Pro Cabernet C-Series Large-Capsule Multi-Pattern Tube Condenser Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAvantone Pro CV95 Specs | | | Diaphragm | 0.98" / 25 mm | | Polar Pattern | Cardioid, Figure-8, Omnidirectional | | Pattern Selection | Switched | | Frequency Range | 20 Hz to 20 kHz | | Signal to Noise Ratio | 78 dB | | Equivalent Noise Level | 18 dB | | Maximum SPL | 130 dB SPL RMS | | Pad | -16 dB | | THD | 0.5% | | Sensitivity | -38 dB | | | | Output Connectors | 1 x 7-Pin XLR | | Length | 9.5" / 241.30 mm | | Diameter | 1.8" / 45.72 mm | | Weight | 1.8 lb / 0.82 kg |
Rating70% users recommend this product to others. And what about you?
This product has already been rated by 51 owners. Add your rating and experience with the product.
