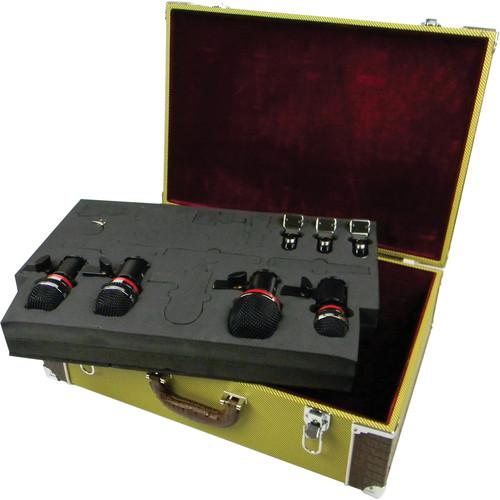

Avantone Pro CDMK4 4-Mic Drum Microphone

User Manual for Avantone Pro CDMK4 4-Mic Drum Microphone Kit

• Product category: Dynamic Microphones Avantone Pro
• Brand: Avantone Pro
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Avantone Pro Dynamic Microphones

Product description

• Mondo Dynamic Kick Drum Microphone The MONDO Dynamic Kick Drum Microphone from Avantone is a ruggedly designed kick drum microphone with an elegant finish that is also well suited for bass cabinets and other low-frequency signal capturing. The MONDO delivers aggressive frequency contouring and accentuates bass frequencies, leaving engineers to make very little EQ adjustments in both live sound reinforcement and recording applications alike. The dynamic capsule is capable of handling high SPL before distortion and is internally shockmounted for a high degree of resistance against structure-born noise. Its elegant Cabernet Wine-Red finish features nickel trim, rugged black grill and absolutely no breakable plastic components. The microphone includes a shockmount (SSM) and rugged padded carrying case.
  • Designed for live clubs and concerts, as well as serious studio recording projects
  • Very aggressive frequency contour that sounds huge right out of the box, so most engineers will find little need for EQ
  • Die cast from zinc, with a brass and steel grill assembly
  • Cabernet Wine-Red finish, accented with polished nickel trim and a black grill assembly
  • All components are designed and manufactured using the finest materials yielding a very solid feel, superb structural integrity and rugged reliability
  • Internal shockmounting on the capsule assembly to prevent the transmission of unwanted "rumble" from physical vibrations
  UPC: 852437001156
• ADM Dynamic Snare Drum Microphone The ADM Dynamic Snare Drum Microphone from Avantone is a ruggedly designed snare drum microphone with an elegant finish that is also well suited for percussion, guitar cabinets, and instruments. The ADM delivers a transparent, familiar snare drum sound for recording and live sound reinforcement. It features an extended low frequency response and extended high-end, making it a versatile solution for a multitude of signal sources. The dynamic capsule is capable of handling high SPL before distortion and features a cardioid polar pattern.Its elegant Cabernet Wine-Red finish features a nickel trim, rugged black grill and no breakable plastic components. The microphone is shipped with their PK-1 Pro-Klamp drum rim mount. The mount allows for close, adjustable positioning without bulky microphone stands, and is constructed with three stages of rubber dampening and decoupling material to suppress noise caused by vibration and rigorous playing. A shockmount (SSM) and rugged padded carrying case are also included.
  • Delivers the familiar sound of industry standard snare microphones, with enhanced low-end and smoother, extended top-end
  • Die cast from zinc, with a brass and steel grill assembly and no plastic parts to break
  • Machined insets on the barrel of the microphone body to lock the included SSM shockmount in place
  • The included PK-1 Pro-Klamp drum rim mic mount allows confident microphone positioning while inhibiting the transfer of unwanted vibrations with three stages of rubber dampening/decoupling material. This isolation allows for professional results without the need for traditional tripod/boom stands
  UPC: 852437001163
• ATOM Dynamic Tom Microphone The ATOM Dynamic Tom Microphone from Avantone is a ruggedly designed tome microphone that is well suited for congas, bass cabinets, and other similar instruments. The ATOM delivers large low-end and fast, penetrating attacks for recording and live sound reinforcement. Its big-tone requires little or no EQ processing and the dynamic capsule is capable of handling high SPL before distortion, and features a cardioid polar pattern.Its elegant Cabernet Wine-Red finish features nickel trim, rugged black grill and no breakable plastic components. The microphone is shipped with a PK-1 Pro-Klamp drum rim mount. The mount allows for close, adjustable positioning without bulky microphone stands, and is constructed with three stages of rubber dampening and decoupling material to suppress noise cased by vibration and rigorous playing. A shockmount (SSM) and rugged padded carrying case are also included.
  • Incorporates an oversize capsule that captures extended low-end as well as a penetrating attack. The Atom is custom voiced to yield a fat, big sound that often requires no EQ at all
  • Because of the special voicing on the Atom, it also is fantastic on djembe, large congas, bass amp cabinets and other similar sources
  • Die cast from zinc, with a brass and steel grill assembly and no plastic parts to break
  • Machined insets on the barrel of the microphone body to lock the included SSM shockmount in place
  • The included PK-1 Pro-Klamp drum rim mic mount allows confident microphone positioning while inhibiting the transfer of unwanted vibrations with three stages of rubber dampening/decoupling material. This isolation allows for professional results without the need for traditional tripod/boom stands
  UPC: 852437001170
• PK-1 Pro-Klamp Drum Rim Microphone Mount The Avantone PK-1 Pro-Klamp Drum Rim Microphone Mount is a rugged drum-rim mount for close microphone positioning on snare drums, toms, percussion instruments and more. The PK-1 Pro-Klamp features 3 stages of rubber dampening that isolates the microphone against vibration noise, as well as protects the rim against marring. The mount easily attaches all standard 5/8"-27 thread mic clip attachments. UPC: 794504980516
• SSM Professional Shockmount The Avantone SSM Professional Shockmount greatly reduces microphone noise caused by vibration, handling, etc. The SSM features a weighty, all-metal construction that makes it durable and further aids against energy transference that may cause noise. Its 4 o-ring suspension bands are durable and made of a resilient ethylene propylene material that is highly resistant to breaks and tears. The o-rings may be attached horizontally, vertically, or crossed for added tension. The SSM will successfully mount Avantone microphones, or third-party microphones measuring 0.74 - 0.86" (19 - 22mm) in diameter.
  Fits Most Microphones with a 0.74 - 0.86" (19mm-22mm) Diameter Body Including:
  • MXL 603
    MXL 604
    Neumann KM-184
    Neumann KM-84
    Audix SCX-1
    Audix SCX-25
    Audix F-15
    Audix ADX-51
    RODE NT5
    DPA 4000 Series
    B&K 4000 Series
    Earthworks Mics
    AKG C451
    AKG C460
    AKG C60
    ADK SC-1 / SC-2 / SC-T
    Audio-Technica 4041a / 4049a / 4051a / 4053a
    Beyer MC 930
    M-Audio Pulsar
    Microtech Gefell M294 / 295 / 300
    SMS 2000
    Okatava MC 012 / 101
    Sennheiser K6
    Shure KSM137 / KSM141 / SM 81 / SM63
    T.H.E. KR-33A / KR-2W / KR-25A / KR-1F / KR-2C / TT-3M
    Samson CO2 / CO2H
    Superlux SMKH8K
  UPC: 852437001033

• SSM Professional Shockmount

• Custom-Molded Carrying Case

• Limited 5-Year Warranty

• SSM Professional Shockmount

• PK-1 Pro-Klamp Drum Rim Microphone Mount

• Custom-Molded Carrying Case

• Limited 5-Year Warranty

• SSM Professional Shockmount

• PK-1 Pro-Klamp Drum Rim Microphone Mount

• Custom-Molded Carrying Case

• Limited 5-Year Warranty

• 5 Year Warranty

• 2 x Spare O-Rings

• 5-Year Warranty

Also Includes

• Custom Heavy-Duty, Locking, Padded Tweed Vintage Case
• Limited 5-Year Warranty

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Mondo Dynamic Kick Drum Microphone

  Transducer	Dynamic
  Polar Pattern	Cardioid
  Frequency Range	20 Hz to 15 kHz
  Maximum SPL	145 dB SPL
  Impedance	210 Ohms

  Output Connectors	1 x 3-Pin XLR
  Weight	16 oz / 454 g

  Box Dimensions (LxWxH)	12.15 x 4.95 x 3.2"

• ADM Dynamic Snare Drum Microphone

  Transducer	Dynamic
  Polar Pattern	Cardioid
  Frequency Range	50 Hz to 16 kHz
  Maximum SPL	145 dB SPL
  Impedance	520 Ohms

  Output Connectors	1 x 3-Pin XLR
  Weight	11 oz / 312 g

  Box Dimensions (LxWxH)	12.1 x 4.9 x 3.3"

• ATOM Dynamic Tom Microphone

  Transducer	Dynamic
  Polar Pattern	Cardioid
  Frequency Range	30 Hz to 15 kHz
  Maximum SPL	145 dB SPL
  Impedance	220 Ohms

  Output Connectors	1 x 3-Pin XLR
  Weight	13 oz / 369 g

  Box Dimensions (LxWxH)	12.1 x 4.9 x 3.2"

• PK-1 Pro-Klamp Drum Rim Microphone Mount

  Box Dimensions (LxWxH)	6.0 x 3.8 x 1.2"

• SSM Professional Shockmount

  Box Dimensions (LxWxH)	7.4 x 4.4 x 1.6"
