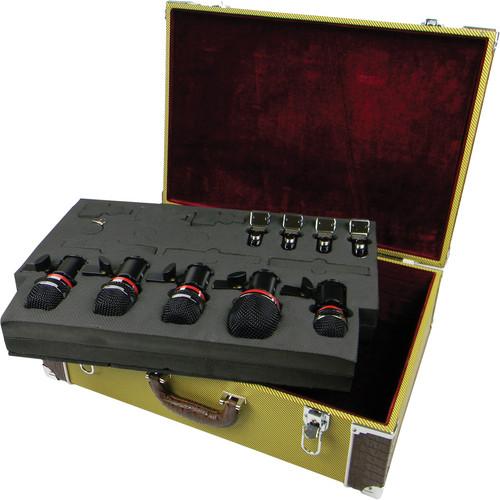

Avantone Pro CDMK5 5-Mic Drum Microphone

Search your instruction manual in PDF to download

User Manual for Avantone Pro CDMK5 5-Mic Drum Microphone Kit

Click to enlarge the picture
Avantone Pro CDMK5 5-Mic Drum Microphone Kit Contents of the user manual for the Avantone Pro CDMK5 5-Mic Drum Microphone
  • Product category: Dynamic Microphones Avantone Pro
  • Brand: Avantone Pro
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Avantone Pro Dynamic Microphones

User manual for the Avantone Pro CDMK5 5-Mic Drum Microphone contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Avantone Pro product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Avantone Pro user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Avantone Pro product will considerably shorten its lifespan!



Product description

The CDMK5 5-Mic Drum Microphone Kit from Avantone is a 5-mic drum-microphone kit that makes it easy to capture kick drum, snare drum, and three toms, using drum-specific, 2nd-Generation Avantone dynamic mics. The CDMK5 is equally at home on stage or in the studio.

The included MONDO kick drum mic has an aggressive frequency contour, handles 145 dB SPL, and is equipped with an internal shockmount assembly for the capsule, which minimizes the vibrations that cause rumble.

For the snare, you get the ADM snare drum mic, which gives you similar voicing to the "industry standard" snare mic, but with better lows and an extended high-end. The ADM is also an excellent choice for high toms, bongos, congas, guitar cabinets, and many other miking chores.

The CDMK5 provides three ATOM tom microphones. These feature oversized capsules designed for capturing hefty lows and a penetrating attack. The mic has an internal shockmount assembly for the capsule, which helps prevent the vibrations that cause rumble. The ATOM is also recommended for large congas, djembe, and bass-amp cabinets.

The kit also includes 4 PK-1 PRO-KLAMP drum mic mounts, which take the place of bulky mic stands by making it possible to attach the mics directly to the snare and tom rims. The PK-1s help reduce unwanted vibration, and make positioning the mics a snap. All five mics come with SSM shockmounts, which help decouple the mics from unwanted low-frequency transfer and vibration.

The mics in this kit feature die-cast zinc bodies, and have no plastic parts to break. The kit comes in a custom, vintage-tweed case that features metal corners, locking latches, a high-density foam tray, a plush lining, and a faux-alligator trim exterior. The interior foam can be lifted out to provide additional storage space for cables and other accessories.

MONDO Dynamic Kick Drum Microphonecevbfaxybqae

ADM Dynamic Snare Drum Microphone

MONDO ATOM Dynamic Tom Microphone

PK-1 PRO-KLAMP Drum Rim Microphone Mount

SSM Professional Shockmount
  • Mondo Dynamic Kick Drum Microphone The MONDO Dynamic Kick Drum Microphone from Avantone is a ruggedly designed kick drum microphone with an elegant finish that is also well suited for bass cabinets and other low-frequency signal capturing. The MONDO delivers aggressive frequency contouring and accentuates bass frequencies, leaving engineers to make very little EQ adjustments in both live sound reinforcement and recording applications alike. The dynamic capsule is capable of handling high SPL before distortion and is internally shockmounted for a high degree of resistance against structure-born noise. Its elegant Cabernet Wine-Red finish features nickel trim, rugged black grill and absolutely no breakable plastic components. The microphone includes a shockmount (SSM) and rugged padded carrying case.
    • Designed for live clubs and concerts, as well as serious studio recording projects
    • Very aggressive frequency contour that sounds huge right out of the box, so most engineers will find little need for EQ
    • Die cast from zinc, with a brass and steel grill assembly
    • Cabernet Wine-Red finish, accented with polished nickel trim and a black grill assembly
    • All components are designed and manufactured using the finest materials yielding a very solid feel, superb structural integrity and rugged reliability
    • Internal shockmounting on the capsule assembly to prevent the transmission of unwanted "rumble" from physical vibrations
    UPC: 852437001156
  • ADM Dynamic Snare Drum Microphone The ADM Dynamic Snare Drum Microphone from Avantone is a ruggedly designed snare drum microphone with an elegant finish that is also well suited for percussion, guitar cabinets, and instruments. The ADM delivers a transparent, familiar snare drum sound for recording and live sound reinforcement. It features an extended low frequency response and extended high-end, making it a versatile solution for a multitude of signal sources. The dynamic capsule is capable of handling high SPL before distortion and features a cardioid polar pattern.Its elegant Cabernet Wine-Red finish features a nickel trim, rugged black grill and no breakable plastic components. The microphone is shipped with their PK-1 Pro-Klamp drum rim mount. The mount allows for close, adjustable positioning without bulky microphone stands, and is constructed with three stages of rubber dampening and decoupling material to suppress noise caused by vibration and rigorous playing. A shockmount (SSM) and rugged padded carrying case are also included.
    • Delivers the familiar sound of industry standard snare microphones, with enhanced low-end and smoother, extended top-end
    • Die cast from zinc, with a brass and steel grill assembly and no plastic parts to break
    • Machined insets on the barrel of the microphone body to lock the included SSM shockmount in place
    • The included PK-1 Pro-Klamp drum rim mic mount allows confident microphone positioning while inhibiting the transfer of unwanted vibrations with three stages of rubber dampening/decoupling material. This isolation allows for professional results without the need for traditional tripod/boom stands
    UPC: 852437001163
  • ATOM Dynamic Tom Microphone The ATOM Dynamic Tom Microphone from Avantone is a ruggedly designed tome microphone that is well suited for congas, bass cabinets, and other similar instruments. The ATOM delivers large low-end and fast, penetrating attacks for recording and live sound reinforcement. Its big-tone requires little or no EQ processing and the dynamic capsule is capable of handling high SPL before distortion, and features a cardioid polar pattern.Its elegant Cabernet Wine-Red finish features nickel trim, rugged black grill and no breakable plastic components. The microphone is shipped with a PK-1 Pro-Klamp drum rim mount. The mount allows for close, adjustable positioning without bulky microphone stands, and is constructed with three stages of rubber dampening and decoupling material to suppress noise cased by vibration and rigorous playing. A shockmount (SSM) and rugged padded carrying case are also included.
    • Incorporates an oversize capsule that captures extended low-end as well as a penetrating attack. The Atom is custom voiced to yield a fat, big sound that often requires no EQ at all
    • Because of the special voicing on the Atom, it also is fantastic on djembe, large congas, bass amp cabinets and other similar sources
    • Die cast from zinc, with a brass and steel grill assembly and no plastic parts to break
    • Machined insets on the barrel of the microphone body to lock the included SSM shockmount in place
    • The included PK-1 Pro-Klamp drum rim mic mount allows confident microphone positioning while inhibiting the transfer of unwanted vibrations with three stages of rubber dampening/decoupling material. This isolation allows for professional results without the need for traditional tripod/boom stands
    UPC: 852437001170
  • PK-1 Pro-Klamp Drum Rim Microphone Mount The Avantone PK-1 Pro-Klamp Drum Rim Microphone Mount is a rugged drum-rim mount for close microphone positioning on snare drums, toms, percussion instruments and more. The PK-1 Pro-Klamp features 3 stages of rubber dampening that isolates the microphone against vibration noise, as well as protects the rim against marring. The mount easily attaches all standard 5/8"-27 thread mic clip attachments. UPC: 794504980516
  • SSM Professional Shockmount The Avantone SSM Professional Shockmount greatly reduces microphone noise caused by vibration, handling, etc. The SSM features a weighty, all-metal construction that makes it durable and further aids against energy transference that may cause noise. Its 4 o-ring suspension bands are durable and made of a resilient ethylene propylene material that is highly resistant to breaks and tears. The o-rings may be attached horizontally, vertically, or crossed for added tension. The SSM will successfully mount Avantone microphones, or third-party microphones measuring 0.74 - 0.86" (19 - 22mm) in diameter.
      Fits Most Microphones with a 0.74 - 0.86" (19mm-22mm) Diameter Body Including:
    • MXL 603
      MXL 604
      Neumann KM-184
      Neumann KM-84
      Audix SCX-1
      Audix SCX-25
      Audix F-15
      Audix ADX-51
      RODE NT5
      DPA 4000 Series
      B&K 4000 Series
      Earthworks Mics
      AKG C451
      AKG C460
      AKG C60
      ADK SC-1 / SC-2 / SC-T
      Audio-Technica 4041a / 4049a / 4051a / 4053a
      Beyer MC 930
      M-Audio Pulsar
      Microtech Gefell M294 / 295 / 300
      SMS 2000
      Okatava MC 012 / 101
      Sennheiser K6
      Shure KSM137 / KSM141 / SM 81 / SM63
      T.H.E. KR-33A / KR-2W / KR-25A / KR-1F / KR-2C / TT-3M
      Samson CO2 / CO2H
      Superlux SMKH8K
    UPC: 852437001033
In the Box Bundle Items Mondo Dynamic Kick Drum Microphone cevbfaxybqae
  • SSM Professional Shockmount
  • Custom-Molded Carrying Case
  • Limited 5-Year Warranty
ADM Dynamic Snare Drum Microphone
  • SSM Professional Shockmount
  • PK-1 Pro-Klamp Drum Rim Microphone Mount
  • Custom-Molded Carrying Case
  • Limited 5-Year Warranty
3 x ATOM Dynamic Tom Microphone
  • SSM Professional Shockmount
  • PK-1 Pro-Klamp Drum Rim Microphone Mount
  • Custom-Molded Carrying Case
  • Limited 5-Year Warranty
4 x PK-1 Pro-Klamp Drum Rim Microphone Mount
  • 5 Year Warranty
5 x SSM Professional Shockmount
  • 2 x Spare O-Rings
  • 5-Year Warranty

Also Includes

  • Custom Heavy-Duty, Locking, Padded Tweed Vintage Case
  • Limited 5-Year Warranty
Table of Contents




Upload User Manual

Have you got an user manual for the Avantone Pro CDMK5 5-Mic Drum Microphone Kit in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Upload PDF user manual Upload DOC user manual
Please enter here the link to the user manual of this product:





OR

Enter here the file with the user manual of this product from your computer/phone:
(60MB max; Permitted formats: PDF)

0%


Technical parameters

  • Mondo Dynamic Kick Drum Microphone
    Transducer Dynamic
    Polar Pattern Cardioid
    Frequency Range 20 Hz to 15 kHz
    Maximum SPL 145 dB SPL
    Impedance 210 Ohms
    Output Connectors 1 x 3-Pin XLR
    Weight 16 oz / 454 g
    Box Dimensions (LxWxH) 12.15 x 4.95 x 3.2"
  • ADM Dynamic Snare Drum Microphone
    Transducer Dynamic
    Polar Pattern Cardioid
    Frequency Range 50 Hz to 16 kHz
    Maximum SPL 145 dB SPL
    Impedance 520 Ohms
    Output Connectors 1 x 3-Pin XLR
    Weight 11 oz / 312 g
    Box Dimensions (LxWxH) 12.1 x 4.9 x 3.3"
  • ATOM Dynamic Tom Microphone
    Transducer Dynamic
    Polar Pattern Cardioid
    Frequency Range 30 Hz to 15 kHz
    Maximum SPL 145 dB SPL
    Impedance 220 Ohms
    Output Connectors 1 x 3-Pin XLR
    Weight 13 oz / 369 g
    Box Dimensions (LxWxH) 12.1 x 4.9 x 3.2"
  • PK-1 Pro-Klamp Drum Rim Microphone Mount
    Box Dimensions (LxWxH) 6.0 x 3.8 x 1.2"
  • SSM Professional Shockmount
    Box Dimensions (LxWxH) 7.4 x 4.4 x 1.6"
