User Manual for Avantone Pro CK-1 Small-Capsule FET Pencil Microphone Click to enlarge the picture
Contents of the user manual for the Avantone Pro CK-1 Small-Capsule FET Pencil
- Product category: Small Diaphragm Condenser Avantone Pro
- Brand: Avantone Pro
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Avantone Pro Small Diaphragm Condenser
 |
User manual for the Avantone Pro CK-1 Small-Capsule FET Pencil contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Avantone Pro product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Avantone Pro user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Avantone Pro product will considerably shorten its lifespan!
|

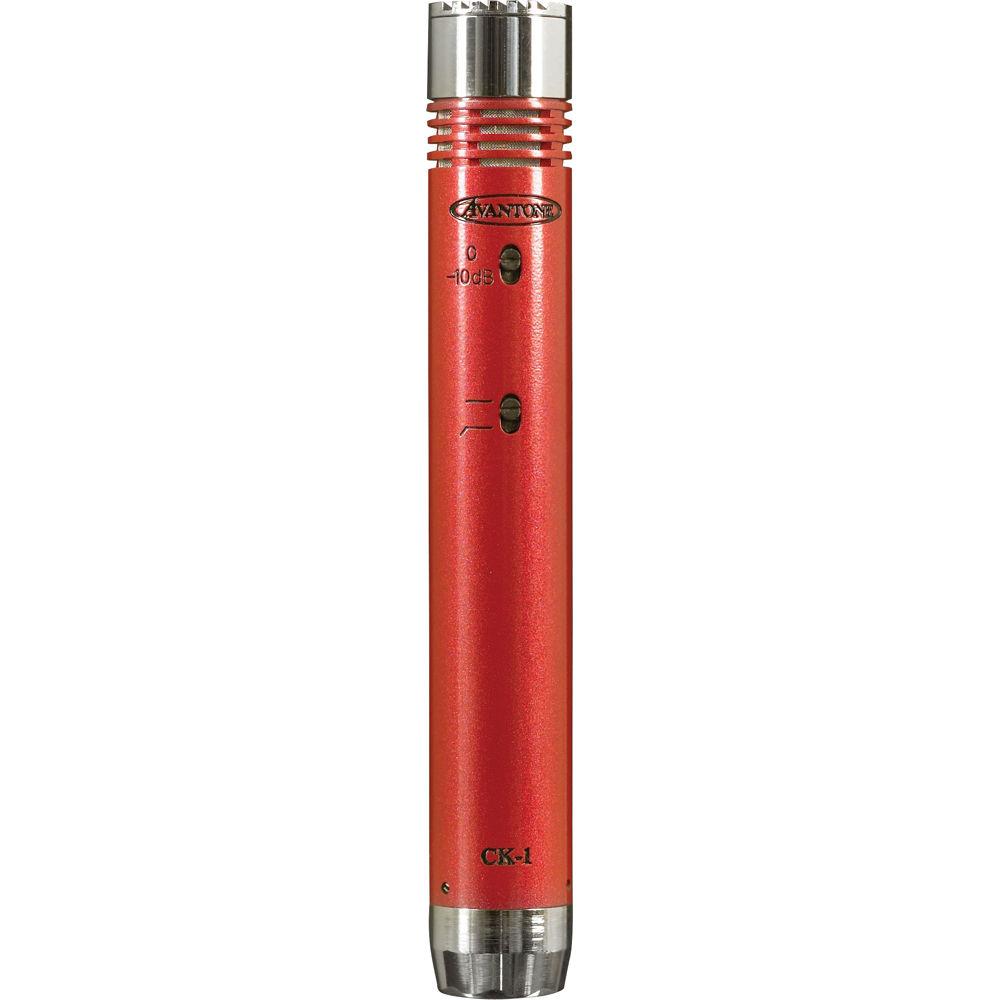

Product description The CK-1 Small-Capsule FET Pencil Microphone from Avantone features a durable pencil microphone design with a Cabernet Wine-Red finish, nickel trim, and a black grille. It is suitable for capturing overheads (cymbals), acoustic instruments, amplifier cabinets, and vocals. The CK-1 offers an interchangeable capsule design and includes three condenser capsules with cardioid, omnidirectional and hypercardioid polar patterns. The condenser capsules combined with an FET output stage provide clear detail and high-quality audio. There is a -10 dB pad (attenuation) switch and an 80 Hz high-pass filter switch for minimizing low-frequency noise. The microphone includes an SSM shockmount and a padded wooden carrying case. - High grade polystyrene and metalized polypropylene capacitors in the signal path
- The CK-1 includes three 3/4" interchangeable capsules for a wide variety of miking possibilities

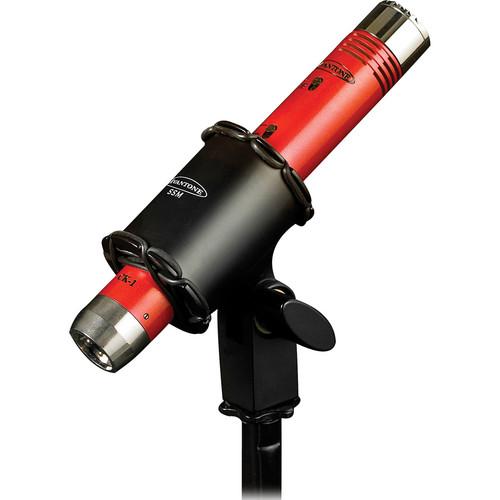

- The SSM shockmount allows for precise positioning of the mic while inhibiting the transfer of unwanted vibrations
- When miking high SPL sources, the -10 dB attenuation switch can be engaged to keep from overloading the electronics
- The 80 Hz high-pass filter switch reduces rumble and unwanted low frequencies

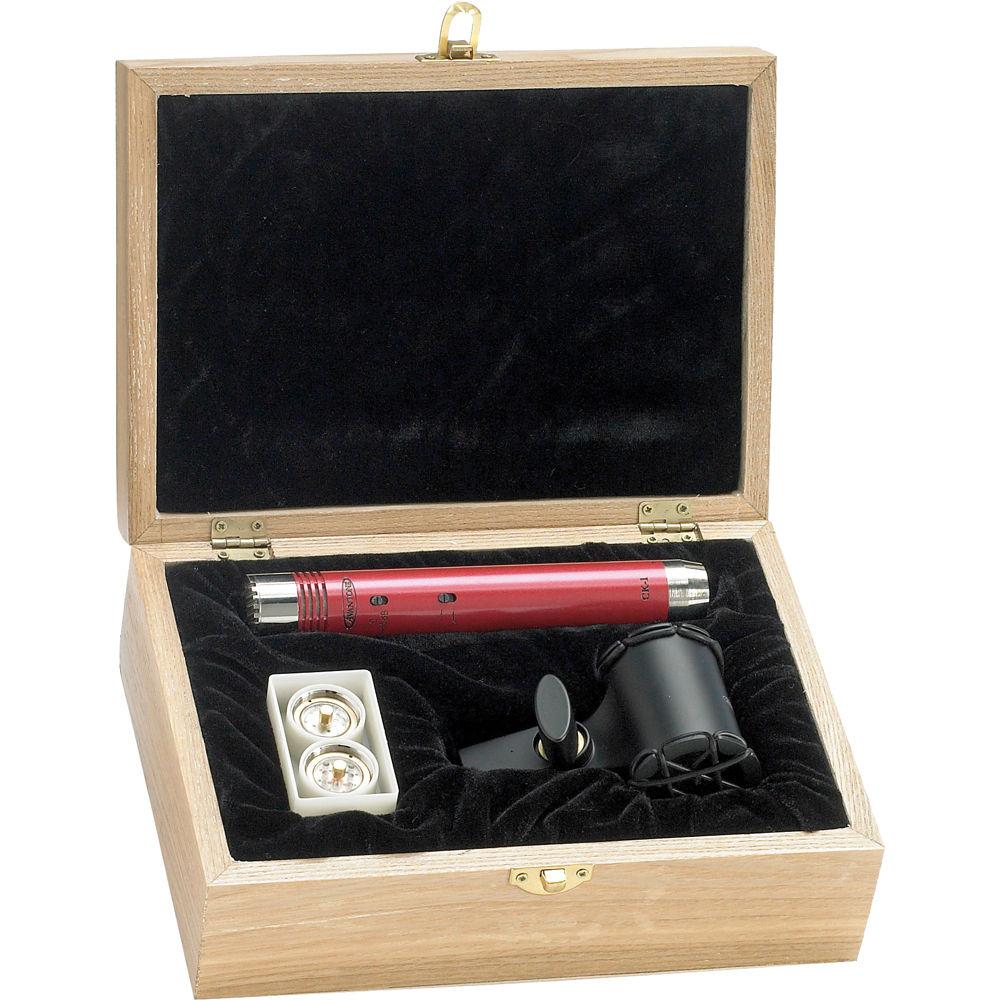

UPC: 187586000041 In the Box Avantone Pro CK-1 Small-Capsule FET Pencil Microphone SSM Professional Shockmount Cardioid Capsule Omnidirectional Capsule Hypercardioid Capsule Padded Wooden Box Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Avantone Pro CK-1 Small-Capsule FET Pencil Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAvantone Pro CK-1 Specs | | | Transducer | Condenser | | Diaphragm | 0.75" / 19 mm | | Polar Pattern | Cardioid, Hypercardioid, Omnidirectional | | Pattern Selection | Switched | | Frequency Range | 25 Hz to 20 kHz | | Signal to Noise Ratio | 78 dB | | Equivalent Noise Level | 17 dB A-Weighted | | Maximum SPL | 138 dB SPL | | Pad | -10 dB | | THD | 0.5% | | Impedance | 200 Ohms | | Sensitivity | 15 mV/Pa | | Low-Cut Filter | 6 dB/Octave @ 80 Hz | | | | Output Connectors | 1 x 3-Pin XLR | | Operating Current Consumption | 5.0 mA | | Operating Voltage | 48 V | | Length | 6.02" / 153 mm | | Diameter | 0.91" / 23 mm | | Weight | 5.0 oz / 142 g | | | | Package Weight | 2.57 lb | | Box Dimensions (LxWxH) | 8.95 x 6.8 x 3.9" |
