User Manual for Avantone Pro CK-40 Stereo Multi-Pattern FET Microphone Click to enlarge the picture
Contents of the user manual for the Avantone Pro CK-40 Stereo Multi-Pattern FET
- Product category: Large Diaphragm Condenser Avantone Pro
- Brand: Avantone Pro
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Avantone Pro Large Diaphragm Condenser
 |
User manual for the Avantone Pro CK-40 Stereo Multi-Pattern FET contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Avantone Pro product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Avantone Pro user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Avantone Pro product will considerably shorten its lifespan!
|

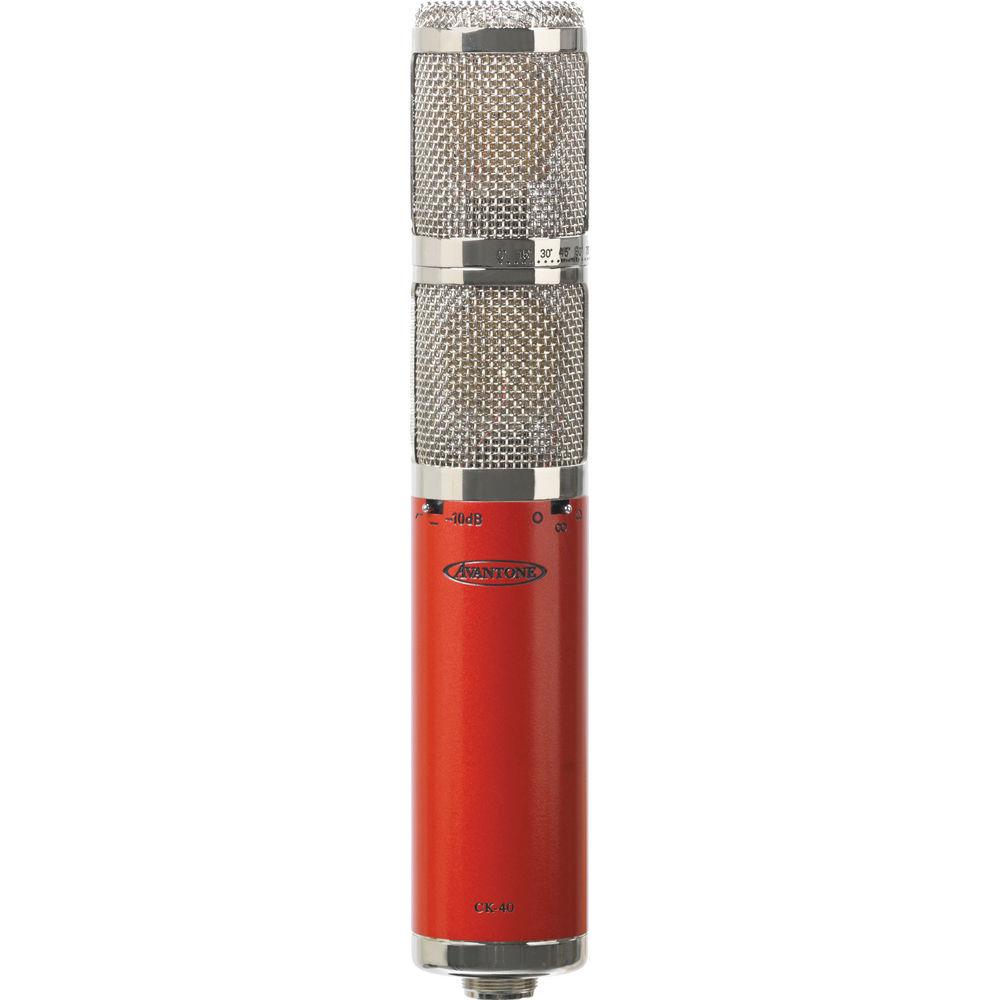

Product description The CK-40 Stereo Multi-Pattern FET Microphone from Avantone is designed to produce clear stereo recordings of vocals, instruments, ensembles, and ambiance. The CK-40 features a red finish, consistent with Avantone's Cabernet (C-series) microphone line. Twin large 35mm capsules are mounted vertically, and the top capsule can be rotated up to 180° for flexible positioning. There are switchable omnidirectional, cardioid and figure 8 polar patterns, which can be independently selected. These positioning options allow for Blumlein, X/Y, and M-S stereo recording techniques. An 80 Hz high-pass filter and -10 dB pad can be individually assigned for additional flexibility. Included in the package is a shockmount, a foam wind filter, a 30' 5-pin XLR cable, a 5-pin XLR to dual 3-pin XLR breakout box, a wooden case, and a metal travel case. - Twin 35mm center-terminated pressure gradient transducers
- Tight vertical array of transducers enables accurate stereo imaging without phase issues
- Individually selectable cardioid, omnidirectional, and figure-8 polar patterns
- The top capsule/grill assembly rotates up to 180° relative to the lower capsule/grill assembly
- Two sets of pad, pattern select, and low frequency roll-off switches independently control the capsules

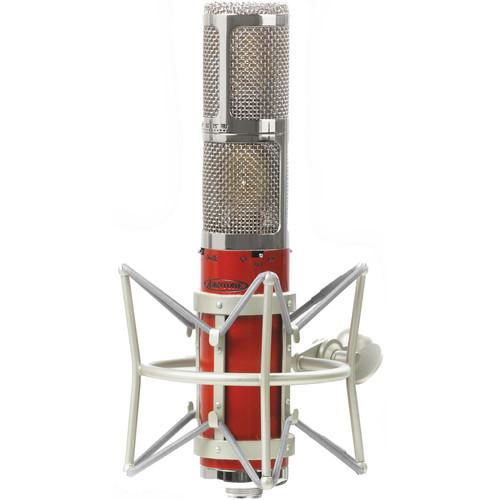

- Custom retro shockmount allows precise positioning of the mic while inhibiting the transfer of unwanted vibrations

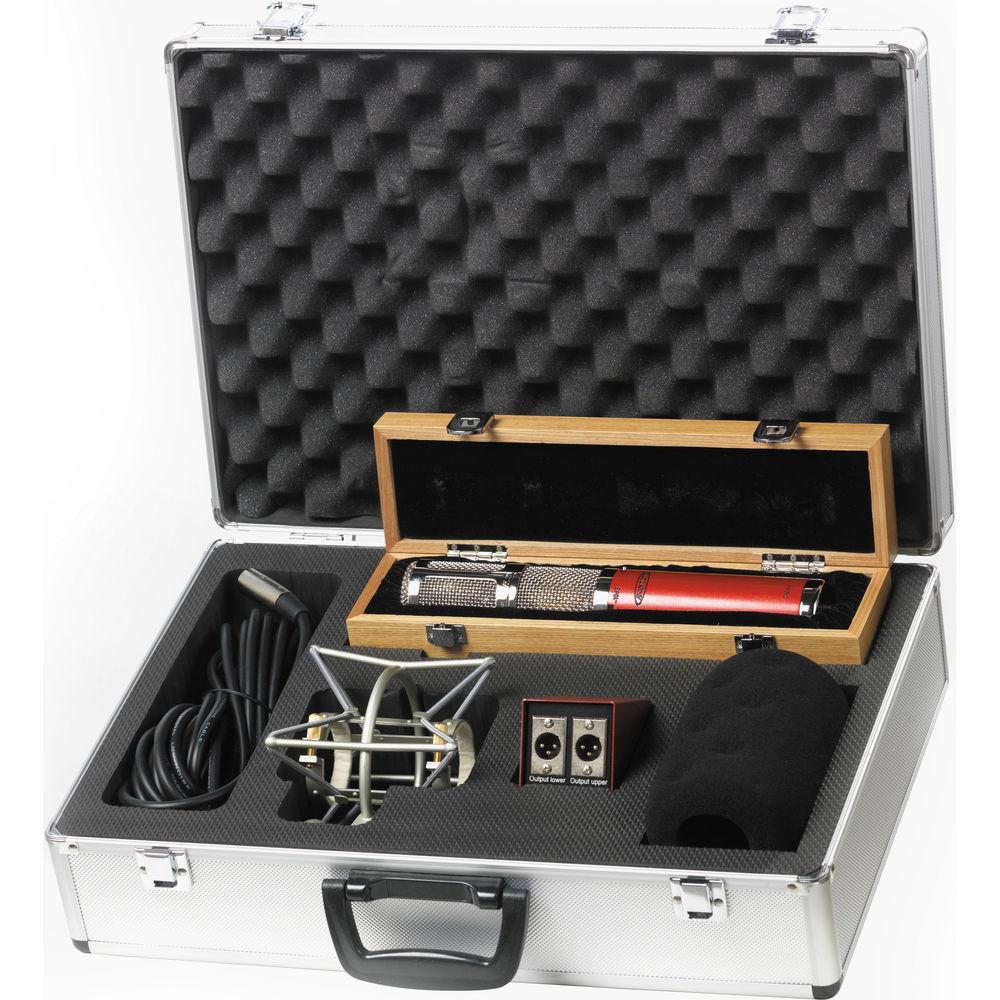

UPC: 852437001118 In the Box Avantone Pro CK-40 Stereo Multi-Pattern FET Microphone Wood Box Shockmount Foam Filter 2 x 1 Splitter Box 5-pin Cable (30') Metal Road Case Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Avantone Pro CK-40 Stereo Multi-Pattern FET Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAvantone Pro CK-40 Specs | | | Transducer | Condenser | | Diaphragm | 1.38" / 35.0 mm | | Polar Pattern | Cardioid, Figure-8, Omnidirectional | | Pattern Selection | Switched | | Frequency Range | 20 Hz to 20 kHz | | Signal to Noise Ratio | 77 dB | | Equivalent Noise Level | 17 dB A-Weighted | | Maximum SPL | 147 dB SPL | | Pad | -10 dB | | THD | 0.5% | | Impedance | 250 Ohms | | Sensitivity | -40 dB | | Low-Cut Filter | 6 dB/Octave @ 80 Hz | | | | Output Connectors | 1 x 5-Pin XLR | | Cable Length | 30' / 9.1 m | | Operating Current Consumption | 3.0 µA | | Operating Voltage | 48 V | | Length | 10.87" / 276.10 mm | | Diameter | 1.93" / 49 mm | | Weight | 2.1 lb / 0.95 kg | | | | Package Weight | 12.05 lb | | Box Dimensions (LxWxH) | 20.1 x 17.1 x 6.9" |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 80 owners. Add your rating and experience with the product.
